Adder ALAV104T-US – AdderLink AV104 4-Way Signage Transmitter

Product Overview

The Adder ALAV104T-US is an AdderLink AV104 4-way digital signage transmitter that distributes a single VGA video and stereo audio source to up to four receivers over CATx cable at distances up to 300m (1000ft). As a VGA and audio extender over CAT5 for signage and display distribution, it lets one media player or PC drive screens spread across a building using standard structured cabling. It is the point-to-multipoint transmitter of the AdderLink AV100 series, a proven platform for analog video distribution to remote displays and speakers.

Product Description

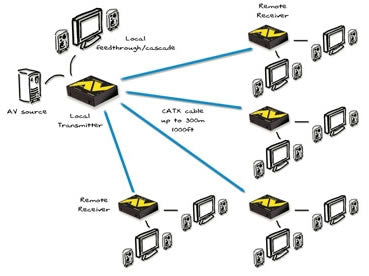

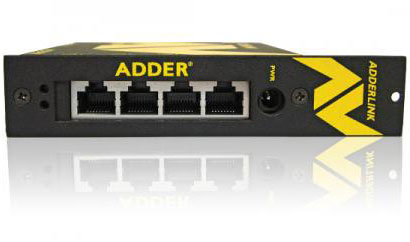

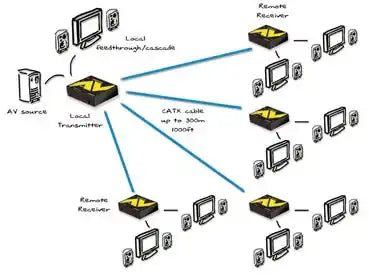

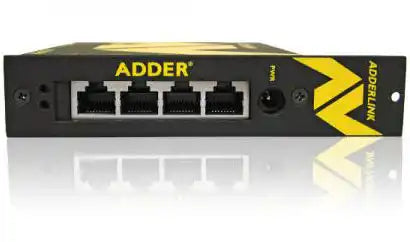

The AV104 transmitter connects to the source computer's VGA and 3.5mm audio outputs and provides four RJ45 link ports, each feeding an AdderLink AV receiver over Category 5 or higher twisted pair cable. With a single receiver on a link, the cable may run up to 300m (1000ft), and each AV101 receiver drives two display-and-speaker sets — so one AV104 can directly feed up to eight remote screens.

Resolution scales with distance: 1600 x 1200 at 60Hz is achievable at 200m, and 1280 x 1024 at 60Hz at the full 300m. Local video and audio output ports on the transmitter can drive a monitor and speakers beside the source, or cascade into a further AV104 transmitter for larger systems — up to three cascade connections per branch, with vendor-documented derating of total link length as cascades are added.

The transmitter automatically clones DDC data from a monitor on its local port and presents it to the source computer, so graphics outputs configure correctly even in multi-display distribution. Two pages of DDC data are stored in non-volatile memory.

Please note: the AdderLink AV100 series is a legacy product line that no longer appears in Adder's current catalog; specifications above are drawn from the vendor's published AV100 series documentation. The ALAV104T-US remains a sound choice for maintaining and expanding existing VGA signage systems. Receivers, power supplies and rack hardware for the series, along with current Adder platforms, are available in the Adder Technology collection at Creation Networks.

Key Features

• 4-way point-to-multipoint distribution — One transmitter feeds up to four AdderLink AV receivers, each driving two display/speaker sets.
• 1000ft CATx reach — Single-receiver links may run up to 300m (1000ft) over Category 5 or higher cable.
• High-resolution VGA video — 1600 x 1200 @ 60Hz at 200m and 1280 x 1024 @ 60Hz at 300m.
• Stereo audio distribution — Carries the source's stereo audio alongside video to every receiver.
• Local output and cascading — Local VGA/audio out drives a nearby monitor or cascades to additional transmitters, up to three cascade links per branch.
• Automatic DDC cloning — Clones display DDC data from the local port and stores two pages in non-volatile memory for correct source configuration.
• Status indicators — Power and video-input LEDs simplify commissioning and troubleshooting.

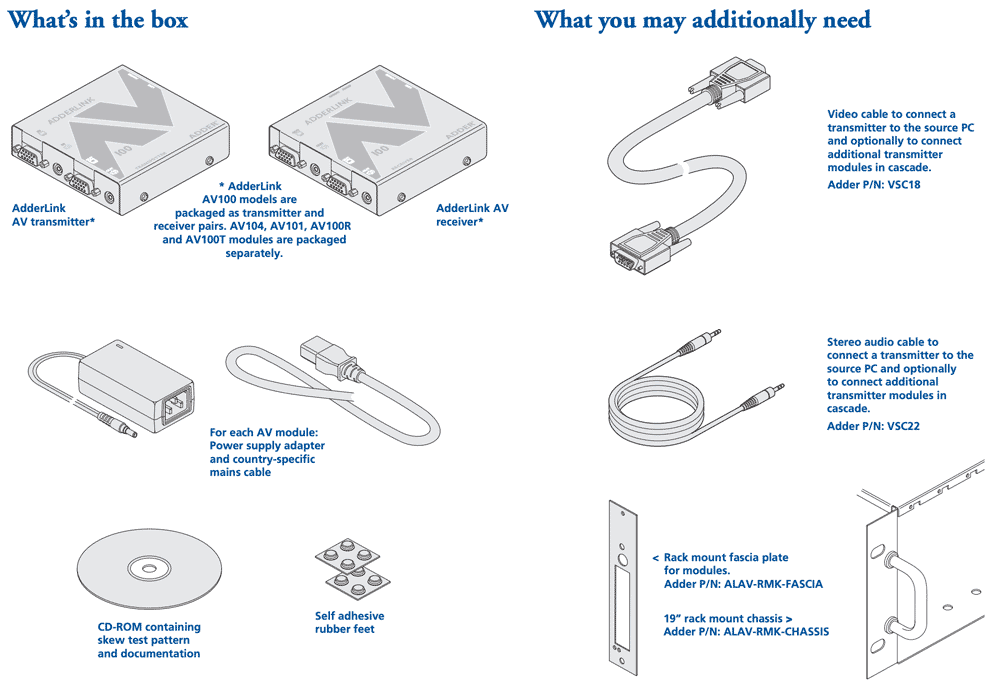

• Flexible mounting — Self-adhesive feet, rear keyhole slot or optional 19-inch rack chassis (sixteen modules per 3U chassis).

Typical Applications

• Houses of worship distributing program video to overflow displays
• Auditoriums feeding lobby and corridor signage from one source
• Commercial meeting spaces repeating presentations to multiple rooms
• Training rooms mirroring instructor content across displays
• Multi-purpose rooms with distributed VGA display points

Technical Specifications

Frequently Asked Questions

Which receivers work with the ALAV104T-US?
AdderLink AV101 receivers (ALAV101R) are the standard match and support receiver cascading; AV100 receivers (ALAV100R) are also compatible.

How many displays can one transmitter feed?
Directly, four receivers with two display/speaker outputs each — eight screens. Cascading transmitters and AV101 receivers expands this further within documented limits.

Is this product still current with the manufacturer?
The AV100 series is a legacy line that no longer appears in Adder's active catalog. It remains fully suitable for maintaining and expanding existing VGA distribution systems, and Creation Networks can advise on current-generation alternatives for new builds.

What happens to resolution at the full 1000ft distance?
Per the vendor manual, 1280 x 1024 @ 60Hz is achievable at 300m; 1600 x 1200 @ 60Hz is supported up to 200m.

Can I drive a local confidence monitor at the source?
Yes. The transmitter's local VGA and audio out ports can feed a monitor and speakers beside the source PC, or cascade to another transmitter.

Does cascading reduce maximum cable length?
Yes. The vendor specifies 300m with no cascades, 250m with one, 200m with two and 175m with three cascade connections per branch.
