Sonance DISC Depth Sensing Gauge – Invisible Series Install Tool

Product Overview

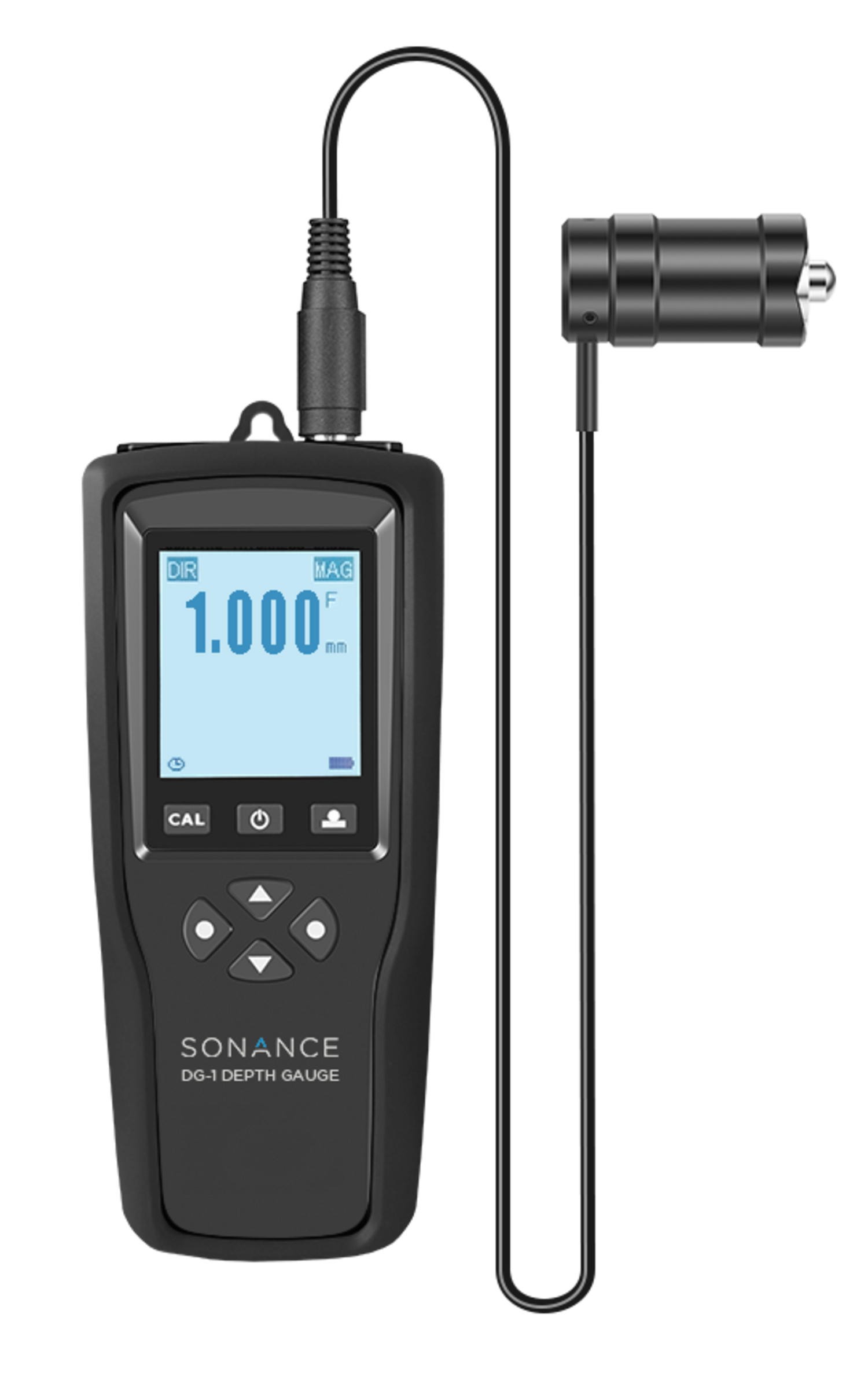

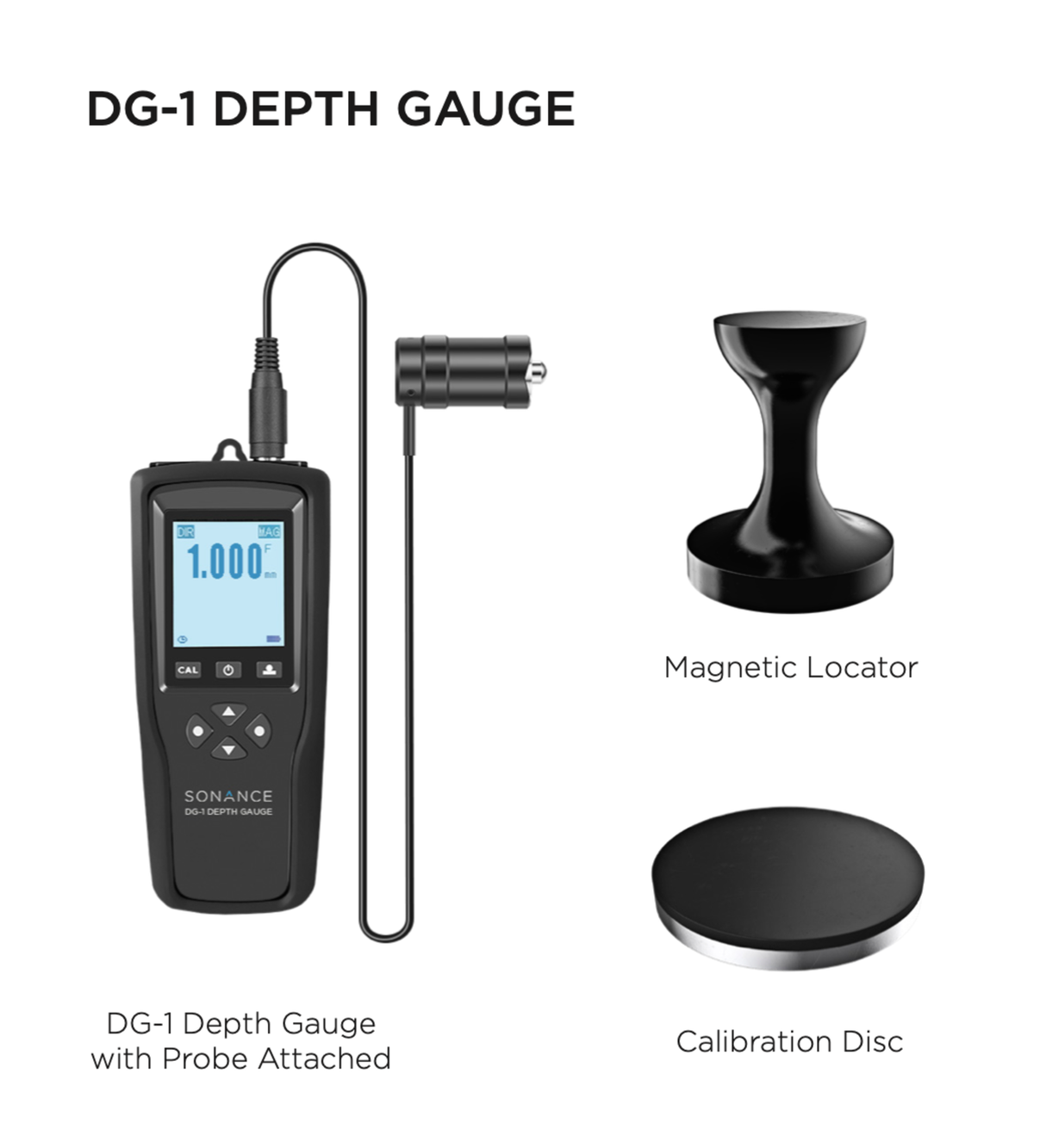

The Sonance DISC System Depth Sensing Gauge is an installation tool used to probe and measure topping compound depth during Invisible Series speaker installation. It is built for professional installers who need consistent, repeatable finish results across every Invisible Series speaker on a job. This gauge is a core part of standardizing how Sonance's disappearing in-wall and in-ceiling speakers perform once painted or papered over.

Product Description

Invisible Series speakers from Sonance are designed to vanish into a finished wall or ceiling, but the acoustic performance of that finished surface depends heavily on how much topping compound sits over the driver. The DISC (Depth Identification Sensing Calibration) System Gauge lets installers probe and measure that compound thickness directly, up to 3mm, across drywall, select plasters, wallpaper, leather, and wood veneer finishes. This matters because inconsistent compound depth from room to room can change how an Invisible Series speaker sounds once it is finished over, even though the speaker model is identical. The gauge is compatible with the IS6, IS6T, IS8, IS8T, IS10, IS10W, and IS15W models, giving integrators one tool to standardize finish depth across an entire multi-room in-ceiling speaker project. For crews running quality control on large Invisible Series installations, this gauge is typically kept on hand alongside the pre-construction brackets and space savers used earlier in the same rough-in process.

Key Features

• Topping Compound Measurement — Probes and measures finish compound depth up to 3mm.
• Multi-Finish Compatibility — Works across drywall, select plasters, wallpaper, leather, and wood veneer.
• Broad Model Compatibility — Supports IS6, IS6T, IS8, IS8T, IS10, IS10W, and IS15W speakers.
• Standardized Finish Quality — Part of Sonance's DISC System for consistent performance across installs.

Typical Applications

• Quality control on multi-room Invisible Series speaker installations
• New-construction and renovation projects requiring consistent finish-over depth

Technical Specifications

Frequently Asked Questions

What does the DISC System Depth Sensing Gauge do?

It probes and measures the topping compound applied over an Invisible Series speaker so installers can confirm the finish depth before the job is closed out.

Which Sonance speakers is this gauge compatible with?

It supports the IS6, IS6T, IS8, IS8T, IS10, IS10W, and IS15W Invisible Series models.

How much topping compound can it measure?

The gauge is rated to probe and measure up to 3mm of topping compound.

What finish materials does it work with?

It is designed for use across drywall, select plasters, wallpaper, leather, and wood veneer finish applications.

Why does topping compound depth matter for Invisible Series speakers?

Because the speaker is finished over, inconsistent compound depth from room to room can change acoustic performance even when the same speaker model is used.

Is this gauge required on every Invisible Series project?

Sonance positions it as part of the DISC System for standardizing finish quality; check with your Creation Networks account representative on recommended use for your specific project.

Does Creation Networks stock this gauge alongside Invisible Series brackets?

Yes, it is commonly ordered together with Invisible Series pre-construction brackets and space savers for the same project.
