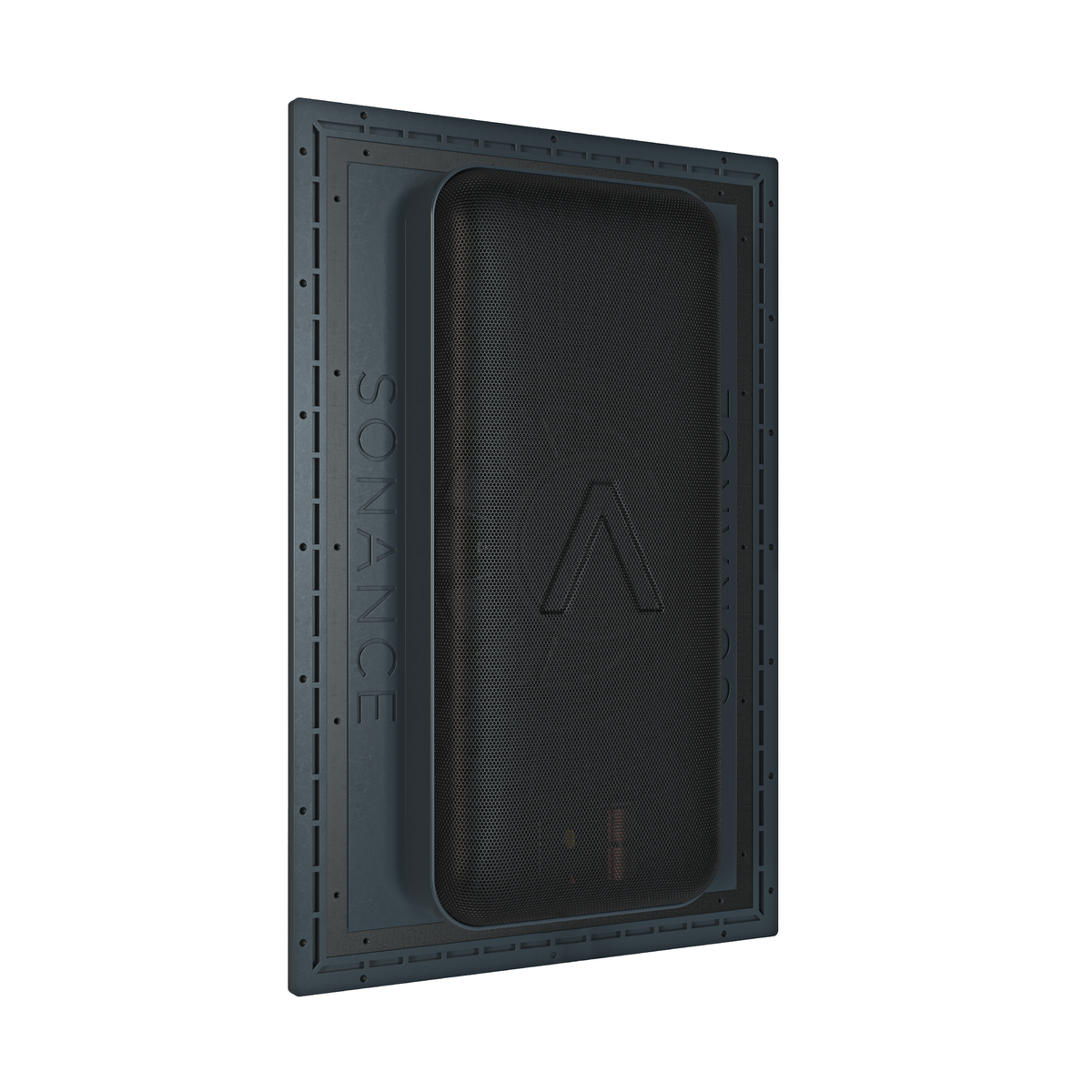

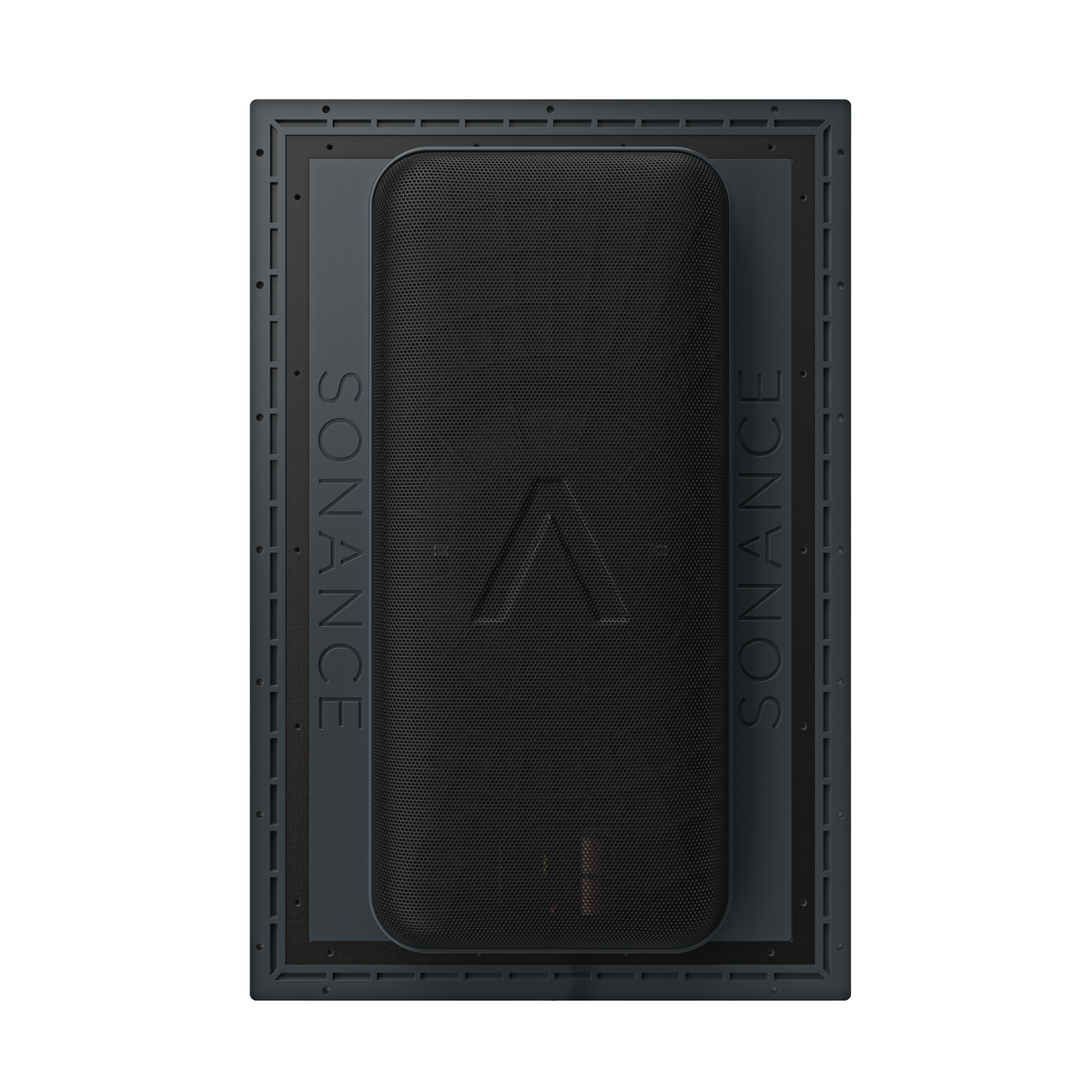

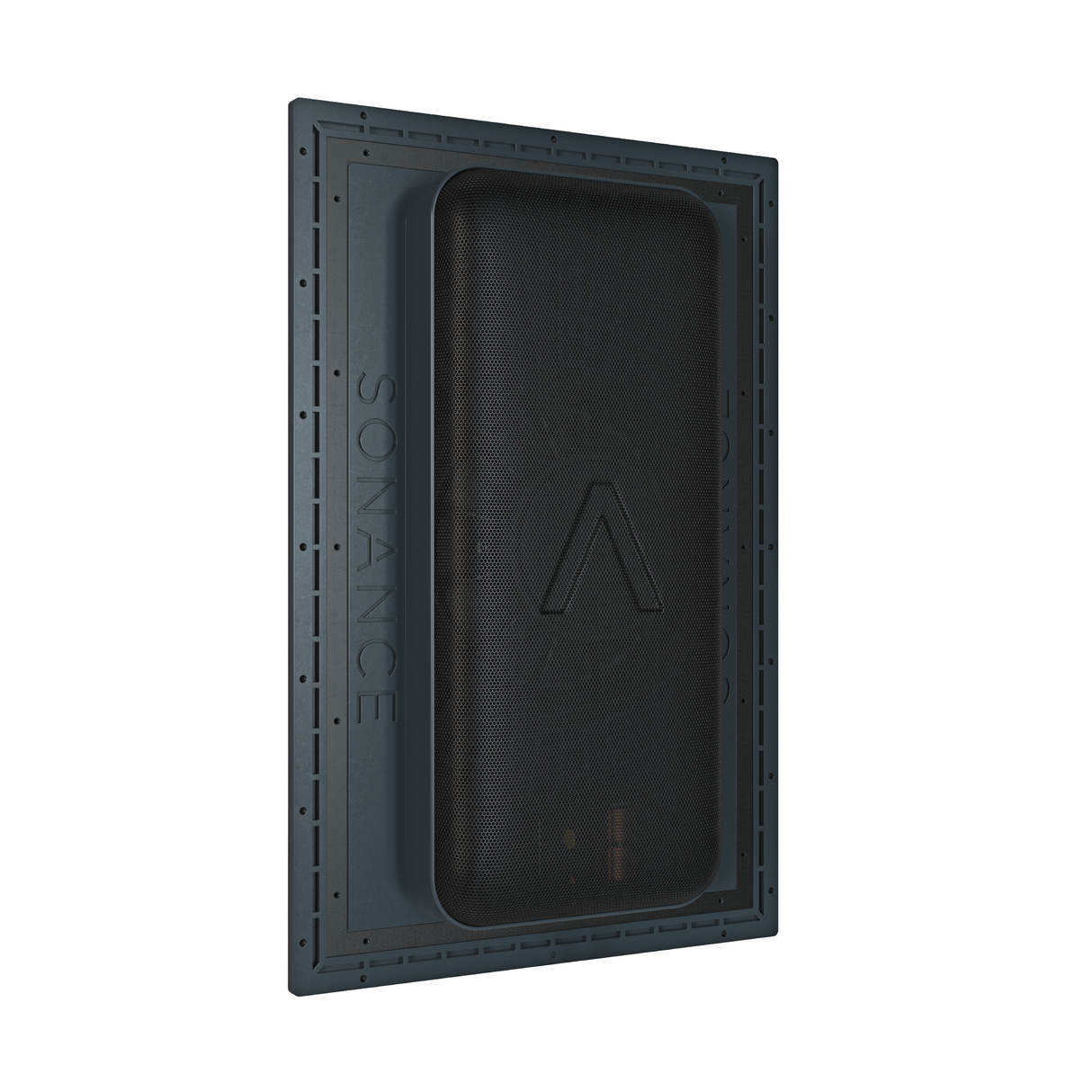

Sonance IS10W – Invisible Series 10-Inch In-Wall Subwoofer

Product Overview

The Sonance IS10W is a dedicated in-wall subwoofer from the Invisible Series, built around a 10-inch glass-fiber woofer to add hidden low-frequency extension to a room already using Invisible Series speakers. It fits within 16-inch on-center stud construction, making it practical to add during a standard residential rough-in.

Product Description

The IS10W pairs with the broader Invisible Series speaker lineup from Sonance to extend bass response in rooms where a visible subwoofer enclosure is not an option. Its 10-inch glass-fiber woofer and 244 in² Air Flex Woofer diaphragm are tuned for a 35Hz–250Hz bandpass response at 87dB sensitivity, handling 200 watts RMS and finishing flush into drywall, select plasters, wallpaper, leather, or wood veneer with up to 3mm of topping compound. Like other Invisible Series models, it uses Motion Flex Technology, the Sonance CDX Crossover Design, and the DISC calibration system, and it fits standard 16-inch on-center stud bays at a 2.68-inch mounting depth. Because the IS10W is purpose-built for low-frequency reproduction rather than full-range playback, it is typically deployed alongside Invisible Series in-wall speakers such as the IS6, IS8, or IS10 to complete a refined whole-home audio system without any visible bass enclosure.

Key Features

• 10-Inch Glass-Fiber Woofer — 244 in² Air Flex Woofer diaphragm is tuned specifically for low-frequency reproduction.
• 16-Inch On-Center Stud Fit — Designed to fit standard 16-inch on-center residential stud bay construction.
• Truly Invisible Finish — Installs into drywall, select plasters, wallpaper, leather, or wood veneer with up to 3mm of topping compound.
• Motion Flex Technology — Isolated baffle and Air Flex Woofer design deliver hidden bass output.
• Sonance CDX Crossover Design — Maintains warmth and detail at all volume levels when paired with Invisible Series speakers.
• 15-Year Limited Warranty — Backed by Sonance when purchased through an authorized dealer.

Typical Applications

• Residential home theaters needing hidden bass extension
• Living rooms already using Invisible Series speakers
• Refined spaces where a visible subwoofer enclosure is undesirable

Technical Specifications

Frequently Asked Questions

What frequency range does the IS10W cover?

The IS10W is tuned as a dedicated in-wall subwoofer with a 35Hz–250Hz frequency response, intended to reproduce low frequencies rather than full-range audio.

Does the IS10W fit standard stud construction?

Yes. The IS10W is designed to fit 16-inch on-center stud bay construction, common in residential framing.

What mounting depth does the IS10W need?

The IS10W requires a 2.68-inch mounting depth.

Can the IS10W be used on its own for music playback?

The IS10W is a dedicated subwoofer for low-frequency extension; it should be paired with full-range Invisible Series speakers such as the IS6, IS8, or IS10 for complete sound reproduction.

Does the IS10W need a visible grille?

No. Like other Invisible Series products, the IS10W finishes flush with drywall, select plasters, wallpaper, leather, or wood veneer.

What warranty covers the IS10W?

Sonance backs the IS10W with a 15-year limited warranty when purchased through an authorized dealer such as Creation Networks.
