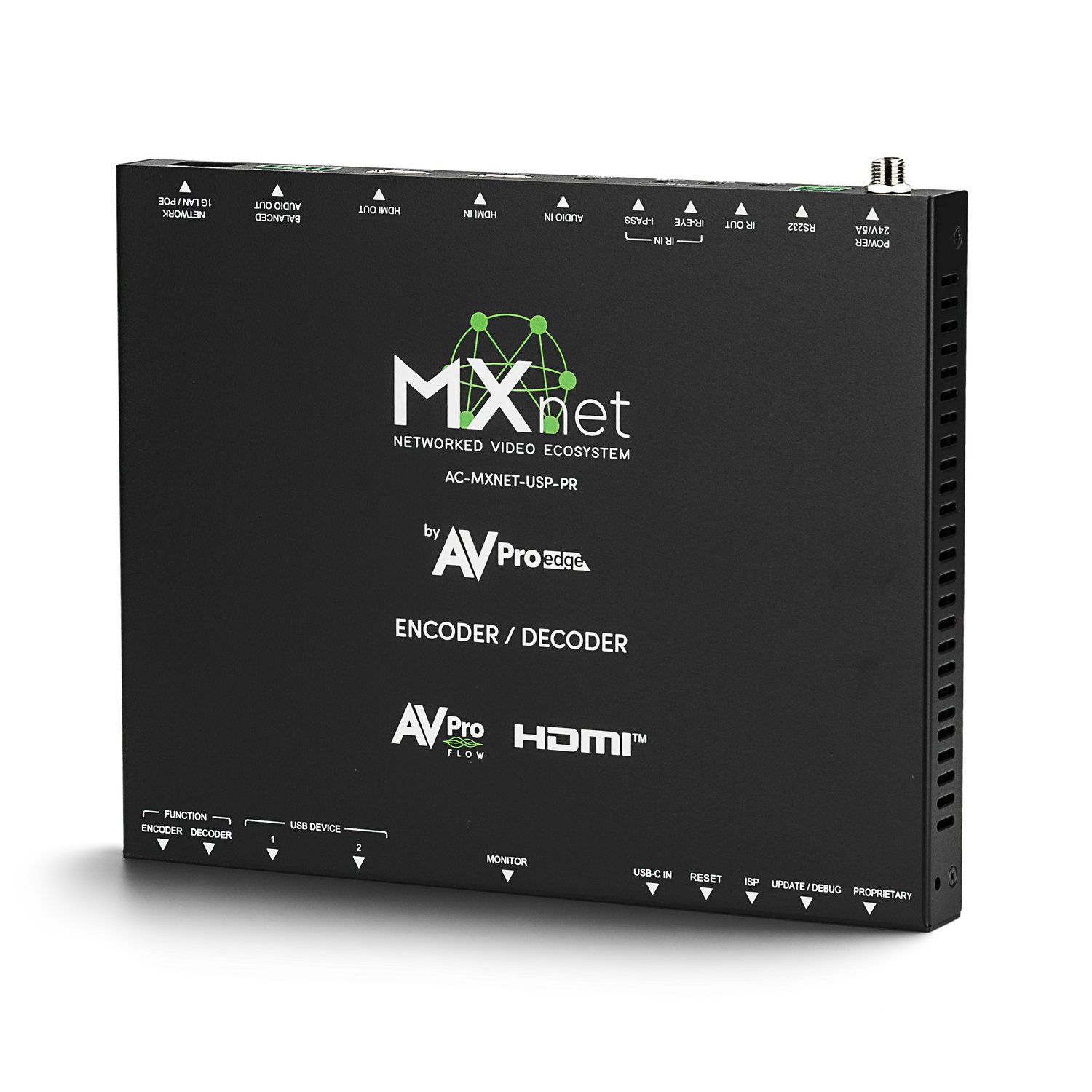

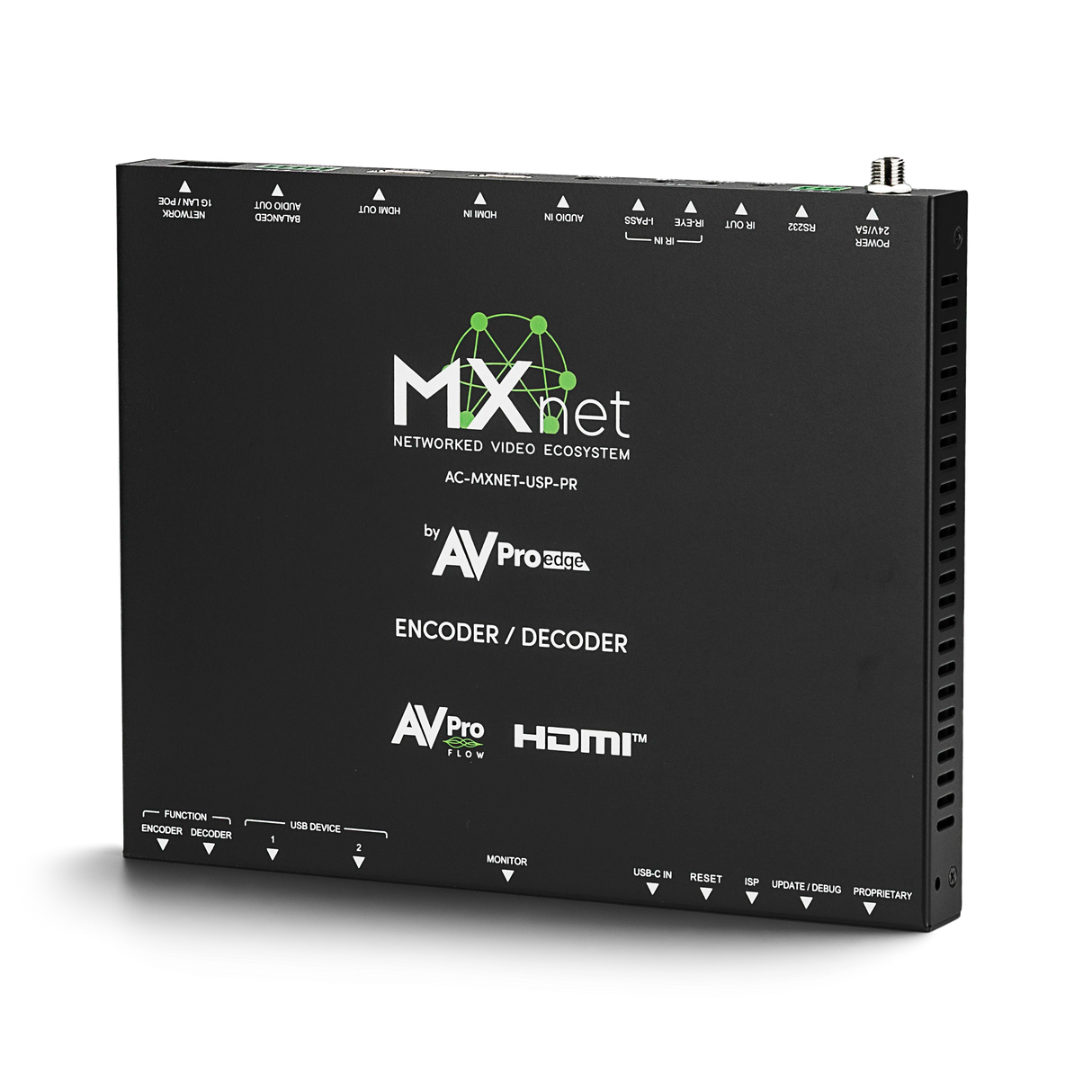

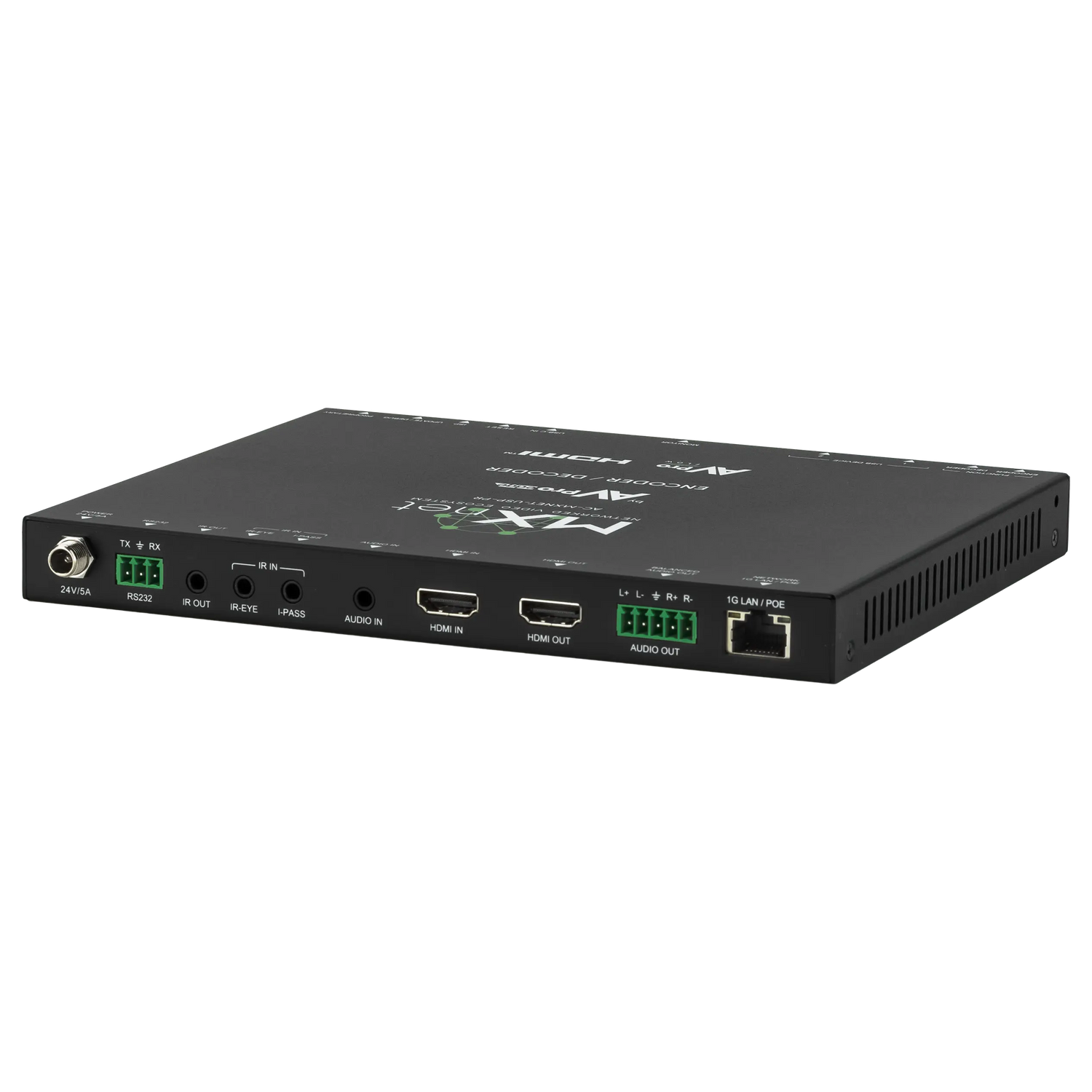

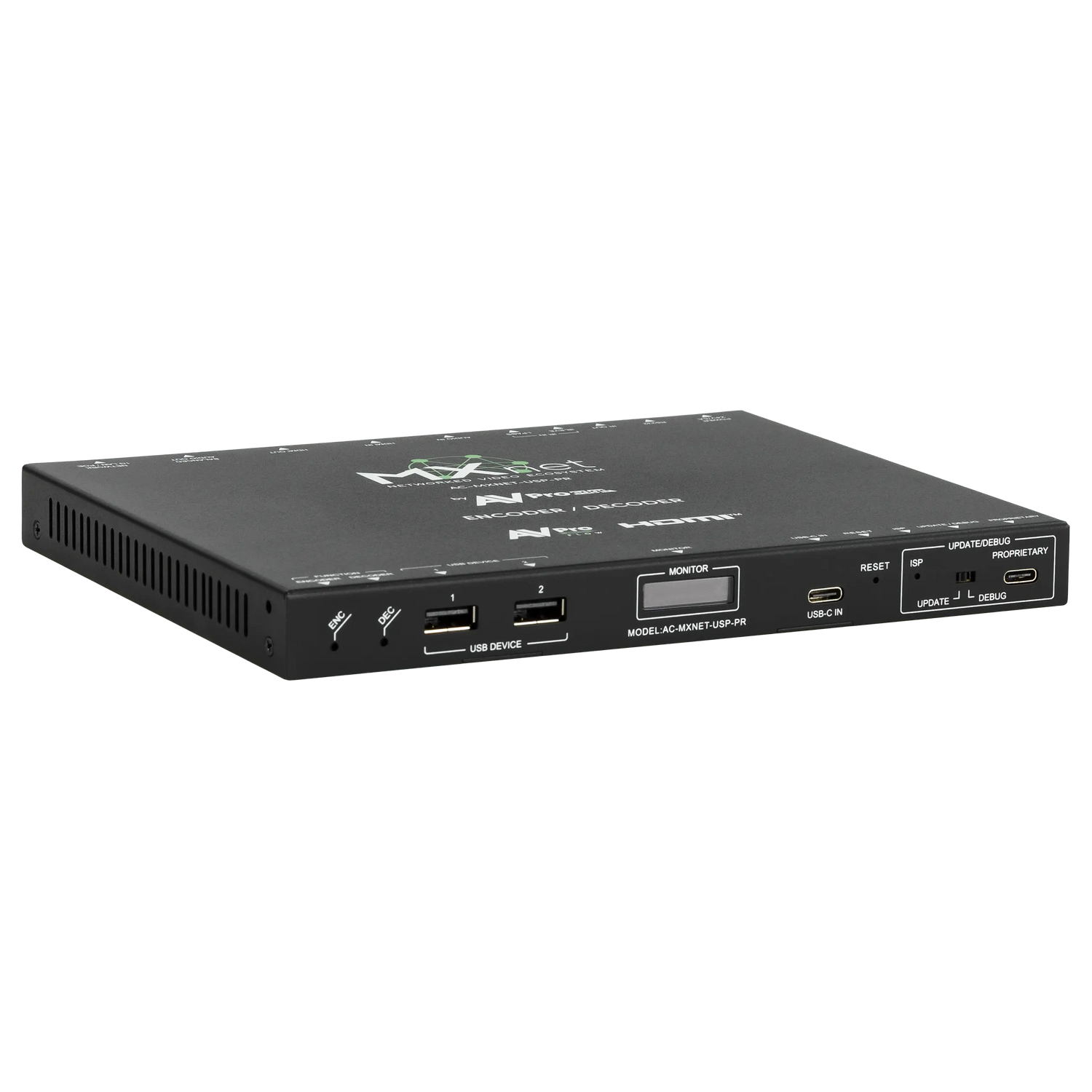

AVPro Edge AC-MXNET-USP-PR - 4K60 AVoIP Pro Transceiver

Product Overview

The AVPro Edge AC-MXNET-USP-PR is a 4K60 H.265/H.264 AVoIP transceiver built for demanding commercial AV environments including hospitality, higher education, government facilities, and transportation hubs. As the flagship of AVPro Edge's USP lineup, it is a true two-way AV over IP encoder decoder with a USB-C input that combines DisplayPort video, USB HID data, and up to 60W of power delivery in a single cable. The USP Pro decodes video up to 7680x4320p30 (8K30), well beyond the USP Essential and USP Plus models, and includes native 16-source multiview for monitoring walls and command-and-control rooms. It is designed for integrators who need the highest resolution and connectivity headroom in the MXnet USP ecosystem.

Product Description

The AC-MXNET-USP-PR encodes video up to 4096x2160p60 4:4:4 8-bit from either an HDMI 2.0b input or a USB-C input with DisplayPort Alt Mode, and decodes incoming streams up to 7680x4320p30 4:4:4 8-bit, giving it the highest decode resolution in the USP family. The USB-C input's single-cable design carries video, USB HID data, and up to 60W of power delivery to a connected laptop, which reduces cable clutter at huddle room and boardroom tables where a BYOD workflow is common. Every USP model functions as a simultaneous encoder and decoder, so the USP Pro can serve as both a room's presentation display endpoint and its content-sharing input from a single unit, cutting device count in a hybrid meeting room deployment. The native 16-window multiview composites streams from any USP encoder or compatible third-party H.265/H.264 IP source directly on the unit, which suits broadcast studios, auditoriums, and command-and-control installations that need extensive source monitoring without a dedicated multiviewer. Native 2-channel Dante and AES67 audio support integrates the USP Pro directly into professional audio networks common in houses of worship, auditoriums, and government facilities. AVPro Flow interoperability extends compatibility to third-party H.26x encoders, IP cameras, and streaming platforms, useful when integrating with existing lecture capture or production systems. Active fan cooling supports the additional processing load of 8K decode and USB-C power delivery, and the unit requires the AC-PSU-24V-5A-L power supply, sold separately, to enable USB-C power delivery. The USP Pro mixes freely with USP Essential and USP Plus units on the same MXnet USP network for tiered, scalable system design.

Key Features

• 4K60 Encode, 8K30 Decode — Encodes video up to 4096x2160p60 4:4:4 and decodes incoming streams up to 7680x4320p30 4:4:4, the highest resolution support in the USP lineup.
• USB-C Single-Cable Input — Combines DisplayPort video, USB HID data, and up to 60W power delivery in one USB-C connection for BYOD workflows.
• Simultaneous Encode and Decode — Functions as a true two-way AV endpoint, reducing device count in hybrid meeting rooms and production environments.
• Native 16-Window Multiview — Composites up to sixteen video sources in a customizable layout without external multiviewer hardware.
• Native Dante/AES67 Audio — Supports 2-channel Dante and AES67 protocols for direct integration with professional audio networks.
• AVPro Flow Interoperability — Provides compatibility with third-party H.265/H.264 encoders, IP cameras, and streaming platforms.
• Integrated Digital Signage Player — Uploads and schedules signage content directly to the endpoint without external media players.
• Mix-and-Match USP Ecosystem — Interoperates with USP Essential and USP Plus units on the same network for scalable system design.

Typical Applications

• Boardroom
• Conference room
• Government space
• House of worship
• Broadcast studio
• Auditorium
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

• Can the USP Pro be mixed with USP Essential or USP Plus on the same network? Yes, all USP models interoperate on the same MXnet USP network for tiered, room-by-room deployment.
• What resolution does the USB-C input support? The USB-C input uses DisplayPort Alt Mode and supports encoding up to 4096x2160p60 4:4:4.
• Does USB-C power delivery require anything extra? Yes, the AC-PSU-24V-5A-L power supply is required and sold separately to enable up to 60W of USB-C power delivery.
• What rack mount accessories are supported? The AC-MXNET-1G-R15 rack mount is supported; the USP Pro does not support the AC-MXNET-1G-R2 rack mount due to its larger chassis depth.
• Does the USP Pro support professional audio networks? Yes, it includes native 2-channel Dante and AES67 support in addition to analog PCM audio.
• Can it work with non-AVPro Edge encoders? Yes, AVPro Flow provides interoperability with compatible third-party H.265/H.264 encoders, IP cameras, and streaming platforms.
• What is the warranty on this product? AVPro Edge covers the AC-MXNET-USP-PR with a 10-year manufacturer warranty.
• What support resources are available for system integrators? AVPro Edge provides data sheets, control drivers, and firmware updates through its support portal.
