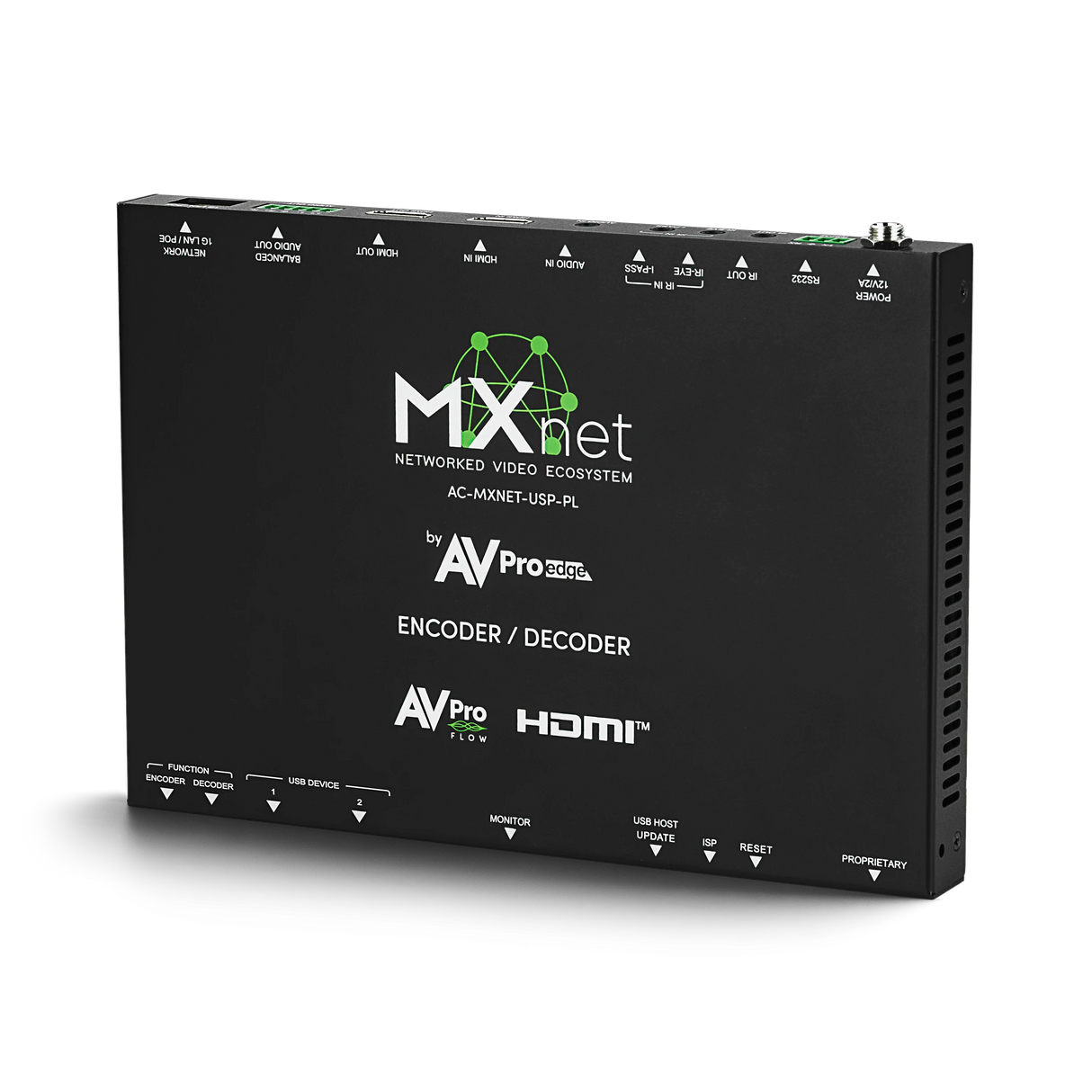

AVPro Edge AC-MXNET-USP-PL - 4K60 AVoIP Transceiver

Product Overview

The AVPro Edge AC-MXNET-USP-PL is a 4K60 H.265/H.264 AVoIP transceiver built for commercial AV distribution over 1GbE networks with added USB routing and Dante/AES67 audio support. As a true two-way AV over IP encoder decoder, the USP Plus sends and receives 4K streams simultaneously, which reduces device count in conference rooms that need both display output and camera or content input at the same location. It adds native 7-source multiview, an integrated digital signage player, and network-routed USB extension for touchscreens and interactive displays. The USP Plus sits in the middle of AVPro Edge's MXnet USP lineup for integrators who need 4K60 performance and professional audio networking without the added USB-C input and fan cooling of the USP Pro.

Product Description

The AC-MXNET-USP-PL transceiver both encodes and decodes video up to 4096x2160p60 4:4:4 8-bit, giving symmetrical 4K60 performance in both directions from a single endpoint. Because every USP model functions as a simultaneous encoder and decoder, a boardroom or training room can use one USP Plus per display for both content sharing and camera or signage input, cutting the rack space and cabling needed compared with separate transmit and receive hardware. The native 7-window multiview composites streams from any USP encoder or compatible third-party H.265/H.264 IP source directly on the unit, useful for monitoring walls and command-and-control rooms without a dedicated multiviewer. USB routing on the USP Plus supports keyboard, mouse, and touchscreen connectivity extended over the network, which is well suited to interactive displays and KVM-style control stations in a conference room or training room. Native 2-channel Dante and AES67 support lets the USP Plus integrate directly with professional audio networks commonly found in boardrooms, houses of worship, and auditoriums, simplifying audio system design alongside the video distribution. AVPro Flow interoperability extends compatibility to third-party H.26x encoders, IP cameras, and streaming platforms for mixed-vendor AV over IP systems. The integrated digital signage player allows content to be uploaded and scheduled directly on the endpoint. The USP Plus can be freely mixed with USP Essential and USP Pro units on the same MXnet USP network, letting integrators scale resolution and feature sets room by room.

Key Features

• 4K60 H.265/H.264 Encode and Decode — Encodes and decodes video up to 4096x2160p60 4:4:4 8-bit for symmetric high-resolution distribution.
• Simultaneous Encode and Decode — Functions as a true two-way AV endpoint, reducing device count for hybrid meeting rooms and training spaces.
• Native 7-Window Multiview — Composites up to seven video sources in a customizable layout without external multiviewer hardware.
• Network USB Routing — Extends keyboard, mouse, and touchscreen connectivity over the network for interactive displays and KVM workflows.
• Native Dante/AES67 Audio — Supports 2-channel Dante and AES67 protocols for direct integration with professional audio networks.
• AVPro Flow Interoperability — Provides compatibility with third-party H.265/H.264 encoders, IP cameras, and streaming platforms.
• Integrated Digital Signage Player — Uploads and schedules signage content directly to the endpoint without external media players.
• Mix-and-Match USP Ecosystem — Interoperates with USP Essential and USP Pro units on the same network for scalable system design.

Typical Applications

• Boardroom
• Conference room
• Training room
• House of worship
• Government space
• Commercial meeting space
• All-hands room

Technical Specifications

Frequently Asked Questions

• Can the USP Plus be mixed with USP Essential or USP Pro on the same network? Yes, all USP models interoperate on the same MXnet USP network for flexible room-by-room deployment.
• Does the USP Plus support professional audio networks? Yes, it includes native 2-channel Dante and AES67 support in addition to analog PCM audio.
• Can USB peripherals be extended through the network with this unit? Yes, the USP Plus supports network USB routing for keyboards, mice, and touchscreens.
• Can it work with non-AVPro Edge encoders? Yes, AVPro Flow provides interoperability with compatible third-party H.265/H.264 encoders and IP cameras.
• How is the unit powered during installation? Via PoE (802.3af) from a compliant switch, or an optional 12V 2A DC power supply sold separately.
• What rack mount accessories are supported? The AC-MXNET-1G-R15 and AC-MXNET-1G-R2 rack mounts from AVPro Edge are compatible with this unit.
• What is the warranty on this product? AVPro Edge covers the AC-MXNET-USP-PL with a 10-year manufacturer warranty.
• What support resources are available for system integrators? AVPro Edge provides data sheets, control drivers, and firmware updates through its support portal.
