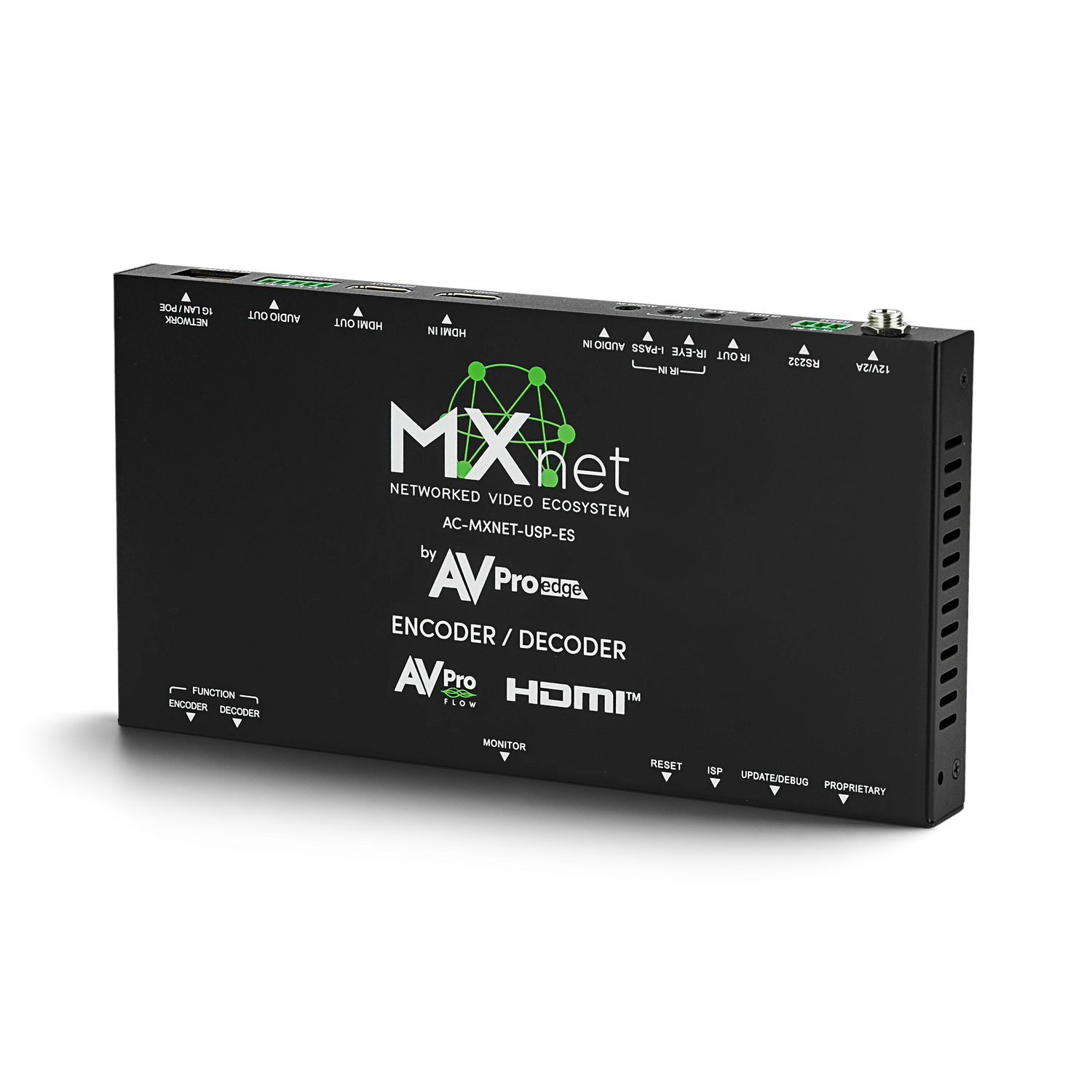

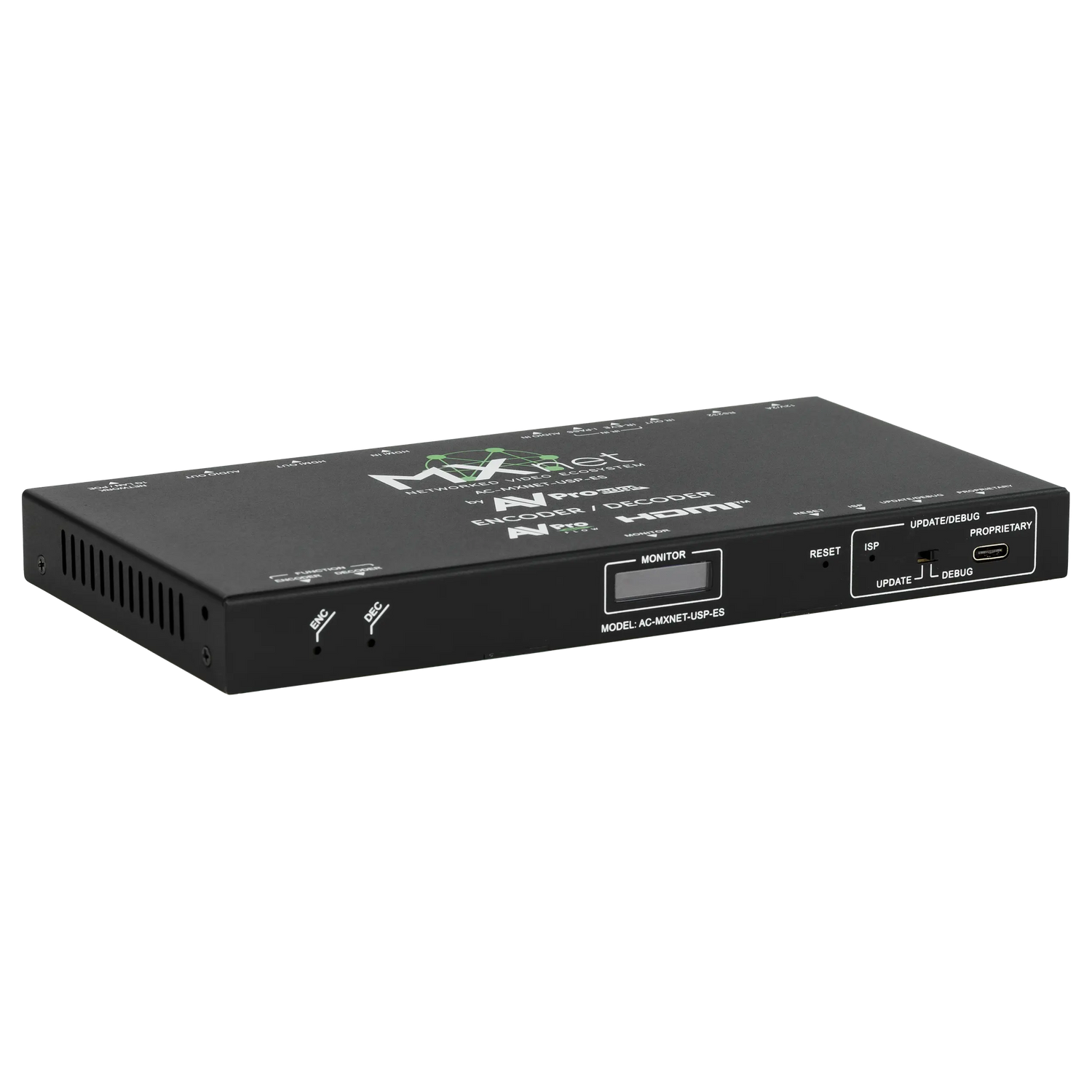

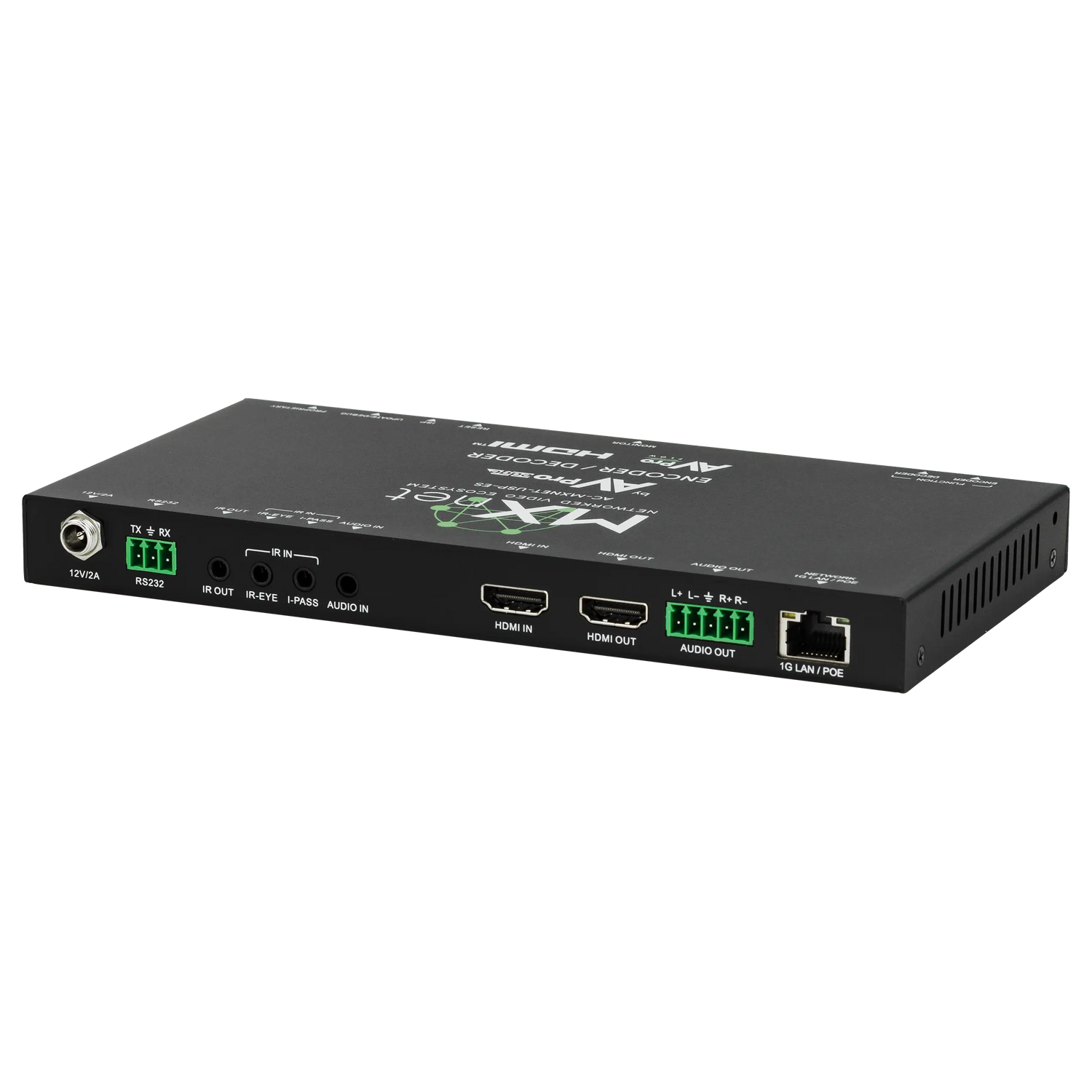

AVPro Edge AC-MXNET-USP-ES - 1080p60 AVoIP Transceiver

Product Overview

The AVPro Edge AC-MXNET-USP-ES is a 1080p60 H.265/H.264 AVoIP transceiver built for commercial AV distribution over standard 1GbE networks. As a true two-way AV over IP encoder decoder, a single USP Essential unit can send and receive streams simultaneously, reducing the device count needed for hybrid conference rooms and huddle spaces. It ships with a built-in 4-window multiview processor and integrated digital signage player, so a single endpoint can handle live composite video and scheduled signage content without extra hardware. The USP Essential is entry point to AVPro Edge's MXnet USP ecosystem and is designed for AV over IP encoder decoder deployments where budget and rack space are constrained.

Product Description

The AC-MXNET-USP-ES transceiver encodes up to 1920x1200p60 4:4:4 12-bit video for network distribution and decodes incoming streams up to 4096x2160p60 4:4:4 8-bit, giving integrators asymmetric input and output resolution support in a single compact device. Because every USP model functions as a simultaneous encoder and decoder, a hybrid meeting room can use one USP Essential at each display location instead of separate transmitter and receiver hardware, cutting rack space, cabling, and power draw. The native 4-window multiview composites streams from any USP encoder or compatible third-party H.265/H.264 source directly on the unit, which is useful for monitoring walls, training rooms, and command-and-control installations without a dedicated multiviewer appliance. AVPro Flow support extends interoperability beyond the MXnet ecosystem to third-party H.26x encoders, IP cameras, lecture capture systems, and streaming platforms, which helps when integrating a USP Essential AV over IP transceiver into an existing mixed-vendor network. The integrated digital signage player lets integrators upload and schedule content directly to the endpoint, turning any connected display into a standalone signage screen for lobbies or huddle spaces without a separate media player. The USP Essential can be freely mixed with USP Plus and USP Pro units on the same MXnet USP network, so a facility can start with USP Essential in lower-priority rooms and add higher-resolution models elsewhere without redesigning the network. PoE power delivery, rack or surface mounting, and a 10-year warranty round out the unit for standard commercial AV installation practices.

Key Features

• 1080p60 H.265/H.264 Encode, 4K60 Decode — Encodes up to 1920x1200p60 4:4:4 while decoding incoming streams up to 4096x2160p60 4:4:4 from other USP endpoints.
• Simultaneous Encode and Decode — Functions as a true two-way AV endpoint, reducing the number of devices needed for hybrid meeting room deployments.
• Native 4-Window Multiview — Composites up to four video sources in a customizable layout without external multiviewer hardware.
• AVPro Flow Interoperability — Provides compatibility with third-party H.265/H.264 encoders, IP cameras, and streaming platforms for mixed-vendor AV systems.
• Integrated Digital Signage Player — Uploads and schedules signage content directly to the endpoint without a separate media player.
• Mix-and-Match USP Ecosystem — Operates alongside USP Plus and USP Pro units on the same network for flexible, scalable system design.
• PoE Powered — Draws power over Ethernet (802.3af), simplifying cabling at rack and wall-plate locations.
• Rack or Surface Mountable — Supports AVPro Edge AC-MXNET-1G-R15 and R2 rack mount accessories for organized equipment room installation.

Typical Applications

• Huddle room
• Conference room
• Boardroom
• Training room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

• Can the USP Essential be mixed with USP Plus or USP Pro on the same network? Yes, all USP models are designed to interoperate on the same MXnet USP network so integrators can deploy different tiers by room.
• Does the USP Essential need a dedicated multiviewer? No, it includes a native 4-window multiview processor built into the unit.
• Can it work with non-AVPro Edge encoders? Yes, AVPro Flow provides interoperability with compatible third-party H.265/H.264 encoders and IP cameras.
• How is the unit powered during installation? Via PoE (802.3af) from a compliant switch, or an optional 12V 2A DC power supply sold separately.
• What rack mount accessories are supported? The AC-MXNET-1G-R15 and AC-MXNET-1G-R2 rack mounts from AVPro Edge are compatible with this unit.
• What is the maximum network latency for this transceiver? End-to-end latency is rated at 75 milliseconds or less.
• What is the warranty on this product? AVPro Edge covers the AC-MXNET-USP-ES with a 10-year manufacturer warranty.
• What support resources are available for system integrators? AVPro Edge provides data sheets, control drivers, and firmware updates through its support portal for control system programmers.
