AVPro Edge AC-MXNET-SW8P – 8-Port MXnet AV-over-IP Switch

Product Overview

The AVPro Edge AC-MXNET-SW8P is an 8-port PoE+ network switch purpose-built for AV-over-IP distribution within the MXnet ecosystem. Designed as an MXnet network switch for commercial AV integration, it gives integrators a low-cost entry point for multicast video distribution in conference rooms, huddle rooms, and other mid-size commercial spaces. Four 10 Gbps SFP+ uplink ports allow link aggregation to any AC-MXNET-SW12/24/48 switch, making it a practical building block for scalable AV-over-IP network design. This is a direct SKU replacement for the previous AC-MXNET-SW12 with identical functionality.

Product Description

The AC-MXNET-SW8P is a Layer 2/Layer 2+ managed switch engineered specifically for MXnet AV-over-IP deployments rather than general data networking. Eight 10/100/1000BaseT RJ-45 ports with PoE+ support connect MXnet encoders, decoders, and wall plate transmitters directly, while four 10 Gbps SFP+ ports provide high-bandwidth uplinks and auto link aggregation to larger MXnet switches for AV-over-IP scalability in growing installations. With a 125-watt PoE budget and 96 Gbps switching capacity, the switch is sized for basic-to-mid-size multicast video systems where a full 24- or 48-port chassis would be oversized. It is configured through MXNet Mentor software, the same network operating system AVPro Edge uses on the AC-MXNET-SW24 and AC-MXNET-SW48, so multicast packetization, IGMP snooping, and Quality of Service settings are consistent across an entire MXnet AV-over-IP network design. Fast switching delivers source-to-source transitions in two seconds or less at endpoints, with no black frames, and A/V onset timing of 70 ms or less keeps switching imperceptible to meeting participants. The switch ships preconfigured for plug-and-play operation with MXnet encoders and decoders, reducing commissioning time during commercial AV installation. It is a practical foundation for boardrooms, training rooms, and multi-room AV-over-IP systems that need centralized, IGMP-aware multicast switching without a full enterprise data switch.

Key Features

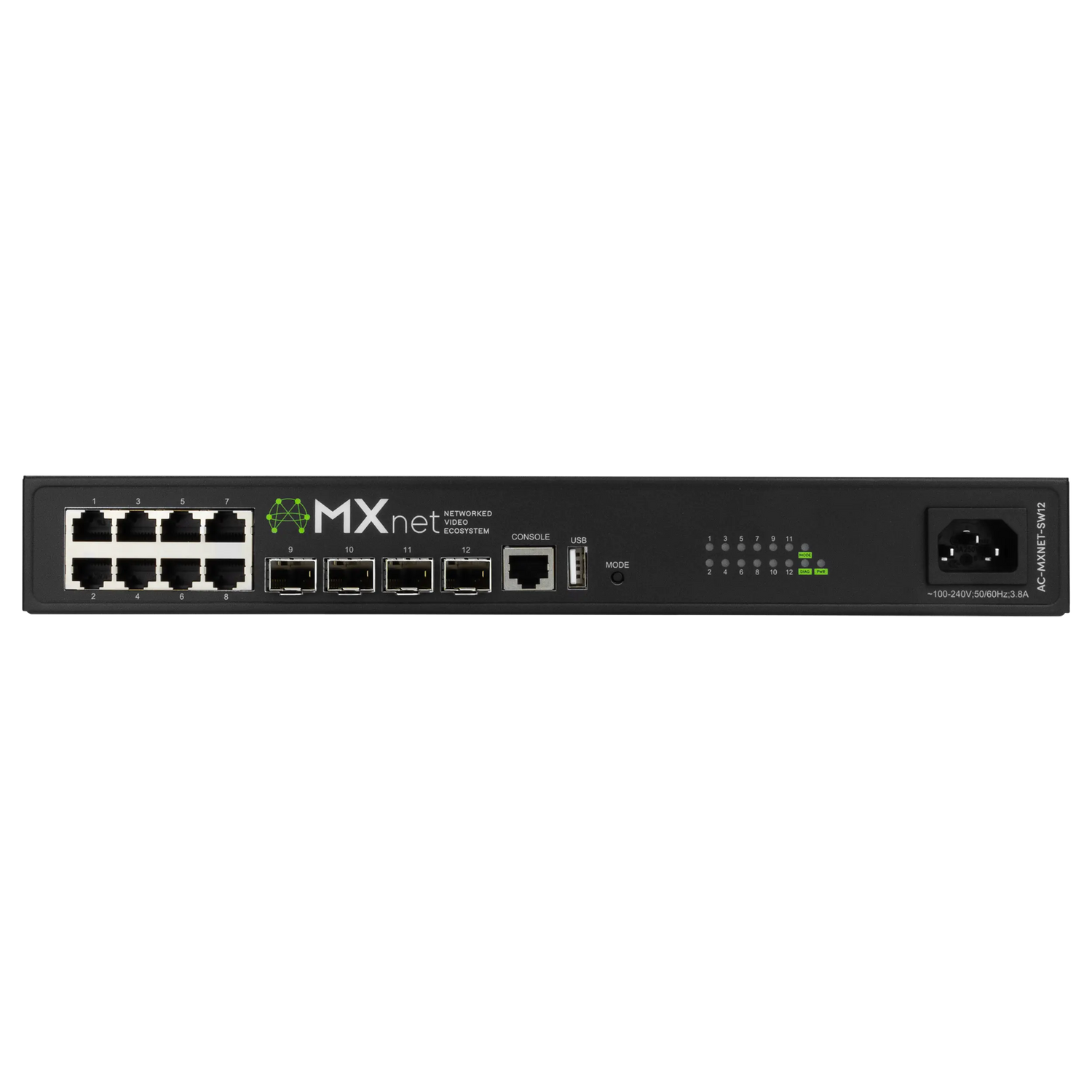

• 8x Gigabit PoE+ Ports — Eight 10/100/1000BaseT RJ-45 ports with PoE+ power MXnet encoders, decoders, and wall plate transmitters directly from the switch.
• 4x 10 Gbps SFP+ Uplinks — Four SFP+ ports provide high-bandwidth core connectivity and auto link aggregation to any AC-MXNET-SW12/24/48 switch for network expansion.
• 96 Gbps Switching Capacity — A 71.4 Mpps forwarding rate and 96 Gbps switching capacity keep multicast AV-over-IP traffic moving without congestion.
• 125W PoE Budget — Supports IEEE 802.3af/at PoE+ endpoints across all eight copper ports without an external injector.
• MXnet Mentor Configuration — The switch is managed through MXNet Mentor software, the same network operating system used across the AC-MXNET-SW24 and AC-MXNET-SW48.
• IGMP Snooping and QoS — Built-in IGMP snooping and Quality of Service prioritize multicast video streams for stable, artifact-free playback.
• Fast, Low-Latency Switching — Source-to-source switching completes in two seconds or less with A/V onset timing of 70 ms or less.
• Plug-and-Play MXnet Integration — The switch ships preconfigured for the MXnet ecosystem, reducing on-site commissioning time.

Typical Applications

• Conference room
• Huddle room
• Boardroom
• Training room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

• Is the AC-MXNET-SW8P compatible with existing MXnet encoders and decoders? Yes. It is preconfigured for plug-and-play operation with MXnet 1G encoders, decoders, and wall plate transmitters already used in an MXnet AV-over-IP network.
• Can this switch be combined with larger MXnet switches? Yes. Its four 10 Gbps SFP+ ports support auto uplink and link aggregation to the AC-MXNET-SW24 or AC-MXNET-SW48 for expanding a multi-room AV-over-IP deployment.
• Is this the same product as the AC-MXNET-SW12? Yes. AVPro Edge updated the SKU from AC-MXNET-SW12 to AC-MXNET-SW8P; the hardware and specifications are unchanged.
• Does it require a separate PoE injector for MXnet endpoints? No. The switch provides a 125-watt PoE+ budget across its eight copper ports, powering most MXnet encoders and decoders directly.
• What software is used to configure the switch? MXNet Mentor software, AVPro Edge's network operating system, is used to manage multicast settings, IGMP snooping, and QoS.
• What is the warranty on this switch? AVPro Edge backs the AC-MXNET-SW8P with a 10-year product warranty.
• Does it support IGMP snooping for multicast video? Yes. Built-in IGMP snooping and QoS are standard for stable, artifact-free multicast video transmission.
