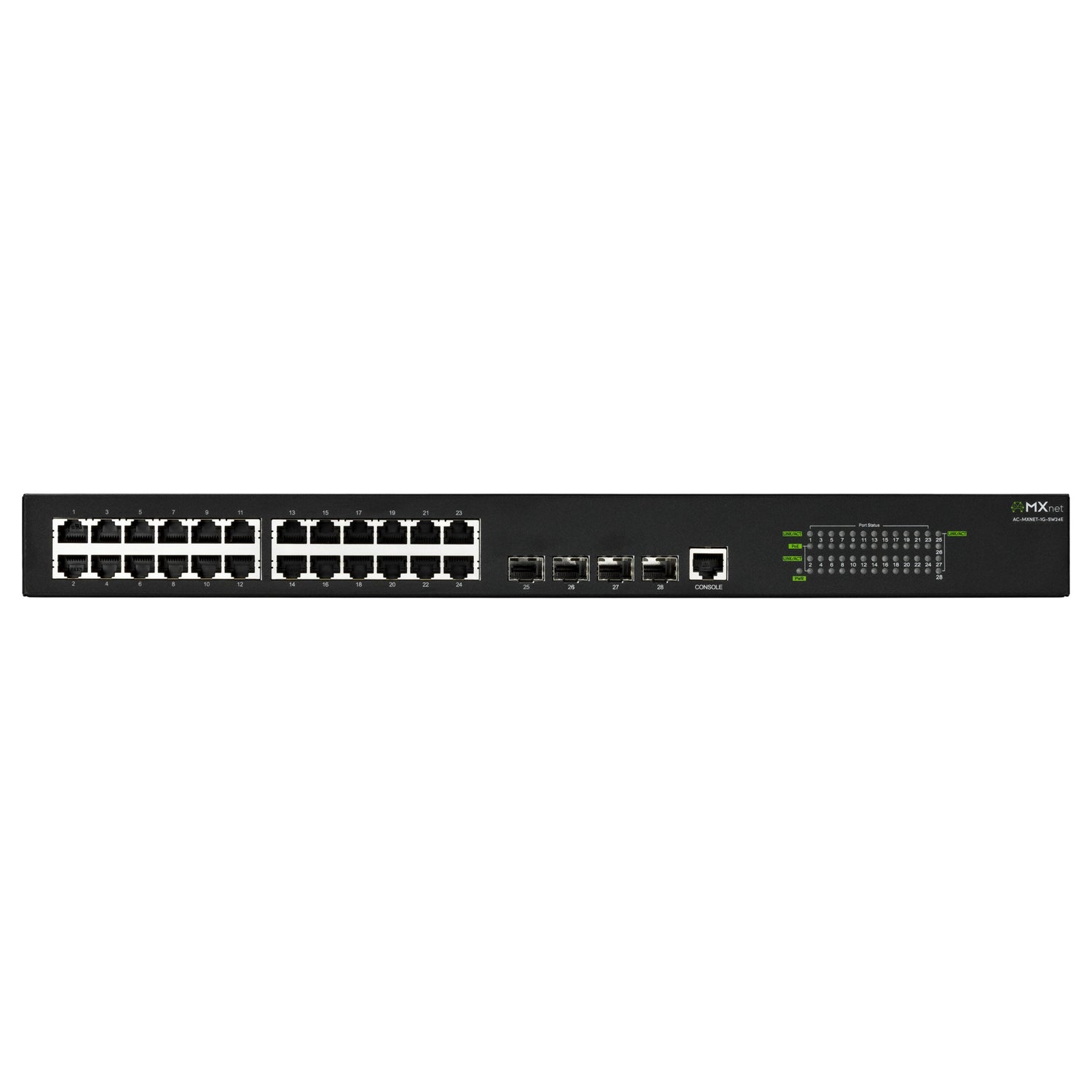

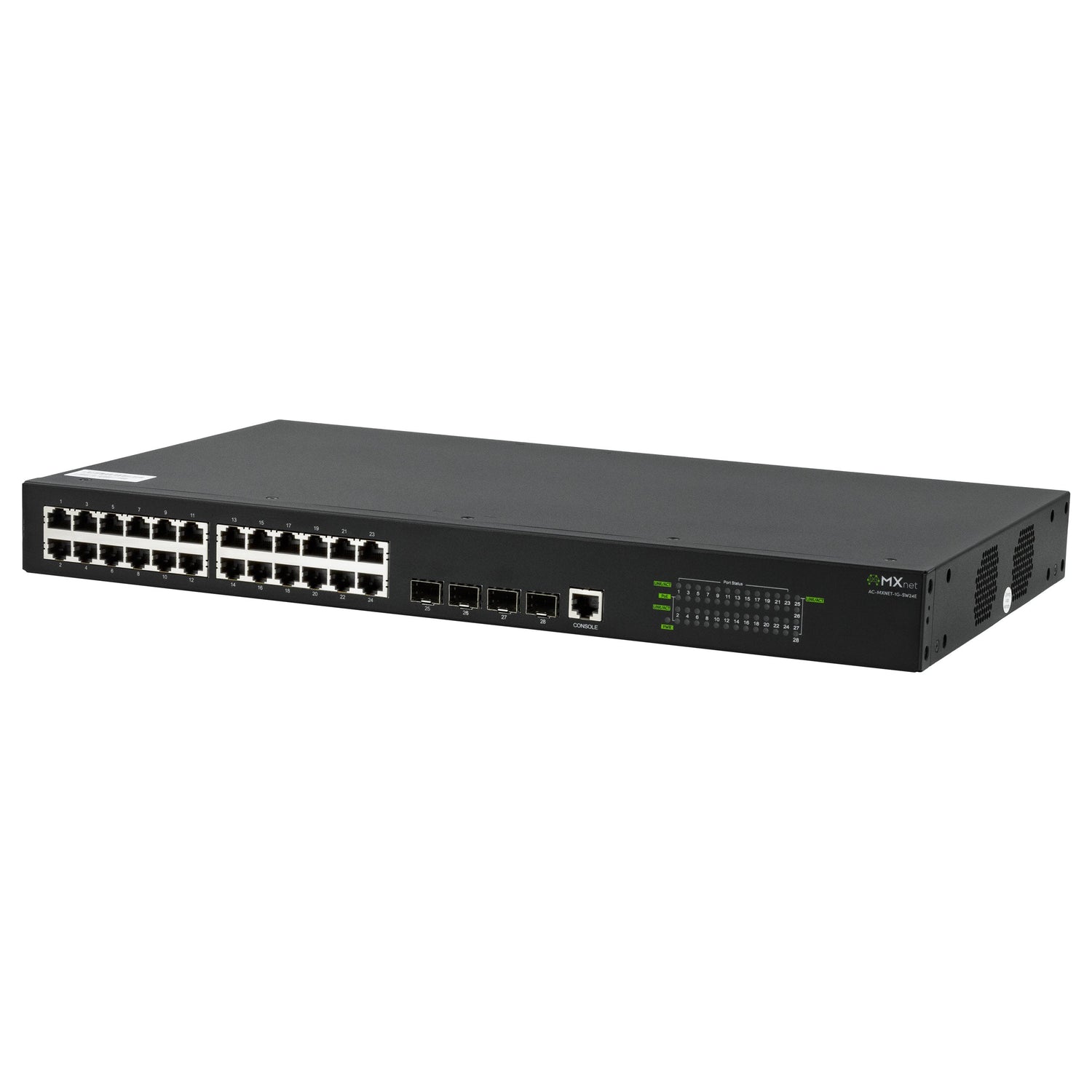

AVPro Edge AC-MXNET-SW24E - 24-Port PoE+ MXnet AVoIP Switch

Product Overview

The AVPro Edge AC-MXNET-SW24E is a 24-port PoE+ MXnet AVoIP switch built for cost-effective AV over IP network deployment in conference rooms, training rooms, and small-to-midsize commercial spaces. It combines Layer 2.5 switching architecture with a 370-watt PoE+ budget so most MXnet 1G V2 and MXnet USP endpoints can be powered directly from the switch without external power supplies. Four 1G SFP stacking ports handle uplinks or multi-switch expansion for larger installations. As a preconfigured MXnet network switch, the SW24E is designed for integrators who want plug-and-play AVoIP and Dante audio support without manual VLAN or QoS configuration.

Product Description

The AC-MXNET-SW24E provides 24 PoE+ (802.3af/802.3at) copper ports rated at 10/100/1000Base-T, giving each connected MXnet encoder, decoder, or USP transceiver single-cable power and data. Its 56 Gbps switching capacity and 4 Gbps stacking bandwidth per SFP link exceed the 1.44 Gbps maximum bandwidth requirement of a single USP endpoint, which keeps AVoIP streams flowing without congestion even under peak load. The Layer 2.5 (L2+) architecture blends Layer 2 switching efficiency with Layer 3 routing flexibility, reducing cost and complexity compared with a full Layer 3 switch while still supporting the VLAN and multicast requirements of an AV over IP network. AVPro Edge preconfigures the SW24E for MXnet USP, MXnet 1G V1/V2, and Dante audio traffic out of the box, with VLAN, QoS, and IGMP settings already optimized, so integrators do not need CLI-level switch programming to bring a standalone MXnet system online. AVPro Edge also implements Dante-oriented QoS traffic prioritization on this switch, which improves audio streaming reliability when Dante and MXnet AVoIP traffic share the same network. The 4x 1G SFP ports support stacking to additional MXnet switches or uplinking to core network infrastructure, and can be used with Link Aggregation for added bandwidth between switches. The compact 1RU chassis uses standard AV rack mount spacing, and AVPro Edge specifies an installation maximum of four switch hops for reliable AVoIP performance across a multi-switch topology.

Key Features

• 24 PoE+ Copper Ports — Powers connected MXnet and USP endpoints directly with a 370-watt PoE+ budget, eliminating external power supplies.
• 4x 1G SFP Stacking Ports — Provides stacking bandwidth for multi-switch AVoIP systems or uplinks to core network infrastructure, with Link Aggregation support.
• Preconfigured for MXnet and Dante — VLAN, QoS, and IGMP settings are optimized out of the box for MXnet USP, MXnet 1G V1/V2, and Dante audio.
• Dante-Prioritized QoS — Implements Dante-oriented traffic prioritization to improve audio streaming reliability alongside MXnet AVoIP traffic.
• Non-Blocking for USP Deployments — 4 Gbps stacking bandwidth exceeds the 1.44 Gbps maximum USP endpoint requirement for congestion-free routing.
• Layer 2.5 Architecture — Combines Layer 2 efficiency with Layer 3 routing flexibility to reduce cost and complexity in AVoIP deployments.
• 1RU Compact Rack Height — Uses standard AV rack mount spacing for straightforward equipment room installation.

Typical Applications

• Conference room
• Huddle room
• Training room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

• Does the SW24E require manual configuration for MXnet AVoIP traffic? No, it ships preconfigured for MXnet USP, MXnet 1G V1/V2, and Dante with VLAN, QoS, and IGMP already optimized.
• Can MXnet endpoints be powered directly from this switch? Yes, all 24 ports support PoE+ with a 370-watt total power budget.
• How many switch hops does AVPro Edge recommend for a stacked installation? AVPro Edge specifies a maximum of four switch hops for reliable AVoIP performance.
• Can this switch run Dante audio and MXnet video on the same network? Yes, it includes Dante-oriented QoS prioritization to support both traffic types simultaneously.
• What are the SFP ports used for? The 4x 1G SFP ports support stacking to additional MXnet switches, uplinks to core infrastructure, or Link Aggregation for added bandwidth.
• How is the switch mounted in an equipment rack? It occupies 1RU using standard AV rack mount spacing.
• What is the warranty on this product? AVPro Edge covers the AC-MXNET-SW24E with a 10-year manufacturer warranty.
• What support resources are available for configuration and troubleshooting? AVPro Edge provides a switch user manual and VLAN configuration guides through its support portal.
