AVPro Edge AC-EXUSB-3-WP-KIT-B – USB 3.2 Wall Plate Extender, Black

Product Overview

The AVPro Edge AC-EXUSB-3-WP-KIT-B is the black-faceplate version of AVPro Edge's USB 3.2 wall plate extender kit, built for commercial AV installations that need high-speed USB and device charging at a table or lectern. This wall plate USB extender kit pairs a USB Type-C wall plate transmitter with a desktop receiver, extending USB 3.2 Gen 1 signal up to 100 meters (328 ft) over Category 6A cabling. Integrators specify this 100-meter USB extender kit for BYOD conference rooms, control rooms, and training rooms that need a black faceplate to match darker finish packages.

Product Description

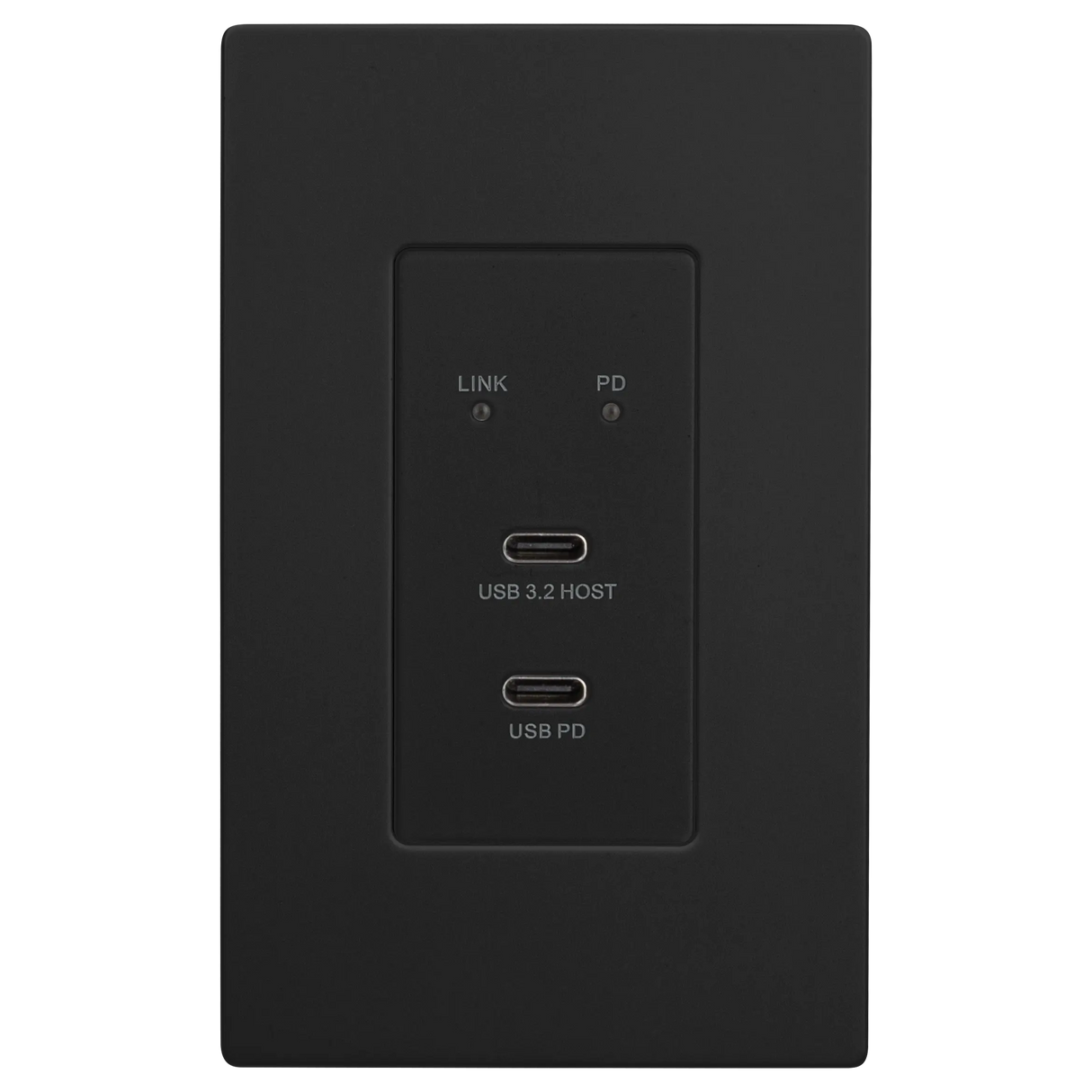

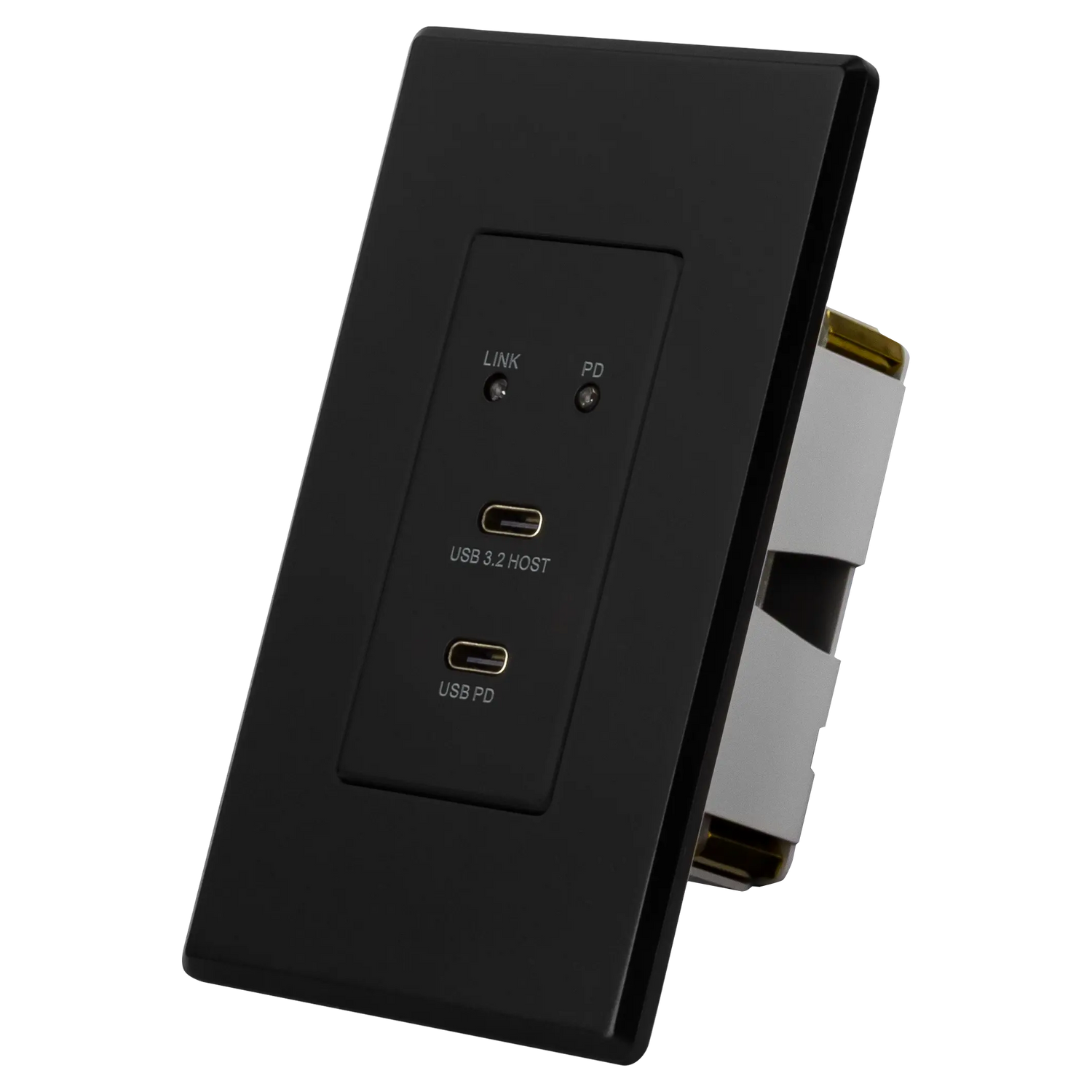

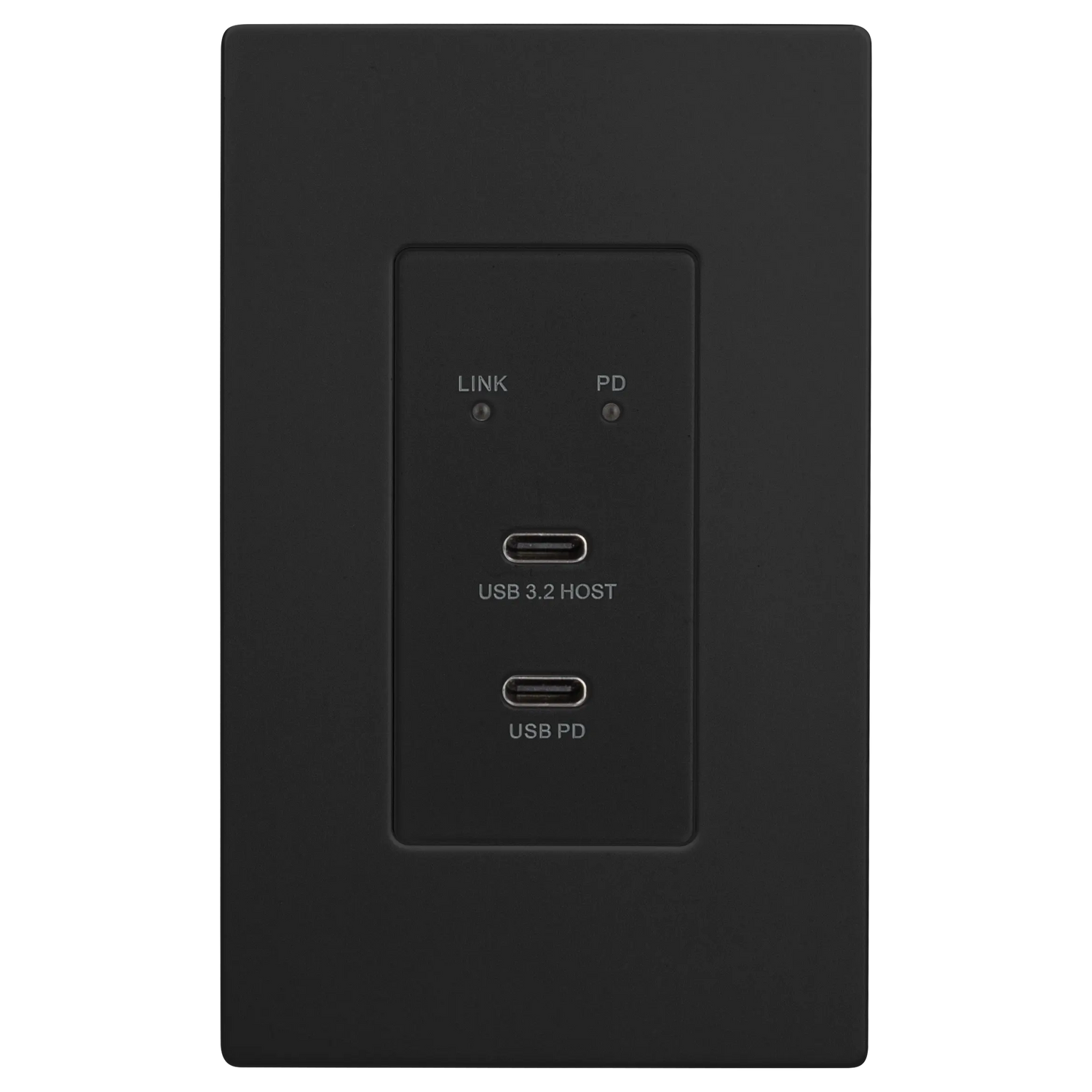

The AC-EXUSB-3-WP-KIT-B fits a standard US single-gang electrical box and combines a USB Type-C 3.2 Gen 1 data port with a dedicated USB Type-C Power Delivery input, supplying up to 65W to a connected laptop directly from the wall plate. This eliminates the need for a separate charging brick at the table. The kit supports USB 3.2 Gen 1, USB 2.0, and USB 1.0 devices simultaneously, so peripherals of different USB generations can share the same connection. Power over HDBaseT (PoH) powers the receiver from the wall plate over the same category cable used for data, simplifying the cable run to a single Cat 6A line. The kit includes DisplayLink support for USB video devices and is UVC 1.5 and UAC 3.0 compliant, covering most USB webcams and audio devices used in modern conferencing setups. The receiver breaks the extended USB Type-C host connection out to four USB Type-A device ports for connecting a room camera, speakerphone, keyboard, and mouse. This kit ships with a black Decora-style faceplate; a white faceplate version is available as the AC-EXUSB-3-WP-KIT. The kit is backed by AVPro Edge's 10-year manufacturer warranty.

Key Features

• USB 3.2 Gen 1 Wall Plate Extension — Extends USB Type-C host connections up to 100 meters (328 ft) over Category 6A cabling.
• 65W USB Power Delivery — A dedicated USB-C PD input at the wall plate charges connected laptops without a separate power brick.
• Multi-Generation USB Support — Supports USB 3.2 Gen 1, 2.0, and 1.0 devices simultaneously on the same connection.
• Power over HDBaseT (PoH) — The receiver draws power from the wall plate transmitter over the same category cable used for data.
• DisplayLink Support — Compatible with USB video adapters for extending display output alongside USB data.
• UVC 1.5 and UAC 3.0 Compliant — Supports common USB webcams and audio devices used in commercial conferencing.
• Black Decora-Style Faceplate — Matches darker finish packages; the same kit is also available with a white faceplate.
• 10-Year Manufacturer Warranty — Covered by AVPro Edge's 10-year, no-hassle warranty.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Training room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

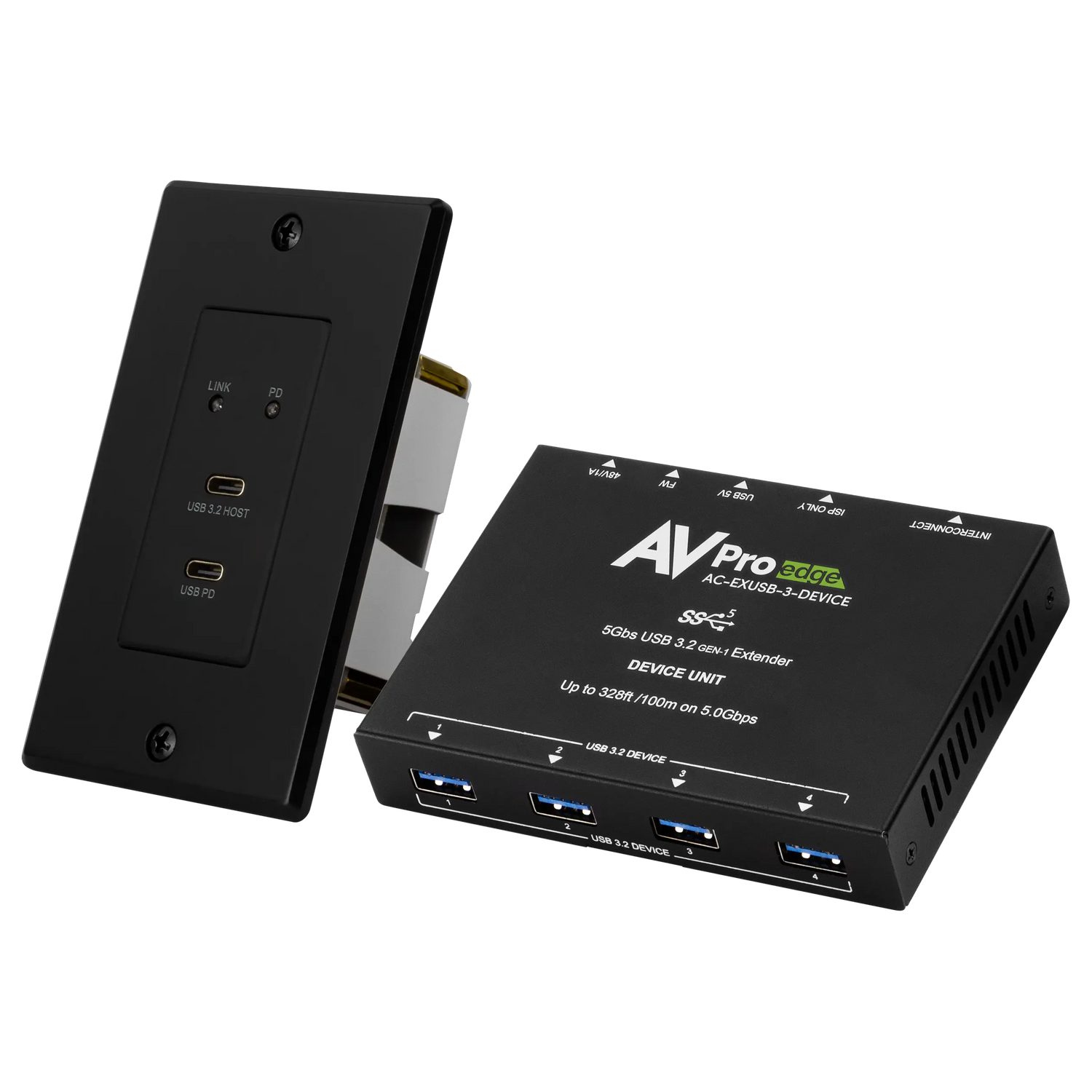

• What's included in this kit? The kit includes the AC-EXUSB-3-WP-HOST transmitter wall plate, an AC-EXUSB-3-DEVICE receiver, a black Decora wall plate cover, mounting screws, and a 48V power supply.
• What cable is required for the 100-meter run? Category 6A UTP cable, properly terminated, is required to reach the rated 100-meter distance.
• Can this kit charge a laptop through the wall plate? Yes. The wall plate provides up to 65W of USB Power Delivery to a connected laptop.
• Does the receiver need its own power source? No. The receiver is powered over the category cable via PoH from the wall plate transmitter.
• Is a white faceplate version available? Yes, as the AC-EXUSB-3-WP-KIT, which uses the same internal components with a white faceplate.
• Can I connect a USB webcam or DisplayLink adapter through this extender? Yes. The kit supports UVC 1.5 webcams and DisplayLink-based USB video adapters.
• What warranty applies to this kit? AVPro Edge's 10-year manufacturer warranty.
• Will this kit work with USB 2.0 peripherals as well as USB 3.2? Yes. It supports USB 1.0, 2.0, and 3.2 Gen 1 devices simultaneously.
