AVPro Edge AC-CXWP-LPH-KIT – HDMI Wall Plate HDBaseT Kit

Product Overview

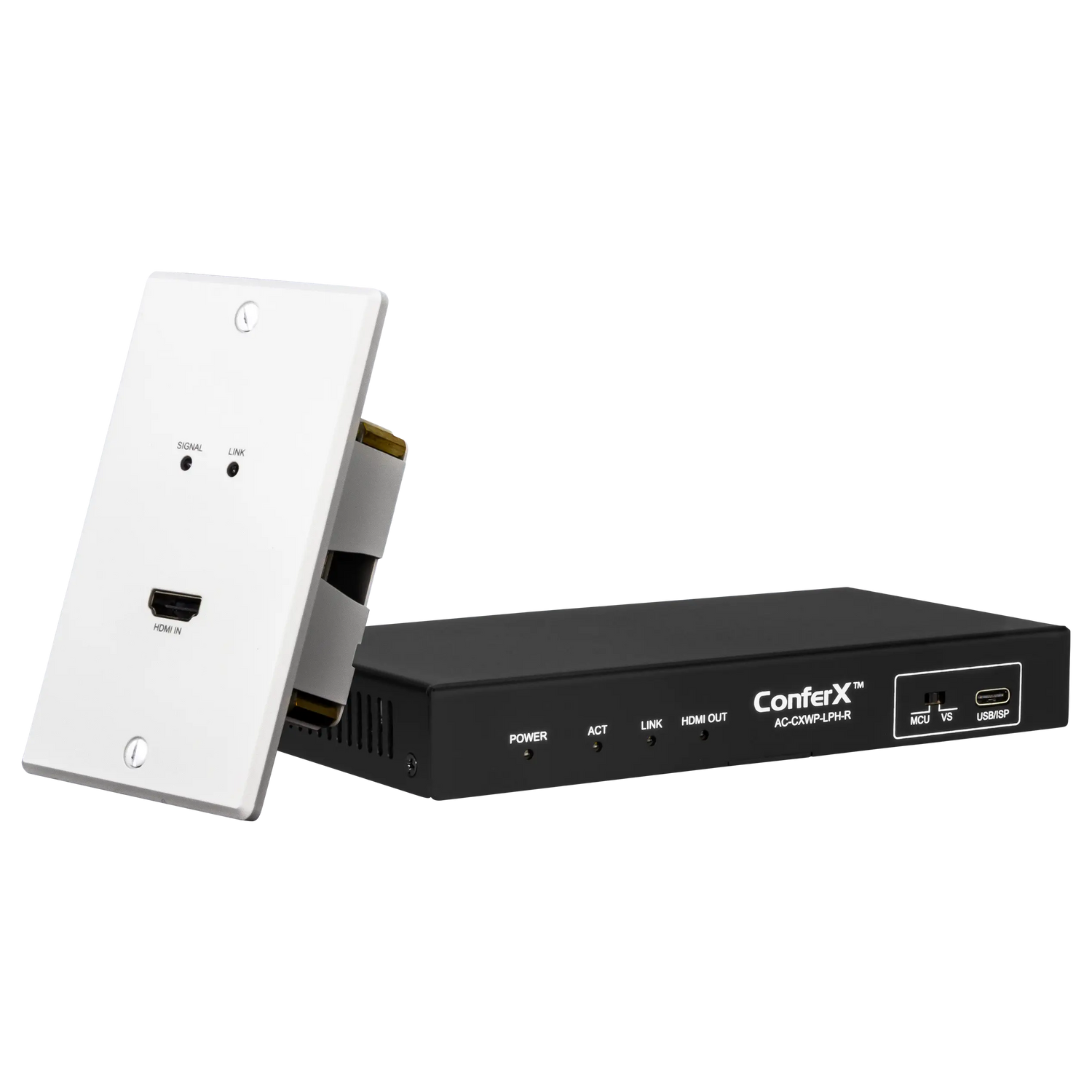

The AVPro Edge AC-CXWP-LPH-KIT is a complete HDMI wall plate extender kit built for conference rooms and other commercial AV spaces that need a clean, low-profile HDMI connection at the table. This ConferX kit pairs a single-gang HDMI wall plate transmitter with a matching HDBaseT receiver, extending HDMI signal up to 100 meters (328 ft) over Category 6A cable for reliable HDMI over HDBaseT transmission. Integrators specify this HDMI wall plate extender kit when a room calls for a discreet source connection without running HDMI cable directly to the display. It is designed for trouble-free installation into a standard single-gang workbox.

Product Description

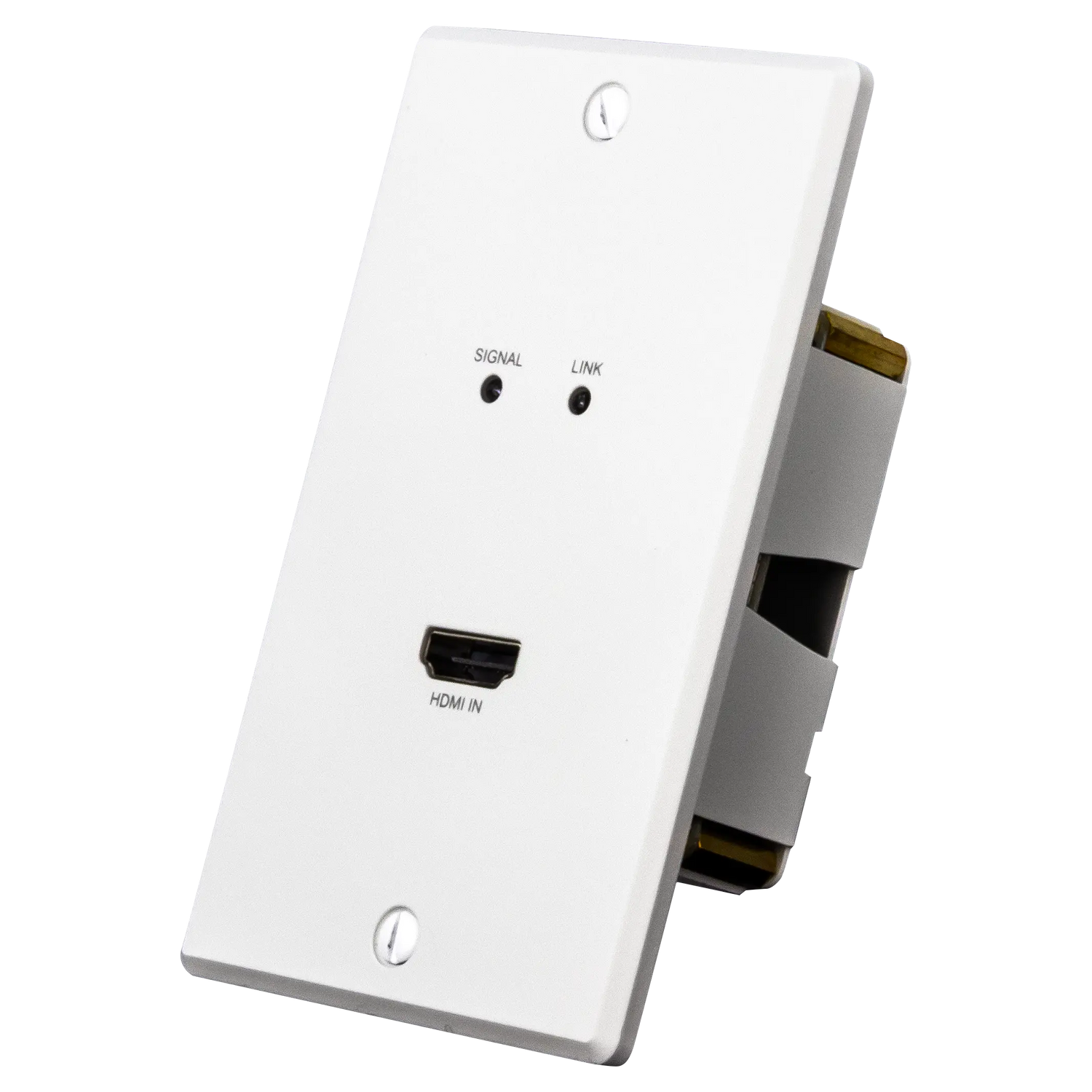

The AC-CXWP-LPH-KIT extends a single HDMI input from a low-profile wall plate transmitter to a receiver located near the display or AV rack, using ordinary Category 6A cabling instead of long HDMI runs. Wall plate excursion from the wall surface is only 13/64 in. (5 mm), giving the installation a clean, modern appearance that fits conference rooms, boardrooms, and other commercial meeting spaces. The transmitter auto-senses an HDMI connection and activates transmission automatically, and status LEDs confirm signal presence and receiver link. A 16-position EDID dial, including a copy-from-output setting, lets integrators manage display compatibility without a separate EDID tool. An HDCP input request dip switch can be set to request or bypass HDCP 2.x, which is useful when troubleshooting handshake issues in mixed-source rooms. The kit supports 1080p signals to 328 ft (100 m) and 4K/60 Hz 4:2:0 8-bit signals to 229 ft (70 m), with AVPro Edge Invisible Compression Technology (ICT) supporting source configurations up to 18 Gbps. Power is supplied to the transmitter via PoC over the HDBaseT link, so no local power supply is needed at the wall plate. The kit ships with a white faceplate; black and stainless steel faceplate covers are available separately for integrators matching a room's finish package. Every ConferX product, including this kit, carries the AVPro Edge 10-year, no-hassle warranty.

Key Features

• Auto-Sensing HDMI Input — The transmitter detects an active HDMI connection and begins transmission automatically, with LED indicators confirming signal presence and receiver link.
• 100-Meter HDBaseT Extension — Category 6A cabling carries 1080p up to 328 ft (100 m) and 4K/60 Hz 4:2:0 8-bit signals up to 229 ft (70 m).
• Low-Profile Wall Plate Design — Wall plate excursion of only 13/64 in. (5 mm) keeps the installation flush and unobtrusive in finished spaces.
• 16-Position EDID Management — A rotary EDID dial, including a copy-from-output mode, simplifies display compatibility troubleshooting on site.
• PoC Powered Transmitter — Power is delivered from the receiver over the HDBaseT link, eliminating the need for a local power supply at the wall plate.
• HDCP Input Request Switch — A dip switch toggles HDCP 2.x requests on or off to resolve handshake conflicts with legacy or mixed sources.

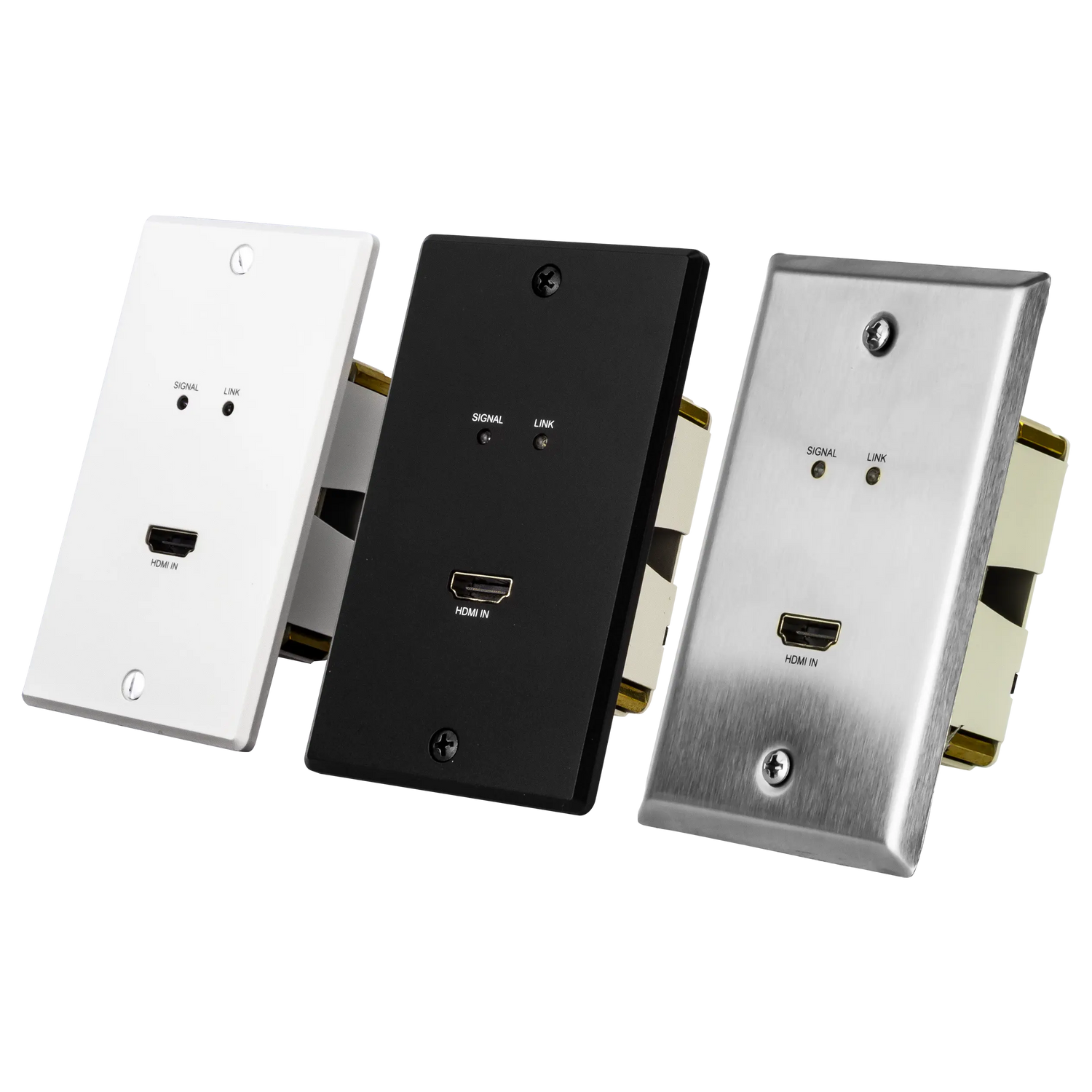

• Interchangeable Faceplates — The kit ships with a white faceplate, with black and stainless steel covers available separately to match room finishes.
• 10-Year AVPro Edge Warranty — Every ConferX wall plate kit is backed by AVPro Edge's no-hassle 10-year warranty.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• Government space
• Commercial meeting space
• Training room

Technical Specifications

Frequently Asked Questions

• Does the AC-CXWP-LPH-KIT include both the transmitter and receiver? Yes. The kit includes the ConferX low-profile HDMI wall plate transmitter, a matching receiver, a 48 VDC/0.5 A power supply, a white faceplate, and mounting hardware.
• What cable is required for the 100-meter run? Use properly terminated Category 6A UTP cable between the transmitter wall plate and receiver to achieve full-rated 1080p and 4K distances.
• Can I use a Decora-style wall plate with this transmitter? No. The active transmitter module is not Decora dimensioned and must be installed with an AVPro Edge ConferX wall plate.
• How do I resolve an HDMI handshake issue with a source? Use the 16-position EDID dial to select a compatible EDID profile, or copy the EDID directly from the connected display.
• Does the wall plate need a local power supply? No. The transmitter is powered over the HDBaseT link via PoC from the receiver, so only the receiver end requires AC power.
• Are black or stainless steel faceplates available? Yes. The kit ships standard with a white faceplate; black and stainless steel faceplate covers are sold separately.
• What warranty does AVPro Edge provide on this kit? The AC-CXWP-LPH-KIT is covered by AVPro Edge's 10-year, no-hassle warranty.

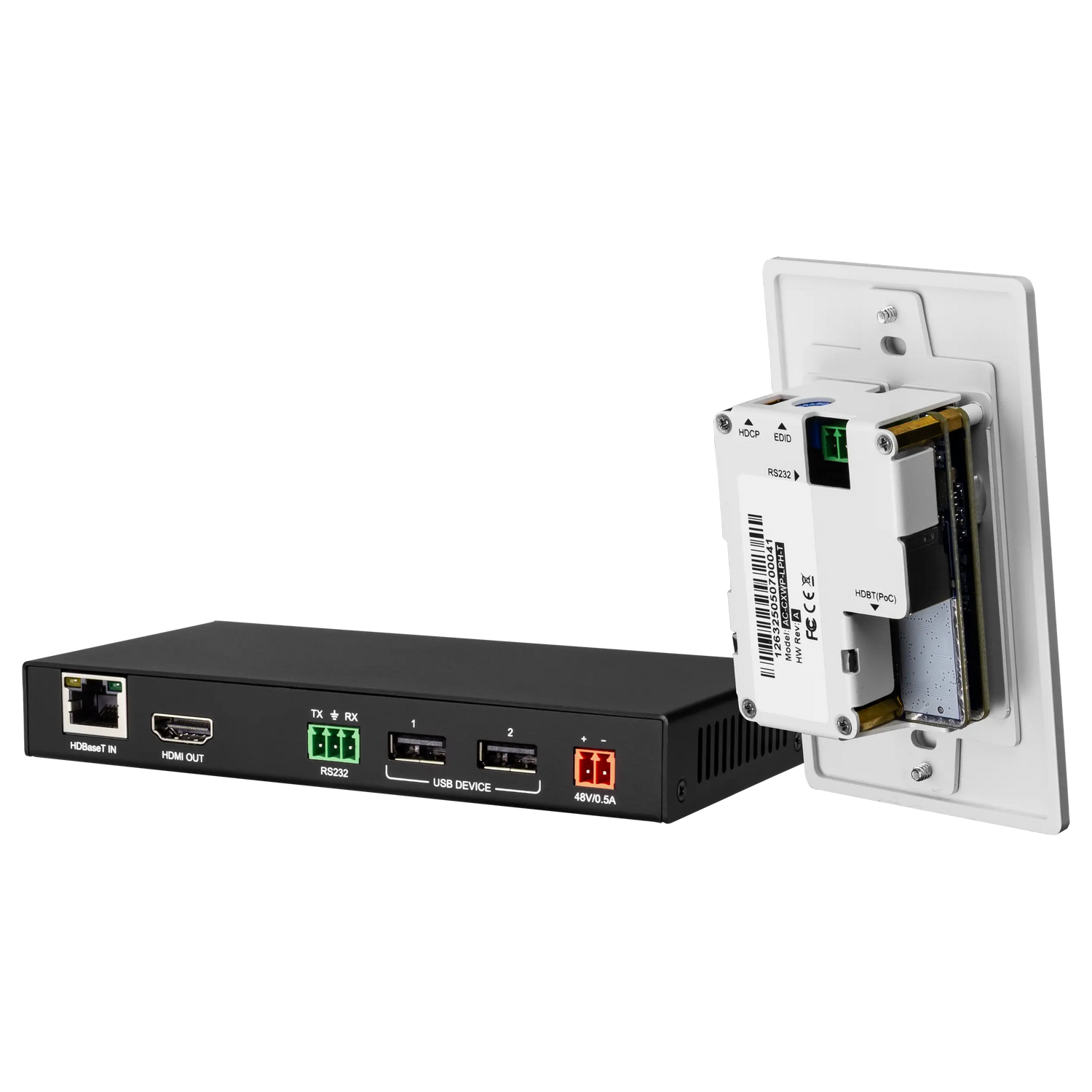

• Can this kit integrate with a control system? Yes. The receiver includes an RS-232 port for integration with third-party AV control processors.
