AVPro Edge AC-CXWP-150-BKT – 150M HDMI Wall Plate Kit (White)

Product Overview

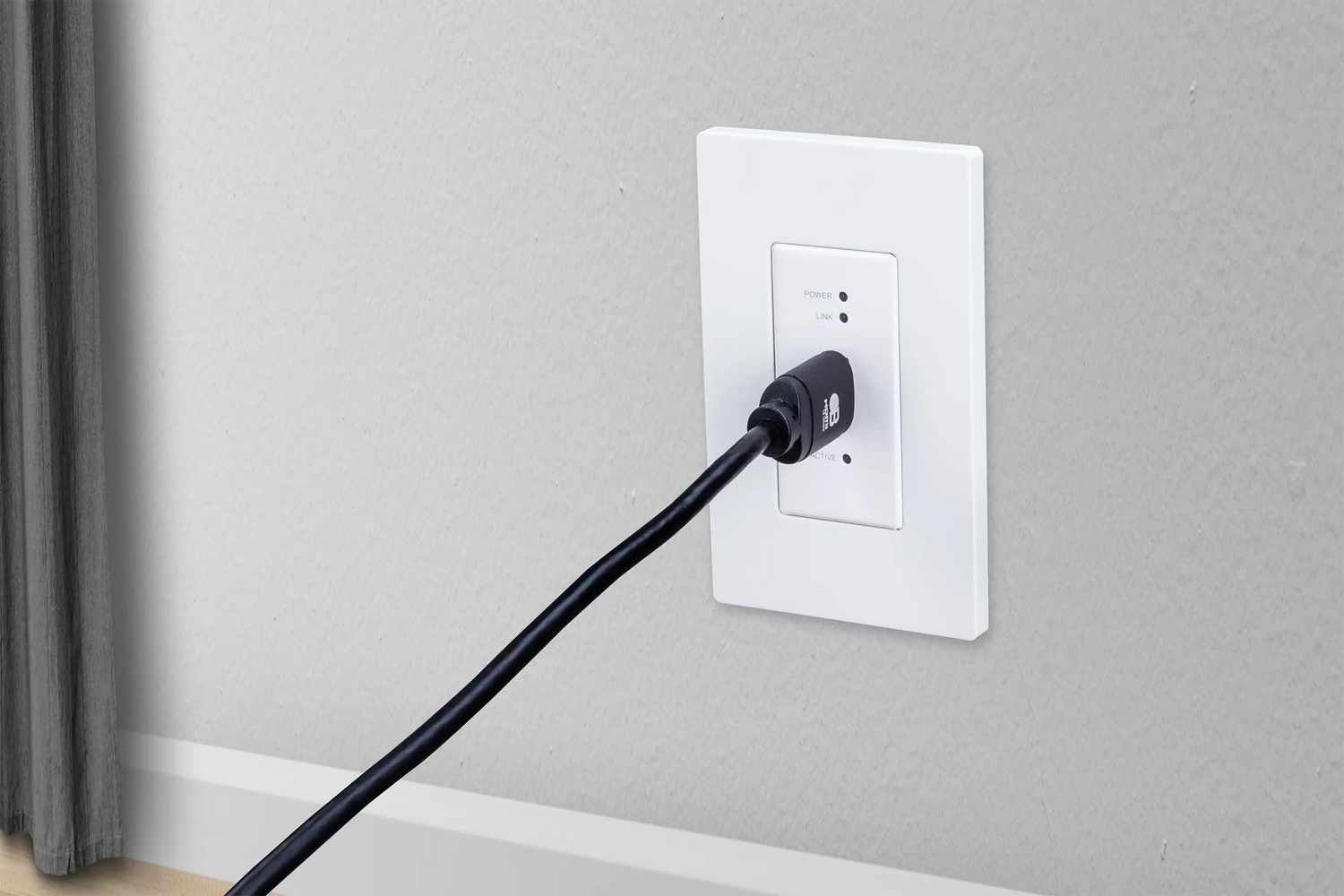

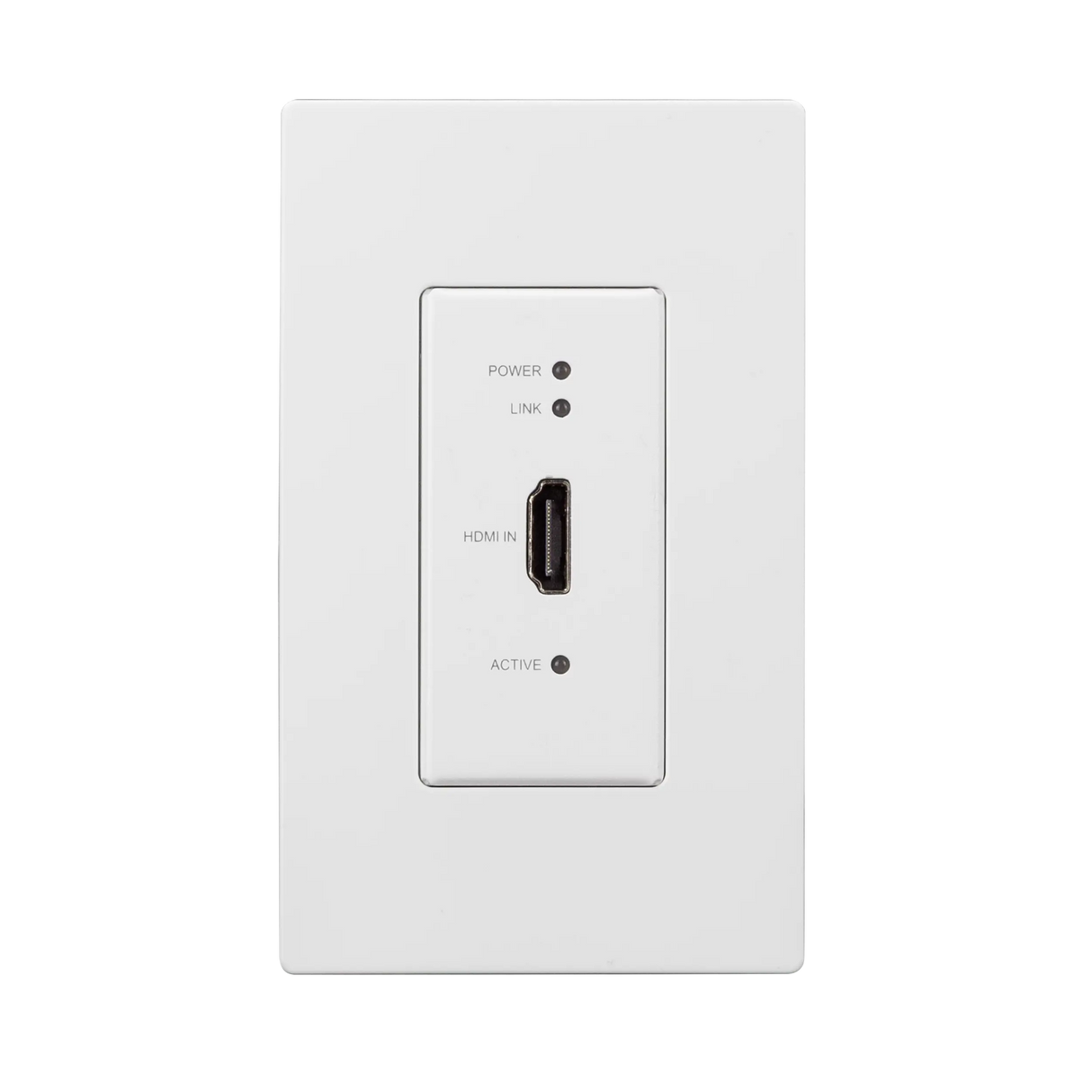

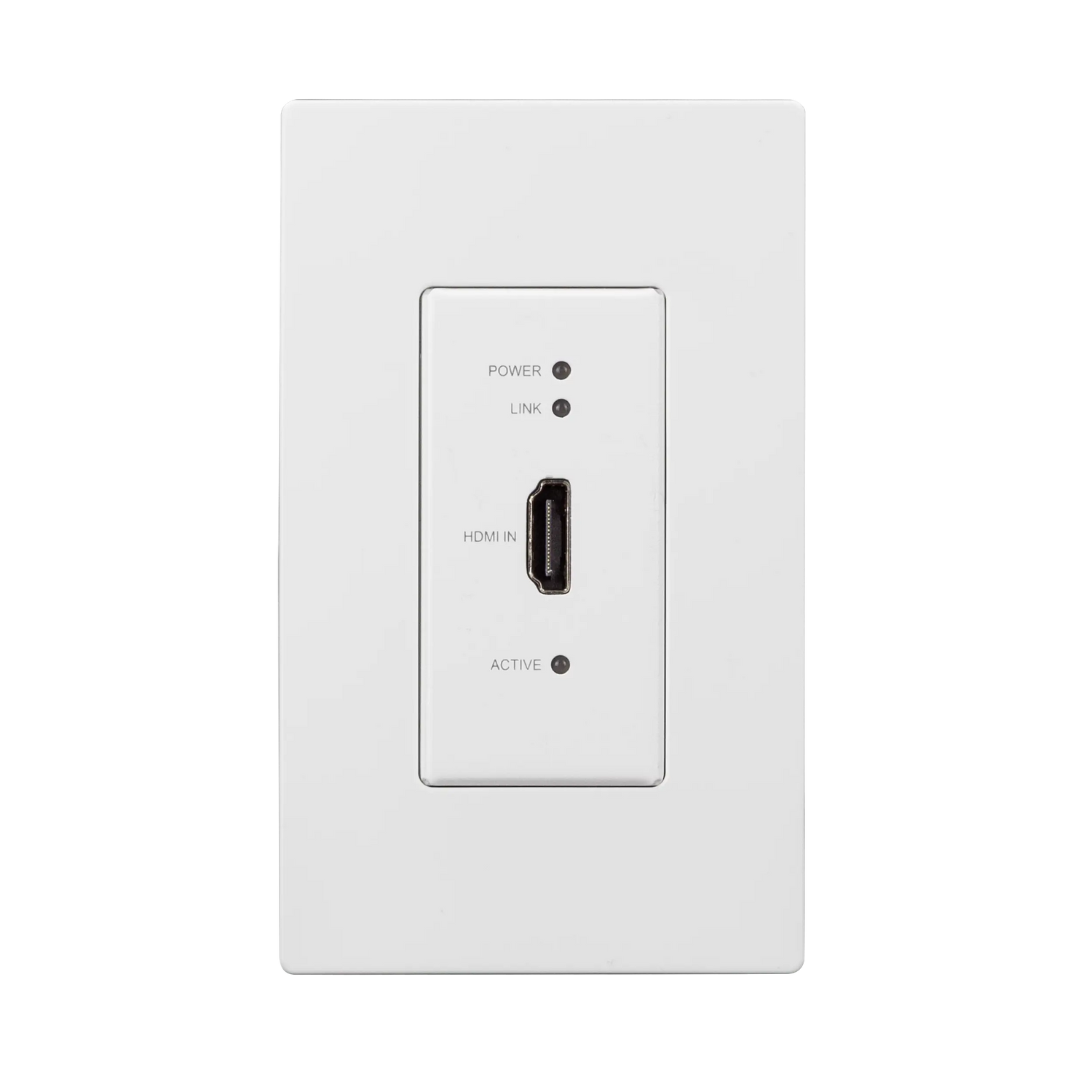

The AVPro Edge AC-CXWP-150-BKT is a long-distance HDMI wall plate extender kit built for commercial AV installations where legacy Category cabling limits standard HDBaseT extenders. This HDMI over HDBaseT wall plate transmitter and receiver kit extends 1080p up to 150 meters and 4K UHD up to 100 meters over a single run of Cat6a, making it well suited for wall plate video extension in large conference rooms, auditoriums, and multi-purpose rooms with long cable runs. The white decora-style wall plate integrates into standard single-gang boxes for a clean commercial AV installation. It is engineered to work reliably over dated Cat5e infrastructure, including splices and punch-down blocks, without requiring a cable replacement project.

Product Description

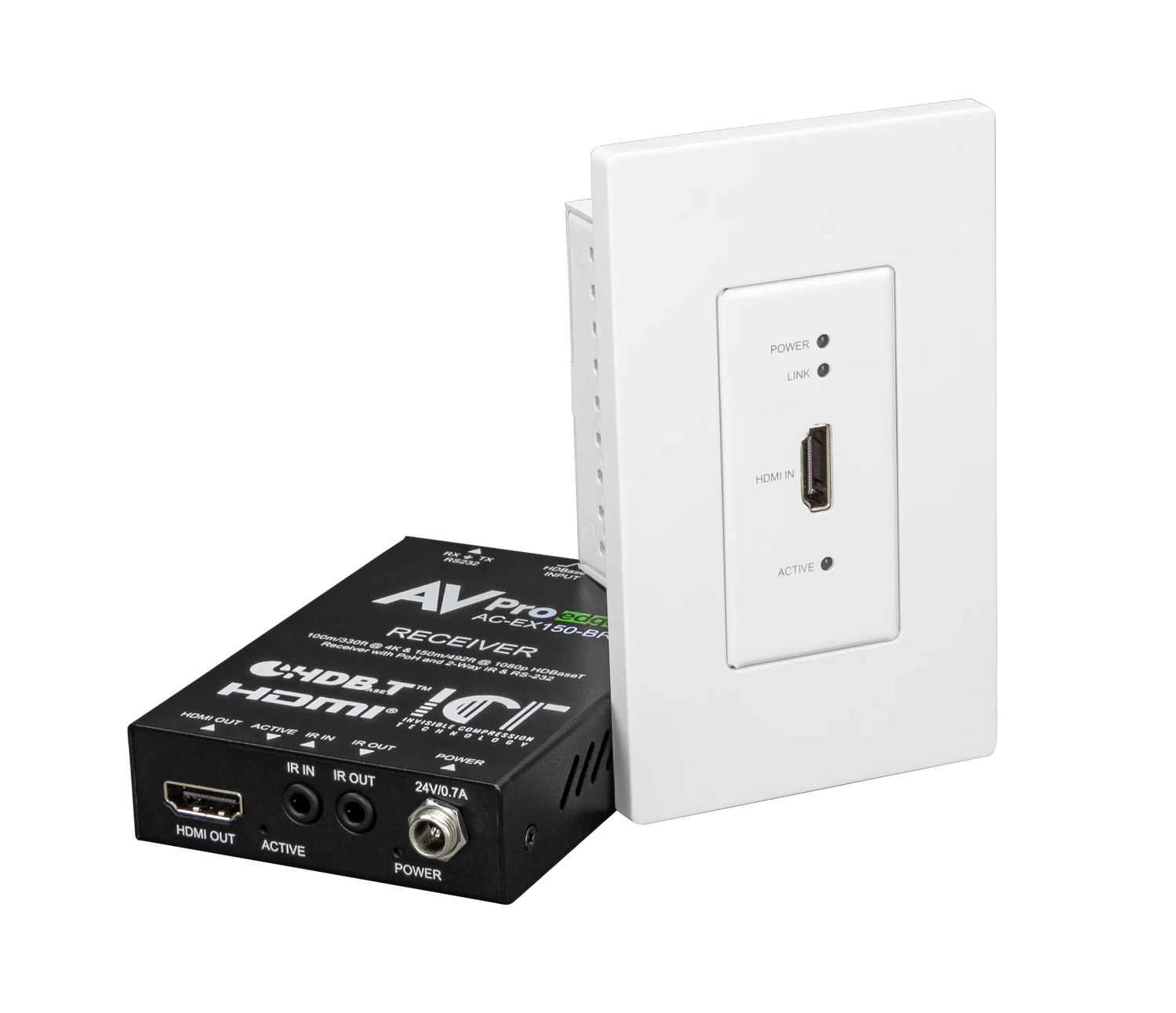

Built on the proven AC-EX150-BKT extender platform, the AC-CXWP-150-BKT converts that long-distance transmitter into a wall-integrated form factor for retrofit and new-build commercial AV projects. The kit supports full 18 Gbps 4K HDMI 2.0 signals with HDR10, HDR10+, and Dolby Vision, along with 4K-to-1080p downscaling for mixed-resolution display environments. AVPro Edge's Invisible Compression Technology (ICT) preserves image quality over challenging infrastructure that would cause dropouts on standard HDBaseT extenders, which is a key differentiator for integrators extending HDMI over long distances in existing buildings. A 16-position EDID management dial and bidirectional RS-232 and IR pass-through give system designers control over source handshaking and third-party control integration during commercial AV system integration. Power over HDBaseT (PoH) from a single power supply at the receiver simplifies cabling at the display end, and the single-gang wall plate transmitter fits standard mud rings, stud mounts, and low-voltage boxes. This kit is intended for installations where a boardroom, training room, or house of worship needs reliable long-distance HDMI wall plate extension without pulling new cable, and it carries AVPro Edge's 10-year advanced-replacement warranty for commercial deployment confidence.

Key Features

• 150-Meter 1080p / 100-Meter 4K Extension — Delivers HD 1080p up to 150 meters and 4K UHD up to 100 meters over a single Cat6a cable run.
• Legacy Infrastructure Compatible — Works reliably over dated Cat5e wiring, splices, couplers, and punch-down blocks without a cable replacement project.
• 18 Gbps 4K HDMI 2.0 Support — Passes full-bandwidth 4K60 4:4:4 video with HDR10, HDR10+, and Dolby Vision.
• 4K-to-1080p Downscaling — Automatically downscales 4K sources to 1080p for mixed-resolution display systems.
• EDID Management — A 16-position EDID dial simplifies source handshaking across varied display types.
• RS-232 and IR Pass-Through — Bidirectional control signal pass-through supports integration with room control systems.
• Power over HDBaseT — A single power supply at the receiver eliminates the need for local power at the wall plate.

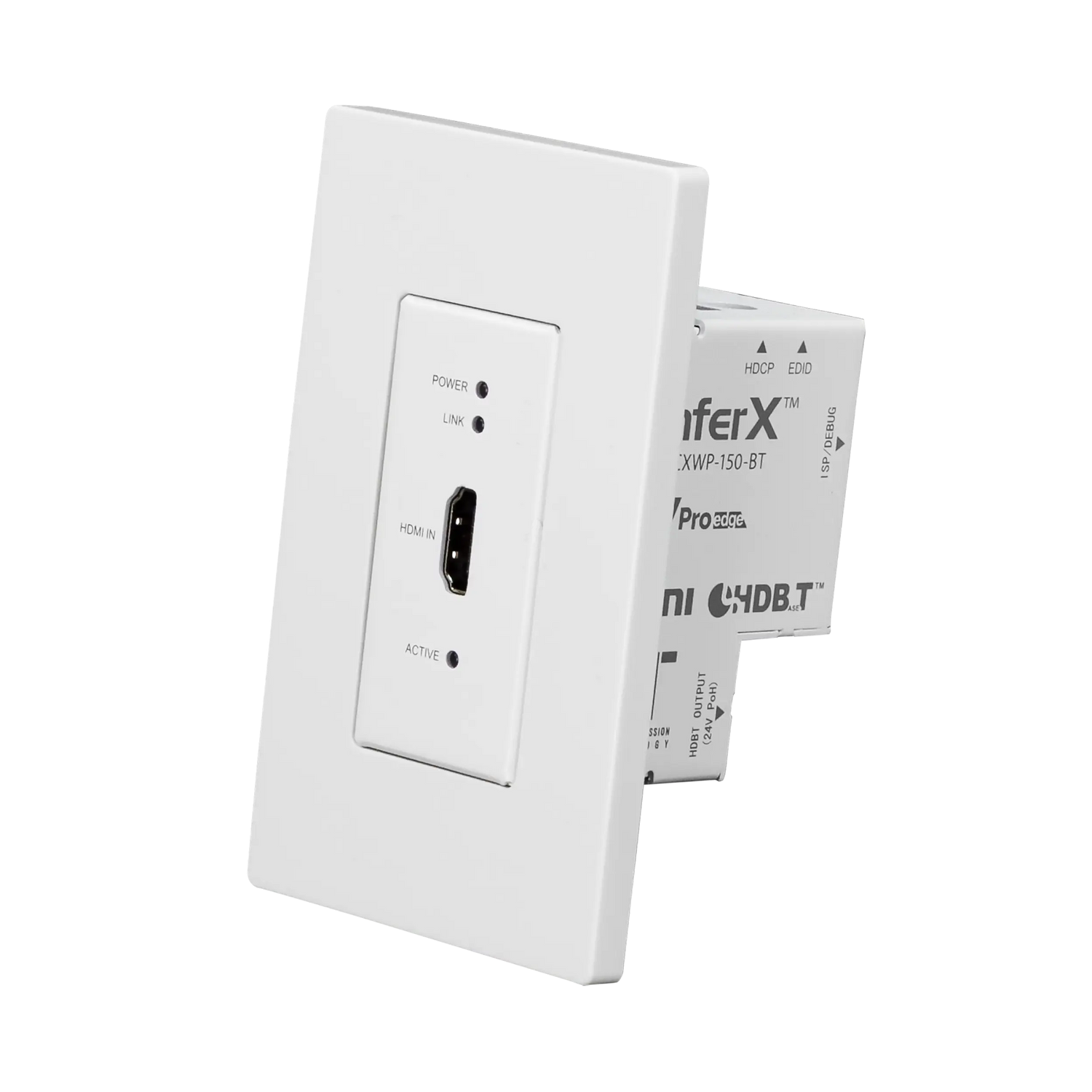

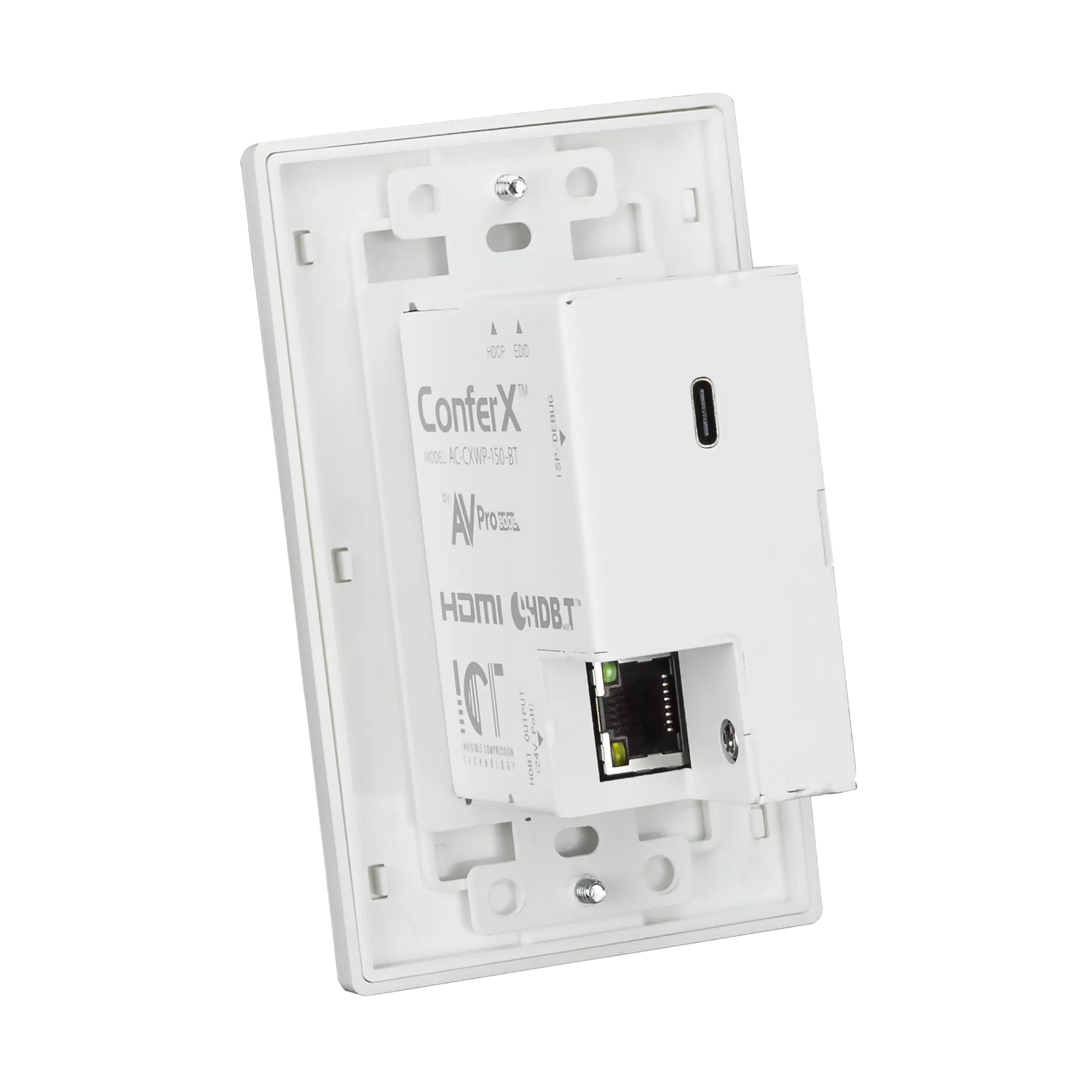

• Single-Gang Wall Plate — Fits standard mud rings, stud mounts, and metal or plastic low-voltage boxes for a clean commercial installation.

Typical Applications

• Conference room
• Boardroom
• Auditorium
• Training room
• House of worship
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

• Can this kit run over existing Cat5e cabling? Yes. It is specifically engineered to work over dated Cat5e infrastructure, including splices and punch-down blocks.
• What is the maximum distance for 4K video? Up to 100 meters (330 feet) over Cat6a for 4K60 4:4:4 signals; 1080p extends to 150 meters.
• Do I need a separate power supply for the wall plate transmitter? No. Power over HDBaseT (PoH) is delivered from a single power supply at the receiver end.
• Is this compatible with other HDBaseT transmitters or receivers? No. The transmitter and receiver are sold as a matched kit and must be used together; they are not designed to interoperate with third-party HDBaseT solutions.
• What control integration does it support? Bidirectional RS-232 and IR pass-through allow integration with room control systems.
• What is the warranty on this kit? AVPro Edge covers the AC-CXWP-150-BKT with a 10-year advanced-replacement warranty.
• Is a black wall plate version available? Yes, the identical kit is also available in black as the AC-CXWP-150-BKT-B.
