Absen NX3.75 960x540 NX Series 3.7mm Pixel Pitch LED Video Wall Panel

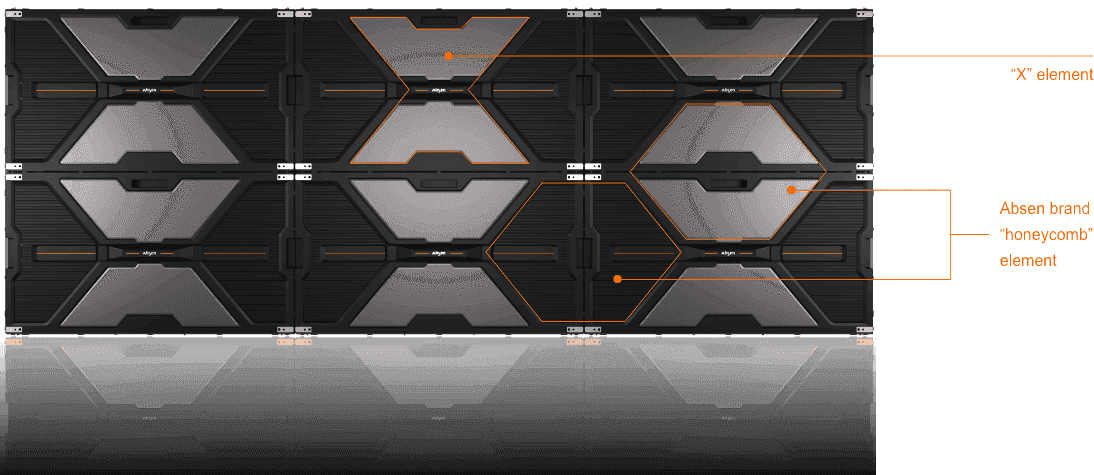

Introducing the NX Series, where the letter "X" symbolizes infinite possibilities, serving as a design element that forms a distinctive honeycomb pattern—an iconic Absen brand feature. This unique design reflects Absen's confidence in its display expertise and product quality. The NX Series follows a 16:9 golden ratio design, prioritizing viewing comfort, and offers a range of pixel pitches to cater to customer needs. With the dual brightness configuration, customers can choose the appropriate brightness version based on their specific application scenarios. The special 45° edge-cutting small panel adds a touch of creativity and opens up new possibilities. For installation flexibility, the NX Series supports hanging, wall-mounting, and steel structure stacking solutions, ensuring compatibility with various usage scenarios. Experience the NX Series and embrace limitless visual potential with Absen.

NOTE: Some images show multiple panels together or accessories, all Absen walls are custom quoted.

Absen NX3.75 Applications:

• Versatile Commercial Display Applications including:
  • Transportation Hub
  • Corporate
  • Mall
  • Chain Store

Absen NX3.75 Features:

• 16:9 Aspect ratio
• HDR10 Image processing technology
• Precise floating connector
• Dual Backup version
• Dual Brightness configuration
• 4K/8K visual experiences

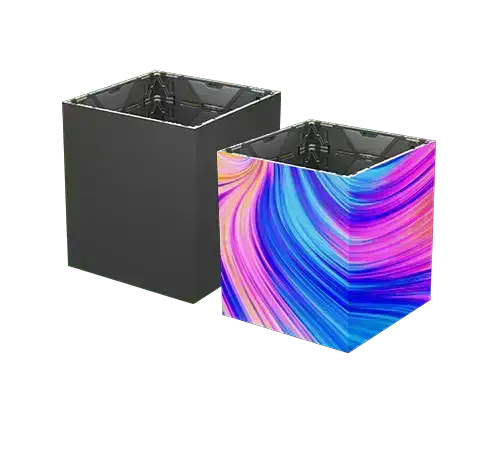

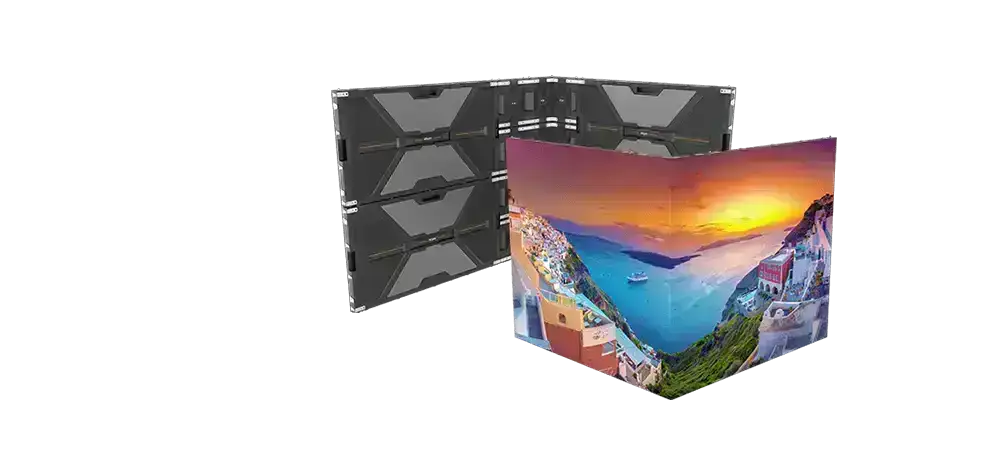

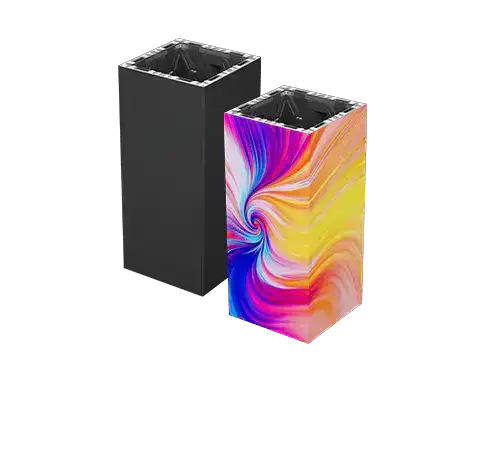

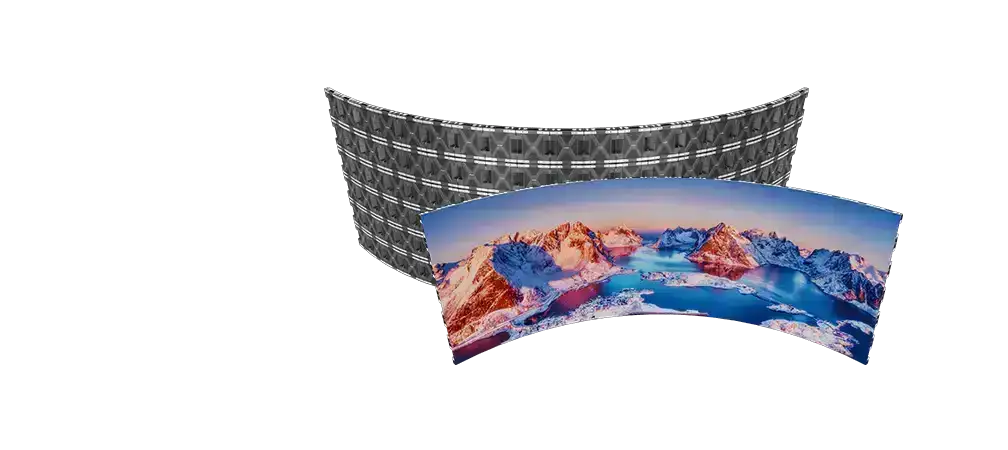

• Creative splicing allowing for curved L-shaped and cube displays
• Hanging, wall-mountng and stacking installation flexibility
• Front and Rear maintenance

Absen NX3.75 Specifications:

• Physical Parameter:
  • LED Type: SMD 3in1 1515
  • Pixel Pitch: 3.75 mm
  • Panel Dimensions (WxHxD): 960x540x43.5 mm
  • Pixel Per Panel: 256x144
  • Panel Weight: 10.3 kg
  • Panel Material: Die Casting Aluminum
  • Module Dimensions (WxH)/(mm) 240x270
• Optoelectronic Parameter:
  • Brightness: 800nit
  • Refresh Rate: 3840 Hz
  • Gray scale: 16 bit
  • Contrast Ratio: 5200:1
  • Color Temperature: 6500 K
  • Viewing Angle (H/V): 160/160°
  • Driving Type: 1/18
  • AC Operating Voltage: 100～240 V
  • Power Consumption (Max./Avg.): 480/160 W/m²
• Application Parameter:
  • Storage Temperature: ‑40～+60 ℃
  • Operating Temperature: ‑10～+40 ℃
  • Storage Humidity: 10%～85% RH
  • Operating Humidity: 10%～80% RH
  • IP Rating (Front/Rear): IP40/IP21
  • Module Maintenance: Front or Rear
  • PSU & Others Maintenance: Front or Rear
  • Panel Installation Type: Front/Rear
  • Max Rigging QTY.: 12
  • Certificate: CCC,CE,ETL,FCC,ROHS,TUV,EMC CLASS B
