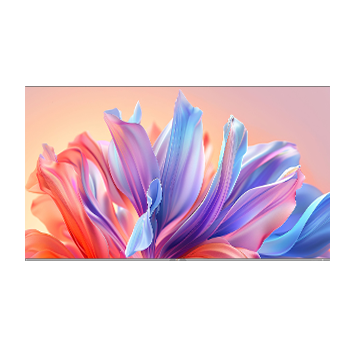

Absen iCon X V2 – All-in-One Micro LED Display, 136" / 163"

What is the Absen iCon X V2 all-in-one LED display?

The Absen iCon X V2 is a professional all-in-one Micro LED display in standard 136" and 163" sizes with 2K resolution. It arrives ready to plug in, with 5 mm bezels, a 98% screen-to-body ratio and native integration with Crestron, Extron and other control systems.

How does the Absen iCon X V2 work?

X V2 uses Micro LED with a 1.25 mm or 1.56 mm pixel pitch, 600 nits brightness and 15,000:1 contrast, which suits conference rooms and training spaces lit for video calls. It shows up to four sources at once in split-screen or picture-in-picture layouts.

Installation is quick: trims come pre-installed, cabinets ship in modules, and instructions are step-by-step. It connects over HDMI with RS232 control, mounts on a wall or a mobile stand, and carries CE and FCC certification.

What are the key features of the Absen iCon X V2?

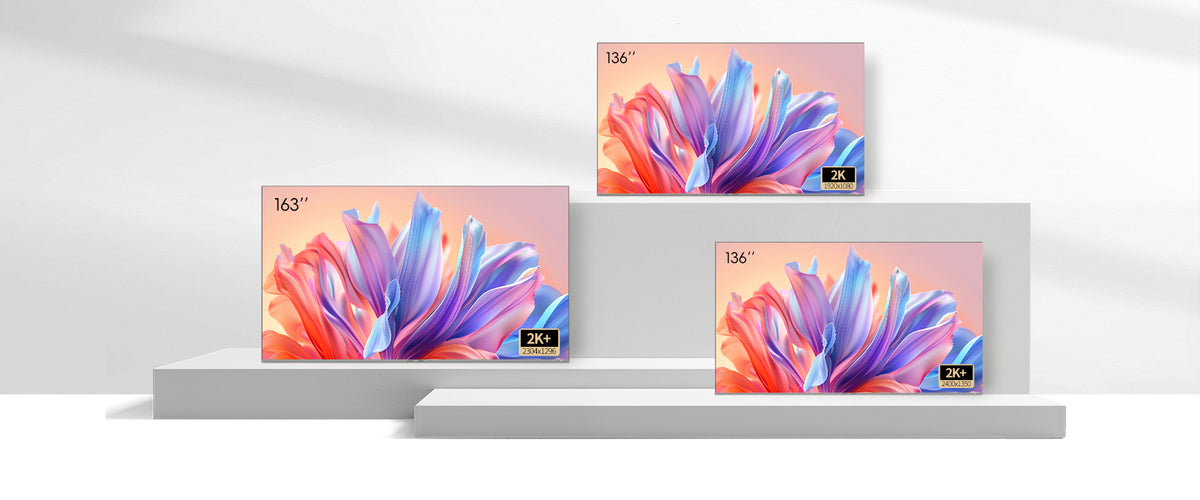

• 136" and 163" standard sizes — order a finished display, not a custom build.
• 2K resolution — sharp content and video calls.
• 5 mm bezel, 98% screen-to-body — almost all picture.
• 600 nits, 15,000:1 contrast — right for lit conference rooms.
• Crestron and Extron integration — drops into existing control systems.
• Up to 4 sources — split-screen and PIP for hybrid meetings.
• Modular shipping — fits through standard doors and elevators.
• Wall mount or mobile stand — fixed or movable rooms.

Where is the Absen iCon X V2 typically used?

• Boardroom

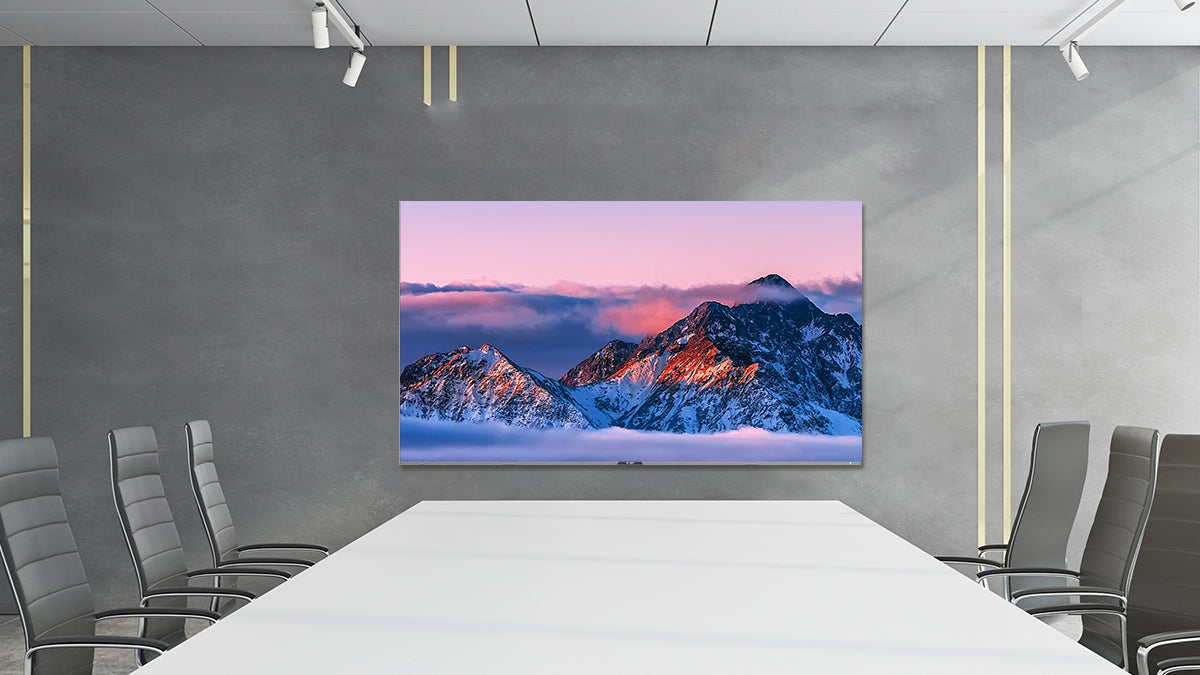

• Conference room
• Training room
• All-hands room
• Multi-purpose room

Technical Specifications

Specifications from Absen. Exact resolution, power and cabinet counts depend on your wall size — we confirm them on your quote.

Frequently Asked Questions

How much does the Absen iCon X V2 cost? LED walls are priced by size and configuration, so we quote each project. Send us the wall dimensions and how the space is used, and we'll come back with a layout and price.

What else does an Absen iCon X V2 system need? Video processing or sending cards, content sources, power, mounting structure and control. We spec the full system with the display — see the rest of our Absen LED video walls.

Does it work with Crestron, Extron or Q-SYS control? We integrate Absen LED with the control system in your room so users run it from the same touch panel as the rest of the AV.

Do you install it? Yes. Creation Networks is an Absen partner and designs, installs and supports Absen LED nationwide, from site survey through commissioning.

What about warranty and service? Absen warranty terms vary by series and region; we confirm coverage on your quote and can add Creation Care support for ongoing service.

Ready to price a wall? Call 888.230.3661 or email sales@creationnetworks.net.
