Absen CL V3 – 0.93mm Flagship COB LED Video Wall

What is the Absen CL V3 COB LED video wall?

The Absen CL V3 is Absen's flagship COB LED video wall, built for premium spaces where image quality is the whole point. At a 0.93 mm pixel pitch with a 30,000:1 contrast ratio, it holds fine text and deep blacks at close viewing distances. It fits corporate lobbies, boardrooms, control rooms, showrooms and private theaters.

How does the Absen CL V3 work?

Flip-chip COB packaging seals the LEDs under a protective surface, so the wall stands up to touch and cleaning far better than standard SMD panels. Absen's HTB ultra-black packaging drives the deep blacks, and a PWM+PAM hybrid drive controls light output precisely, even at low brightness levels used in meeting rooms.

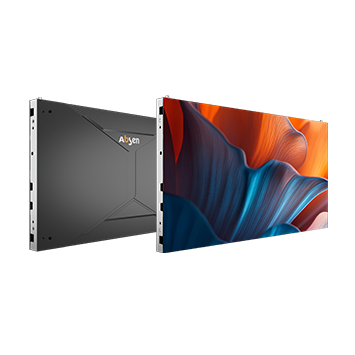

A wide color gamut chip keeps color accurate across laptops, cameras and media players, and anti-reflection, anti-glare treatment cuts hotspots from room lighting. Cabinets are 600 x 337.5 mm in a 16:9 format, so standard FHD, 4K and larger walls tile cleanly, with multiple installation options.

What are the key features of the Absen CL V3?

• 0.93 mm pixel pitch — fine detail for close-up viewing in boardrooms and lobbies.
• 30,000:1 contrast — deep blacks that make video and dashboards pop.
• Up to 1,600 nits peak brightness — headroom for bright lobbies and atriums.
• Flip-chip COB — sealed, durable surface that resists impact and dust.
• HTB ultra-black packaging — uniform black level across the whole wall.
• PWM+PAM hybrid drive — smooth, flicker-free images at low brightness.
• Anti-reflection, anti-glare — fewer reflections from room lighting.
• 16:9 cabinets — 600 x 337.5 mm panels tile to standard resolutions.

Where is the Absen CL V3 typically used?

• Boardroom
• Conference room
• Corporate lobbies
• Control rooms
• Showrooms and flagship retail
• Private theaters

Technical Specifications

Specifications from Absen. Exact resolution, power and cabinet counts depend on your wall size — we confirm them on your quote.

Frequently Asked Questions

How much does the Absen CL V3 cost? LED walls are priced by size and configuration, so we quote each project. Send us the wall dimensions and how the space is used, and we'll come back with a layout and price.

What else does an Absen CL V3 system need? Video processing or sending cards, content sources, power, mounting structure and control. We spec the full system with the display — see the rest of our Absen LED video walls.

Does it work with Crestron, Extron or Q-SYS control? We integrate Absen LED with the control system in your room so users run it from the same touch panel as the rest of the AV.

Do you install it? Yes. Creation Networks is an Absen partner and designs, installs and supports Absen LED nationwide, from site survey through commissioning.

What about warranty and service? Absen warranty terms vary by series and region; we confirm coverage on your quote and can add Creation Care support for ongoing service.

Ready to price a wall? Call 888.230.3661 or email sales@creationnetworks.net.
