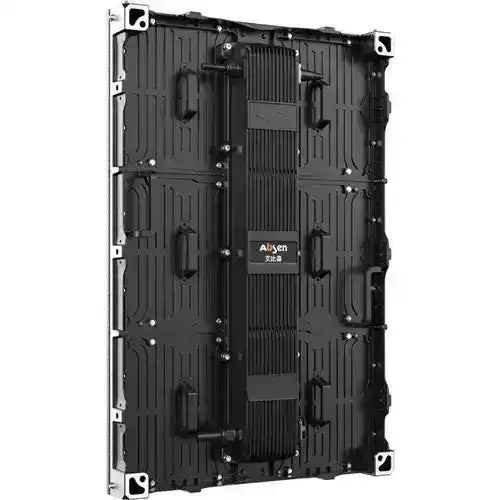

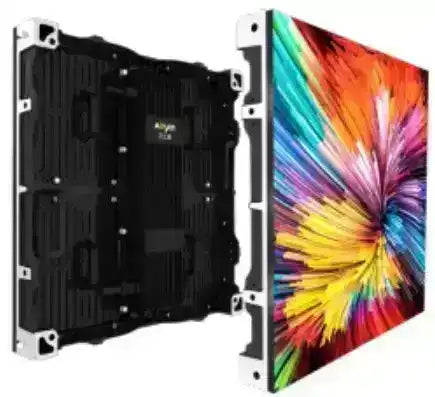

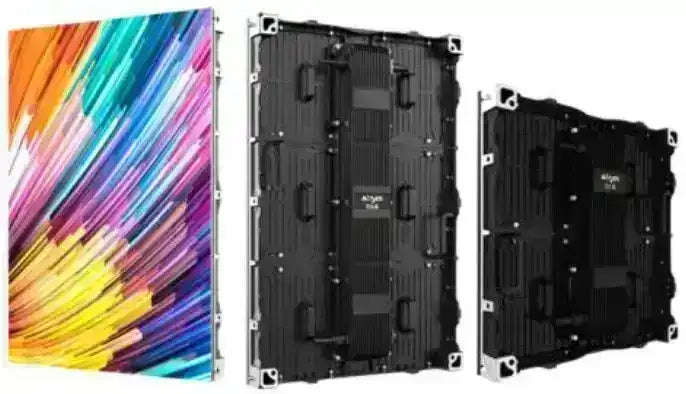

Absen AW2.8 500x500 Outdoor Fine Pixel Pitch LED Panel

Authorized Dealer

$1,699.00

Shipping calculated at checkout.

Absen | SKU: C6702-1-00

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The AW2.84 Outdoor Fine Pixel Pitch LED Panel represents cutting-edge technology tailored for outdoor environments where high-resolution visuals are paramount. With a pixel pitch of 3.9mm, this panel ensures exceptional clarity and detail even in daylight conditions. Designed for durability, it features robust weatherproof construction that withstands various outdoor elements. The panel supports seamless integration into large-scale displays, offering vivid colors and sharp contrasts ideal for advertising, entertainment venues, and public events. Its modular design allows for flexible installation configurations, making it suitable for diverse outdoor applications demanding superior image quality and reliability.

Absen Features:

Pixel Pitch: 2.84mm
Outdoor Application: Designed for outdoor environments
High Resolution: Ensures exceptional clarity and detail

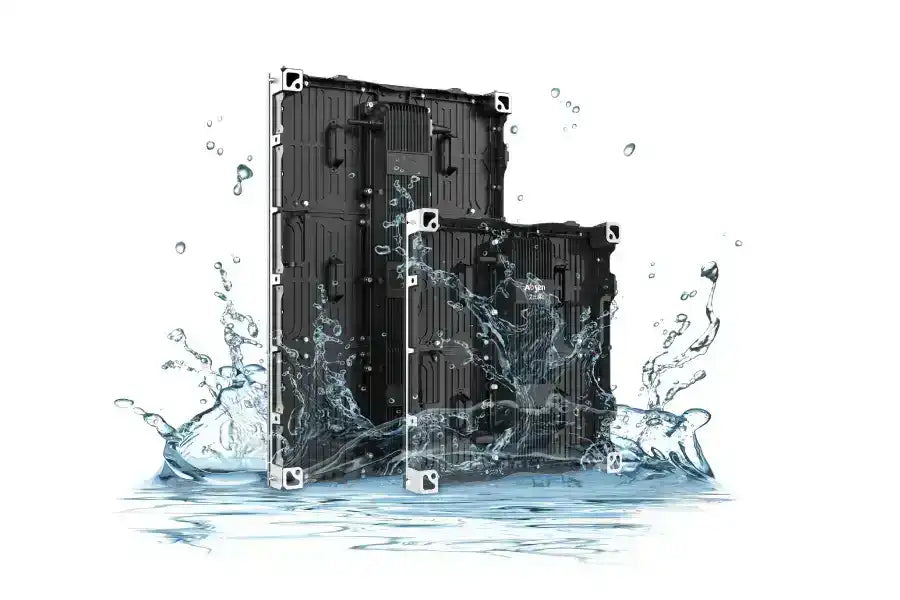

Weatherproof Construction: Robust build to withstand outdoor elements
Seamless Integration: Suitable for large-scale displays
Vivid Colors and Sharp Contrasts: Provides excellent color reproduction and contrast
Modular Design: Allows flexible installation configurations
Versatile Applications: Ideal for advertising, entertainment venues, and public events

Specs

High Definition - Yes
Outdoor - Yes
Spec Sheet available - Yes
Spec Sheet available - Yes

Contrast Ratio: 3600
Depth: 3.27 in
Height: 19.69 in
Width: 19.69 in
Lamp Type: SMD 3in1 1921 LED
Panel Material: Die Casting Aluminum
Peak Power: 630 Watt
Product Weight: 15.43 lbs
Active Power: 210 Watt
Sustainability Rating: IP65/IP65
Color: Black
Certifications: FCC, ETL, CE
Brightness (Luminance): 5000 Nits
Operating Temperature (Maximum): 104 F
Operating Temperature (Minimum): 14 F
AC Voltage (Minimum): 100 Volts
AC Voltage (Maximum): 240 Volts
Horizontal Viewing Angle: 160 degrees
Vertical Viewing Angle: 140 degrees
Pixel per Panel: 128x128
Refresh Rate (Hz): 3840
Module Dimensions (WxH)/(mm): 250x250
Color Temperature (K): 7500
Driving Type: 1/22
Storage Temperature (?): 40 to +60
Storage Humidity (RH): 10% to 90%
Operating Humidity (RH): 10% to 90%
Gray scale(Bit): 15
