Absen A25 Series A0825 1280x1440 High Brightness LED Display, 8.00 ...
Product Overview

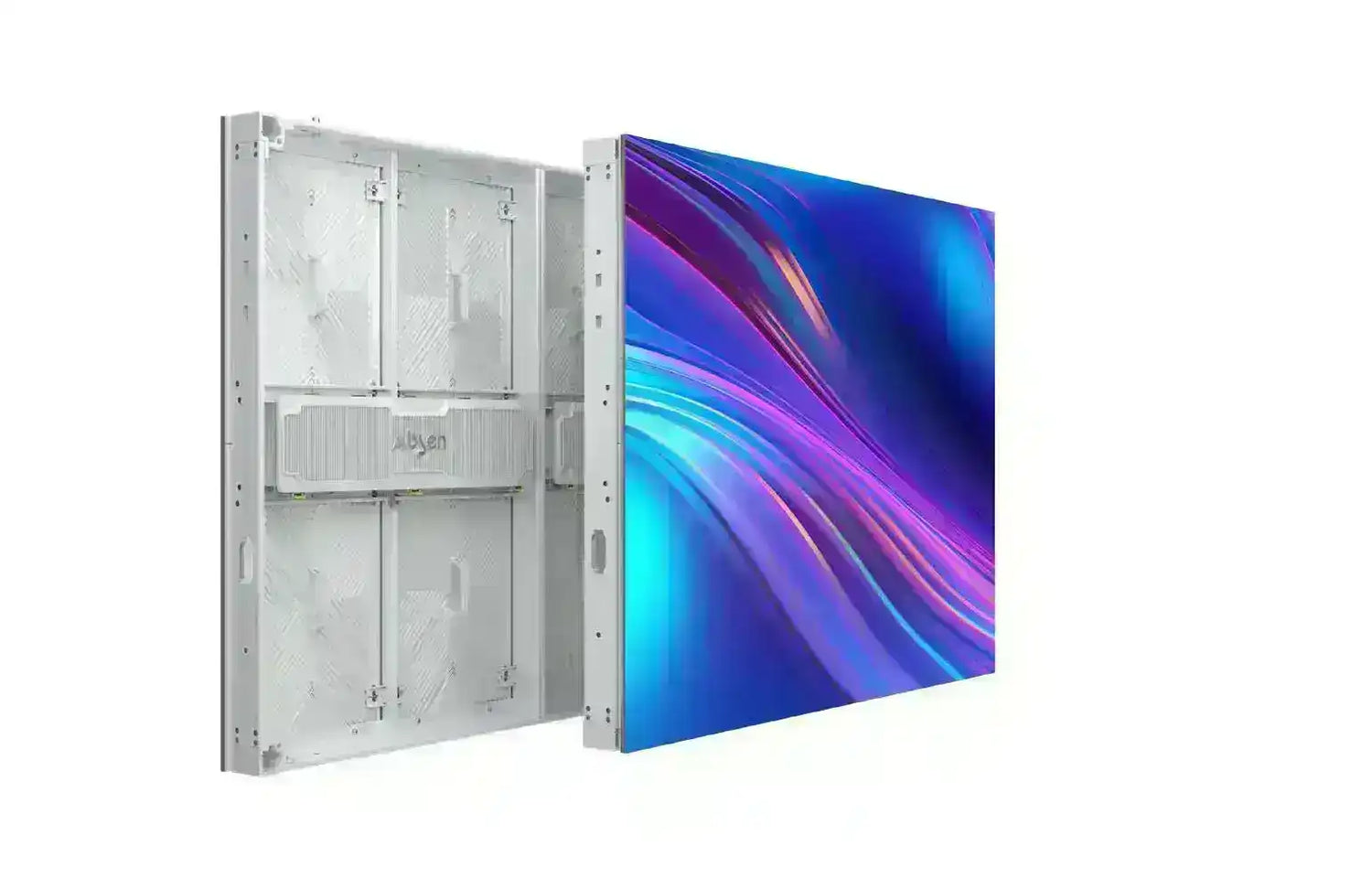

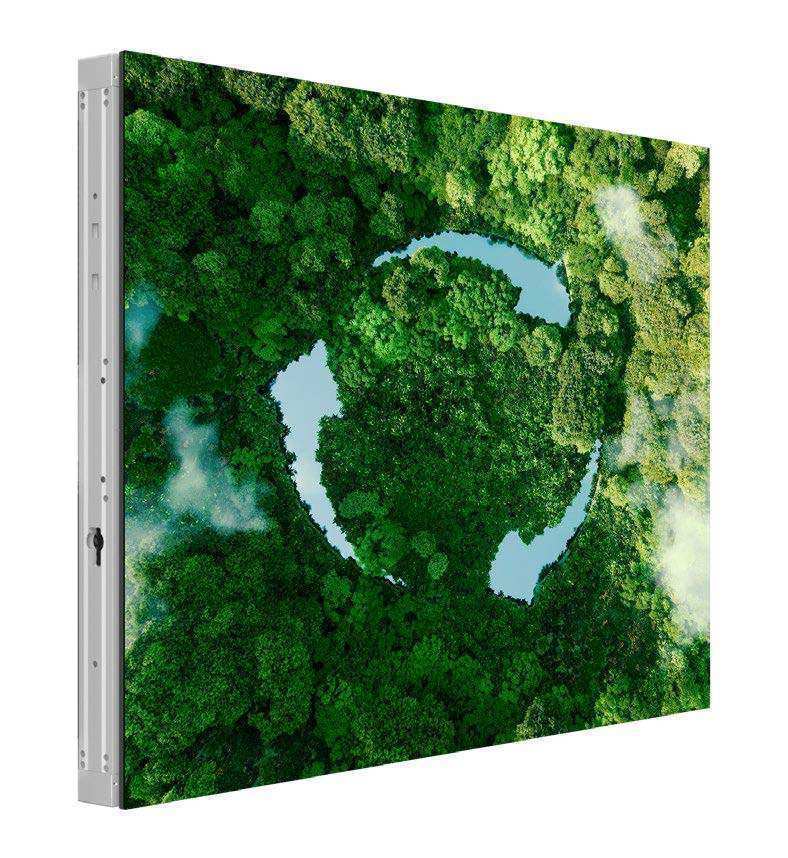

The Absen A25 Series A0825 is an energy-efficient outdoor LED display with a 8.00 mm pixel pitch, engineered for digital out-of-home advertising and durable commercial LED video walls. The 1280 × 1440 cabinet uses an all-aluminum design with aviation-grade waterproofing and delivers over 50% energy saving compared with standard solutions. It is built for continuous outdoor operation with fast, tool-light serviceability.
Product Description
The A25 Series A0825 pairs high efficiency with long-term stability for outdoor LED display projects. It consumes under 1 kWh/sqm per day, supports 10-second module swaps, and uses a modular design that lets integrators reuse cabinet frames across deployments. With a ≥15,000 Hz refresh rate, 16-bit grayscale, and a 110% NTSC color gamut, the 8.00 mm panel produces smooth, saturated visuals suitable for billboards, transit displays, and large commercial signage. IP66 ingress protection and ETL/FCC/CE/CCC certification support permanent outdoor installation.
Key Features
- Over 50% energy saving — Consumes under 1 kWh/sqm per day, cutting the operating cost of a large outdoor LED video wall.
- High refresh rate — ≥15,000 Hz refresh produces smooth, flicker-free visuals on camera and in motion.
- Wide color gamut — 16-bit grayscale and 110% NTSC deliver saturated, accurate color.

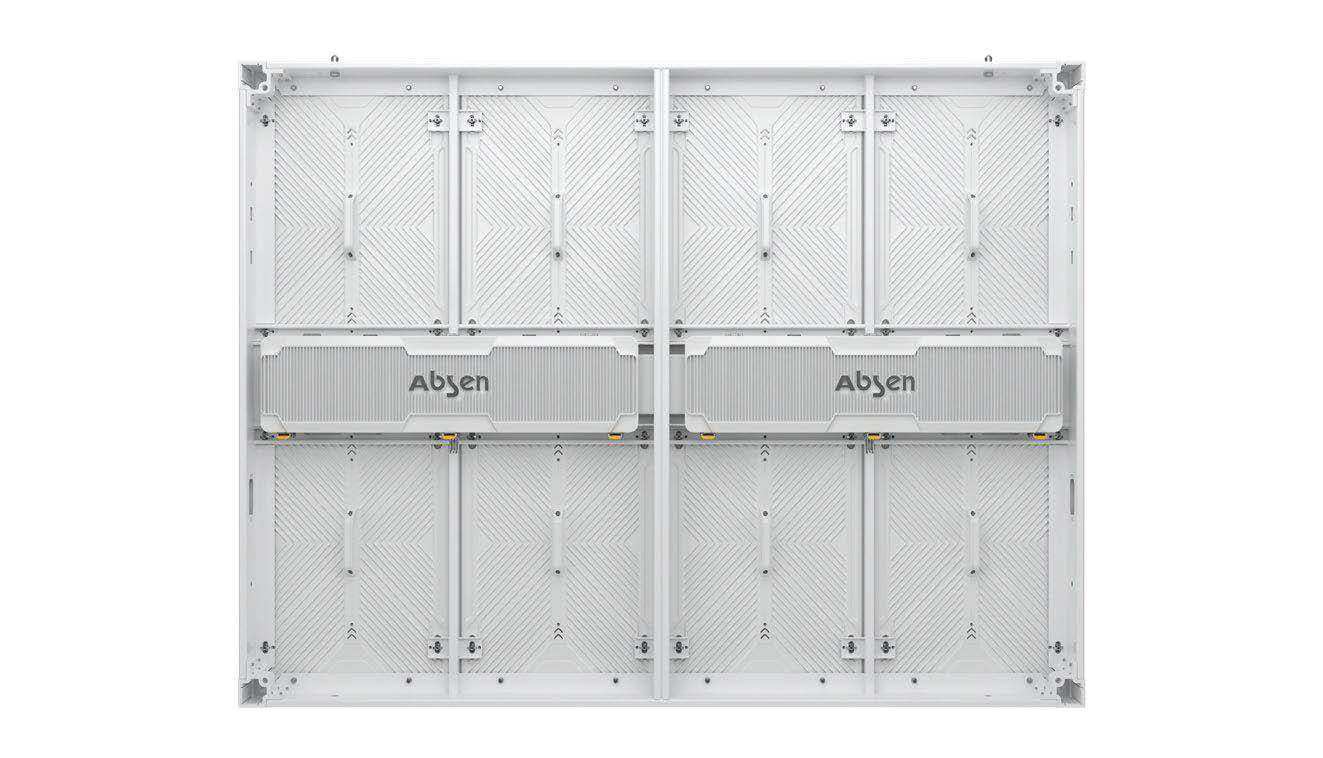

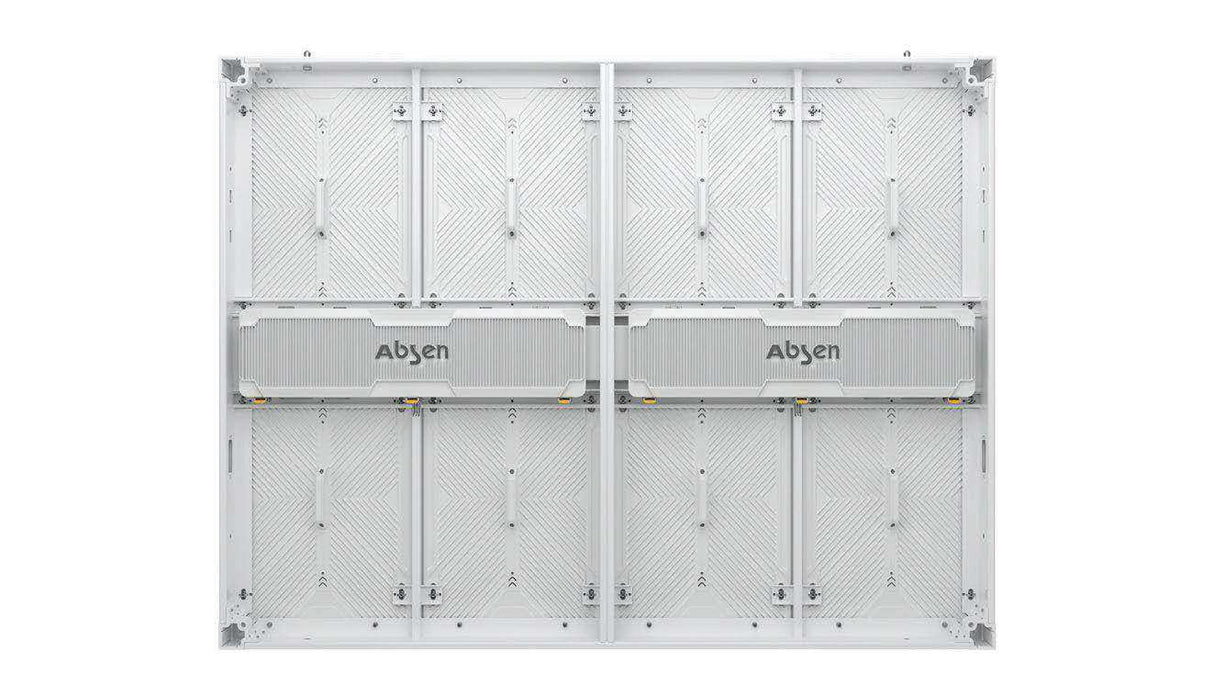

- IP66 weatherproofing — All-aluminum cabinet with aviation-grade waterproofing for permanent outdoor use.
- 10-second module swaps — Fast module replacement minimizes downtime during service.
- Modular, reusable cabinets — Cabinet frames can be reused across deployments to protect project investment.
- Certified — ETL, FCC, CE, and CCC certified for commercial deployment.
Typical Applications
- Digital out-of-home (DOOH) advertising, billboards, and transit displays.
- Commercial meeting spaces and client-facing environments where a seamless image reflects brand standards.
- Retail and showroom environments running high-impact promotional content.
- Government and command spaces requiring durable, continuously running displays.
Technical Specifications
| Brand / Series | Absen A25 Series A0825 |
| Module resolution | 1280 × 1440 |
| Pixel pitch | 8.00 mm |
| Brightness | 7,500 / 10,000 nits (configuration dependent) |
| Refresh rate | ≥15,000 Hz |
| Grayscale / color | 16-bit / 110% NTSC |
| Contrast ratio | 6,200:1 to 17,000:1 (model dependent) |
| Power consumption | Max 440–590 W/sqm (model dependent) |
| Energy use | Under 1 kWh/sqm per day; over 50% saving vs standard |
| Viewing angle | 160° |
| Ingress protection | IP66 |
| Certifications | ETL, FCC, CE, CCC |
| Cabinet dimensions / weight | Requires manual review (confirm from Absen cut sheet) |
Frequently Asked Questions
How energy efficient is the A25 Series?
It delivers over 50% energy saving versus standard solutions and consumes under 1 kWh/sqm per day, which materially lowers the running cost of a large outdoor video wall.
Is it rated for permanent outdoor installation?
Yes. The A25 Series carries IP66 ingress protection with an all-aluminum, aviation-grade waterproof cabinet, and is ETL/FCC/CE/CCC certified.
How quickly can a failed module be replaced?
The design supports 10-second module swaps, and frames are reusable, which keeps service downtime low.
What warranty applies?
Coverage is provided under Absen's manufacturer warranty. Confirm the current term and on-site service options with Creation Networks.
Comparable Absen models on Creation Networks: A25 Series A0425 1280x960, 4.44 and A25 Series A0625 1280x1440, 6.66.
