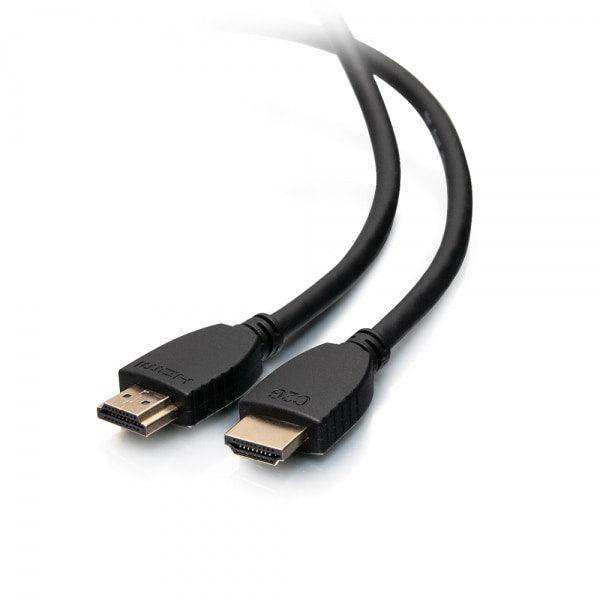

C2G 6ft (1.8m) High Speed HDMI® Cable with Ethernet - 4K 60Hz - CG56783

C2G SKU: CG56783
No reviews
Price:
$12.99

Description

The High Speed HDMI Cable with Ethernet - 4K 60Hz is perfect for connecting a wide variety of devices from computers to projectors and monitors, home entertainment systems to HDTVs and gaming systems, or any audio video applications requiring high speed HDMI features and video resolutions up to 4k (4096 x 2160) at 60Hz.

This High Speed HDMI Cable supports the updated library of Consumer Electronic Control (CEC) commands, allowing communication between devices connected through the HDMI ports. The Ethernet capabilities of the cable allow for Ethernet-enabled HDMI devices to access interactive online content or update device firmware. The gold plated connectors on the cable allow for better shielding, increased electrical conductivity, and durability. Lastly, this fully-functional, high bandwidth cable has been tested to perform at industry standards and is backed by a lifetime warranty.

Color : Black
Length : 6.00 Foot
Jacket Rating : Standard Non-Rated
UPC : 757120567837
Warranty : Lifetime
Vendor : C2G
Weight : 0.215 LB
Signal Specifications
• Supports HDMI Resolutions up to 4K 60Hz, 4:4:4, 18 Gbps
• Supports Full HD Blu-ray Disc and HD DVD Video
• Supports 3D Video
• 2 Video Streams (Dual View)
• Perceptual Quantizer (PQ HDR OETF (SMPTE ST 2084)
• Hybrid Log-Gamma (HLG) HDR OETF
• Static HDR Metadata (SMPTE ST 2086)
• DVD Audio, Super Audio CD (DSD)
• Dolby® True HD, DTS-HD Master Audio Bitstream Capable
• 4 Audio Streams
• Audio Return Channel (ARC)
• Ethernet Channel: 100 Mbit/s
• Consumer Electronic Control (CEC), with Updated List of CEC Commands

Electrical Specifications
• Voltage Rating: 30V
• Temp Rating: 80°C
• Conductor Resistance: at 20°C Max 30AWG: 376Ω/km
• 50611 & 50612: Conductor Resistance: at 20°C Max 28AWG: 237Ω/km
• Insulation Resistance: 10MΩ/km Min at 20°C DC 500V
• Spark Test: AC1500V/In the Air
• Dielectric Strength: AC500V/1 Minute No Breakdown
• Impedance: Pairs (Differential Mode) 100±10Ω

Physical Specifications
• Operating Temperature: -20°C to 80°C
• Storage Temperature: -20°C to 80°C

Physical Characteristics
• Tensile Strength: Unaged: 1500PSI min; Aged: 70% min
• Elongation: Unaged: 100% min; Aged: 65% min
• Deformation Test: Max 50%
• Cable Jacket Ratings: VW-1
• Shield Type: AL Foil Wrap, Braid: 16*9/0.10mm
• 50611 & 50612: Shield Type: AL Foil Wrap, Braid: 16*11/0.10mm
• Minimum Bend Radius: R42MM
• 50611 & 50612: Minimum Bend Radius: R51MM
• Connector: P1 & P2: HDMI 19 Pin Male: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Gold Plating
• All Hood: Molded Black (Pantone/#Black 6C) PVC
• Product is CE marked and conforms to 2011/65/EU ROHS 2
