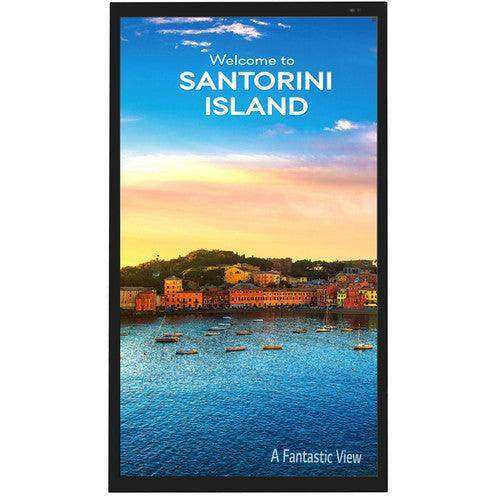

LG 55XE4F-M – 55-inch 4,000-nit Outdoor IPS Display

Product Overview

The LG 55XE4F-M is a 55-inch outdoor signage display built for fully exposed, direct-sunlight installations such as outdoor menu boards, transit displays and self-service kiosks. Its 4,000-nit IPS panel stays readable in bright daylight, making it one of the higher-output options among 55-inch outdoor digital signage displays. An IP56 rating protects against rain, snow, dust and wind, while an IK10 impact rating guards the front glass in public, high-traffic locations. HDBaseT support lets integrators run video, audio, control and power management over a single long-distance cable.

Product Description

Engineered as an all-weather commercial signage display, the 55XE4F-M uses a Direct LED backlight with 48 local dimming zones to improve contrast and sustain its 4,000-nit output efficiently. The IPS panel preserves color accuracy across wide viewing angles, which is essential for pedestrian and drive-by audiences approaching off-axis. A quarter-wave-plate surface treatment keeps the screen visible to viewers wearing polarized sunglasses outdoors. The slim, casing-free chassis is designed to be customized for different outdoor enclosures and mounting scenarios without a bulky secondary housing. Web-based monitoring lets integrators check status, adjust settings and control the display remotely from any internet-connected device. The display runs webOS and integrates with LG SuperSign content management and Signage365Care monitoring for fleet operations. For window-facing or semi-outdoor placements that do not require a sealed chassis, the lower-cost LG 55XF3E-B in-window signage display is a complementary option.

Key Features

• 4,000-Nit Brightness — High luminance keeps content clear and vivid outdoors and under direct sunlight, the primary requirement for exterior signage.
• IP56 Weather Protection — Certified against water, rain, snow, dust and wind for fully exposed outdoor deployment.
• IK10 Impact Resistance — Tempered, laminated front glass protects the display from impacts in public, high-traffic locations.
• Direct LED with 48 Local Dimming Zones — Zone-level backlight control improves contrast and supports sustained high-brightness output.
• IPS Wide Viewing Angle — IPS technology maintains accurate color and contrast for audiences viewing from the side.
• HDBaseT Support — Carries video, audio, Ethernet, control, USB and IR over a single long-distance cable, simplifying outdoor cabling runs.
• Web-Based Remote Monitoring — Status checks, adjustments and control are available remotely from any internet-connected device.
• SuperSign and Signage365Care Compatibility — Centralized content management and proactive fleet monitoring streamline multi-site operations.

Typical Applications

• Government space — Exterior wayfinding and public information displays at civic buildings and transit points.
• Commercial meeting space — Daylight-exposed lobby, entrance and campus signage.
• House of worship — Outdoor-facing announcement and event signage visible in full sun.

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What do the IP56 and IK10 ratings mean for installation?
IP56 certifies protection against powerful water jets and dust ingress, allowing fully exposed outdoor mounting, while IK10 indicates the front glass resists significant mechanical impact — important for public, unattended locations.

How does HDBaseT simplify an outdoor deployment?
HDBaseT carries video, audio, Ethernet, control and IR over a single cable for long runs, reducing conduit, cabling cost and signal-extension hardware between the head end and the display.

Is 4,000 nits necessary for my location?
For direct-sun, west- or south-facing placements, 4,000 nits maintains legibility where lower-output panels wash out. Shaded or canopy-covered locations may be served by a lower-brightness model.

What CMS and monitoring tools are supported?
The display runs webOS and works with LG SuperSign for content scheduling and Signage365Care for proactive fault monitoring, plus built-in web-based remote management.

What warranty and support are available?
The unit carries LG's commercial outdoor signage warranty. Creation Networks can confirm current coverage terms, enclosure and mounting requirements, and extended service options during specification.
