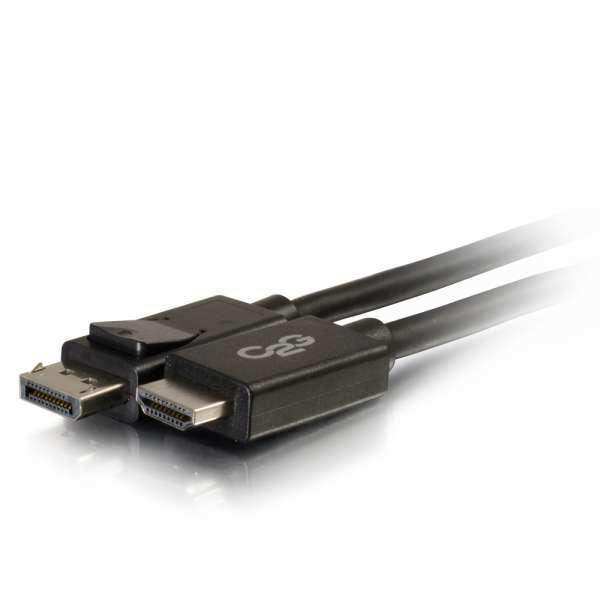

This adapter cable is an ideal solution for connecting the DisplayPort output of a laptop to a HDTV or projector which accepts a HDMI input. This cable carries a digital audio/video signal, supports up to a 1080p resolution and meets the requirements of high performance applications.
Features
• Plug-and-play, so no additional software or drivers needed
• Supports resolutions up to 1080p, for viewing your screen content at full HD
Specs
Color : | Black |
---|---|
Length : | 6.00 Foot |
UPC : | 757120543268 |
Warranty : | Lifetime |
Vendor : | C2G |
Weight : | 0.263 LB |
Electrical Specifications:
•Voltage Rating: 30v
•Conductor Resistance: @ 20°C max
•Insulation Resistance: 10MΩ/km
•Time Delay: 5.2ns/m (max)
•Attenuation:
5.02dB@100-450MHz 7.69dB@1GHz
12.595dB@2GHz 17.495dB@3GHz
22.395dB@4GHz 27.295dB@5GHz
32.195dB@6GHz 37.095dB@7GHz
Physical Specifications:
•Operating Temperature: 0°C to 50°C
•Storage Temperature: -25°C to 70°C
•Approvals: CE
•Warranty: Lifetime
Conductor (2 Conductors, 5 Pair):
•Conductor: 30AWG (7/0.1TC)
•Insulation: FM-PE, ID:0.8±0.05mm
•Color: White/Brown, White/Red,
White/Orange, White/Green
White/Blue
•Drain: 30AWG (7/0.1TC)
HD-PE ID:0.56±0.05
•Shield: AL-Mylar Wrap
Coverage—100%
Conductor (5 Conductors):
•Conductor: 30AWG (7/0.1TC)
•Insulation: HD-PE, ID:0.56±0.05mm
•Color: Red/Orange/Yellow/Green/ White
Overall Cable
•Jacket: PVC
•Shield: AL-Mylar—Coverage 100%
Braid—16/9/0.12
•Drain: 2:30AWG (7/0.08 BC)
•OD: 6.5±0.2
