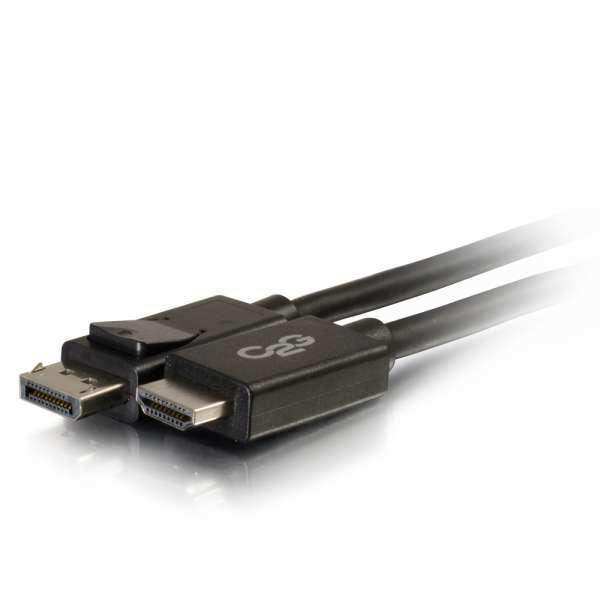

C2G 3ft DisplayPort™ Male to HDMI® Male Adapter Cable - Black - CG54325

C2G SKU: CG54325
No reviews
Price:
$34.99

Description

This DisplayPort to HDMI Adapter Cable is an easy and convenient solution for connecting an HDMI monitor to a DisplayPort computer in your home or your office. This adapter cable carries a digital audio/video signal, supports up to a 1080p resolution and meets the requirements of high performance applications.

Avoid frustration by simply plugging the male DisplayPort into your computer and then plug the male HDMI into your monitor or projector. The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable.

This adapter cable automatically converts the digital DisplayPort signal to HDMI, supporting full HD up to a 1080p resolution.

Color : Black
Length : 3.00 Foot
UPC : 757120543251
Warranty : Lifetime
Vendor : C2G
Weight : 0.167 LB

Electrical Specifications:
•Voltage Rating: 30v
•Conductor Resistance: @ 20°C max
•Insulation Resistance: 10MΩ/km
•Time Delay: 5.2ns/m (max)
•Attenuation:
5.02dB@100-450MHz 7.69dB@1GHz
12.595dB@2GHz 17.495dB@3GHz
22.395dB@4GHz 27.295dB@5GHz
32.195dB@6GHz 37.095dB@7GHz

Physical Specifications:
•Operating Temperature: 0°C to 50°C
•Storage Temperature: -25°C to 70°C
•Approvals: CE

Conductor (2 Conductors, 5 Pair):
•Conductor: 30AWG (7/0.1TC)
•Insulation: FM-PE, ID:0.8±0.05mm
•Color: White/Brown, White/Red,
White/Orange, White/Green
White/Blue
•Drain: 30AWG (7/0.1TC)
HD-PE ID:0.56±0.05
•Shield: AL-Mylar Wrap
Coverage—100%
Conductor (5 Conductors):
•Conductor: 30AWG (7/0.1TC)
•Insulation: HD-PE, ID:0.56±0.05mm
•Color: Red/Orange/Yellow/Green/ White
Overall Cable
•Jacket: PVC
•Shield: AL-Mylar—Coverage 100%
Braid—16/9/0.12
•Drain: 2:30AWG (7/0.08 BC)
•OD: 6.5±0.2
