Middle Atlantic BGR-4527-FWD – 45RU Forward Pre-Configured BGR Rack

Product Overview

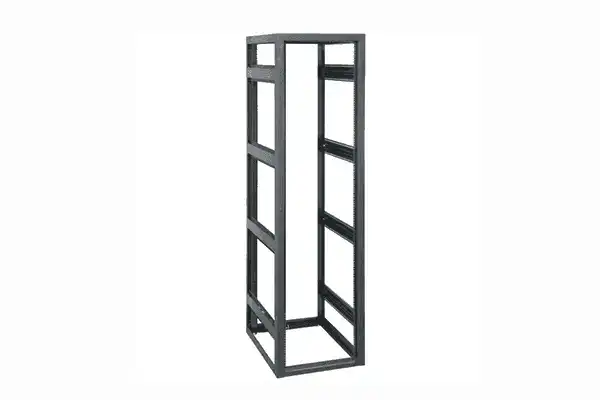

The Middle Atlantic BGR-4527-FWD is a 45-space, 27-inch deep floor-standing BGR Series rack pre-configured with Middle Atlantic's Forward accessory system, designed for commercial AV integrators who need a complete, deployment-ready rack enclosure in a shallower footprint. Measuring 83 inches tall by 23 inches wide, this pre-configured AV rack ships with a UPS caster base, managed PDU, cable management, fan top, lighting, and enclosure panels included as a single part number. The 27-inch depth makes it appropriate for installations where equipment room depth is limited, while still accommodating standard 1RU through 4RU rackmount AV and IT equipment. It is equally well-suited for new construction AV rooms and retrofit installs in existing equipment closets.

Product Description

The BGR-4527-FWD is built on the BGR Series platform, which is the first floor-standing AV rack to be both Forward-compatible and Lever Lock compatible, providing tool-free mounting capacity on the rail, off the rail, and on the side panels. The overall height is 82.88 inches with 78.75 inches of racking height (200 cm), and the overall depth is 27 inches with 24.4 inches of usable depth for equipment. The pre-configured package begins with power: the FWD-CBS-2KVA-BGR32 Forward UPS Caster Base includes a pre-installed UPS-2200R from the factory, and the RLNK-1015V 10-outlet Select Series Vertical PDU with RackLink handles managed power distribution. Cable management is addressed with Forward straight and offset horizontal lacer bars, a FWD-LACE-WB3-35-40 vertical wire grid lace, a FWD-LACE-UMV-35-40 vertical cable management lace with the patented universal hole pattern, two LL-VC21 Lever Lock vertical channels, 15 Forward tie saddles (FWD-TSW-15), and two Velcro straps. Small device mounting uses two 4-packs of Forward side clamps (FWD-SIDECLMP-4) and one LL-VP2110 Lever Lock plate. Interior lighting is provided by the FWD-LT-UTL-35-40-D utility light pair with IR sensor and dimmer. The BGR-276FT-FC DC fan top delivers 276 CFM from four fans with an included speed controller. The enclosure package includes a BFD-38 solid front door, BSPN-38-32 side panels, LF-HD heavy-duty leveling feet, and 100 10-32 rack screws.

Key Features

• 45RU Forward Pre-Configured BGR Rack — 45 rack units in a 27-inch deep footprint, factory-assembled with all Forward accessories for rapid deployment.
• Overall Dimensions — 82.88" H x 23" W x 27" D overall; 78.75" racking height, 24.4" usable depth.
• Integrated UPS Caster Base — FWD-CBS-2KVA-BGR32 with pre-installed UPS-2200R for built-in power protection and mobile positioning.
• Managed 10-Outlet Vertical PDU — RLNK-1015V with RackLink for remote outlet monitoring and control.
• Forward and Lever Lock Rail Compatibility — Dual-system rackrail supports both tool-free accessory platforms without adapters or modification.
• Comprehensive Vertical Cable Management — FWD-LACE-WB3-35-40 wire grid lace and FWD-LACE-UMV-35-40 universal hole pattern lace handle vertical cable routing.
• 276 CFM Four-Fan DC Fan Top — BGR-276FT-FC maintains positive airflow for high-density equipment without increasing acoustic signature unnecessarily.
• IR-Triggered Utility Lighting — FWD-LT-UTL-35-40-D activates on approach and dims automatically for technician convenience.
• Finished Enclosure Package — Solid front door, matching side panels, and leveling feet provide a clean installation ready for client handover.
• Package Weight — 137 lb shipping weight; ships in a 89 x 30 x 27” carton via freight carrier.

Typical Applications

• AV equipment rooms and IT closets with limited floor depth
• Corporate conference room and boardroom AV infrastructure
• Higher education classroom and lecture hall AV systems
• Healthcare facility AV and communications infrastructure
• Multi-zone commercial AV distribution systems
• Government and institutional AV infrastructure
• House of worship and large venue AV systems

Technical Specifications

Frequently Asked Questions

Q: How does the BGR-4527-FWD differ from the BGR-4532-FWD?

A: Both are 45RU Forward pre-configured BGR racks. The BGR-4527-FWD has a 27-inch overall depth (24.4 inches usable), while the BGR-4532-FWD is 32 inches deep. The shallower 27-inch model suits equipment rooms with limited floor depth or installations using predominantly shallow-chassis equipment.

Q: What is the usable depth for equipment mounting?

A: The BGR-4527-FWD provides 24.4 inches (61.98 cm) of usable depth between the front and rear rackrails.

Q: Is the UPS factory-installed?

A: Yes. The UPS-2200R power protection unit is pre-installed inside the FWD-CBS-2KVA-BGR32 UPS Caster Base at the factory and does not require on-site assembly.

Q: Can Lever Lock accessories be added after the rack is installed?

A: Yes. The BGR Series rackrail accepts Lever Lock accessories tool-free at any point. Accessories snap into position without removing equipment or tools.

Q: What is the shipping weight and carton size?

A: The BGR-4527-FWD ships in an 89 x 30 x 27-inch carton at 137 lb and requires freight delivery.

Q: Does the PDU include remote power management?

A: Yes. The included RLNK-1015V Vertical PDU features RackLink, allowing remote monitoring and outlet-level control over a network connection.

Q: What warranty applies to this product?

A: Middle Atlantic Products carry Legrand AV's standard commercial warranty. Contact Creation Networks at creationnetworks.net for current warranty terms and procurement support.
