Middle Atlantic BGR-4532-FWD – 45RU Forward Pre-Configured BGR Rack

Product Overview

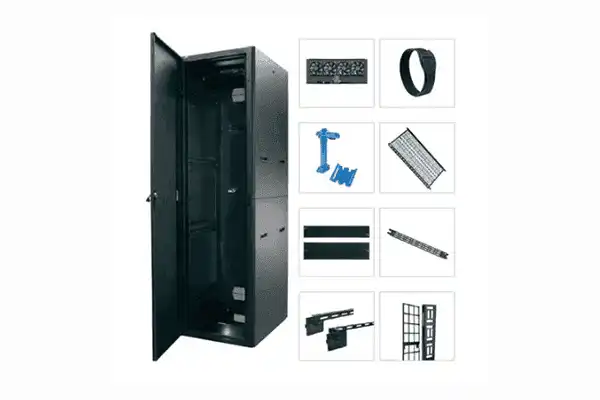

The Middle Atlantic BGR-4532-FWD is a 45-space, 32-inch deep floor-standing BGR Series rack pre-configured with the complete Forward accessory package, purpose-built for commercial AV integrators installing high-density AV and IT systems. At 83 inches tall and 23 inches wide, this pre-configured rack enclosure ships factory-assembled with UPS-integrated caster base, power distribution, cable management, thermal management, and enclosure components included. It is well-suited for AV equipment rooms, broadcast facilities, and large-format commercial AV infrastructure projects where a complete rack solution is needed from a single line item. The pre-configured approach reduces procurement complexity and on-site assembly time compared to specifying each component separately.

Product Description

The BGR-4532-FWD provides 45 rack units of mounting space in a 32-inch deep BGR Series enclosure, combining the Forward accessory ecosystem with Lever Lock compatibility for maximum installation flexibility. The included FWD-CBS-2KVA-BGR32 Forward UPS Caster Base arrives with a UPS-2200R power protection unit pre-installed at the factory. The 10-outlet Select Series Vertical PDU with RackLink (RLNK-1015V) provides managed power distribution with remote outlet-level monitoring. Cable management components include Forward horizontal lacer bars (straight and 2-inch offset), a vertical wire grid lace bar (FWD-LACE-WB3-44-45) for combined vertical and horizontal routing, and a vertical cable management lace (FWD-LACE-UMV-44-45) with the patented universal hole pattern. Two Lever Lock vertical channels (LL-VC21) enable tool-free mounting of cable management accessories at any time post-installation. Blank panels in 1RU and 2RU sizes, forward tie saddles, small device clamps, and a Lever Lock small device mounting plate are included. The Forward utility light pair (FWD-LT-UTL-44-45-D) with IR sensor and dimmer illuminates the interior automatically. A 276 CFM DC fan top (BGR-276FT-FC) with four fans and controller handles thermal management. The enclosure closes with a solid front door (BFD-45), side panels (BSPN-45-32), and heavy-duty leveling feet (LF-HD). One hundred 10-32 rack screws complete the package.

Key Features

• 45RU Forward Pre-Configured Enclosure — Factory-assembled 45-space rack with all Forward accessories included, ready to receive equipment on arrival.
• Integrated UPS Caster Base — FWD-CBS-2KVA-BGR32 with pre-installed UPS-2200R provides battery backup and mobility during rack positioning.
• 10-Outlet Vertical PDU with RackLink — RLNK-1015V enables remote outlet-level power monitoring and control over the network.
• Forward and Lever Lock Compatible Rackrail — Adjustable front and rear rackrails with numbered spaces support both Forward and Lever Lock tool-free accessories.
• Comprehensive Cable Management — Horizontal lacer bars, vertical wire grid lace, and vertical cable management lace organize AV signal, power, and data cables without tools.
• 276 CFM DC Fan Top — BGR-276FT-FC four-fan top with controller provides active thermal management for high-density equipment loads.
• Sensor-Triggered Utility Lighting — FWD-LT-UTL-44-45-D utility light pair with IR sensor activates automatically when technicians access the rack.
• Solid Front Door and Side Panels — BFD-45 door and BSPN-45-32 side panels deliver a finished, secure appearance for client-visible installations.

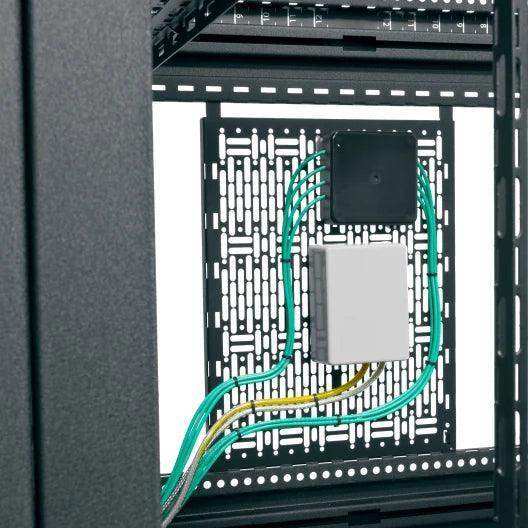

• Small Device Mounting — FWD-SIDECLMP-4 clamps and LL-VP2110 Lever Lock plate mount non-standard devices without drilling.
• Heavy-Duty Leveling Feet — LF-HD feet allow fine-tuning of rack position on uneven surfaces after installation.

Typical Applications

• Corporate AV equipment rooms and machine rooms
• Boardroom and large conference room AV infrastructure
• Higher education AV and IT infrastructure installations
• Broadcast, production, and post-production facilities
• Multi-zone commercial AV distribution systems
• Healthcare facility AV and network infrastructure
• House of worship and large venue AV systems

Technical Specifications

Frequently Asked Questions

Q: What is the usable rack space in the BGR-4532-FWD?

A: The BGR-4532-FWD provides 45 rack units (RU) of usable mounting space on standard EIA-310 19-inch forward and rear rackrails.

Q: Is the UPS shipped pre-installed?

A: Yes. The UPS-2200R is factory-installed inside the FWD-CBS-2KVA-BGR32 UPS Caster Base before shipment, requiring no additional UPS assembly on site.

Q: Can additional Forward or Lever Lock accessories be added after installation?

A: Yes. Both the Forward accessory system and Lever Lock system are fully tool-free. Accessories such as shelves, D-rings, C-rings, and mounting plates can be added or repositioned without removing equipment from the rack.

Q: What is the difference between the BGR-4532-FWD and BGR-4527-FWD?

A: Both are 45RU Forward pre-configured BGR racks. The BGR-4532-FWD is 32 inches deep, while the BGR-4527-FWD is 27 inches deep. Deeper configurations accommodate larger AV and IT equipment with longer chassis.

Q: Does the included PDU support network management?

A: Yes. The RLNK-1015V features RackLink technology for remote outlet-level monitoring, scheduling, and control via a network connection.

Q: What warranty applies to this product?

A: Middle Atlantic Products carry Legrand AV's standard commercial product warranty. Contact Creation Networks for current warranty terms and support.

Q: Does this rack ship assembled?

A: The BGR-4532-FWD ships as a pre-configured unit with accessories factory-installed. Due to its size and weight, it ships via freight carrier. Contact Creation Networks at creationnetworks.net for freight and lead time details.
