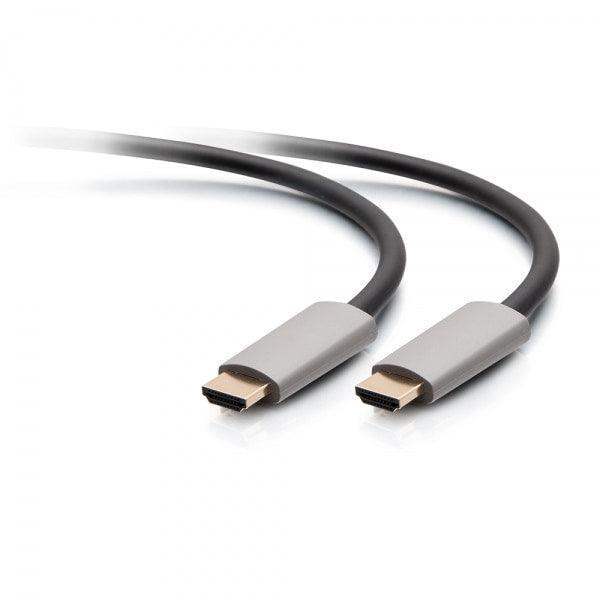

C2G 1m Select High Speed HDMI® Cable with Ethernet 4K 60Hz - In-Wall CL2-Rated (3.3ft) - 42520

Save 27%
C2G SKU: 42520
No reviews
Price:
$11.00 $14.99

Description

The C2G High Speed HDMI with Ethernet Cable supports all HDMI 2.0 features and is perfect for home theater or desktop audio video applications requiring high speed HDMI features and video resolutions up to 4K (4096 x 2160 at 60Hz, 4:4:4). The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware. This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by a lifetime warranty.

Features

This cable can be utilized for network switch stacking with compatible equipment. Experience the latest HDMI features including:
• 4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Color and x.v. Color™
• Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions for control of consumer electronics devices through a single control point
This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by a lifetime warranty. To utilize HDMI stacking for network equipment all attached equipment must use the same firmware.

Color : Black
Length : 1.00 Meter
Jacket Rating : In Wall
UPC : 757120425205
Warranty : Lifetime
Vendor : C2G
Weight : 0.198 LB
• HDMI Specification: 2.0
Electrical Characteristics
• Signal bandwidth - 18Gbps
• Nominal impedance - 100Ω
• Nominal capacitance - 115.9pF/m
• Insulation resistance - 10MΩ
• Nominal attenuation - 300KHz-825MHz at 8dB, 825MHz-2.475GHz at 21dB, 2.475GHz-4.125GHz at 30dB
Physical Characteristics
• Temperature rating - 80°C
• Operating temperature - -20°C - 80°C
• Storage temperature - -20°C - 80°C
• Packaging - Polybag
Conductor 1 (5 pair)
• Conductor Type - 28AWG (7/0.127), Copper
• Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 1.05mm
• Drain Wire - 28AWG (7/0.127), Copper
• Shield - Aluminum Foil, 125% Coverage
Conductor 2 (4 conductors)
• Conductor Type - 28AWG (7/0.127), Tinned Copper
• Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.7
Overall Cable
• Foil Shield - Aluminum Foil, 125% Coverage
• Braided Shield - 16/10/0.12, CCAM
• Jacket - PVC, Black, O.D. - 7.3 ± 0.2mm
Connectors (2)
• Connector Type - HDMI - Type A
• Plating - 1µm Gold
• Dimensions (HxWxL) - 13.0 x 21.0 x 39.0mm
