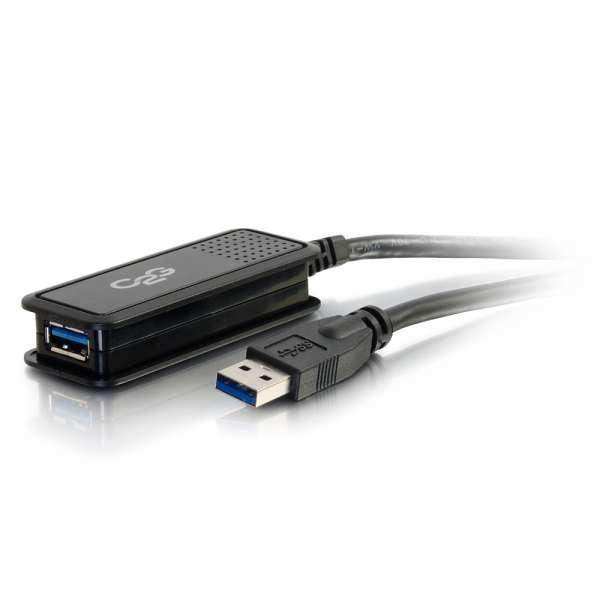

C2G 5m USB 3.0 USB-A Male to USB-A Female Active Extension Cable - 39939 - Creation Networks
Roll over image to zoom in Click on image to zoom
C2G 5m USB 3.0 USB-A Male to USB-A Female Active Extension Cable - 39939 - Creation Networks
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net

C2G 5m USB 3.0 USB-A Male to USB-A Female Active Extension Cable - 39939

Save 36%
C2GSKU: 39939
No reviews
Price:
$38.00 $58.99

Description

Extend a USB 3.0 cable 5m from a desktop, laptop, or remote terminal to a PTZ camera, an interactive display, hard drive, or other peripheral device with this USB 3.0 active extension cable. This cable supports all USB 3.0 functionality with data transfer rates up to 5Gbps and the use of USB bus power eliminates the need for external power adapters. This simple, one connection solution allows for quick, plug-and-play installation – encouraging productivity and simplifying device connectivity.

• Extend all functions of USB 3.0 up to 5m (16.4ft)
• Connect up to 2 extenders to reach lengths up to 10m (32.8ft)
• Powered through USB bus power
• Backwards Compatible with USB 2.0 and USB 1.1 devices
• Plug and Play—no driver required
Color : Black
UPC : 757120399391
Warranty : 3 Years
Vendor : C2G
Weight : 0.707 LB
Electrical Specifications
• Voltage Rating: 30V
• Conductor Resistance: 32AWG 588.85Ω/km at 20°C
• Insulation Resistance: 10m-km/min at 20°C DC 500V (EIA-364-21)
• Dielectric Strength: AC 500V/1 minute No breakdown (EIA-364-20)

Physical Specifications
• Operation Temperature: 0°C - 50°C; 15-85% RH (Non-Condensing)
• Storage Temperature: -25°C - 70°C; 15-85% RH (Non-Condensing)
• Jacket: PVC
• Outer Diameter: 3.9 ± 0.1mm
• Shield: Braid 16/9/0.06(TC)

Conductor 1: (2 Conductors, 5 Pair)
• Conductor: 34 AWG 7/.06(TC)
• Insulation: 0.45 (HD-PE)
• Shield: Aluminum Mylar
• Color: P1 White / Green, P2 White / Red, P3 White / Green, P4 White / Blue

Conductor 2: (2 Conductors)
• Conductor: 24 AWG 7/.205(TC)
• Insulation: 0.90 (HD-PE)
• Color: Red, Black

Conductor 3: (6 Conductors)
• Conductor: 32 AWG 7/.08(TC)
• Insulation: 0.50 (HD-PE)
• Shield: Aluminum Mylar
• Color: White, Green, Brown, Yellow, Blue, Orange
