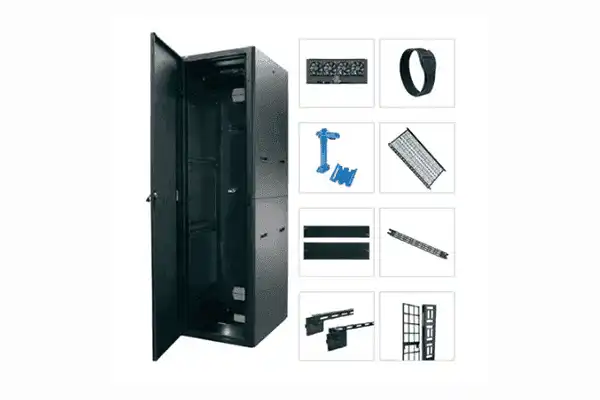

Middle Atlantic BGR-3832-FWD – 38RU Forward Pre-Configured BGR Rack

Product Overview

The Middle Atlantic BGR-3832-FWD is a 38-space, 38-inch deep floor-standing AV rack pre-configured with the Forward accessory system, designed for commercial AV integrators who need a fully equipped rack enclosure ready to install. This pre-configured BGR series rack combines a UPS caster base, vertical and horizontal cable management, thermal management, and power distribution into a single factory-assembled unit. It is an ideal solution for large-format AV system installations in machine rooms, network equipment rooms, and multi-zone AV infrastructure projects where installation speed and system reliability are critical. Purchasing as a pre-configured unit eliminates the sourcing and assembly time associated with specifying each component individually.

Product Description

The BGR-3832-FWD delivers 38 rack units of usable space in a 38-inch deep enclosure built on Middle Atlantic's BGR Series platform. The BGR Series is the first rack line to be both Forward-compatible and Lever Lock compatible, providing maximum mounting capacity on and off the rail with a suite of tool-free accessories. The included Forward UPS Caster Base (FWD-CBS-2KVA-BGR32) arrives with a UPS-2200R pre-installed, giving the rack built-in power protection from day one. A 10-outlet Select Series Vertical PDU with RackLink remote monitoring (RLNK-1015V) handles in-rack power distribution. Cable management is handled by Forward horizontal lacer bars, a vertical wire grid lace, vertical cable management lace with the patented universal hole pattern, and two Lever Lock vertical channels—all tool-free. Blank panels, tie saddles, small device clamps, a Lever Lock mounting plate, and utility lighting with IR sensor and dimmer round out the interior package. Thermal management is provided by a DC fan top moving 276 CFM with an included controller. The enclosure ships with a solid front door, side panels, and heavy-duty leveling feet, giving integrators a finished, professional appearance at installation. One hundred 10-32 threaded rack screws are included.

Key Features

• 38RU Forward Pre-Configured Platform — Factory-assembled with all major accessories included, reducing on-site labor and sourcing time.
• Integrated UPS Caster Base — FWD-CBS-2KVA-BGR32 includes a pre-installed UPS-2200R for battery backup and mobile rack positioning.
• 10-Outlet Vertical PDU with RackLink — RLNK-1015V provides remote power monitoring and control for individual outlets.
• Forward Cable Management System — Tool-free horizontal lacer bars and vertical wire grid lace keep all AV signal and power cables organized without hardware.
• Lever Lock Vertical Channels — LL-VC21 channels accept Lever Lock accessories for tool-free add-on installations after the rack is deployed.
• 276 CFM DC Fan Top — BGR-276FT-FC fan top with four fans and included controller maintains airflow for high-density equipment loads.
• Forward Utility Lighting — FWD-LT-UTL-35-40-D utility light pair with IR sensor and dimmer provides hands-free rack interior illumination.
• Solid Front Door and Side Panels — BFD-38 door and BSPN-38-32 panels provide a finished, secure enclosure suitable for client-facing equipment rooms.
• Heavy-Duty Leveling Feet — LF-HD leveling feet allow precise positioning on uneven floors during final installation.
• Small Device Clamps — FWD-SIDECLMP-4 clamps mount non-rackmount devices without drilling or hardware.

Typical Applications

• Large-format AV machine room and equipment room installations
• Corporate boardroom and conference center AV infrastructure
• Higher education AV system infrastructure
• Broadcast and production facility rack systems
• Multi-zone commercial AV distribution systems
• Network operations center (NOC) equipment enclosures
• House of worship AV system racks

Technical Specifications

Frequently Asked Questions

Q: What AV and IT equipment is compatible with the BGR-3832-FWD?

A: The BGR-3832-FWD accepts standard EIA-310 19-inch rackmount equipment up to 38 rack units. The Forward rackrail system also supports non-standard and side-mounted devices using Forward clamps and Lever Lock accessories.

Q: Is the UPS pre-installed or shipped separately?

A: The UPS-2200R is pre-installed in the FWD-CBS-2KVA-BGR32 caster base at the factory, arriving ready to integrate without additional assembly.

Q: Can I add additional accessories after installation?

A: Yes. The BGR-3832-FWD is fully compatible with Middle Atlantic's Forward accessory ecosystem and Lever Lock system, allowing tool-free addition of shelves, cable management components, and mounting plates at any time.

Q: What is the cooling capacity of the included fan top?

A: The included BGR-276FT-FC DC fan top moves 276 CFM using four fans and includes a fan speed controller for adjustable thermal management.

Q: Does the PDU support remote monitoring?

A: Yes. The included RLNK-1015V Select Series Vertical PDU features RackLink technology for remote outlet-level power monitoring and control via network connection.

Q: What warranty coverage applies to this product?

A: Middle Atlantic Products are covered by Legrand AV's standard commercial warranty. Contact Creation Networks for warranty details or to register your product.

Q: Can this rack be ganged with additional BGR enclosures?

A: Yes. The BGR Series is designed to gang together with other BGR enclosures in multi-bay configurations, sharing cable management and structural support.

Q: Is freight delivery required for this product?

A: Yes. Due to its size and weight, the BGR-3832-FWD ships via freight carrier. Contact Creation Networks at creationnetworks.net for shipping options and lead times.
