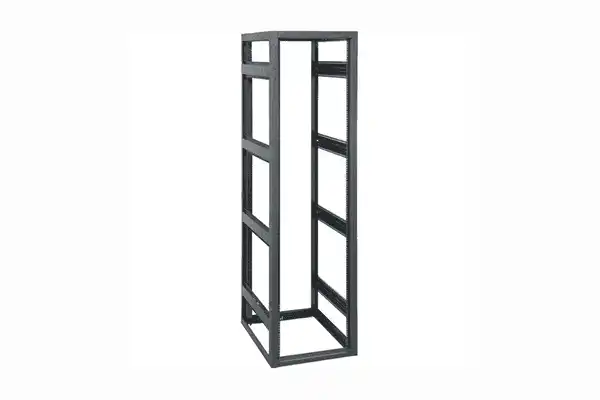

Middle Atlantic BGR-3827LRD Gangable Rack Enclosure

Middle Atlantic SKU: BGR-3827LRD
No reviews
Price:
$1,339.20 $1,488.00

Description

The Middle Atlantic BGR-3827LRD Gangable Rack Enclosure is the next-generation rack that has ample weight capacity, provides useable rack space, and incorporates more functionality. It features the revolutionary patent-pending LeverLock system for tool-free installation of cable management accessories. It also includes brush grommet rear doors and problem-solving extender bays. The enclosure has a high level of space efficiency and strength available, and it enables the use of the recent options for installation flexibility.

Structural Features
  • Breakthrough design provides more useable rack height
  • Accepts patent-pending LeverLock system accessories for fast, flexible cable management and mounting of small devices such as interface boxes, power supplies, and relay modules
  • Unique extender bay adds 3" (76.2mm) of useable depth to the front or rear of the enclosure at any time
  • Extender bays allow the use of existing doors and can even be stacked for greater depths
  • Pre-threaded ganging holes allow ganging while fully loaded
  • Wide and open bottom accepts multiple base options
  • Standard front and rear adjustable wide, heavy-gauge, 10-32-threaded rack rail with numbered rack space increments speeds equipment mounting
  • Labels included to indicate rail position front to back
  • Durable, black-textured, powder-coat finish

Thermal Management
  • Top options include solid, vented, and thermostatically controlled DC fan tops for efficiency
  • Standard vented door accepts optional doors

Cable Management
  • Accepts LeverLock system tool-free cable management accessories
  • Cable entry choices include generous laser knockouts and choice of trade size openings and/or grommetted pass-through
  • The generous 21" (533.4mm) wide top opening provides for full-width cable and conduit entry, and includes vertical cable entry tie points on both sides
  • Brush grommet rear door kit can be mounted on top or bottom to provide a large cable passage with easy access to the cables without fishing

Middle Atlantic BGR-3827LRD Specs
Racking Height 66.5" (1689.1 mm)
Rack Space 38 space
Overall Height 70.63" (1793.88 mm)
Overall Depth 27" (685.8 mm)
Usable Depth 27" (685.8 mm)
Certifications Static Load Capacity: 12,000 lb (5443.10 kg)
UL listed in the US and Canada. UL-Listed Load Capacity: 3,000 lb (1360.78 kg)
Seismic Certified to the Following Codes and Standards: 2007 & 2010 CBC; 2006, 2009, & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high seismicity - Zone 4 or Seismic Design Category (SDC) "D." These are designed for Mission Critical and/or High-Importance Installations in locations with the highest level of seismicity and top floor or rooftop installations including those within UBC and CBC Essential facilities or IBC, ASCE 7, and NFPA 5000 Seismic Use Group III facilities. For all codes, the Importance Factor (Ip) is 1.5. Seismic-Certified Load Capacity: 1,175 lb (532.97 kg)
Packaging Info
Package Weight 120 lb
Box Dimensions (LxWxH) 76 x 30 x 27"
