C2G 25ft USB A Male to Female Active Extension Cable (Center Booster Format) - 38988 - Creation Networks
Roll over image to zoom in Click on image to zoom
C2G 25ft USB A Male to Female Active Extension Cable (Center Booster Format) - 38988 - Creation Networks
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

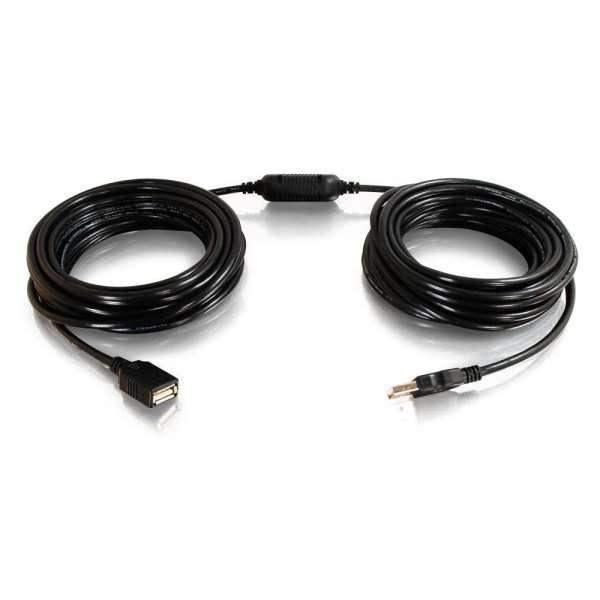

C2G 25ft USB A Male to Female Active Extension Cable (Center Booster Format) - CG38988

C2G SKU: CG38988
No reviews
Price:
$33.99

Description

Place USB peripherals in the most convenient spot with this USB extension cable. Connect up to three active extension cables end-to-end to achieve up to 75 feet (22.8 meters) total extension! This extension cable actively buffers the incoming and outgoing signals to ensure compliance with the USB 2.0 specification for electrical and timing minimums. Both low and high speed USB devices will function equally well with this extension cable. The active chip is built into the female connector so you can easily install this cable in conduit or raceway!

• Extends USB 2.0 signals beyond the five meter length limitation
• Center booster format allows this cable to be easily run through raceway
• Consumes 100mA from the USB port of the computer
• Up to three cables may be used for a total extension of 75 feet
Color : Black
UPC : 757120389880
Warranty : 1 Year
Vendor : C2G
Weight : 0.710 LB
Signal Specifications
• Data Signal Specifications - USB 2.0
• Maximum Data Transfer Rate - 480Mbps
• USB Power Consumed - 100mA

Cable Specifications
Conductor (Qty 1 pair)
• Conductor Type - 28AWG (7/0.120), Tinned Copper
• Colors: (white, green)

Conductor (Qty 2 conductors)
• Conductor Type - 22AWG (7/0.254), Tinned Copper
• Colors - (1) red, (1) black

Physical Characteristics
Connector (Qty 2)
• Connector Type - USB Type A Male
• Contact Plating - 30Ωm Gold Plating
• Insulation - Black PBT

• Voltage Rating - 30V
• Temperature Rating - 80°C
• Hood Material - SR - Molded Black PVC
• Plastic Cover Material - Black ABS
• Plastic Cover Dimension - 78.0 x 28.0 x 18mm
• Weight - 0.346kg

Overall Cable
• Foil Shields - Aluminum Mylar, 100% coverage min.
• Braided Shield - 16/4/0.100, Tinned Copper, 65% coverage min.
• Jacket - PVC, black
• Outer Diameter - 5 ± 0.1mm
