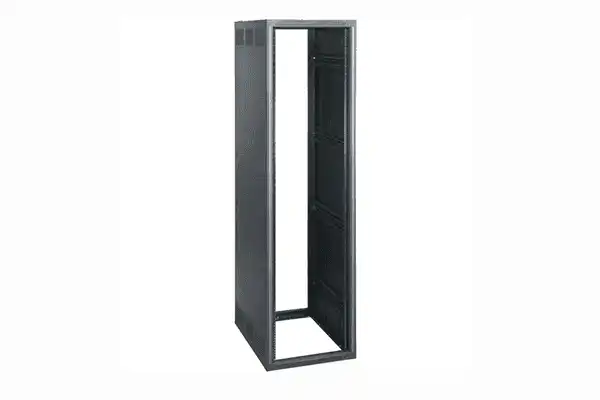

Middle Atlantic BGR-25SA-32 Stand Alone Rack Enclosure without Rear Door (25 U) is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping over $250.00
The Middle Atlantic BGR-25SA-32 Stand Alone Rack Enclosure without Rear Door (25 U) has a high weight capacity, provides more useable rack space, and incorporates more functionality. This rack enclosure features the patent-pending LeverLock system for tool-free installation of cable management accessories. This rack includes brush grommet rear doors and problem-solving extender bays. Choose the BGR-25SA-32LRD rack enclosure high space efficiency and strength, and to enable the use of the latest options for installation flexibility.
Structural Features
- Breakthrough design provides more useable rack height. For example, the 45-space version’s overall height is shorter than 44-space alternative models
- Accepts patent-pending LeverLock system accessories for fast, flexible cable management and mounting of small devices such as interface boxes, power supplies, and relay modules
- Unique new extender bay adds 3" (76.2mm) of useable depth to the front or rear of the enclosure at any time. Extender bays allow the use of existing doors and can even be stacked for greater depths
- Pre-threaded ganging holes allow ganging while fully loaded
- Wide and open bottom accepts multiple base options
- Standard front and rear adjustable wide, heavy-gauge, 10 to 32-threaded rack rail with numbered rack space increments speeds equipment mounting
- Durable, black-textured, powder-coat finish
Thermal Management
- Top options include solid, vented, and thermostatically controlled DC fan tops for efficiency
- Standard vented door accepts optional doors
Cable Management
- Accepts LeverLock system tool free cable management accessories
- Cable entry choices include generous laser knockouts and choice of trade size openings and / or grommeted pass-through
- The generous 21" (533.4mm) wide top opening provides for full-width cable and conduit entry, and includes vertical cable entry tie points on both sides
- Optional brush grommet rear door kit can be mounted top or bottom to provide a large cable passage with easy access to the cables without fishing
Middle Atlantic BGR-25SA-32 Specs
Usable Depth | 29-3/8" |
Regulatory Certifications | UL listed in the US and Canada, Seismic Certified to the Following Codes and Standards: 2007 & 2010 CBC; 2006, 2009, & 2012 IBC; ASCE 7-05 (2005 edition) & ASCE 7-10 (2010 edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high seismicity - zone 4 or Seismic Design Category (SDC) "D", Greenguard Indoor Air Quality Certified for children and schools |
Dimensions | 47-7/8 x 32" |
Load Capacity | Static: 12,000 lb (5.44 kg) UL Listed: 3,000 lb (1.36 kg) Seismic Certified: 1,175 lb (0.45 kg) |
Package Weight | 128 lb |
Box Dimensions (LxWxH) | 48.5 x 32.6 x 24" |
