1 beyond IV-CAM-P12-W p12 PTZ Camera, 12x Optical Zoom (Bright White)

Availability: Call for Availability
Crestron SKU: IV-CAM-P12-W
No reviews
Price:
$2,500.00

Description

The IV-CAM-P12 is a high quality PTZ camera that outputs up to 1080p60 resolution video. The IV‑CAM‑P12 is ideal for meetings in medium to large spaces where one camera needs to capture several areas of the room. The IV‑CAM‑P12 can be used with the IV‑SAM‑VX‑1B Crestron 1 Beyond Automate VX as part of a complete multi-camera switching solution. The IV‑CAM‑P12 supports a single Ethernet connection and provides power (PoE), viewing, and control on a network.

Automate VX Compatible
The IV‑CAM‑P12 camera is compatible with Automate VX multi-camera speaker tracking systems. Use the IV‑CAM‑P12 for close up shots of active speaking participants in medium to large spaces.

High Quality Video
A high quality Sony® CMOS sensor enables the camera to output up to 1080p60 resolution video.

Networked Power, Viewing, and Control
Connect a single Ethernet cable to power (PoE), view, set up, and control the IV‑CAM‑P12 camera.

Mounting Options
Standard mounting holes make it easy to mount the camera. The IV‑CAM‑P12 ships with the color matched IV‑CAMA‑UMB Universal Mounting Bracket, and is compatible with the IVA‑WMT‑BRKT‑1B Wall Mount Bracket and the IVA‑CMT‑BRKT‑1B J‑Mount Ceiling Bracket (both sold separately).

  • High quality video supporting resolutions up to 1080p60
  • Compatible with Automate VX multi-camera systems
  • Image flip allows for optional inverted mounting
  • Single Ethernet connection provides power (PoE), viewing, control, and NDI®|HX video
  • Easily configured with Crestron 1 Beyond Camera Manager software
  • Available in Moon Gray and Bright White colors
Optics and Processing
Image Sensor 1/2.8 Sony CMOS Sensor
Optical Zoom 12x
Focal Length F=4.1-49.2 mm
Field of View

Horizontal: 67.68°

Vertical: 53.88°
Shutter Speed 1/50-1/10,000 sec
Iris F1.8-F2.68
Minimum Illumination 20 lux
Pan/Tilt Angle Pan: -130° -130°, Tilt: -30°-90°
Pan/Tilt Speed Pan: 0.2° -90°/s, Tilt: 0.2°-70°/s
Video
Video Outputs 3G-SDI, HDMI®, USB, NDI|HX, ONVIF, RTSP
Signal Formats

SDI or HDMI: 1080p60/59.94/50/30/29.94/25, 720p60/59.94/50
USB: 1080p30/25, 720p30/25, 360p30
Communications
USB USB-B 3.0
Ethernet RJ-45, 100Mbps
Serial RS-232, RS-485
Control Protocol VISCA/TCP, VISCA/UDP, PELCO-D, PELCO-P, ONVIF
Management Client
Software Crestron 1 Beyond Camera Manager (Windows® OS computer required)

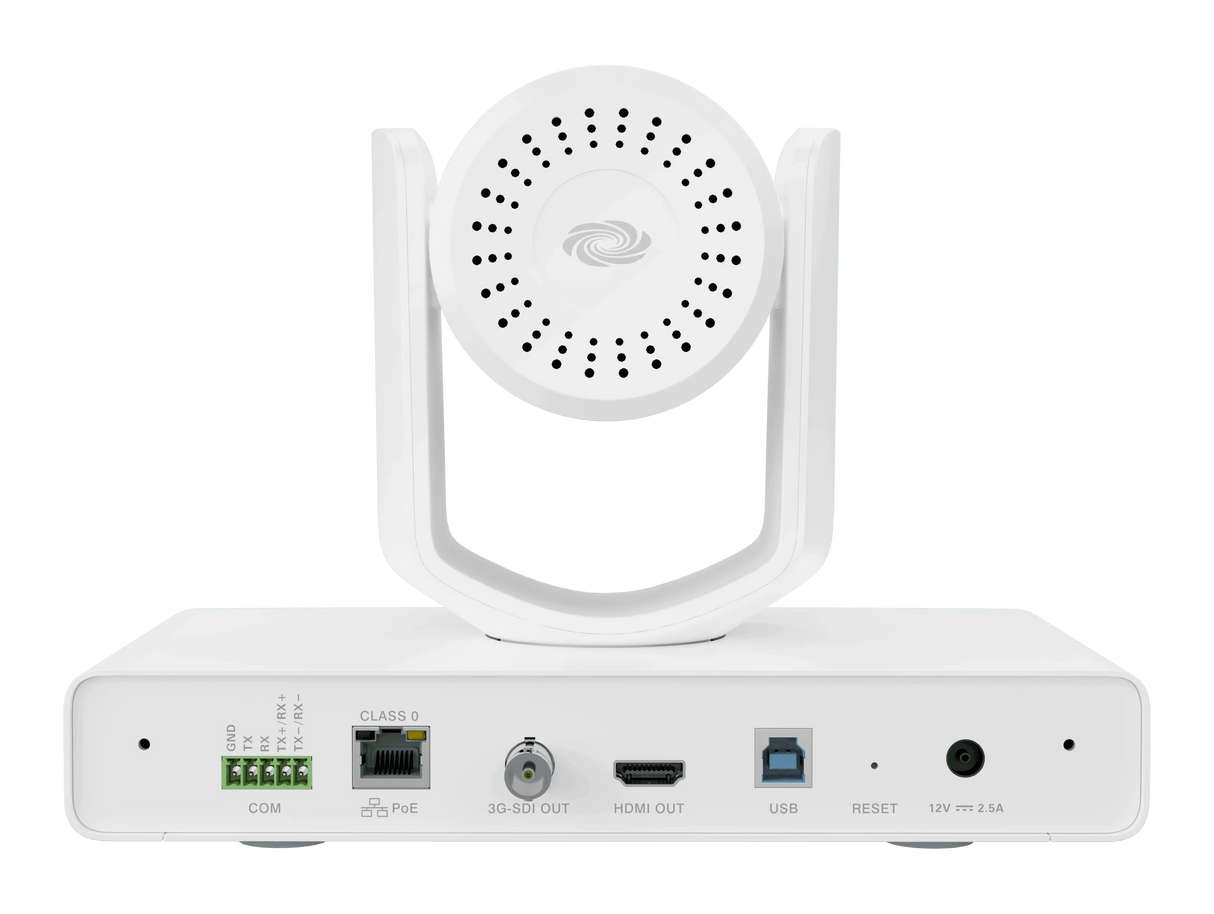

Connectors
COM

(1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232/485 port
PoE (1) 8-pin RJ-45 connector, female
3G-SDI OUT (1) BNC connector, female;
3G-SDI digital video output
HDMI OUT (1) HDMI Type A connector;
HDMI digital video output
USB

(1) USB Type B connector, female;
USB 3.0 device port for video and control
12VDC 2.5A (1) 3.3 mm DC power connector;
12VDC power input;
PW-1225DU power pack sold separately
Controls and Indicators
Status Bar

(1) Multisegment tricolor LED bargraph;
Half green LED bargraph indicates live camera feed;
Full amber LED bargraph indicates firmware upgrade;
Half red LED bargraph indicates Privacy Mode
RESET (1) Recessed push button for hardware reset
Power
Power Source Options Ethernet (PoE), Power Pack (PW-1225DU)
Power over Ethernet IEEE 802.3af Class 3 Powered Device
Power over Ethernet Rating

15.4 W

NOTE: To comply with the European Directive (CE), shielded CAT5e cable must be used as a minimum for PoE power.
Power Pack (sold separately) 12VDC, 2.5A, 50/60 Hz
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 10% to 90% RH (noncondensing)
Construction
Mounting Options IV‑CAMA‑UMB 1 Beyond Universal Mounting Bracket (included), IVA‑WMT‑BRKT‑1B 1 Beyond Wall Mount Bracket (sold separately), IVA‑CMT‑BRKTJ‑1B 1 Beyond J‑Mount Bracket (sold separately)
Mounting Thread 1/4 in. threaded mount hole
Dimensions
Height 6.55 in. (166 mm)
Width 8.89 in. (226 mm)
Depth 5.86 in. (149 mm)
Weight
4.12 lb (1.87 kg)
