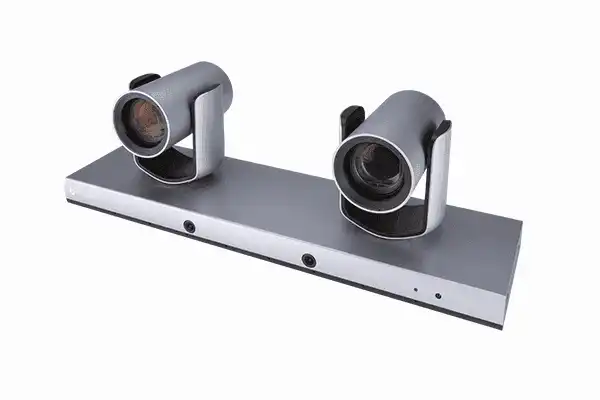

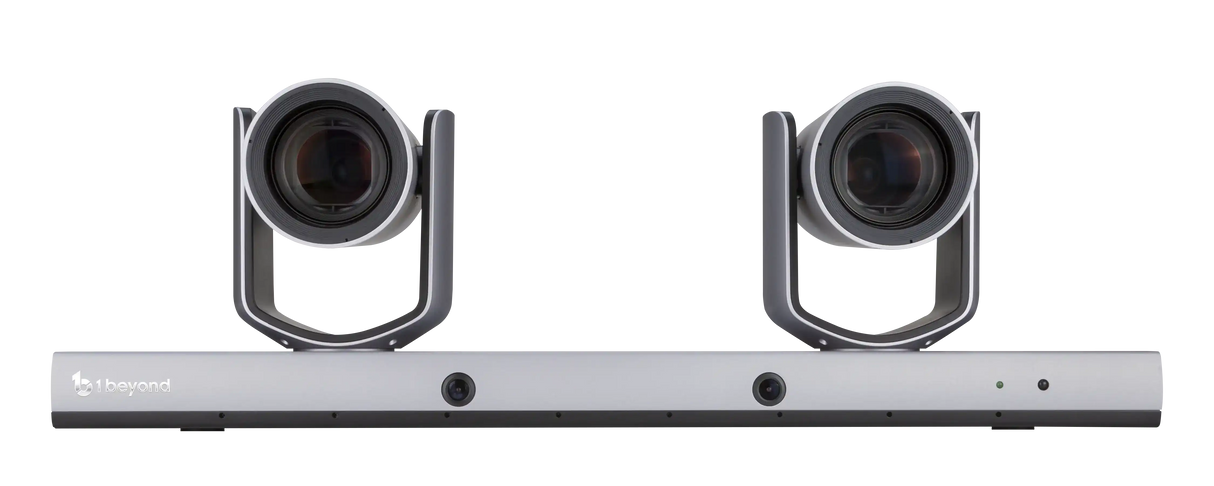

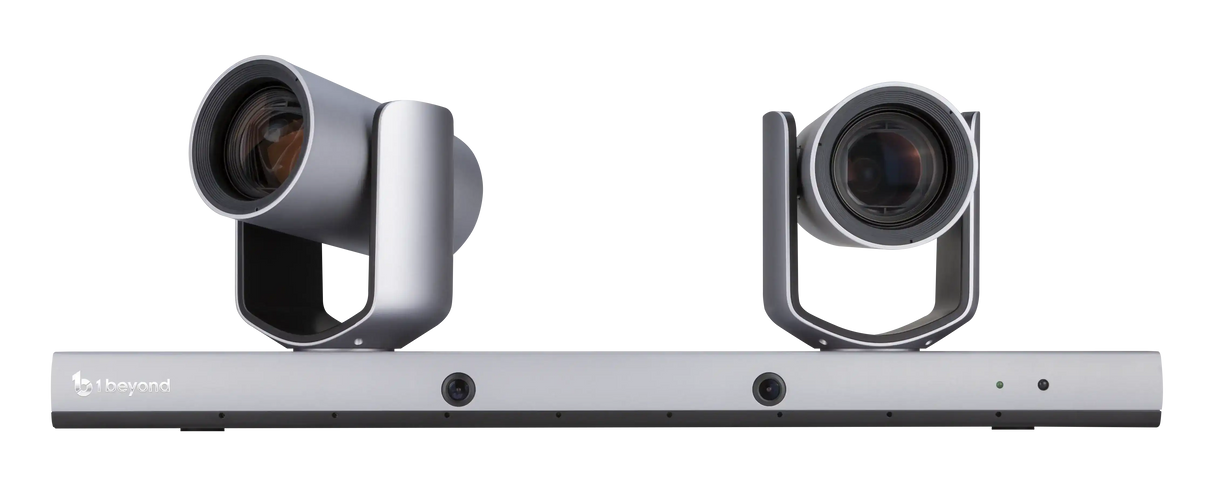

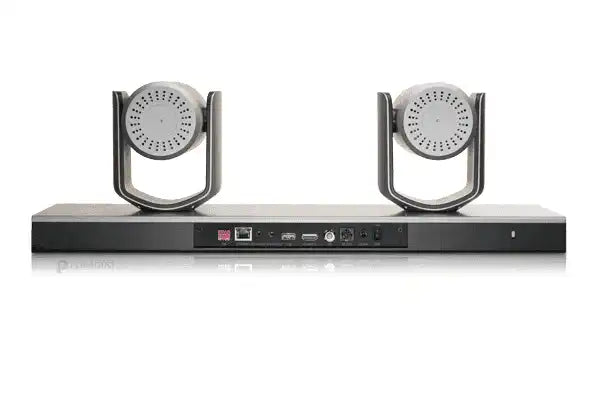

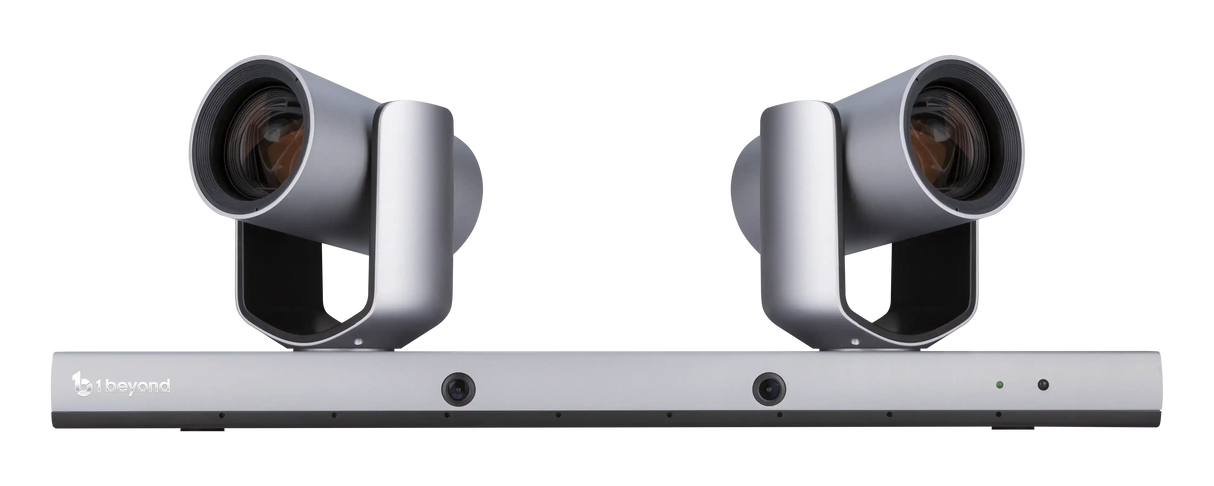

1 beyond IV-CAMHK-12-SLVR-1B Hawk™ Intelligent Dual-Camera Tracking Solution, 12x Optical Zoom (Silver)

1 beyond SKU: IV-CAMHK-12-SLVR-1B
No reviews

Sale price$6,995.00


The 1 beyond IV‑CAMHK‑12‑SLVR‑1B is a participant tracking solution that uses two HD PTZ cameras to automatically cut to a new participant. Ideal for small to medium sized rooms, deploy the IV‑CAMHK‑12‑SLVR‑1B when a close-up view of the meeting participants is desired.

Participant Tracking with Production-Style Switching
The IV‑CAMHK‑12‑SLVR‑1B uses voice and facial recognition to automatically switch to a shot of the active speaking participant. With production‑style switching, the IV‑CAMHK‑12‑SLVR‑1B allows remote participants to follow an in‑room conversation without excessive camera switching.

Combine with Your Preferred Microphone and Speaker
The IV‑CAMHK‑12‑SLVR‑1B works with a variety of microphones and audio speakers and offers an echo cancel audio input. Just add your favorite microphone and route the audio to the camera for echo cancellation.

High Quality Video
A high quality Sony Exmor CMOS sensor enables the camera to output up to 1080p60 resolution video via the 3G-SDI or HDMI® ports. The IV‑CAMHK‑12‑SLVR‑1B works well in low light and in front of bright screens.

Conferencing Compatibility
Optimize video conferencing, recording, or streaming by using the IV‑CAMHK‑12‑SLVR‑1B camera with Microsoft Teams®, Zoom Rooms™, Cisco WebEx®, MediaSite®, or Panopto®.

Quiet, Fast Switching Between Presets
Up to 256 pan, tilt, and zoom combination presets can be configured. The camera will move to the selected preset point. A quiet, fast motor (120°/s pan speed) sets camera angles quickly.

Manual Control Options
Use VISCA over IP to control the camera with a Crestron® control system. 1B Cam Manager Software is included for easy configuration from a computer on the network.

  • Automatically tracks, frames, and switches between participants using voice and facial detection
  • Clean switching with broadcast-style cuts
  • Side-by-side dialog mode captures multiple participants in conversation
  • Intended for spaces up to 25 ft from the participants
  • Smooth tracking and quiet operation
  • High quality video supporting resolutions up to 1080p60
  •  Compatible with a variety of audio solutions

Spec Sheet

Optics and Processing
Image Sensor Tracking Cameras: 1/2.8 in. Sony Exmor CMOS, 2.14MP;
Wide-Angle Camera: 1/2.8 in. CMOS, 2.14MP
Focal Length & Iris‑Tracking Cameras f=3.9-46.8 mm, F1.6 - F2.8
Field of View 72.5° - 6.3° (PTZ Cameras), 86° (Wide-Angle Camera)
Focus System Auto, Manual, PTZ Push, One Push
Minimum Illumination 0.5 Lux (Color), 0.1 Lux (B/W)
Shutter Speed 1/25 - 1/10,000 sec
Gain Auto, Manual
White Balance Auto, Indoor, Outdoor, One Push, Manual, Auto Track
Exposure Auto, Manual, Shutter Priority, Iris Priority
Number of Presets Up to 256
Serial Control PELCO-D, VISCA, PELCO-P
Control TCP/IP
Pan, Tilt, Zoom
Tilt/Pan Angle Tilt: -30° - +90°, Pan: 90° - 90°
Tilt/Pan Speed Tilt: 0.1° - 80° /s, Pan: 0.1° - 120° /s
Zoom 12x Optical, 12x Digital
Ethernet RJ‑45, 100Mb
Video Outputs1 1x HDMI output, 1x 3G-SDI output, Convert to USB using certified adapter
Signal Formats (HD) 1080p60/50/30/25, 1080i60/50, 720p60/50
IP Video Compression H.265, H.264 (Four streams)
Streaming RTSP, RTMP
Streaming Resolution Up to 1080p60, User-selectable framesize/framerate/bitrate
IP Audio Compression AAC (IP Stream Only)
Audio Input 2x Line In (one with echo cancellation), 1x Line Out
Power 12VDC, <50 W
Temperature 32° to 104°F (0° to 40°C)
Mounting 3x 1/4 in. threaded mount hole for 90° Wall Shelf Mount;
Wall shelf mount included
Recommended Mounting  5-25 ft from the subject, 4-6 ft from the ground
Color Silver
S/N ≥50dB
Dimensions 19.69 in. x 6.4 in. x 5.71 in. (500 mm x 163 mm x 145 mm)
6.61 lb (3 kg)
