SFSU George and Judy Marcus Hall for the Liberal and Creative Arts Planar Vido Wall
INTRODUCTION

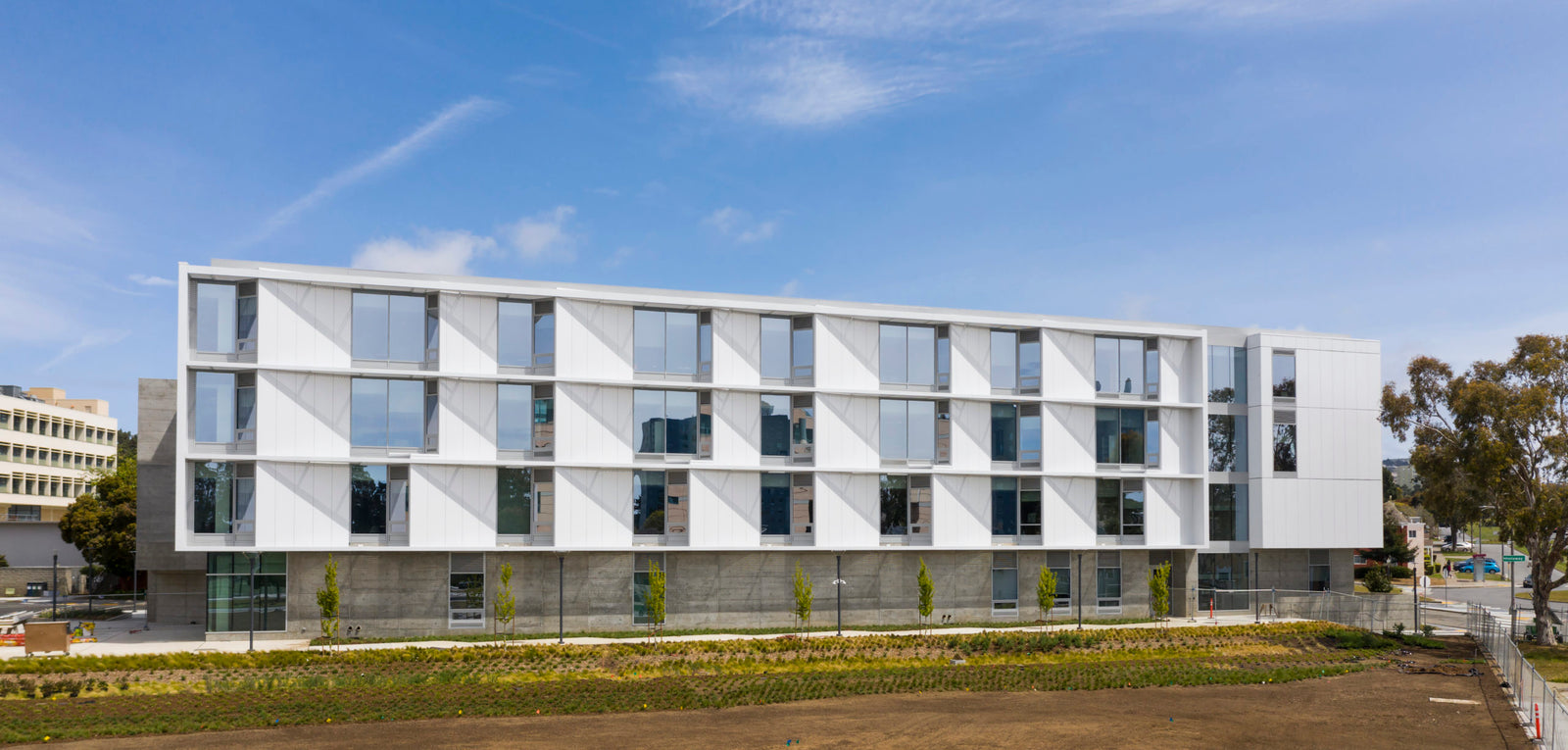

San Francisco State University’s George and Judy Marcus Hall for the Liberal and Creative Arts, or “Marcus Hall” for short, is a state-of-the-art academic facility designed for innovative communication, collaboration, and engagement. The building is named after the University's largest donors and alumni George Marcus and Judy Marcus. Designed by the renowned architecture firm Mark Cavagnero Associates (MCA), the 75,000-square-foot building is the home of the Liberal & Creative Arts College’s Broadcast and Electronic Communications Arts (BECA) department. Marcus Hall was built with a combination of public and private funding.
Creation Networks partnered with San Francisco State University to design, engineer, program, and install a high-impact 6x2 video wall system in the George and Judy Marcus Hall for the Liberal and Creative Arts building on campus. The large-format display serves as a dynamic digital centerpiece for the modern wellness facility, delivering announcements, health education content, event information, and motivational messaging to students, faculty, and staff.
This project showcases Creation Networks’ expertise in delivering robust, large-scale AV solutions for higher education environments.
PROJECT NAME
SFSU Liberal and Creative Arts
LOCATION
San Francisco, CA
ARCHITECT
Mark Cavagnero Associates
SIZE
75,000 SF
CHALLENGE
The George and Judy Marcus Hall for the Liberal and Creative Arts needed a reliable, high-resolution video wall solution that would:
- Serve as a central communications and engagement tool in a high-traffic wellness facility.
- Deliver bright, seamless imagery across a large viewing area.
- Integrate professional audio reinforcement for announcements and video content.
- Provide easy content management and centralized control for university staff.
- Meet strict higher-education standards for reliability, ease of maintenance, and future scalability.
- Blend aesthetically with the contemporary architectural design of the new wellness center.
THE SOLUTION
Creation Networks provided a complete turnkey solution, including system design, engineering, programming, and professional installation of a Planar 6x2 video wall with full Crestron control, BrightSign content playback, and integrated professional audio. The system was commissioned to operate 24/7 with minimal maintenance while offering intuitive daily operation for university personnel.
THE TECHNOLOGY
The installation features premium AV hardware selected for performance and longevity:

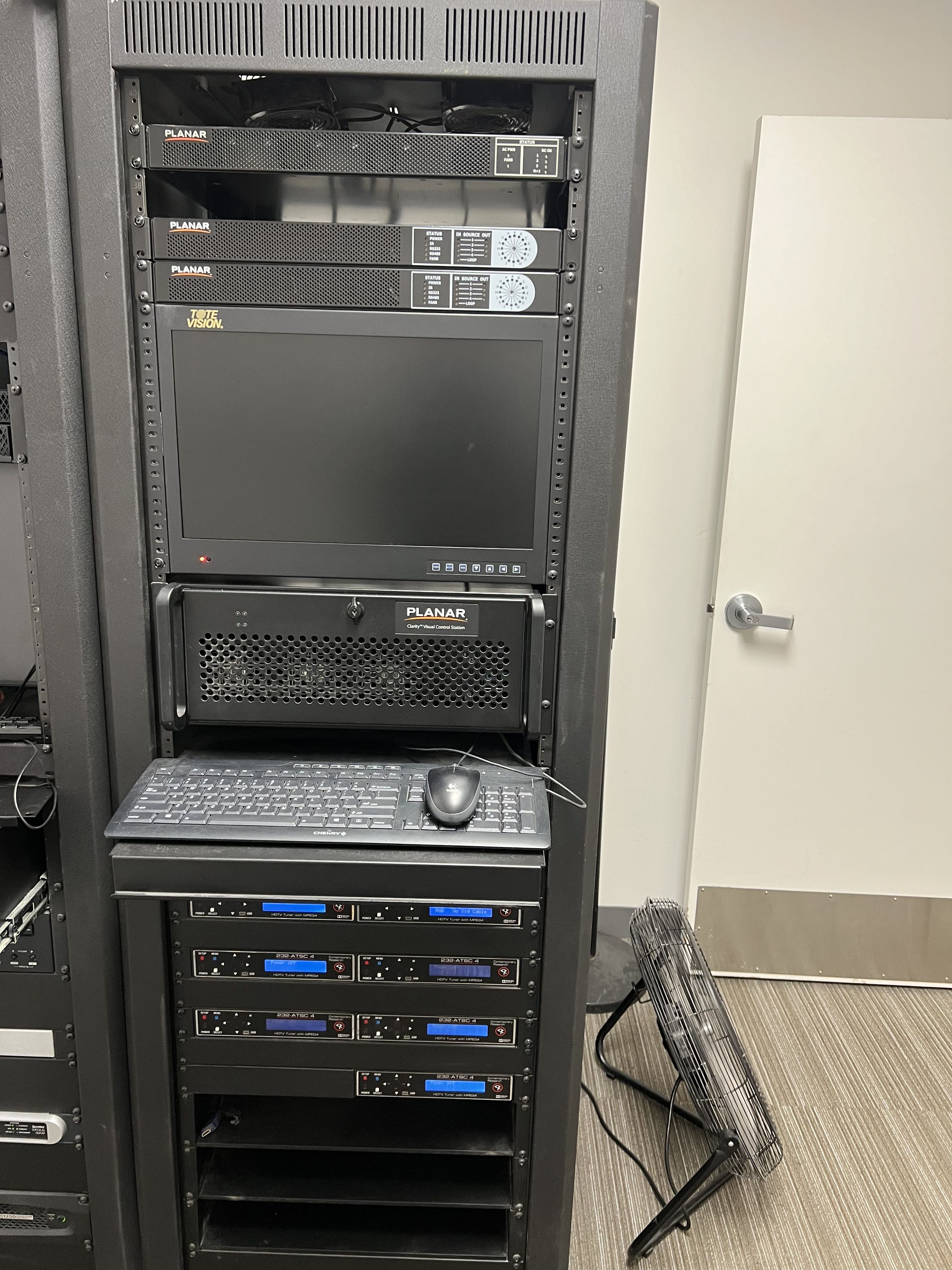

Video Wall & Processing

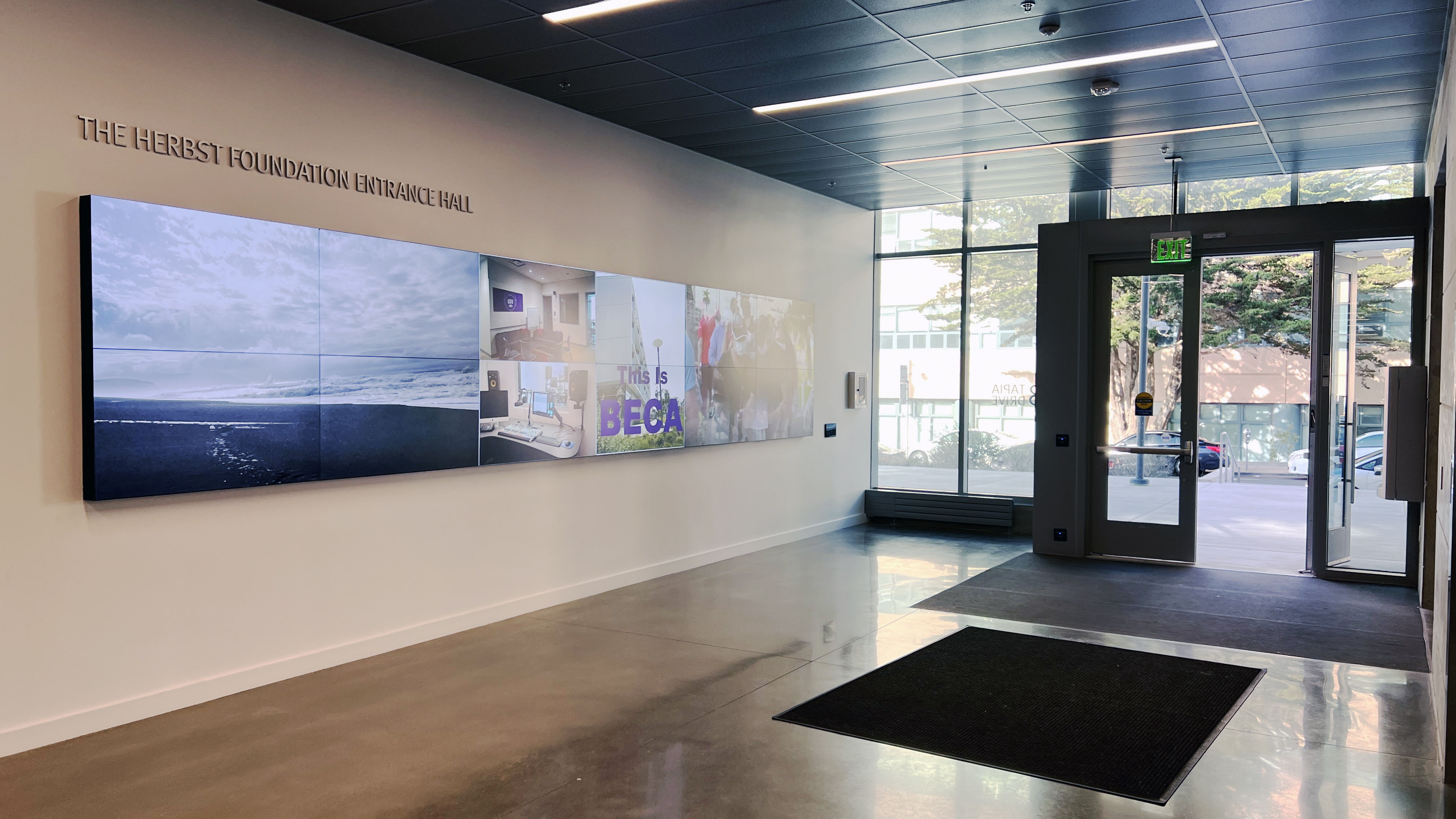

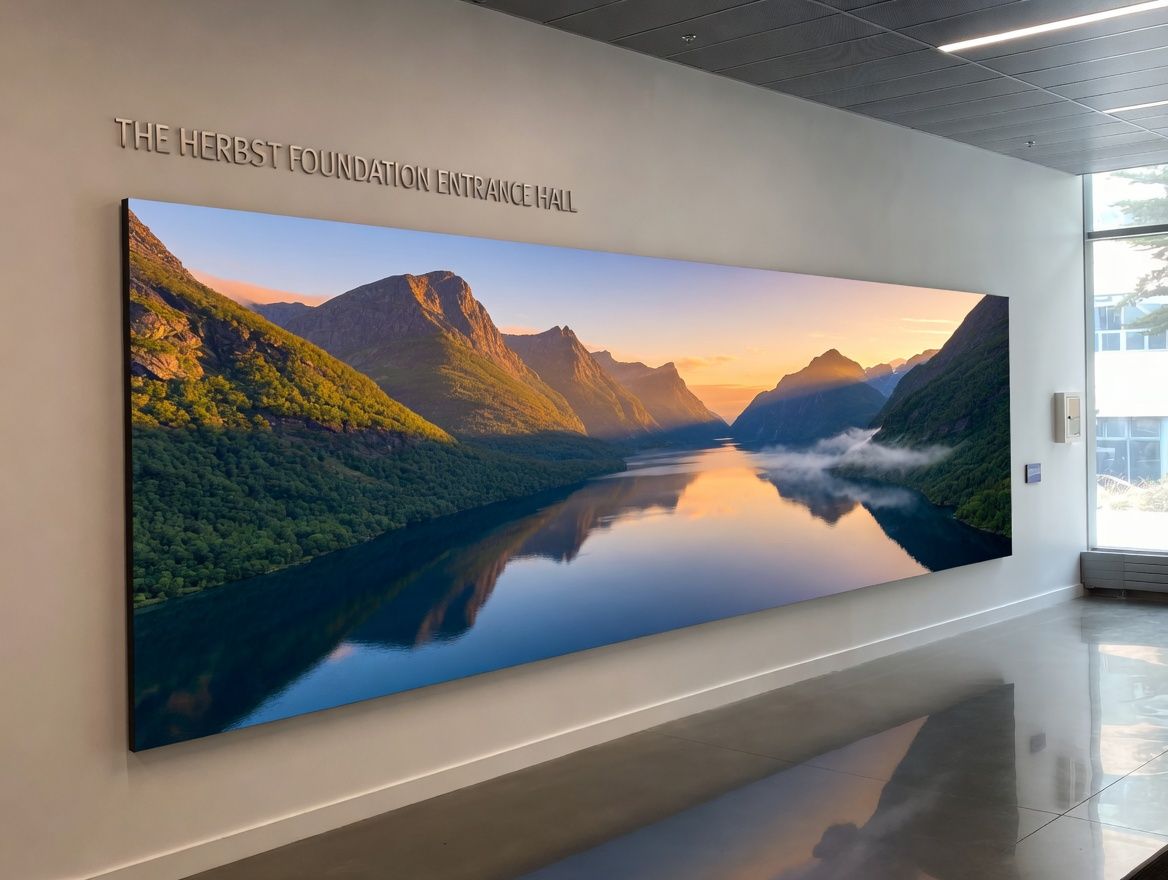

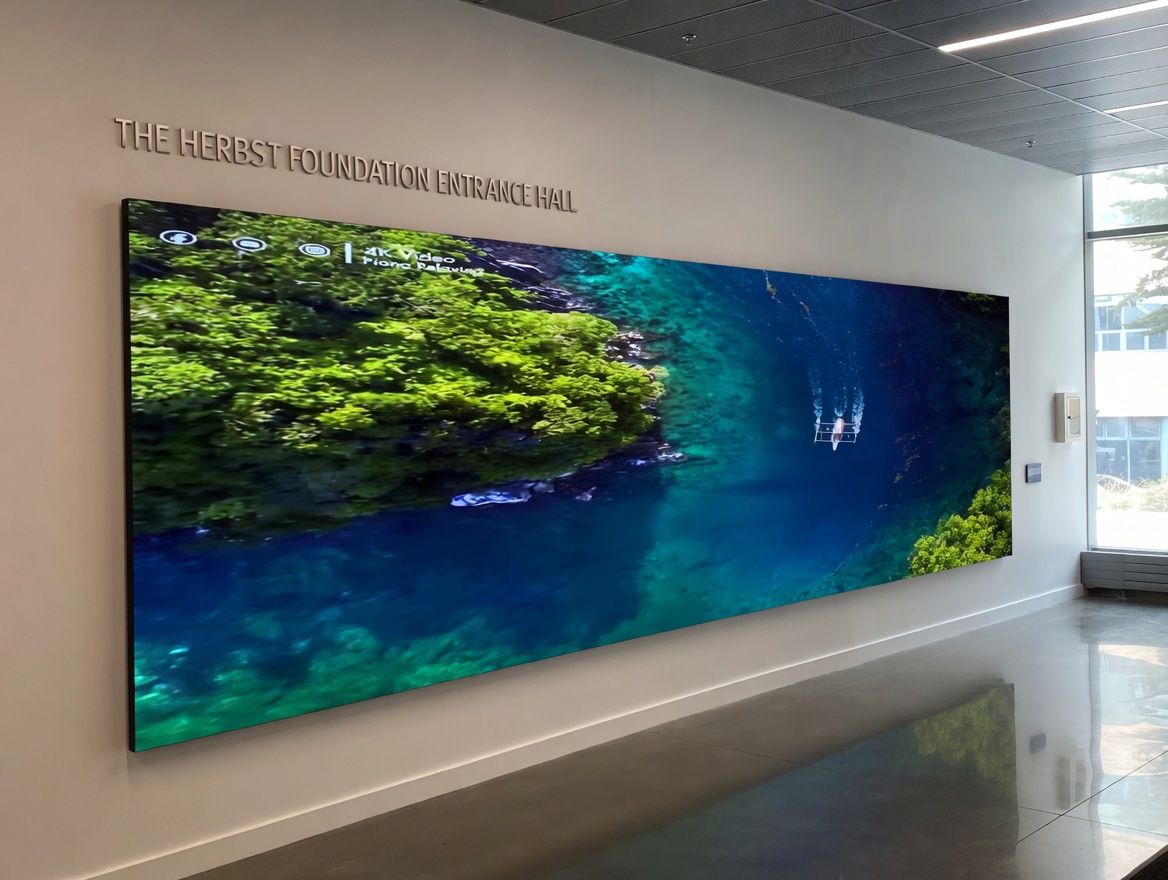

- Planar Matrix Complete 6x2 Video Wall (MX55M-L) — 23.8 ft wide × 4.5 ft high, 291" diagonal, ultra-narrow 0.44mm bezel
- BrightSign XT1144 Expanded I/O Players (Qty 4) with 1TB Micro SD Cards for robust 4K content playback
- Blackmagic Design Micro Converter 12G SDI to HDMI (Qty 4) for reliable signal conversion
Control System
- Crestron RMC3 3-Series Room Media Controller
- Crestron TSW-1070-B-S 10.1" Wall Mount Touch Screen for intuitive operator control
Audio System
- Extron 12x8 Pro DSP Digital Matrix Processor
- Extron HAE 100 4K Plus 4K/60 HDMI Audio De-Embedders (Qty 4)
- Extron MPA 601-70V Mono 70V Amplifier (60W)
- Extron FF 120T Full-Range Flat Field Speakers (Qty 2 pairs)
Networking & Infrastructure
- Luxul AMS-1816P AV Series 18-Port PoE+ Gigabit Managed Switch
- Professional plenum-rated cabling from Liberty AV Solutions
All components were fully programmed and integrated by Creation Networks for seamless operation, content scheduling, and remote monitoring.
RESULTS
The completed video wall has become a focal point of the Mashouf Wellness Center, successfully:
- Enhancing student engagement with vibrant, large-scale visuals.
- Improving campus communications through dynamic digital signage.
- Delivering clear, intelligible audio reinforcement throughout the space.
- Providing facilities staff with simple, reliable control via the Crestron touch panel.
- Operating flawlessly since installation with excellent uptime and image quality.
The system reflects the university’s commitment to modern, technology-rich wellness environments and continues to support the health and wellness mission of the center.
