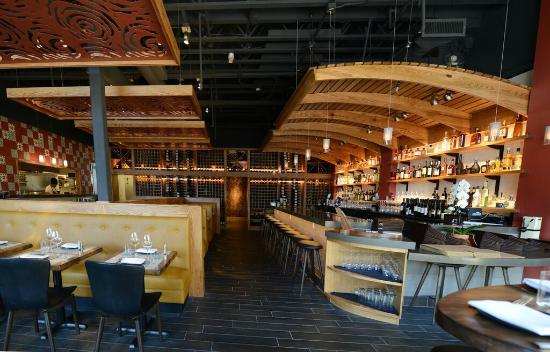

Sabio on Main Restaurant: Premium AV System Installation

Sabio on Main restaurant - premium AV system installation by Creation Networks

Creation Networks |

Immerse yourself in an extraordinary ambiance

ProjectSabio on Main
LocationPleasanton, CA
Size3,000 SF

INTRODUCTION

Creation Networks designed and installed a complete commercial audiovisual system for Sabio on Main, an upscale restaurant in Pleasanton, California. The project delivered high-performance audio, video, and control solutions across multiple zones — including the main dining room, bar/lounge, reception, office, and outdoor patios — creating an immersive, modern dining atmosphere that enhances the guest experience while supporting seamless day-to-day operations.

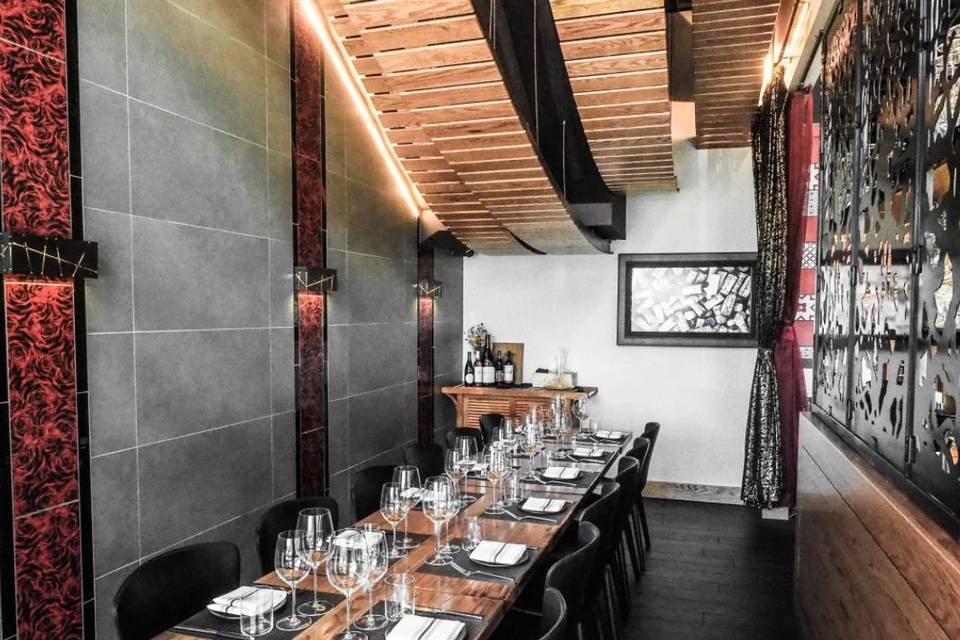

Sabio on Main restaurant interior

CHALLENGE

As a high-end restaurant, Sabio on Main needed a sophisticated yet reliable AV system that could:

  • Deliver crystal-clear background music and paging across indoor and outdoor dining areas.
  • Showcase vibrant 4K visuals for menu specials, ambiance, sports, and events.
  • Provide zoned audio control for different areas (dining, bar, patios) without disturbing the refined dining experience.
  • Integrate professional networking and control for easy staff operation.
  • Maintain a clean, elegant aesthetic consistent with the restaurant's upscale design.
  • Offer long-term reliability in a 24/7 hospitality environment with minimal maintenance.

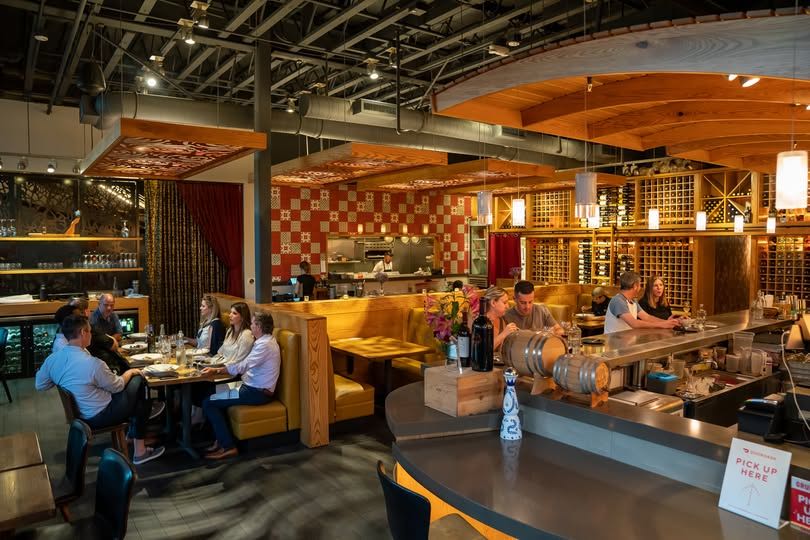

Sabio on Main dining area

THE SOLUTION

Creation Networks provided full design, engineering, programming, and professional installation services. The system features distributed audio, multiple high-definition displays, and intuitive control — all seamlessly integrated to elevate the guest experience while giving staff simple, reliable operation.

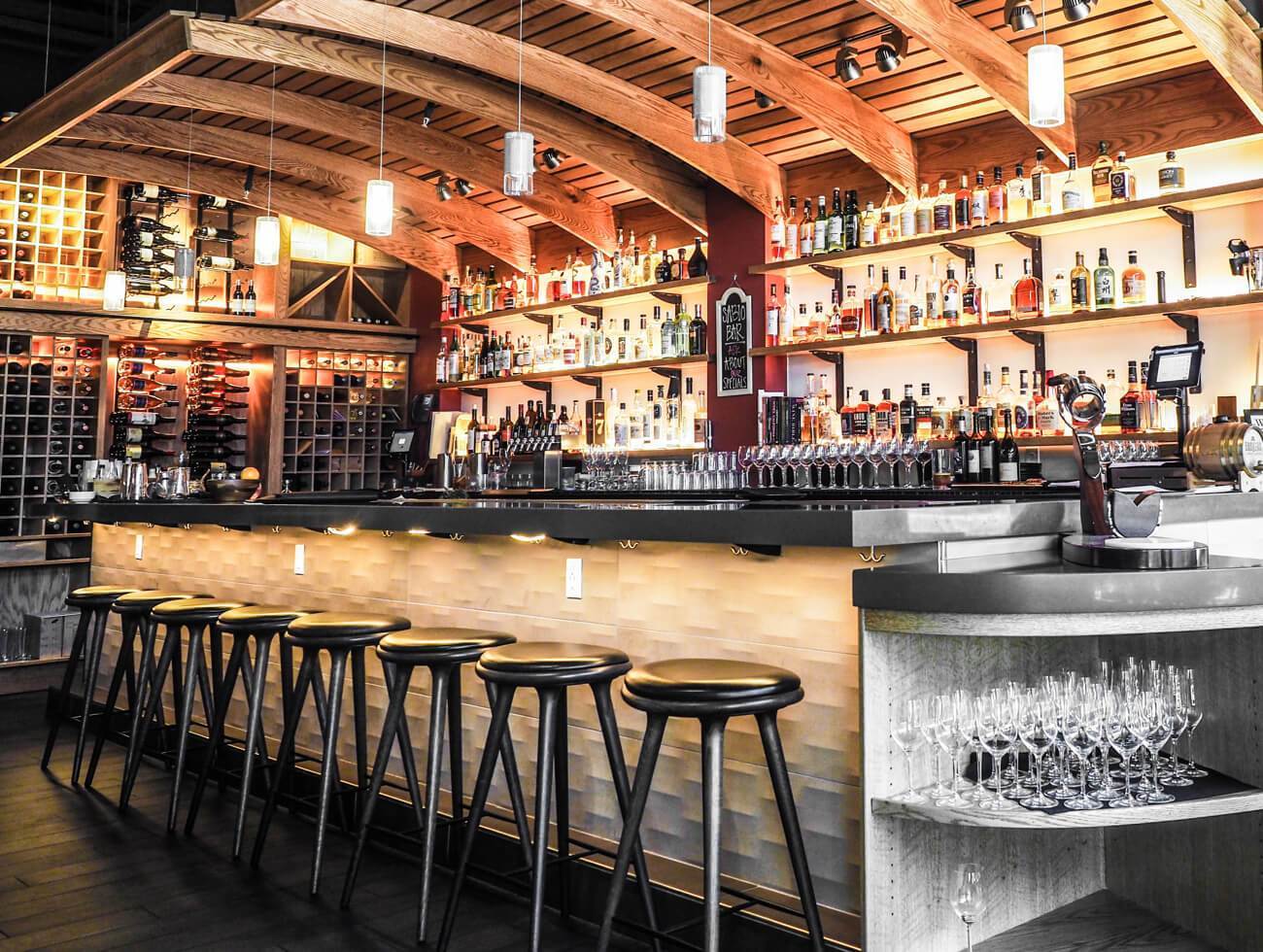

Sabio on Main bar area

THE TECHNOLOGY

The Sabio on Main AV system combined premium commercial-grade components for exceptional performance:

Video Displays & Mounting

  • Sony XBR-65X850C 65" Class 4K Ultra HD TVs
  • Sony XBR-43X830C 43" Class 4K Ultra HD TVs
  • Chief professional wall mounts for secure, elegant installation

Audio System

  • SoundTube RS500i pendant and surface-mount speakers deployed throughout: 5 in Main Dining Room, 2 in Bar/Lounge, 3 in Rose Street/Plaza Patios
  • JBL CSA 240Z 2x40W 70V amplifiers
  • Savant SSA-4004-00 Four Room Smart Audio Solution
  • Professional 70V distributed audio with structured Cat5e cabling

Control & Processing

  • Fusion Research OMS2 Ovation Series 3 Source Online Media Streamer
  • Savant HST-SMRTD Smart Host
  • Panamax M4315-PRO programmable power conditioner
  • Middle Atlantic EWR series sectional wall mount racks and accessories

Networking & Infrastructure

  • Comprehensive structured cabling, Ethernet connectivity, and clean power distribution

All components were carefully selected and programmed for reliable 24/7 operation with zoned volume control and simple source switching.

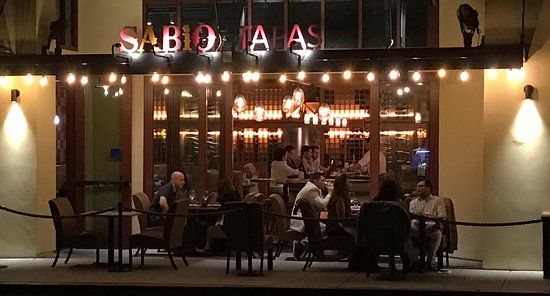

Sabio on Main patio

RESULTS

The completed AV system has significantly enhanced the guest experience at Sabio on Main:

  • Rich, evenly distributed audio creates the perfect ambiance across all dining zones and outdoor patios.
  • Bright, sharp 4K displays showcase dynamic content and specials beautifully.
  • Zoned control allows staff to adjust music and paging independently without disruption.
  • Professional installation maintains the restaurant's elegant aesthetic while ensuring long-term reliability.

Since installation in 2015, the system has performed flawlessly, supporting Sabio on Main's reputation as one of Pleasanton's premier dining destinations.

NEXT STEPS

Ready to transform your restaurant with a professional AV system? Whether you need restaurant audio video installation in Pleasanton, Bay Area commercial AV for hospitality, background music systems for restaurants, or 4K digital signage solutions, Creation Networks delivers complete design, installation, and support. Visit creationnetworks.net
