Williams AV WF SYS3C – WaveCAST Assistive Listening System, 12 Receivers

Product Overview

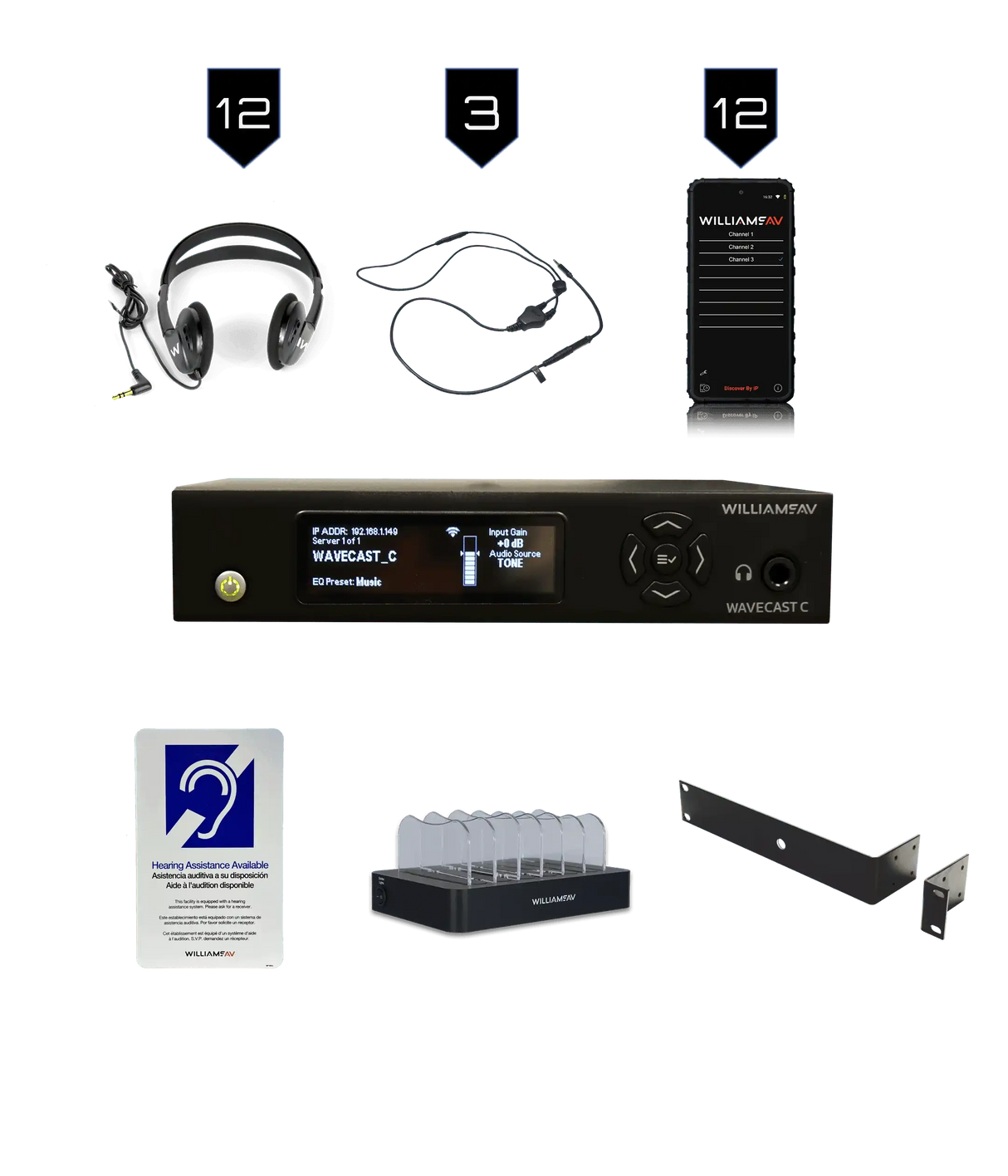

The Williams AV WF SYS3C is a large-venue WaveCAST Wi-Fi assistive listening system that bundles a WaveCAST C transmitter with twelve WAV Pro Wi-Fi receivers, two 6-bay chargers, neckloops, twelve HED 024 headphones, and an IDP 008 ADA wall plaque. It equips auditoriums, performing arts centers, and large houses of worship with a complete ADA-compliant assistive listening deployment streaming real-time audio over the venue Wi-Fi network. The WAV Pro receivers feature the assistive listening industry's largest display at 6.8 inches, Bluetooth connectivity, and up to 40 hours of continuous audio streaming.

Product Description

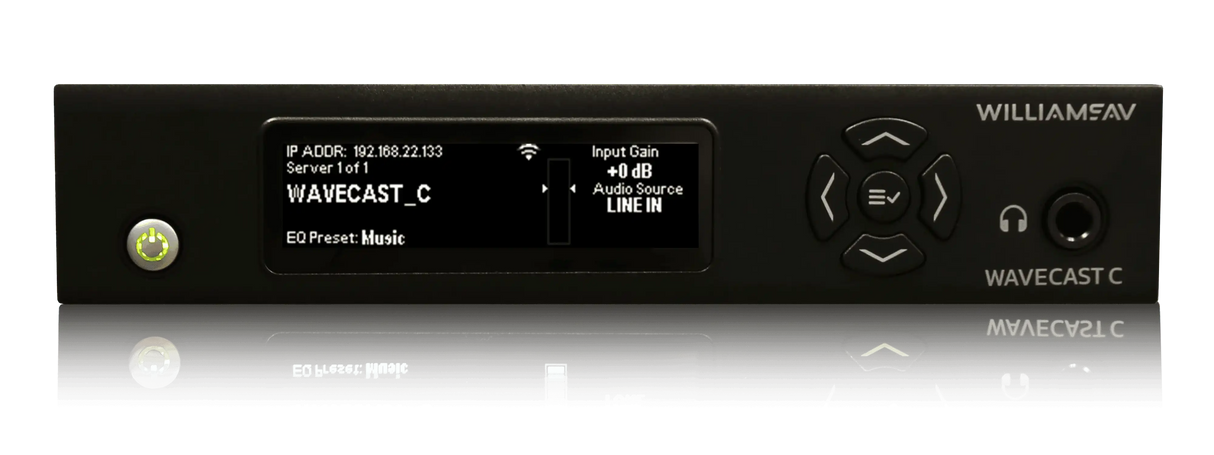

The WaveCAST C (WF T5C) transmitter at the heart of the system is a half-rack Wi-Fi audio platform with hardware DSP processing and presets optimized for hearing assistance, music, and voice. It accepts a balanced or unbalanced mic or line-level feed on a combo XLR/1/4-inch input with selectable phantom power, mounts in a standard 19-inch rack with the included RPK 005 kit, and supports Telnet control over Ethernet for integration with third-party room control systems.

Twelve WAV Pro Wi-Fi receivers form a substantial loaner fleet for high-attendance events. Each receiver connects to any Williams AV WaveCAST-enabled transmitter, presents channels on a 6.8-inch full HD+ display, and outputs over Bluetooth to a guest's own headphones, hearing aids, or neck loop. Two AC CHG406 6-bay chargers keep the entire fleet charged with individual LED indicators, while three NKL 008 neckloops serve telecoil hearing aid users and twelve HED 024 folding stereo headphones cover general listeners. The included ADA wall plaque satisfies venue signage requirements for hearing assistance.

Capacity is not limited to the dedicated receivers: any attendee on the venue Wi-Fi can stream the same audio through the free WaveCAST app for iOS and Android, supporting hundreds of additional listeners in multicast configurations. Facilities with smaller rooms can deploy the 6-receiver WaveCAST system alongside this package, and additional receivers and accessories are available in the Williams AV collection at Creation Networks.

Key Features

• Twelve Dedicated Receivers — A large WAV Pro loaner fleet covers ADA assistive listening requirements for high-capacity venues.
• Two 6-Bay Chargers — Dual AC CHG406 chargers keep all twelve receivers charged and staged with per-bay LED indicators.
• 6.8-Inch Receiver Display — The industry's largest assistive listening display makes channel selection simple for guests.
• 40-Hour Battery Life — Each receiver delivers up to 40 hours of continuous audio streaming per charge under normal use conditions.
• Bluetooth Receiver Output — Guests connect personal headphones, hearing aids, or neck loops to the receiver over Bluetooth.
• Hearing Aid Compatibility — Three included neckloops couple audio inductively to telecoil-equipped hearing aids.
• BYOD App Streaming — The free WaveCAST app for iOS and Android extends coverage to personal smartphones over Wi-Fi.
• DSP-Based Transmitter — The WaveCAST C optimizes audio for hearing assistance, music, or voice with selectable presets.
• Control System Integration — Telnet over Ethernet allows management from Crestron, Extron, and similar control processors.
• ADA Signage Included — The IDP 008 wall plaque meets assistive listening posting requirements.

Typical Applications

• Auditorium
• House of worship
• Government space
• All-hands room
• Multi-purpose room
• Training room
• Commercial meeting space

Technical Specifications

System Includes

(1) WaveCAST Transmitter (WF T5C)
(2) 6-Bay Chargers (AC CHG406)
(12) WAV Pro Wi-Fi Receivers (WF R2-N)
(3) Neckloops (NKL 008)
(1) Rack Panel Kit (RPK 005)
(12) Folding Stereo Headphones (HED 024)
(1) ADA Wall Plaque (IDP 008)

WF T5C Transmitter

WAV Pro Receiver

AC CHG406 6-Bay Charger

HED 024 Headphones

IDP 008 ADA Wall Plaque

Frequently Asked Questions

Is this package sufficient for ADA compliance in a large venue?

The system provides twelve dedicated loaner receivers, hearing aid compatible neckloops, and ADA signage. The number of receivers required by ADA depends on venue seating capacity, so confirm your facility's count against the ADA assistive listening table; additional WAV Pro receivers can be added at any time.

How do attendees without a loaner receiver listen?

Any attendee on the venue Wi-Fi can stream the same audio through the free WaveCAST app on iOS or Android. In multicast mode the WaveCAST platform supports very large audiences beyond the dedicated receiver fleet.

How is the receiver fleet kept charged?

Two included AC CHG406 6-bay chargers store and charge all twelve receivers with individual LED indicators, allowing staff to stage charged units at the entrance or box office before each event.

How does the transmitter integrate with our audio system?

The WaveCAST C accepts a balanced or unbalanced mic or line-level feed on a combo XLR/1/4-inch input, mounts in a standard 19-inch rack with the included kit, and accepts Telnet commands over Ethernet for room control system integration.

How do hearing aid users connect?

Telecoil users plug an included NKL 008 neckloop into a WAV Pro receiver, or pair Bluetooth hearing aids directly to the receiver for direct streaming.

Can we add more channels later?

Yes. Up to four WaveCAST C transmitters can share one Wi-Fi network, adding channels for interpretation, overflow rooms, or separate program feeds without replacing the receiver fleet.

What warranties apply?

The transmitter carries a 2-year parts and labor warranty; receivers are warranted for 2 years (battery 1 year); chargers carry a 1-year warranty. Creation Networks provides design assistance and post-sale support.
