Overview
The Williams Sound IR SY6 is a SoundPlus Series medium-area wireless infrared system designed to deliver reliable audio pickup and monitoring for up two people in conferences, classrooms, and courtrooms. It includes the IR T2 infrared transmitter and its power supply, two WIR RX22-4 four-channel bodypack IR receivers, one MIC 049 omnidirectional conference microphone, two EAR 022 mono earphones, two 18" induction neckloops, four AA batteries, a wall/ceiling mount, an ADA wall plaque, a tabletop tripod, a 12' 3.5mm extension cable, and a customizable hardshell carrying case. With a coverage area of up to 18,000 square feet and selectable transmission frequencies, it provides a blend of easy setup and robust power.

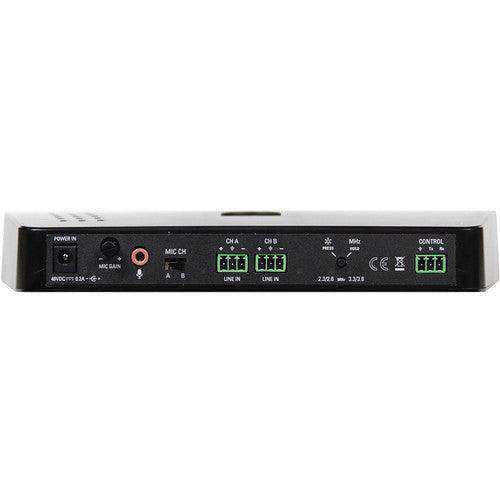

Audio inputs to the transmitter include two Euroblock line inputs and a 3.5mm microphone input. An additional Euroblock is provided for control system integration. Back-panel green and yellow LEDs indicate power status and signal presence. A power-saving mode automatically shuts off the carrier after 12 minutes without audio.
Connect the supplied hang-on-ear earphones or neckloops to the bodypack IR receivers, which feature low-battery indicators, channel selectors, and on/off/volume controls. Use the headphones for standard on-ear monitoring or utilize the neckloops for integration of hearing aids or cochlear implants with T-coil capabilities. The 12' 3.5mm extension cable allows greater distances between the included omnidirectional microphone and the IR T2 transmitter. The entire bundle neatly fits in the hardshell carrying case.
Williams Sound IR T2 SoundPlus Medium-Area Infrared Transmitter for Assistive ListeningThe Williams Sound IR T2 is a two-channel, SoundPlus Series infrared transmitter designed to deliver a coverage area of up to 18,000 square feet for assistive listening and language interpretation in commercial spaces. It supports 2.3, 2.8, 3.3, and 3.8 MHz transmission frequencies with WIR RX22-4, WIR RX18, or IR R1 receivers.
Line inputs are accessible via two Euroblock connectors while a 3.5mm mini jack allows the connection of a microphone, which can be optimized using the dedicated mic gain knob and microphone channel selection switch. Additionally, a control system may be integrated via a separate Euroblock port.
LEDs are provided for indication of power status and signal presence. The power-saving mode automatically shuts off the carrier after 12 minutes without audio. The included wall/ceiling mount and international power supply enable flexible installation.
- Ideal for assistive listening and language interpretation in commercial spaces such as conference rooms, assisted living facilities, small cinemas/theaters, classrooms, and courtrooms
- Wall-/ceiling-mountable compact transmitter with a maximum coverage area of 18,000 ft²
- 50% greater coverage than the WIR TX75
- Power-saving mode automatically shuts off the carrier after 12 minutes without audio
- Power and audio indicators on transmitter, charging indicators on charger
- 3.5mm microphone input with channel selector and dedicated gain knob
- Two Euroblock line inputs accept balanced or unbalanced signal
- Includes international power supply with line cord
- Compatible with WIR RX22-4, WIR RX18, and IR R1 receivers
The Williams Sound WIR RX22-4N Bodypack is an infrared bodypack listening receiver for use with compatible Williams Sound transmitters. The bodypack features 4-channels and operates on the 2.3, 2.8, 3.3, 3.8MHz bandwidth. The WIR RX22-4 can be used with mono or stereo headphones and earphones, or a neck-loop. Dual infrared detectors provide maximum sensitivity and operating range.
- Ideal for lectures, conferences, worship and more
- Compatible with Willams Sound transmitters operating on the 2.3, 2.8, 3.3, 3.8MHz
- Can be used with mono or stereo headphones and earphones, or a neckloop

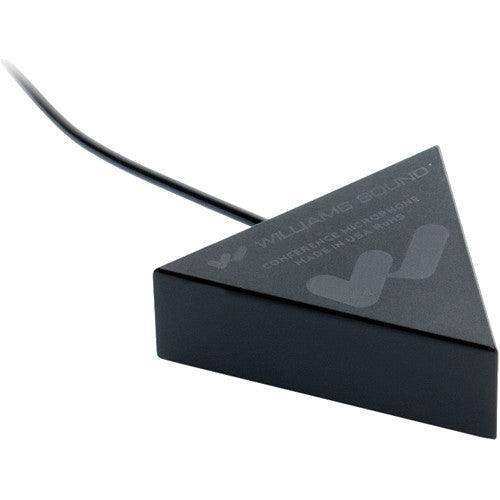

- Omnidirectional conference microphone
- Enhanced pickup range (8-12 ft), 36" cord, omni-boundary condenser

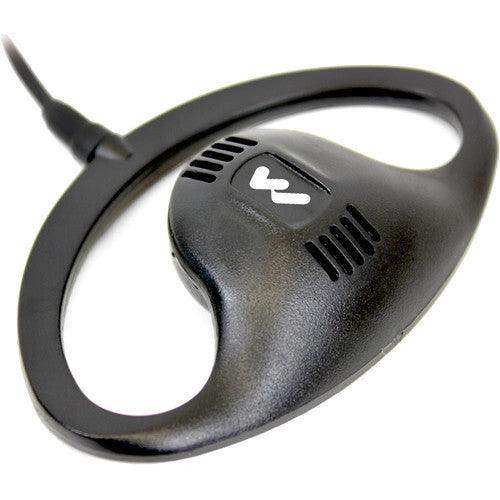

The Williams Sound EAR022 is a single-sided, clip-on earphone ideal for use with personal listening devices. The clip is designed to fully surround the ear for maximum stability and comfort. The monaural 1/8" mini-plug is compatible with a wide variety of devices.
- Hangs on outside of the ear
- Plug: 1/8" mono
- Cord: 3.3'
- Monaural
- 32 Ohms
- Recommended for FM receivers and select IR receivers
- Designed for individuals with mild and low gain hearing loss
The Williams Sound NKL 001 is an induction neckloop designed to magnetically couple an audio signal to a telephone coil-equipped (T-Switch) hearing aid. The neckloop has a standard 1/8" mini plug that can be connected to any audio device that has an 8-16 Ohm 1/8" output, such as a beltpack receiver, TV, tape player, etc. The neckloop has a slider so you can adjust the tension, and the 18" cord provides a good amount of slack for use with body-worn devices.
- Integrated safety breakaway device
- Cord Length: 18"
- Adult size
- Connector: 1/8" mono plug
- Monoaural
- Impedance: 8 to 16 Ohms
- Recommended for FM receivers and select IR receivers
- For individuals with moderate to severe hearing loss
This Williams Sound AA Alkaline Battery 2-pack is compatible with several FM listening systems, receivers, transmitters, earphones, headphones, and more.
Williams Sound IDP008 - ADA Wall Plaque for Hearing AssistanceThe IDP008 from Williams Sound is a self-adhesive wall plaque that alerts your patrons to the fact that your establishment has a hearing assistance system. Perfect for theaters, auditoriums, and more, the plaque is large and easy-to-see.
Williams Sound CCS030 - Receiver/Accessories Carrying Case with Pluck FoamThe CCS030 from Williams Sound is a sturdy carrying case with a pluck foam interior that allows you to customize it to hold your favorite accessories. It can accommodate up to 40 HED021 headphones.

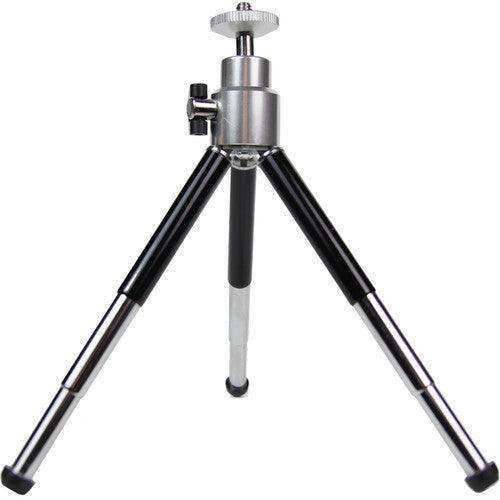

Williams Sound Tabletop Tripod for WIR TX75The Williams Sound Tabletop Tripod is used with the WIR TX75 2-Channel Infrared Transmitter.

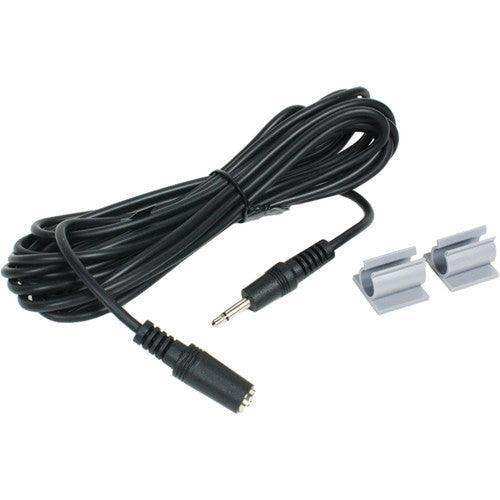

Williams Sound WCA 007 3.5mm Male TS to 3.5mm Female TS Mic Extension Cable with Mic Clips (12')The Williams Sound WCA 007 provides 12' of cable and two self-adhesive mic clips, allowing you to use the MIC 014 (available separately) as a lavalier. The cable has a 3.5mm male TS connector on one end and a 3.5mm female TS connection on the other end and can be used with other mono TS mics as well as mono TS earphones or headphones.

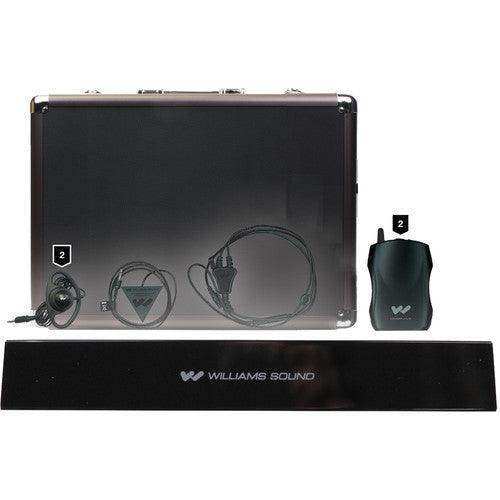

Features
- 1 x IR T2 Medium-Area IR Transmitter
- 2 x 4-Channel Infrared Receivers
- 1 x Omnidirectional Conference Mic
- 2 x Mono Earphones with 3.5mm Connectors
- 2 x 18" Induction Neckloops
- 4 x AA Batteries
- 12' 3.5mm Extension Cable
- Includes Tabletop Tripod & ADA Plaque
- Includes Customizable Hardshell Case
Specifications
Williams Sound IR T2 SoundPlus Medium-Area Infrared Transmitter for Assistive Listening Specs
| Coverage Area | Up to 18,000 ft² / 1673 m² in single-channel mode with the RX22-4 receiver |
| Transmission Frequencies | 2.3, 2.8, 3.3, and 3.8 MHz |
| Modulation | FM wideband |
| Pre-Emphasis | 50 µS |
| Deviation | ±50 kHz |
| Inputs | 2 x Euroblock line inputs (balanced/unbalanced) 1 x 1/8" / 3.5 mm microphone input |
| Control | 1 x Euroblock (Ground, Tx, Rx) |
| Frequency Response | Line Inputs: 95 Hz to 17.6 kHz, -3 dB re 1 kHz Mic Input: 125 Hz to 17 kHz, -3 dB re 1 kHz |
| Signal-to-Noise Ratio (SNR) | 70 dB (line input) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Indicators | Audio: Yellow LED per channel Power: Green LED |
| Power Requirement | DC Power Input: 2.1 mm ID barrel connector, 48 VDC, 0.2 A, center positive Power Supply Input: 100 to 240 VAC, 50/60 Hz, 18 W |
| Power Save Mode | Carrier shuts off after 12 minutes without audio |
| Dimensions | 9.0 x 3.8 x 1.4" / 229 x 97 x 36 mm |
| Weight | 0.8 lb / 0.4 kg |
| Approvals and Compliance | CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, and PSE |
| Package Weight | 2.84 lb |
| Box Dimensions (LxWxH) | 11.6 x 6.8 x 4.2" |
Williams Sound WIR RX22-4N Infrared 4 Channel Bodypack Listening Receiver (2.3 - 3.8MHz) Specs
| Carrier Frequency | 2.3, 3.3, 2.8, 3.8 MHz |
| Signal-to-Noise Ratio | 60dB Min |
| Squelch | @ 40dB S/N Ratio |
| Frequency Response | 25Hz to 16kHz |
| THD & Noise | Less than 1% |
| Connector | 1/8" (3.5mm) Connector |
| Controls | On/Off/Volume, Channel Selector Knobs |
| Batteries | x2 AA Alkaline or NiMH 60 Hours w/Alkaline, 30 Hours w/Rechargeable |
| Dimensions | 4.1 x 2.5 x 1.2" (104 x 72.4 x 30.4mm) |
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 6 x 3.8 x 1.9" |
Williams Sound MIC 049 Omnidirectional Conference Microphone with 3' Cord and 3.5mm Plug Specs
General| Product Type | Microphone |
| Weight | 1.28 oz |
| Color | Black |
| Recommended Use | Conference |
| Microphone Technology | Electret condenser |
| Microphone Operation Mode | Omni-directional |
| Connectivity Technology | Wired |
| Sensitivity | -38 dB |
| Impedance | 1.5 kOhm |
| Microphone Power Source Voltage (DC) | 10 V |
| Frequency Response | 100 - 8000 Hz |
| Signal-to-Noise Ratio | 60 dB |
| Connector Type | Microphone (mini-phone mono 3.5 mm) |
| Cable Details | Microphone cable - 3 ft |
| Service & Support | Limited warranty - 90 days |
| Package Weight | 0.03 lb |
| Box Dimensions (LxWxH) | 3 x 3 x 1" |
Williams Sound EAR 022 Surround Earphone Specs
| Style | Around-ear speaker |
| Plug | 1/8" / 3.5 mm mono |
| Driver Size | 0.9" / 23.0 mm |
| Nominal Impedance | 32 Ohms |
| Frequency Response | 20 Hz to 20 kHz |
| Power Input | 30 mW |
| Sensitivity | 118 dB @ 1 kHz |
| Cord Length | 39.0" / 99.1 cm |
| Weight | 0.5 oz / 15.0 g |
| Package Weight | 0.055 lb |
| Box Dimensions (LxWxH) | 3.6 x 3.1 x 0.85" |
Williams Sound NKL 001 Induction Neckloop for T-Switch Hearing Aids Specs
| Magnetic Field Strength | 25 mW input at 1000 Hz produces 1.7 A/m 6" above the center of loop 85μW input produces 0.1 A/m (IEC Standard) |
| Input Power | 500 mW max |
| Impedance | 8 to 16 Ohms |
| Connector | 1/8" / 3.5 mm mono mini-plug |
| Cable Length | 18 / 457 mm |
| Color | Black |
| Approvals | RoHS, WEEE |
| Weight | 1.5 oz / 43 g |
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 5.65 x 4.4 x 1" |
Williams Sound AA Alkaline Battery (2-Pack) Specs
Battery| Battery Type | 2 x AA |
| Battery Chemistry | Alkaline |
| Battery Voltage | 1.2 V |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 1.9 x 1 x 0.5" |
Williams Sound IDP008 - ADA Wall Plaque for Hearing Assistance Specs
| Dimensions | 6.5 x 10.5" (165 x 266 mm) |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 7.3 x 4.3 x 0.1" |
Williams Sound CCS030 - Receiver/Accessories Carrying Case with Pluck Foam Specs
Packaging Info| Package Weight | 7.8 lb |
| Box Dimensions (LxWxH) | 18.7 x 14.3 x 7.2" |
Williams Sound Tabletop Tripod for WIR TX75 Specs
Manufacturer Warranty| Mounting Platform | 1/4"-20 threaded screw |
| Maximum Height | 11.5" (29.2 cm) |
| Folded Length | 7" (17.8 cm) |
| Weight | 2.6 lb (1.2 kg) |
| Package Weight | 0.56 lb |
| Box Dimensions (LxWxH) | 8.375 x 6.625 x 2.125" |
Williams Sound WCA 007 3.5mm Male TS to 3.5mm Female TS Mic Extension Cable with Mic Clips (12') Specs
Manufacturer Warranty| Connector 1 | 1 x 1/8" / 3.5 mm TS Male |
| Connector 2 | 1 x 1/8" / 3.5 mm TS Female |
| Cable Length | 12' / 3.7 m |
| Number of Conductors | 2 |
| Weight | 0.16 lb / 73 g |
| Package Weight | 0.165 lb |
| Box Dimensions (LxWxH) | 5.95 x 2.95 x 1.4" |
