| Dimensions/Weight/Color |
10″ (25.4cm) x 6.35″ (6.2cm) x 2.45″ (6.2cm) / 3.4 lbs (1.5 kg) / Black and Silver |
| Power |
External Power Supply, 18VDC Desktop Style Switching Inverter, 110-240VAC, 50-60Hz, 1A |
| INPUTS / OUTPUTS |
|

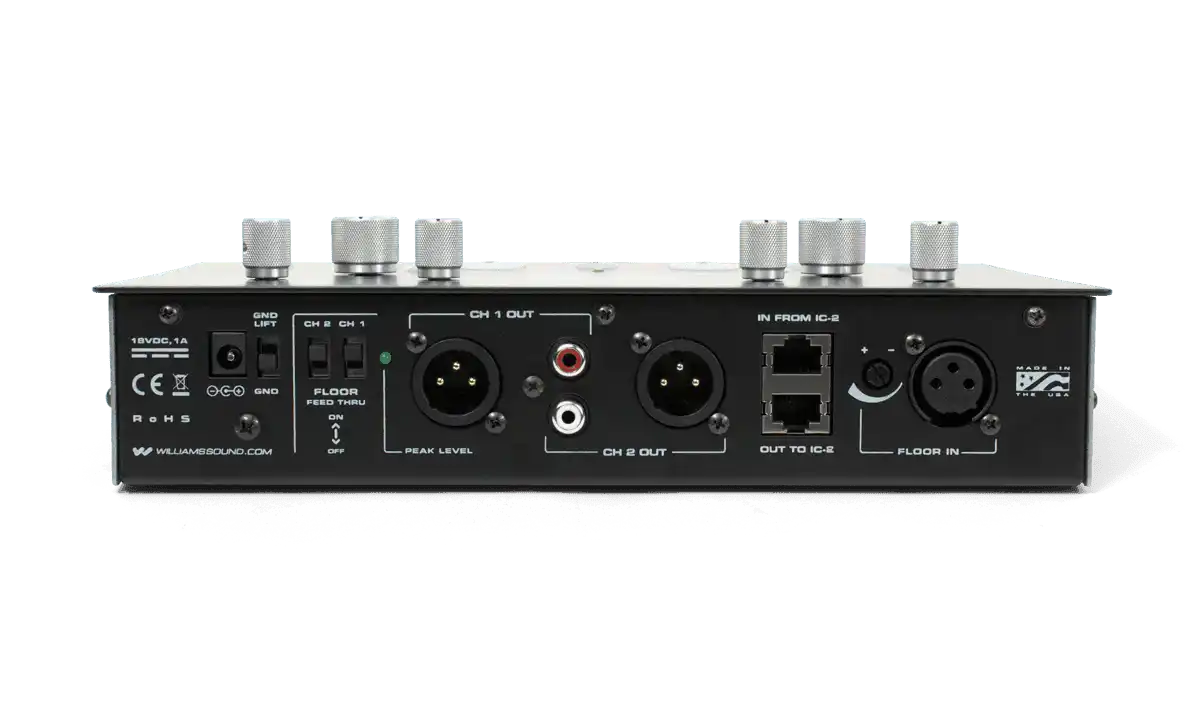

| Floor In |
3-pin XLR female jack, balanced (or unbalanced) input with 24k Ω differential input impedance, max balanced input is +19dBu |
| IC-2 Bus In / Out |
CAT5 8p8c RJ45 female receptacle, distributes balanced line level Floor and Relay audio to another IC-2 |

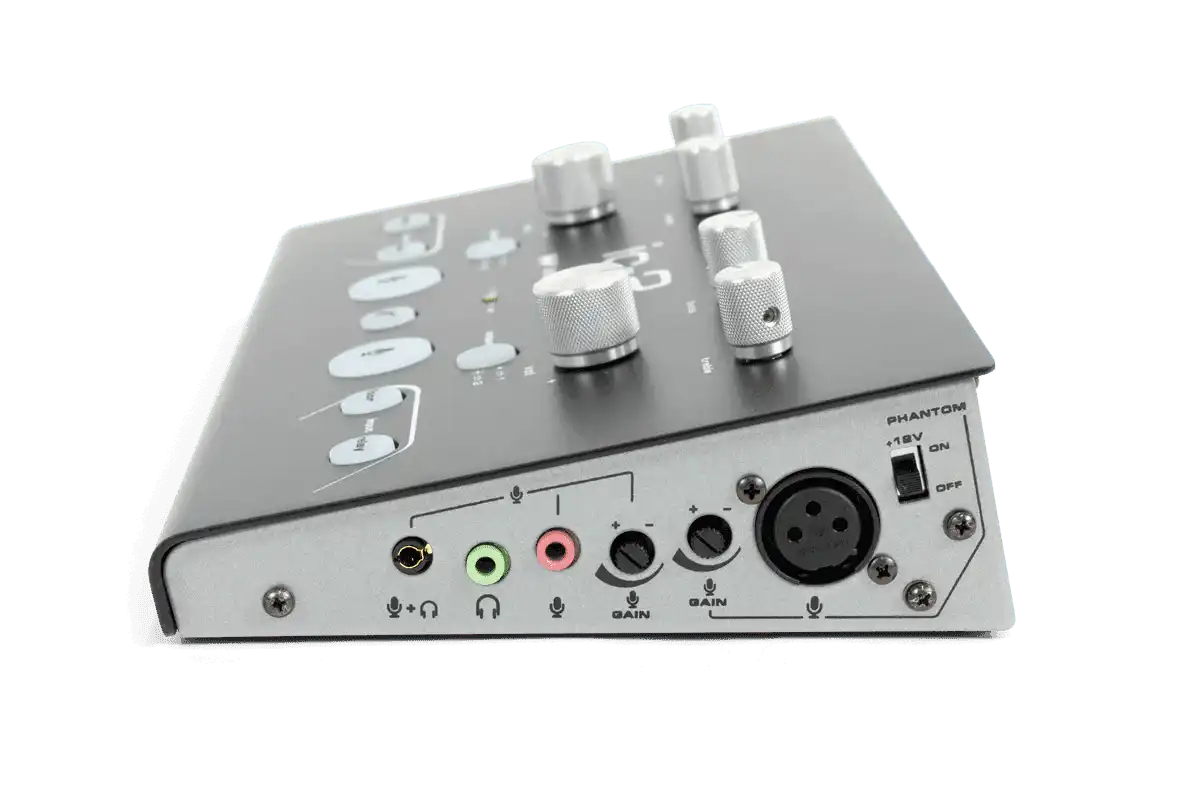

| XLR Microphone Inputs |
3-pin XLR female jack, balanced (or unbalanced) input. Switchable 12VDC simplex power. Variable gain of 58 dB, 2.4k Ω balanced input impedance, maximum balanced input is +19 dBu |
| 3.5mm Microphone Inputs |
Stereo 3.5 mm TRS phone jack, pink, and stereo 3.5mm TRRS phone jack, black, unbalanced (r,s) for electret condenser mics, variable gain of 40dB. Bias is 3.7VDC through 2.7k Ω |
| 3.5mm TRRS Headphone Output |
3.5mm TRRS phone jack, Tip = Left, Ring 1 = Right, Ring 2 = GND, Sleeve = Mic. 40mW max power into 32 Ω stereo headset. |
| 3.5mm Headphone Output |
3.5mm TRS phone jack, mono or stereo headphone, 8 Ω minimum. 190mW max power into 32 Ω stereo headset. |
| Norm Out, Relay Out |
3-pin XLR male jack, balanced output. Max output is +19dBu into 600 Ω balanced load impedance. |

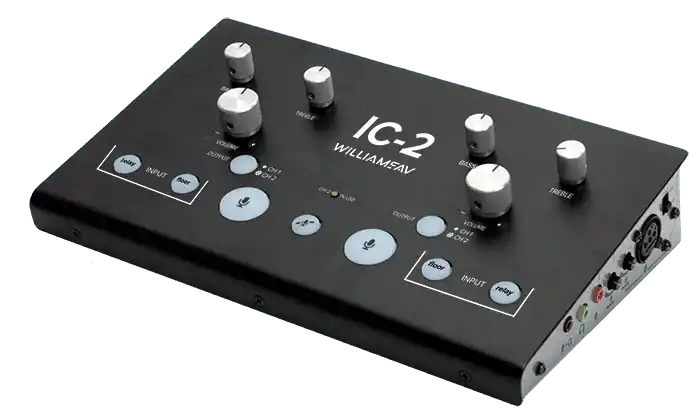

| CONTROLS |
|
| Volume |
Left and Right rotary, controls headphone volume |
| Bass and Treble Tone |
Left and right rotary with center detent, controls headphone bass and treble tone levels. |
| Mute |
Push button, backlit red, mutes left and right mics while pressed. |
| Mic On |
Push button, backlit bright red, activates microphone. Right and left Mic On buttons are interlocked; mic can only be turned on if the other is off. |
| Floor Input, Relay Input |
Push buttons, backlit blue, select listening language group. Listening modes are either/or: turning one on disables the other. |
| Relay Output |
Push button, backlit yellow, selects microphone output language group: light on = Relay Out, light off = Norm Out. |
| Gain Adjust |
Rotary gain pots control level of microphone and Floor audio. |
| Phantom Power |
Slide switch enables 12VDC Simplex power to XLR microphone. |
| Norm Feedthrough |
Slide switch enables Floor feedthrough to Norm Out XLR jack. |
| Relay Feedthrough |
Slide switch enables Floor feedthrough to Relay Out XLR jack. |
| Ground Lift |
Slide switch disconnects Chassis and Audio Grounds internal to the console. |
| INDICATOR |
|
| Peak Level Indicator |
Green LED on back panel indicates optimal audio output level on Norm Out XLR when blinking. |
| Relay Output in Use Indicator |
Yellow LED on front panel indicates when Relay Output is in use. |
| AUDIO OUTPUT |
|
| Frequency Response |
45Hz to 20kHz, +0/-3dB re: 1kHz with flat bass/treble |
| Distortion at 1kHz |
[lt]0.5% THD @ full power |
| Signal to Noise Ratio |
[gt]82dB @ 1kHz |
| Crosstalk Attenuation |
[gt]63dB @ 1kHz |
| Tone Controls |
Bass: +12dB Boost or -12dB Cut @ 100Hz
Treble: +12dB Boost or -12dB Cut @ 10kHz
|
| Approvals and Declarations |
CE, FCC, Industry Canada, RoHS, C-Tick, CB |
| Warranty |
5 years, parts and labor (90 days on accessories) |
