Williams AV FM 557 PRO D WAP – Dual FM & Wi-Fi System with Dante

Product Overview

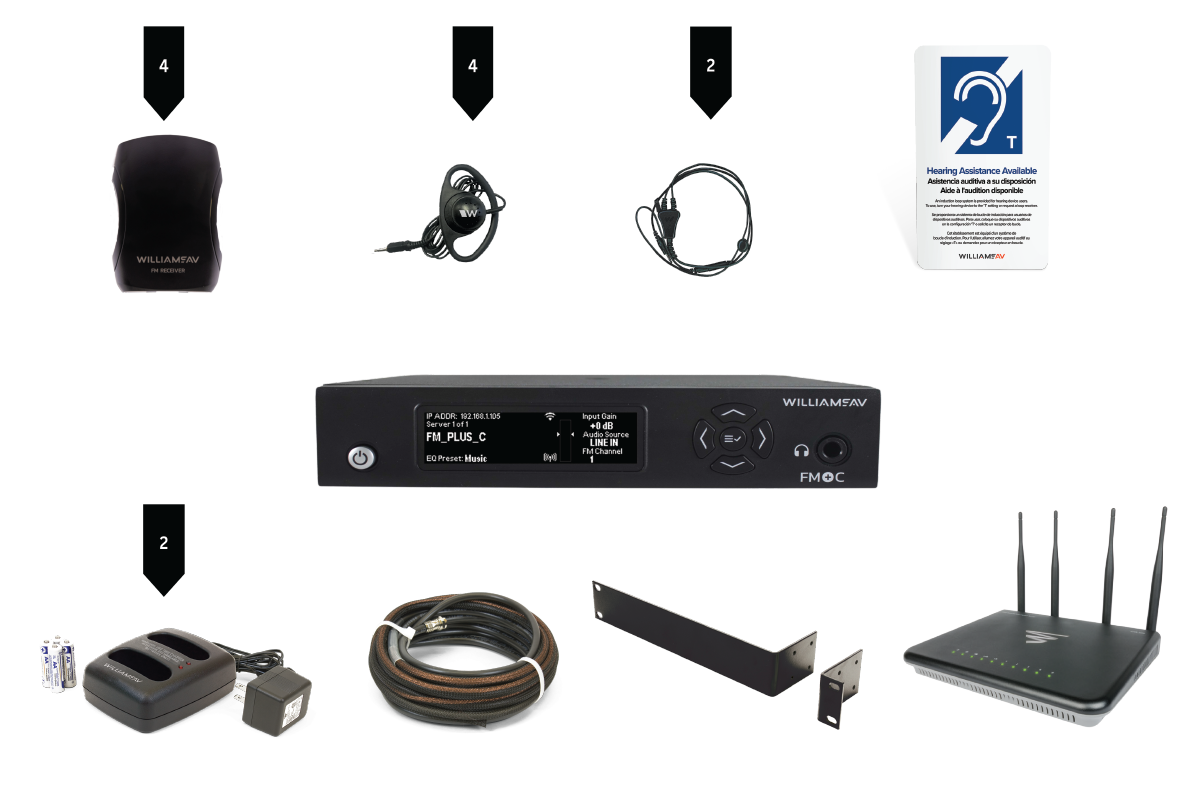

The Williams AV FM 557 PRO D WAP is a large-area dual FM and Wi-Fi assistive listening system with Dante digital audio input, built for networked commercial AV installations. It broadcasts over 72 MHz FM to unlimited receivers and over Wi-Fi to personal devices, making it a Dante-enabled commercial assistive listening system for auditoriums, houses of worship, and government spaces. This PRO D WAP configuration adds a wireless access point, four R37 receivers, coax cable, and a rack panel kit.

Product Description

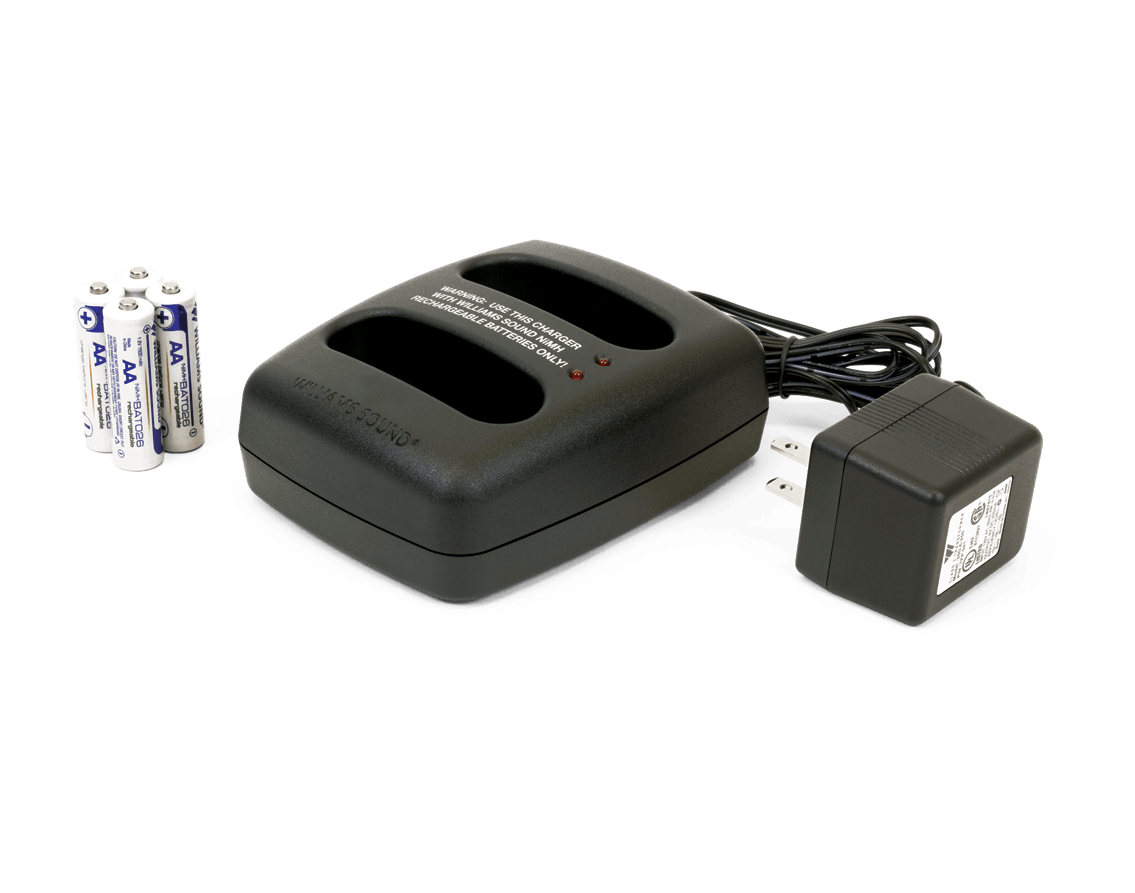

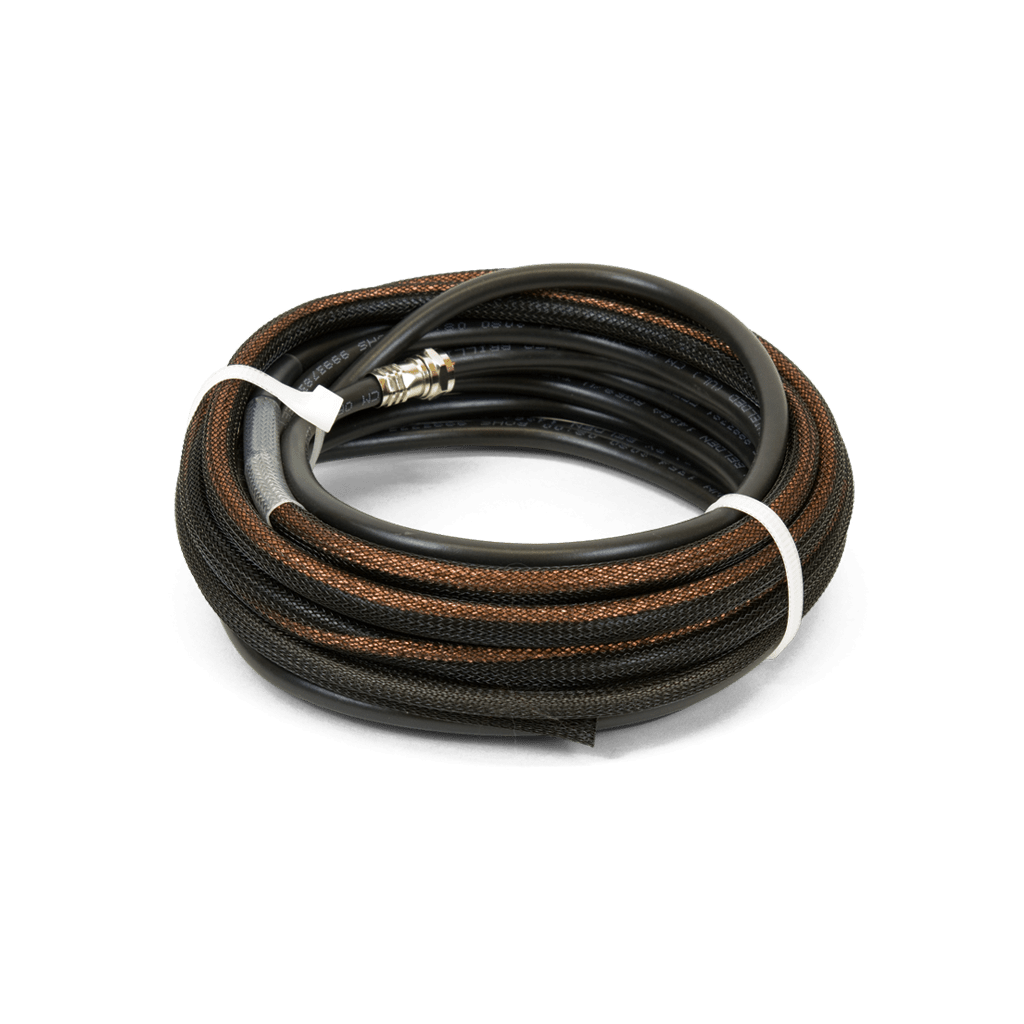

The FM 557 PRO D WAP matches the FM 557 PRO WAP feature set and adds a Dante network audio input, allowing the transmitter to take audio directly from a Dante-enabled DSP, matrix, or console over the AV network. The FM+ transmitter broadcasts on 17 wideband channels across 72.1–75.9 MHz to unlimited RF listeners or to up to 45 Wi-Fi devices in unicast mode through the WaveCAST app. RF coverage reaches up to 1,000 ft (304 m), with a 64 dB+ signal-to-noise ratio and 31 Hz–16 kHz (±3 dB) response. The package includes four PPA R37 receivers, surround earphones, neckloops, a multi-bay charger, the wireless access point, coax cable, and a rack panel kit for rack-mount installation. Dante input makes this the preferred configuration for facilities standardized on networked audio. Add R37 receivers and earphones to scale capacity.

Key Features

• Dante network input — Accepts audio directly from Dante DSPs, matrices, and consoles.
• Dual FM and Wi-Fi delivery — Unlimited FM receivers plus personal-device Wi-Fi listening.
• 17 wideband channels — Frequency-agile across 72.1–75.9 MHz.
• Long-range coverage — Up to 1,000 ft (304 m) RF range.
• Install-ready package — Four R37 receivers, WAP, coax cable, and rack panel kit.
• Professional audio — 64 dB+ SNR and 31 Hz–16 kHz (±3 dB) response.

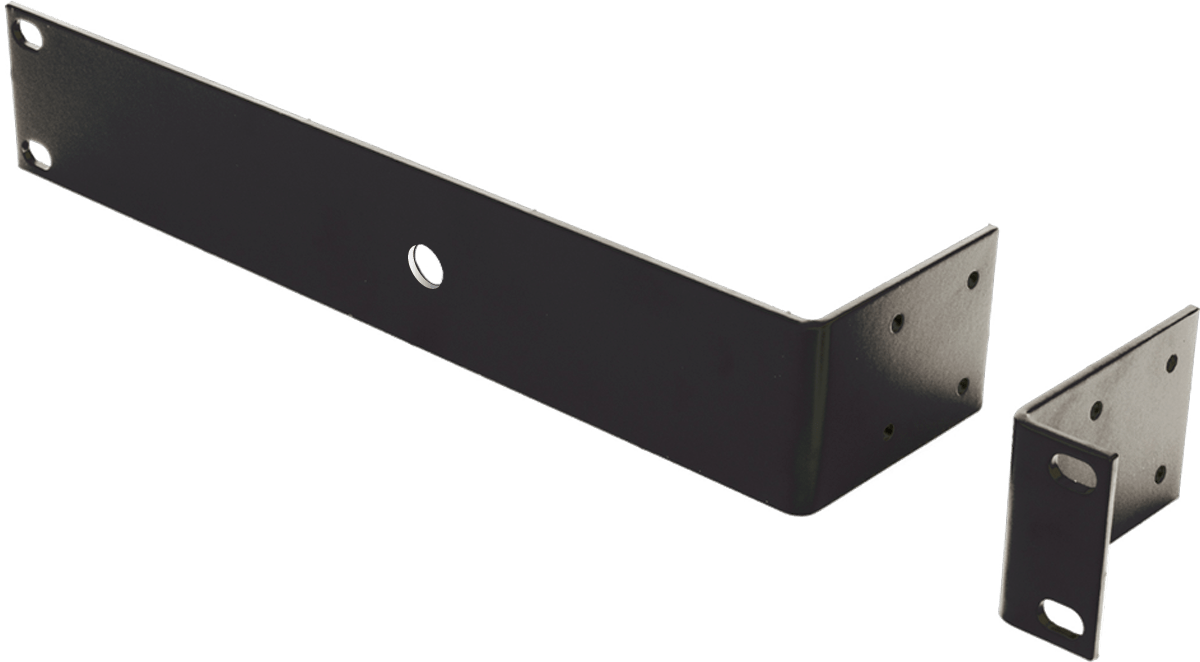

• Rack-mountable — Rack panel kit for standard racks.

Typical Applications

• Auditorium and house of worship assistive listening on a Dante network
• Government spaces and commercial meeting spaces
• Multi-purpose rooms and training rooms
• Conference rooms and all-hands rooms

Technical Specifications

Full specifications: Williams AV FM 557 systems specifications.

Frequently Asked Questions

What does the D add over the FM 557 PRO WAP?
A Dante network audio input, so the transmitter can receive audio directly from Dante-enabled DSPs and consoles.

Can listeners use their phones?
Yes, over Wi-Fi via the WaveCAST app, alongside the FM receivers.

How many listeners can it serve?
Unlimited FM receivers plus up to 45 Wi-Fi devices in unicast mode.

Is it rack-mountable?
Yes, with the included rack panel kit and coax cable.

Does it support hearing aids?

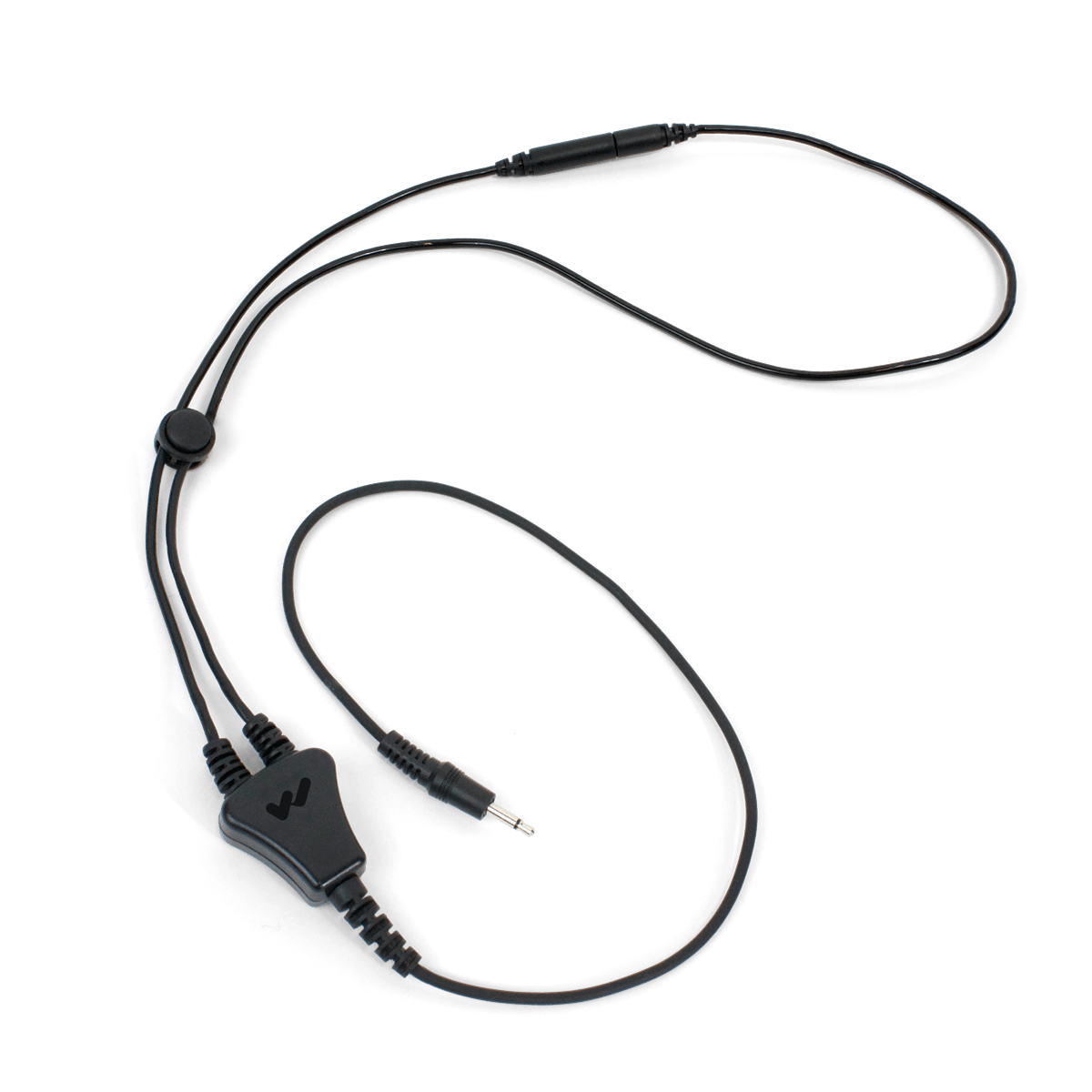

Yes, through the included neckloops for telecoil hearing aids.

What warranty and support are included?
Two-year parts and labor; Creation Networks provides design and integration support.
