Product Overview
The Williams AV FM 557 PRO WAP is a large-area dual FM and Wi-Fi assistive listening system for auditoriums, houses of worship, and government spaces. It delivers audio over 72 MHz FM to an unlimited number of receivers and over Wi-Fi to personal devices, making it a flexible commercial assistive listening system for large rooms. This PRO WAP configuration bundles four R37 receivers, a wireless access point, coax cable, and a rack panel kit for professional installation.
Product Description

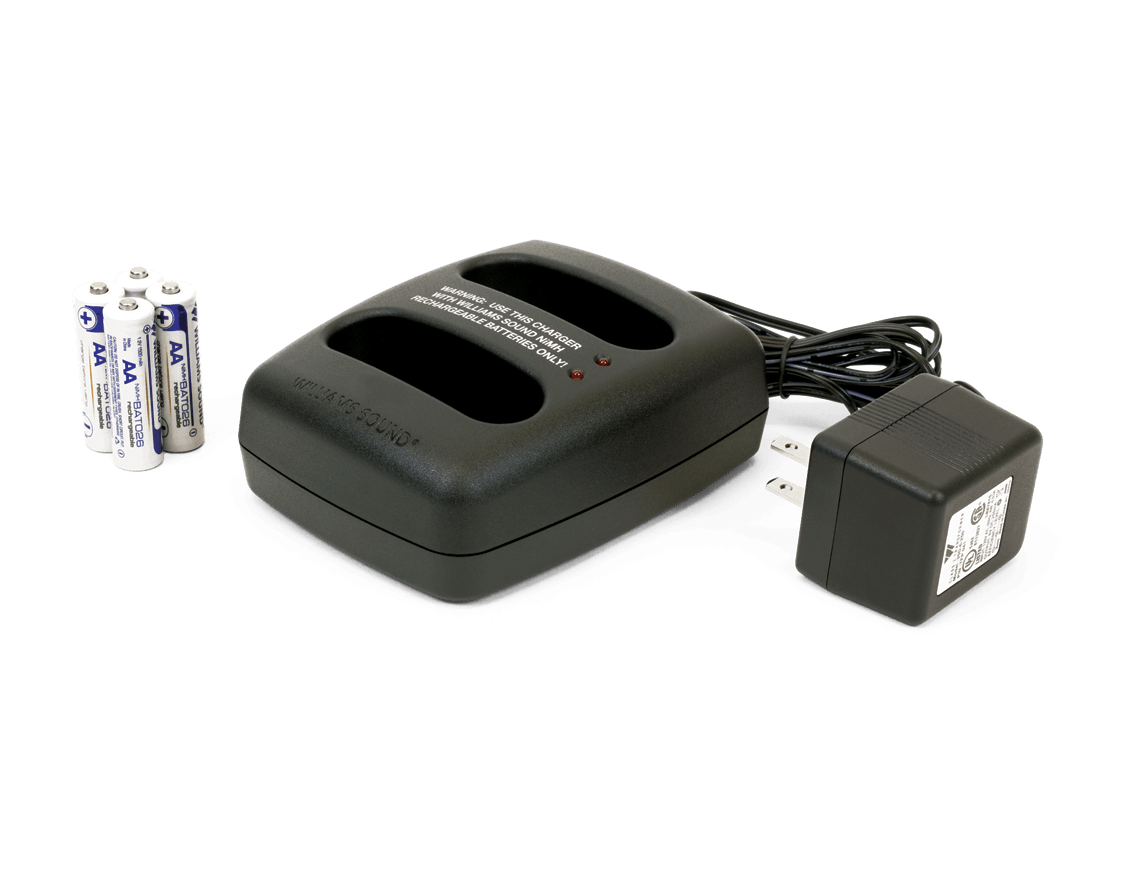

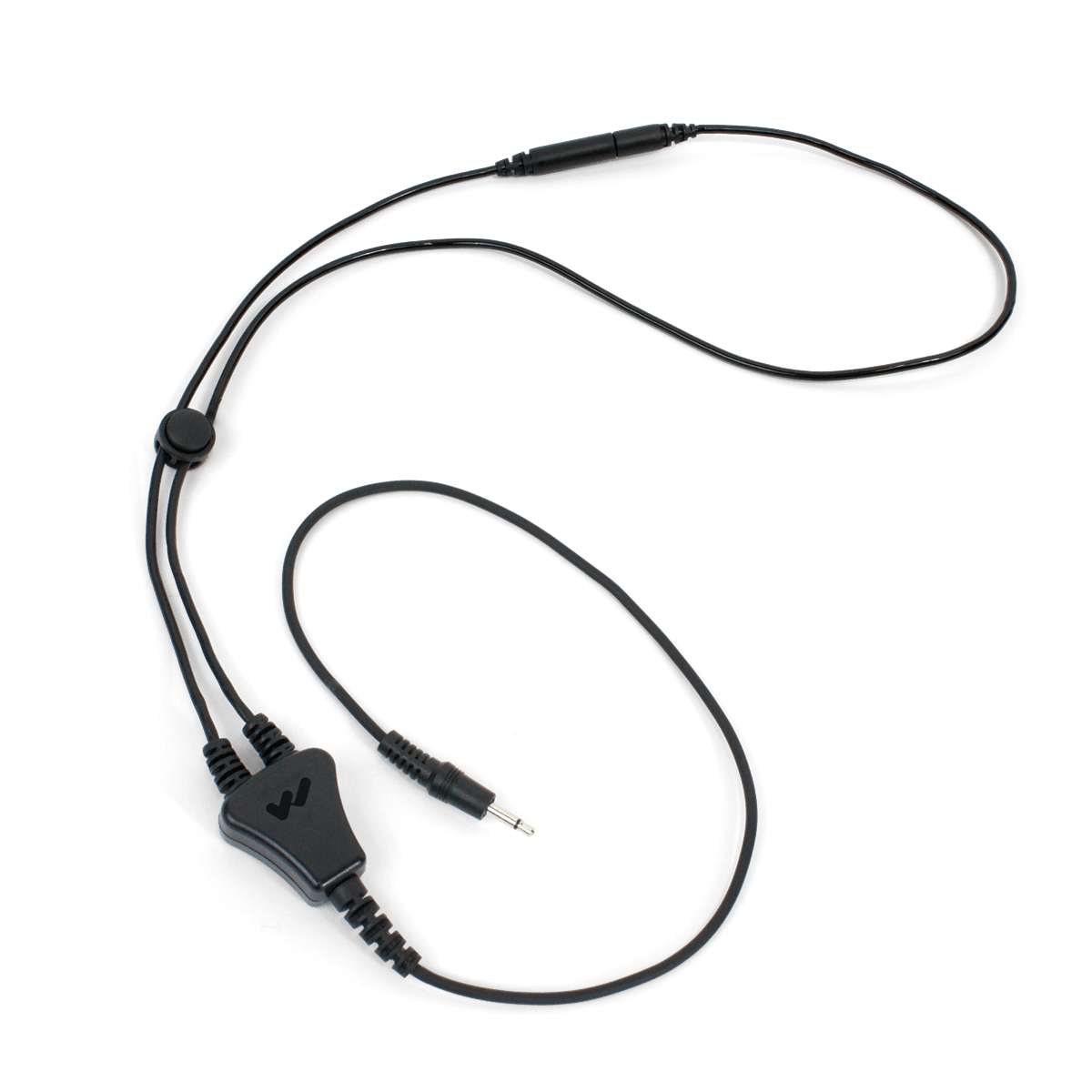

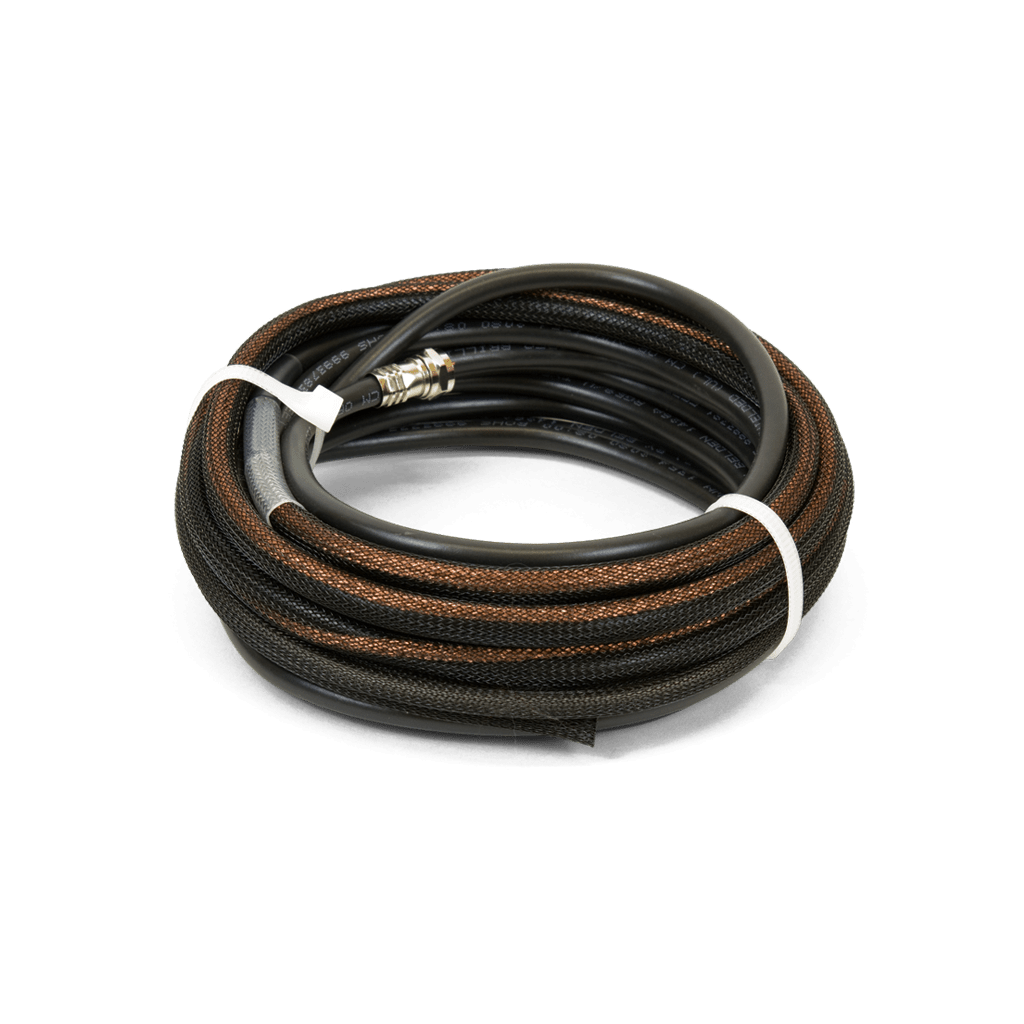

The FM 557 PRO WAP is a turnkey large-area assistive listening system that combines traditional FM broadcast with Wi-Fi streaming to smartphones through the WaveCAST app. The FM+ transmitter broadcasts on 17 wideband channels across the 72.1–75.9 MHz band to an unlimited number of RF listeners, or to up to 45 devices over Wi-Fi in unicast mode. RF coverage reaches up to 1,000 ft (304 m) with the supplied screw-on antenna, and audio performance includes a signal-to-noise ratio of 64 dB or greater with 31 Hz–16 kHz (±3 dB) response. The package includes four PPA R37 body-pack receivers, surround earphones, neckloops, a multi-bay charger, the included wireless access point for Wi-Fi delivery, coax cable, and a rack panel kit for clean rack-mount installation. This system suits venues that must serve both dedicated receivers for ADA compliance and personal-device listeners. Expand with additional R37 receivers and earphones as needed.
Key Features
- Dual FM and Wi-Fi delivery — Broadcast to unlimited FM receivers and to personal devices over Wi-Fi from one transmitter.
- 17 wideband channels — Frequency-agile operation across 72.1–75.9 MHz for multi-system environments.
- Long-range coverage — Up to 1,000 ft (304 m) RF range for large venues.

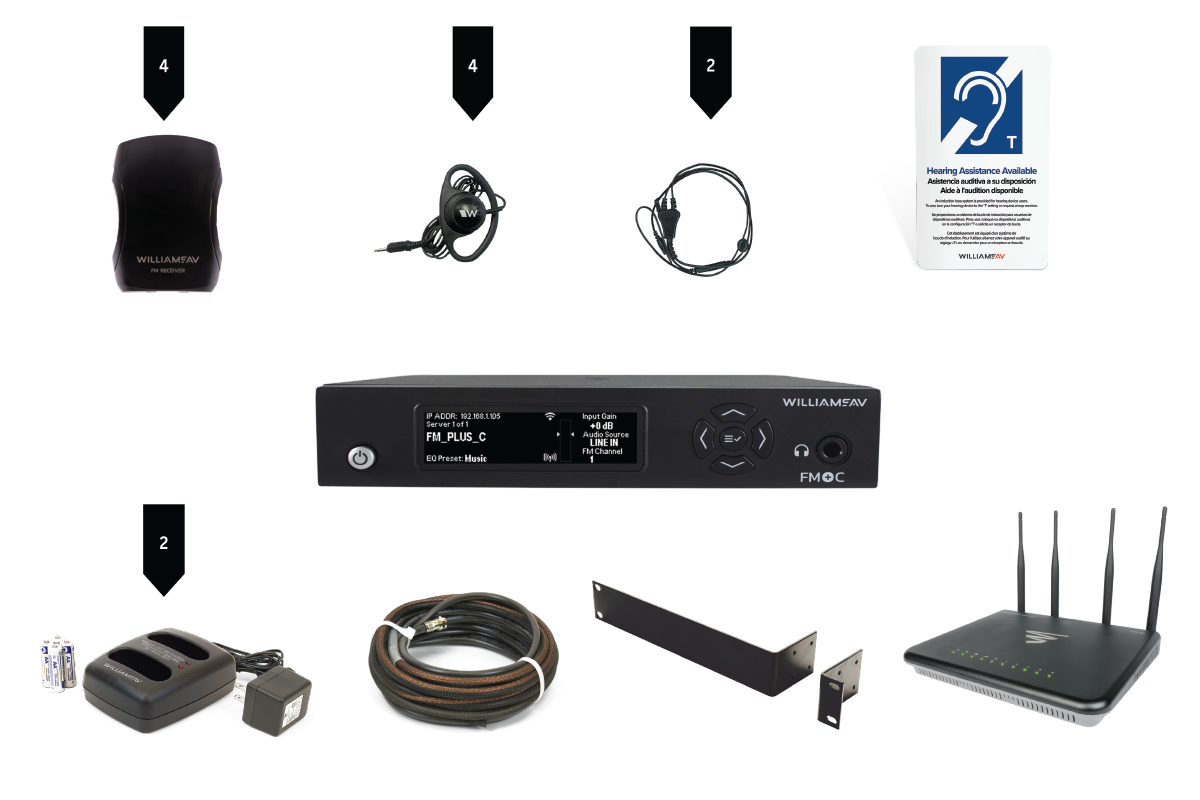

- Install-ready package — Includes four R37 receivers, wireless access point, coax cable, and rack panel kit.
- ADA-oriented — Serves dedicated assistive-listening receivers alongside personal-device users.
- Professional audio — 64 dB+ SNR and 31 Hz–16 kHz (±3 dB) response.
- Rack-mountable — Rack panel kit for standard equipment racks.
Typical Applications
- Auditorium and house of worship assistive listening
- Government spaces and commercial meeting spaces
- Multi-purpose rooms and training rooms
- Conference rooms and all-hands rooms
Technical Specifications
| Technology | Dual FM (72 MHz) + Wi-Fi (WaveCAST) |
| FM channels | 17 wideband, 72.1–75.9 MHz |
| Capacity | Unlimited FM receivers; up to 45 Wi-Fi devices (unicast) |
| RF range | Up to 1,000 ft (304 m) |
| SNR / response | 64 dB+; 31 Hz–16 kHz (±3 dB); THD <0.25% @ 1 kHz |
| Includes | 4 x PPA R37 receivers, WAP, earphones, neckloops, charger, coax, rack panel kit |
| Warranty | 2-year parts and labor |
Full specifications: Williams AV FM 557 systems specifications.
Frequently Asked Questions
Can listeners use their phones instead of a receiver?
Yes. The included wireless access point streams audio over Wi-Fi to smartphones via the WaveCAST app, alongside the FM receivers.
How many people can it serve?
Unlimited listeners on FM receivers, plus up to 45 devices over Wi-Fi in unicast mode.
What coverage should we expect?
Up to 1,000 ft (304 m) via FM with the supplied antenna, depending on venue construction.
Is it rack-mountable?
Yes. The package includes a rack panel kit and coax cable for professional rack installation.
Does it help meet ADA requirements?
It provides dedicated assistive-listening receivers and neckloops for telecoil users, which support ADA assistive-listening provisions.
What warranty and support are included?
Two-year parts and labor; Creation Networks can assist with design and integration.
