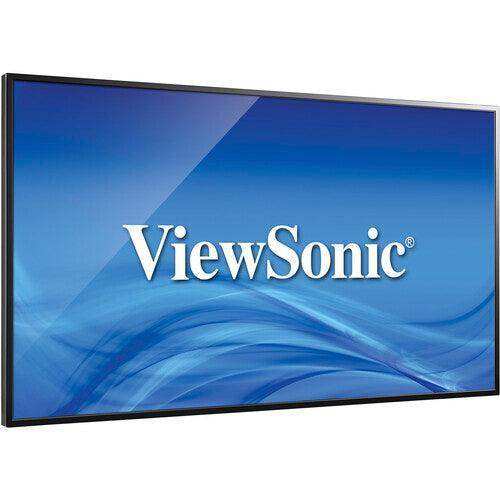

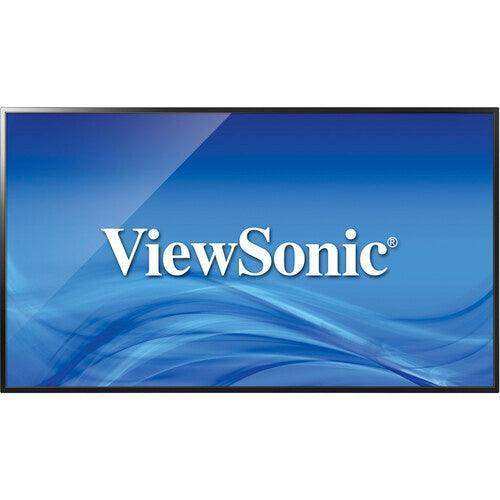

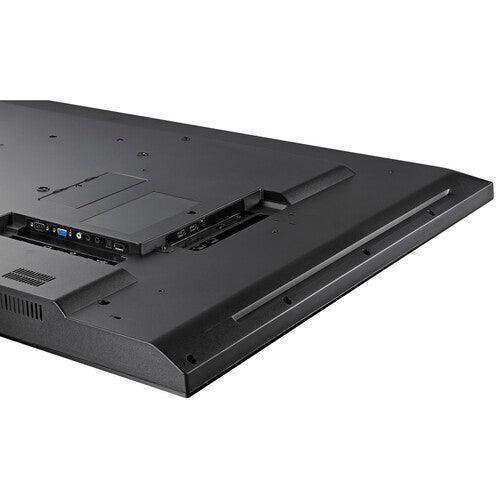

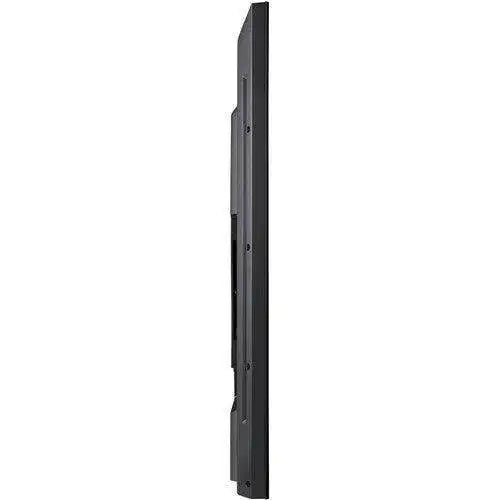

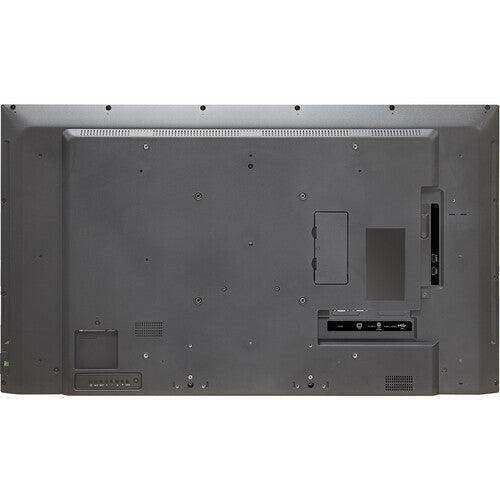

ViewSonic CDE8630 – 86" 4K UHD Commercial Display for Digital Signage

Product Overview

The ViewSonic CDE8630 is an 86-inch 4K UHD commercial display from the CDE30 Series, engineered for 24/7 continuous operation in corporate campuses, higher-education facilities, and large-format digital signage deployments. With 450 nits brightness, a quad-core SoC media player, USB-C connectivity, HDMI daisy-chain for up to nine-screen tiling, Crestron/Extron/AMX compatibility, and myViewBoard Manager remote fleet management, the CDE8630 is a fully featured commercial-grade 86-inch display for AV integrators and facilities managers specifying large-format always-on digital signage and presentation systems.

Product Description

The CDE8630 is the 86-inch model in the ViewSonic CDE30 Series, which spans 43 to 98 inches and is purpose-built for corporate and campus environments requiring continuous display operation. At 450 nits with a 25 percent high-haze anti-glare surface, the CDE8630 maintains image clarity in bright lobby, atrium, and open-plan environments where lower-brightness consumer displays fall short. The embedded quad-core SoC with 4GB RAM and 32GB storage handles digital signage content playback, network communication, and casting operations without an external PC.

For large-scale deployments, the CDE8630 supports HDMI daisy-chaining for tiling of up to nine screens, enabling lobby video arrays and large signage networks from a single content source. Crestron, Extron, and AMX compatibility allows integration into existing room automation infrastructure for centralized power, volume, and input management. The optional slot-in PC module with Intel Core i5 or i7 (available on the CDE8630) transforms the panel into a full Windows workstation display for compute-intensive signage and kiosk applications.

Screen sharing via myViewBoard Display and ViewBoard Cast supports AirPlay and Chromecast for wireless presentation from any device. myViewBoard Manager provides centralized remote management for content updates, software broadcasting, and device monitoring across distributed display fleets. The CDE8630 is rated for 24/7 continuous operation with a 50,000-hour backlight life and carries EPEAT and ENERGY STAR 8.0 certifications for enterprise sustainability compliance.

Key Features

• 86-Inch 4K UHD at 450 nits — High-brightness commercial panel for lobby, atrium, and open-plan environments with significant ambient light.
• 24/7 Continuous Operation — Commercial-grade panel rated for around-the-clock digital signage and presentation display without duty-cycle limits.
• Landscape and Portrait Modes — Flexible installation orientation for digital signage, wayfinding, and vertical content display.
• Quad-Core SoC with 4GB RAM and 32GB Storage — Embedded compute handles standalone content playback and network operations without an external media player.
• HDMI Daisy-Chain for Up to 9 Screens — HDMI input and output enable large lobby video arrays and multi-display signage networks from a single content source.
• USB-C One-Cable Connectivity — Single USB-C port handles 4K video, data, and power for laptop connection without additional adapters.
• Crestron, Extron, and AMX Compatible — Native integration with leading AV control systems for centralized room automation and display management.
• Optional Slot-In PC Module — Intel Core i5 or i7 Windows PC module available for compute-intensive kiosk and signage applications.
• myViewBoard Manager Remote Management — Web-based fleet management for content scheduling, OTA updates, and device monitoring across distributed display networks.
• ViewBoard Cast and myViewBoard Display — Wireless casting supporting AirPlay, Chromecast, and multi-participant split-screen presentation sharing.
• 50,000-Hour Backlight Life — Long-life backlight rated for extended commercial deployment with minimal replacement maintenance.
• EPEAT and ENERGY STAR 8.0 Certified — Meets enterprise sustainability procurement requirements for energy efficiency and end-of-life management.

Typical Applications

• Corporate lobby and reception 86-inch 24/7 digital signage and communication display
• Large conference room and boardroom presentation display with wireless casting
• Higher-education campus multi-display signage network with daisy-chain deployment
• Government space continuous-operation large-format commercial display installation
• Multi-purpose room and all-hands space large-format presentation display
• Retail and commercial meeting space 86-inch digital content display

Technical Specifications

Frequently Asked Questions

What is the difference between the CDE8630 and CDE9830?
The CDE8630 is the 86-inch model; the CDE9830 is 98 inches. Both share the same CDE30 Series platform, 24/7 operation rating, quad-core SoC, and optional slot-in PC compatibility. The 98-inch CDE9830 has 500 nits brightness versus 450 nits on the CDE8630.

Does the CDE8630 require an external media player?
No. The embedded quad-core SoC with 4GB RAM and 32GB storage handles standalone digital signage content playback and network operations without an external PC or media player.

Can a Windows PC module be added?
Yes. The CDE8630 accepts an optional Intel Core i5 or i7 slot-in PC module with up to 64GB RAM and 256GB SSD for Windows-based signage and kiosk applications.

How many displays can be daisy-chained?
Up to nine CDE8630 displays can be tiled via HDMI for large lobby video arrays and multi-display signage networks.

Is the CDE8630 compatible with Crestron?
Yes. Native compatibility with Crestron, Extron, and AMX control systems for centralized room automation and display management.

What is the warranty?
3-year limited warranty. Extended on-site warranty options available through Creation Networks.
