Vaddio PrimeSHOT 20 HDMI with HDMI Extender (White) - PTZ Camera Bundle

Product Overview

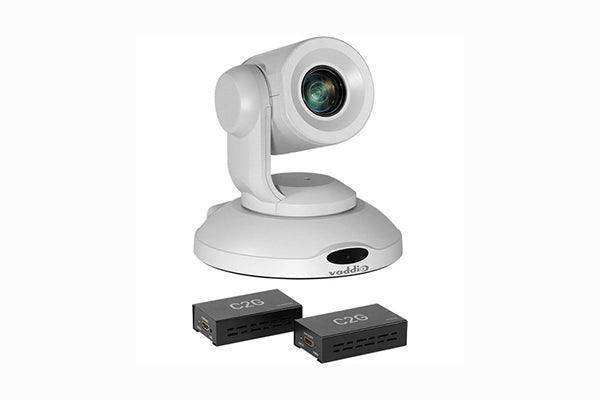

The Vaddio PrimeSHOT 20 HDMI with HDMI Extender (White) 999-30420-300W bundles the PrimeSHOT 20 HDMI PTZ camera with a Vaddio HDMI Extender in a white finish, enabling HDBaseT single-cable extension of HDMI video, power, and control from the camera to the AV rack. Designed for large meeting rooms, training rooms, lecture halls, and houses of worship where a white camera blends with light-colored ceilings and walls. The black version is 999-30420-300. For camera-only (no extender), see 999-30420-000W.

Product Description

The PrimeSHOT 20 HDMI delivers 1080p HD video with 20x optical zoom, 55° horizontal field of view at wide end, and simultaneous HDMI, S-Video, and IP H.264 streaming outputs. The included HDMI Extender uses HDBaseT technology to carry HDMI video, power, and control signals over a single Cat cable, simplifying cable management in rooms where running HDMI directly from camera to rack is not practical.

Web-based administration covers full camera configuration and preset management. RS-232 and IP control enable integration with room control systems including AMX, Crestron, and Extron.

Key Features

• PrimeSHOT 20 HDMI + HDMI Extender Bundle (White) - Camera and extender in a single purchase; HDBaseT single-cable extension from camera to rack.
• 20x Optical Zoom - 55° HFOV (wide) to 3° (tele) for medium-to-large room coverage.
• Simultaneous HDMI + S-Video + IP H.264 Streaming - Connect to displays, legacy monitors, and network endpoints simultaneously.
• HDBaseT Single-Cable Extension - Extend HDMI video, power, and control over a single Cat cable to the AV rack.
• White Finish - Blends with light-colored ceilings and walls; black version available (999-30420-300).
• Web-Based Administration and RS-232/IP Control - Compatible with AMX, Crestron, Extron room control systems.

Typical Applications

• Large conference rooms and boardrooms with white ceiling-mounted PTZ cameras and distant AV racks
• University lecture halls with white-finish cameras and lecture capture over HDMI or IP H.264
• Houses of worship with white ceiling-mount camera installations and long cable runs
• Training rooms with light-colored ceilings requiring 20x zoom and single-cable infrastructure

Technical Specifications

Frequently Asked Questions

What is the difference between 999-30420-300W and 999-30420-000W?
The 999-30420-300W includes the HDMI Extender for HDBaseT single-cable Cat extension. The 999-30420-000W is the camera only without an extender.

Is a black version available?
Yes. The 999-30420-300 is functionally identical in a black finish.

What cable is required for the extender?
A single Cat-5e or Cat-6 cable from the camera position to the rack. Contact Creation Networks for cable length and system design guidance.
