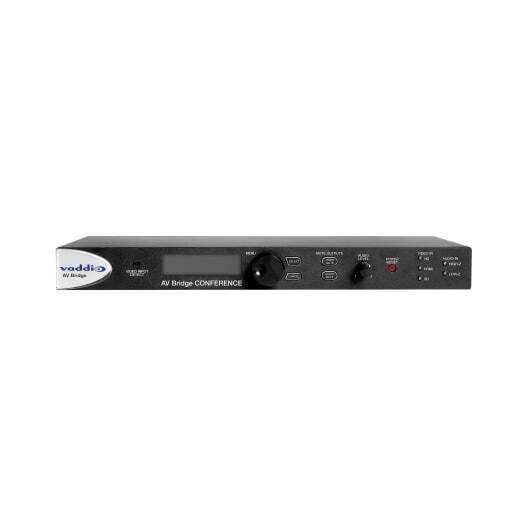

Vaddio AV Bridge CONFERENCE – HD USB & IP Room Encoder (999-8215-000)

Product Overview

The Vaddio AV Bridge CONFERENCE (999-8215-000) is a rack-mountable HD media encoding appliance designed to bring room-based AV systems into PC-driven unified communications workflows. It accepts analog and digital video sources — from composite SD up to 1080p/60 via HDMI, YPbPr, RGBHV, and DVI — and delivers encoded output simultaneously over USB (UVC/UAC, driver-free) and IP (RTSP/HLS, H.264/AAC). The unit includes a two-way analog audio path with acoustic echo cancellation (AEC), making it a complete interface between a professional room audio system and any software-based conferencing platform. At $3,074.40, it is purpose-built for integrators and facilities teams who need a standards-compliant, low-maintenance bridging solution for enterprise conference rooms.

Product Description

The AV Bridge CONFERENCE addresses a common integration challenge: connecting a professionally designed conference room — with its dedicated cameras, mixers, and signal processors — to a host PC running Zoom, Microsoft Teams, Webex, or any other UC platform, without requiring custom drivers or complex configuration on the endpoint.

On the video input side, the unit accepts the full range of analog and digital formats encountered in legacy and current AV installations. Composite video at 480i (NTSC) and 576i (PAL), component video (YPbPr), RGBHV and DVI for PC-sourced signals, and HDMI at resolutions from 480i through 1080p/60 are all supported. This broad input compatibility makes the AV Bridge CONFERENCE appropriate for both new-build rooms and retrofits of existing installations.

USB streaming uses Motion JPEG (MJPEG) encoding and presents to the host PC as a standard UVC (Universal Video Class) video device and UAC (Universal Audio Class) audio device. No proprietary drivers are required, which eliminates software compatibility risk and simplifies deployment across managed IT environments where driver installation may be restricted.

For IP-based streaming and monitoring, the unit outputs H.264 video with AAC audio over RTSP or HLS. The Ethernet port additionally provides access to an embedded web server for configuration, status monitoring, and firmware updates — all accessible from a standard browser without additional software.

The two-way analog audio I/O supports the full signal chain: near-end room audio is captured, AEC-processed, and sent to the far end, while far-end return audio is output to the room's professional audio mixer or amplifier. This design keeps the room's existing audio infrastructure in place rather than bypassing it.

The AV Bridge CONFERENCE is half-rack width and ships with two rack ears, making it suitable for installation in a standard equipment rack. An 18V power supply, a 6-foot USB 2.0 A-to-B cable, four rubber feet for tabletop placement, and a quick-start guide are included in the box.

Creation Networks supplies the Vaddio AV Bridge CONFERENCE with pre-sales technical support and access to our commercial AV integration team. Visit creationnetworks.net to place an order or request a quote.

Key Features

• Broad video input compatibility — accepts composite 480i/576i, YPbPr, RGBHV/DVI, and HDMI up to 1080p/60, covering SD legacy sources through current HD formats.
• Driver-free USB streaming via UVC/UAC — presents as a standard USB video and audio class device; no custom drivers required on Windows or macOS hosts.
• IP streaming over RTSP and HLS — delivers H.264 video with AAC audio to media players, recorders, or UC platforms on the local network or internet.
• Two-way analog audio with AEC — full-duplex analog audio I/O with acoustic echo cancellation integrates with professional room mixers and eliminates echo on the far end.
• Embedded web server for control and configuration — browser-based interface for setup, monitoring, and firmware updates; no additional software needed.
• Simultaneous USB and IP output — both streaming modes operate concurrently, enabling local UC use and network recording or distribution at the same time.
• Rack-mountable half-rack form factor — includes rack ears for standard 19-inch rack installation; rubber feet included for tabletop deployment.
• MJPEG USB encoding — efficient Motion JPEG compression for USB delivery, compatible with all UVC-compliant conferencing applications.

Typical Applications

• Enterprise conference room UC integration — connect existing room cameras, switchers, and mixers to Zoom, Teams, or Webex running on a room PC or laptop without recabling the room.
• Legacy room retrofits — bridge older analog AV systems (composite, component, RGBHV) into modern UC workflows without replacing existing source equipment.
• Higher education lecture capture — encode and stream room-based camera and audio sources to IP for recording or live distribution to remote students.
• Government and corporate boardrooms — provide a compliant, driver-free USB video and audio source to a managed endpoint where software installation is restricted.
• House of worship and event spaces — distribute HD program audio and video over IP via RTSP/HLS to overflow areas or for recording while simultaneously feeding a UC session over USB.
• AV-over-IP monitoring — use the HLS or RTSP stream for remote room monitoring or confidence monitoring during live events.

Technical Specifications

Frequently Asked Questions

Does the AV Bridge CONFERENCE require driver installation on the host PC?

No. It uses standard UVC (Universal Video Class) and UAC (Universal Audio Class) protocols for USB streaming. Windows and macOS both include native class drivers for UVC and UAC devices, so no additional software installation is needed on the host.

What UC platforms are compatible with the AV Bridge CONFERENCE?

Any UC application that accepts a UVC-compliant USB camera and UAC-compliant USB audio device will work — including Zoom, Microsoft Teams, Cisco Webex, GoTo Meeting, and others. The unit appears as a standard USB camera and microphone to the software.

Can the AV Bridge CONFERENCE stream over USB and IP at the same time?

Yes. USB and IP streaming operate concurrently. This allows the unit to simultaneously feed a UC application on a local host PC and deliver an RTSP or HLS stream for recording, overflow distribution, or remote monitoring on the network.

What video input formats does the unit accept?

The AV Bridge CONFERENCE accepts composite video (480i NTSC and 576i PAL), component video (YPbPr), RGBHV and DVI for PC-sourced signals, and HDMI at resolutions from standard definition up to 1080p/60. This makes it suitable for connecting both legacy analog sources and current HD equipment.

How is the AV Bridge CONFERENCE controlled and configured?

Configuration is performed through an embedded web server accessible via any standard browser on the same network. The front panel also includes a menu system for viewing current settings. No proprietary control software is required.

Is the unit compatible with Vaddio cameras and room systems?

Yes. The AV Bridge CONFERENCE is designed to integrate with Vaddio HD cameras, presentation systems, and video mixing consoles, and with third-party professional AV equipment. The AEC-equipped analog audio path is compatible with professional room mixers.

What rack space does the AV Bridge CONFERENCE require?

The unit is half-rack width. It ships with two rack ears for installation in a standard 19-inch equipment rack. Four rubber feet are also included for tabletop or shelf deployment when rack mounting is not required.
