tvONE 1T-FC-326 – HDMI to Component Video + Audio Converter

Product Overview

The tvONE 1T-FC-326 converts HDMI input to analog YPbPr or YUV component video output, providing a path for modern HDMI sources to drive legacy component video displays and equipment. It accepts two HDMI inputs with front-panel or IR selection, and outputs component video alongside both coaxial digital and analog stereo audio. This is a conversion-only device — no scaling is performed, so the output resolution matches the source resolution. HDCP compliance is built in, though HDCP-protected sources may result in no output by design.

Product Description

The 1T-FC-326 is built for AV integrators who need to connect an HDMI source to component video equipment without introducing a scaler into the signal chain. It accepts two HDMI inputs and allows the user to select between them using front panel buttons or the included IR remote control. The selected input is converted to an analog YPbPr or YUV component video output, supporting all standard SDTV and HDTV resolutions as they come from the source — without upscaling, downscaling, or format conversion. This direct conversion approach preserves signal integrity and eliminates scaling artifacts. Audio is handled through de-embedding from the HDMI stream: a coaxial digital output and a stereo analog output (left/right RCA) are provided simultaneously. Front panel LEDs indicate which input is active and whether HDCP content protection is present on the signal. The unit accommodates both standard and locking-type HDMI connectors, and provisions are made on the chassis for securing locking-type connectors. A locking DC connector on the power input prevents accidental disconnection. Note: because the unit is HDCP compliant, HDCP-protected HDMI content (such as from Blu-ray players or cable boxes) may produce no component output, as the component video format predates HDCP support.

Key Features

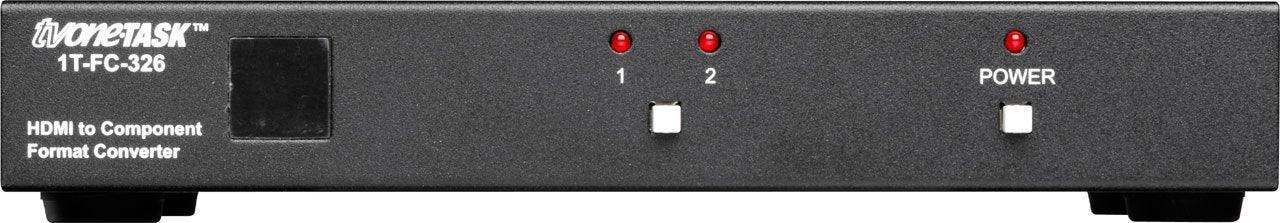

• 2 HDMI Inputs with Manual Selection — Select between two HDMI sources via front panel buttons or IR remote.
• HDMI to YPbPr/YUV Component Output — Direct conversion to analog component video without scaling or format alteration.
• No Scaling — Output resolution matches the source resolution exactly, preserving the original signal parameters.

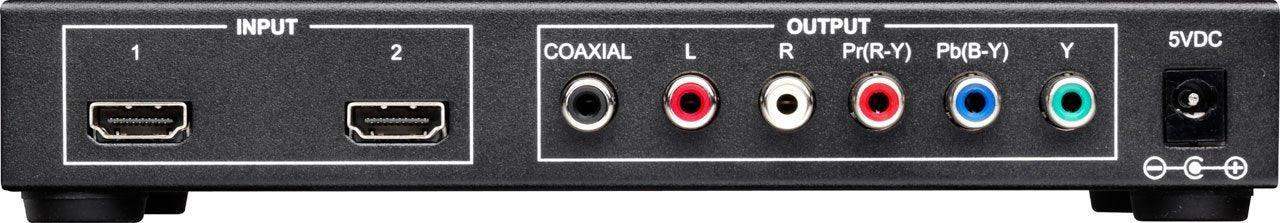

• Coaxial Digital and Analog Stereo Audio Outputs — Provides two simultaneous audio outputs de-embedded from the HDMI stream.
• All SDTV and HDTV Resolutions Supported — Compatible with all standard definition and high definition source resolutions.
• HDCP Compliant — Compliant with HDCP 1.1; note that HDCP-protected sources may not produce component output.
• IR Remote Control Included — Allows input switching without physical access to the unit.
• Locking HDMI and DC Connectors — Supports both standard and locking HDMI cables; locking DC power prevents disconnection.

Technical Specifications
