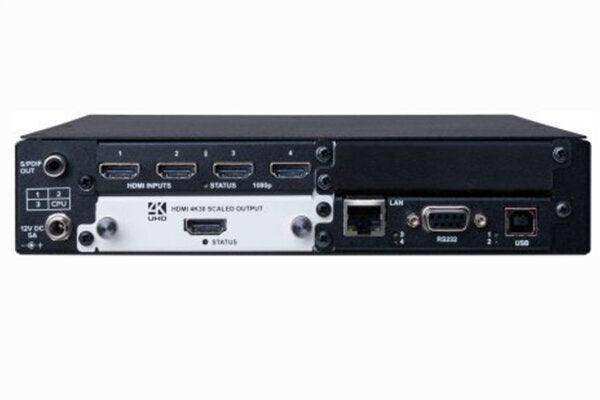

tvONE CORIOview MWP-4Hi-1Y – 4K Multiviewer with IP Streaming

Product Overview

The tvONE CORIOview MWP-4Hi-1Y is a 4K multi-window processor designed for commercial AV environments that require both physical HDMI inputs and IP streaming capability. It accepts 4 HDMI inputs plus 2 IP streaming inputs — or substitutes internal 4K media playback — and outputs to a single 4K HDMI display. Part of the award-winning CORIOview multiviewer family, the MWP-4Hi-1Y is a half-rack-unit device suited for HDMI multiviewer applications in conference rooms, boardrooms, and control spaces where mixed analog-digital and network-sourced content must appear simultaneously on one screen.

Product Description

The tvONE CORIOview MWP-4Hi-1Y is a 4K multi-window video processor that uniquely combines 4 x 1080p HDMI physical inputs with 2 x IP media streaming inputs, giving AV integrators the ability to display up to 6 simultaneous sources — physical and network-based — on a single 4K HDMI output. Alternatively, one of the two IP streaming slots can be configured for internal 4K media playback from onboard storage (up to 128 GB), making this unit a strong choice for digital signage or background content in conference rooms and all-hands spaces. The CORIOview platform operates in two distinct modes: Classic Mode, which provides full control over borders, labels, audio breakaway, and preset selection; and Dynamic Mode, which automates window layout and switching for fast-moving, collaboration-focused environments such as huddle rooms and training rooms. The MWP-4Hi-1Y is built on tvONE's CORIO®3 processing engine, supports up to 8 windows per layout, stores up to 16 presets accessible from the front panel, and integrates with third-party control systems via RS-232, IP (RJ45), and published API, plus native AMX and Crestron plug-ins. Its compact half-rack form factor fits standard 19" racks or surface mounts using the optional ONErack system. Regulatory compliance includes FCC, CE, RoHS, and UL.

Key Features

• 4 x HDMI 1.4 Inputs + 2 x IP Streaming Inputs — Display up to 6 simultaneous sources including live network streams alongside physical HDMI devices on a single 4K screen.
• Internal 4K Media Playback — One or both IP input slots can be configured for onboard media playback (H.264, up to 128 GB internal storage), supporting digital signage and background content loops.
• 4K HDMI Output — Single HDMI 1.4 output supports resolutions up to 3840x2160 at 30Hz, with full up/down/cross conversion on all inputs.
• CORIO®3 Processing Engine — tvONE's dedicated video processing silicon handles up to 8 simultaneous windows with up to 16 storable layout presets.
• Classic and Dynamic Operating Modes — Classic Mode gives full manual control of borders, labels, and audio; Dynamic Mode automates windowing for fast, front-panel-driven operation in huddle and meeting spaces.
• Front Panel Preset Recall — Operators can switch layouts and select sources directly from the unit without a connected PC or control system.
• CORIOgrapher Software Control — Touch-enabled PC software (Windows 10+) provides drag-and-drop window layout design, source assignment, and preset management.
• Third-Party Control Integration — RS-232 D9, RJ45 IP interface, and published REST API enable integration with AMX, Crestron, and other control platforms.
• Audio Breakaway — Independent S/PDIF RCA audio output allows audio routing separate from the video output, with 48 kHz / 24-bit support.
• HDCP Compliant — HDCP 1.4 handling on both inputs and output ensures compatibility with protected content sources.
• Half-Rack Form Factor — 1.73 x 8.54 x 9.61" chassis fits 19" rack, surface mount, or ONErack installations with ultra-quiet fan operation (44 dBA at 0.5m).
• 5-Year Limited Warranty — tvONE covers parts and labor for five years from date of purchase.

Typical Applications

• Boardroom
• Conference room
• Huddle room
• All-hands room
• Training room
• Government space
• Commercial meeting space
• Multi-purpose room
