tvONE CM-HDMI-SC-4OUT – CORIOmaster Quad HDMI 1080p Output Module
Product Overview

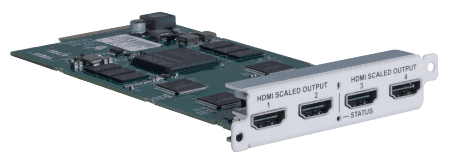

The tvONE CM-HDMI-SC-4OUT is a quad HDMI scaled output module for the CORIOmaster C3-540 video wall processor. It delivers four independent 1080p HDMI outputs per module slot, allowing large-scale video wall systems to be built with fewer chassis. With a fully populated C3-540, up to 56 1080p outputs are achievable. This module requires CORIOmaster C3-540 firmware m406 or newer.
Product Description
The CM-HDMI-SC-4OUT occupies a single I/O bay in the CORIOmaster C3-540 and provides four HDMI outputs, each capable of driving a 1080p display. This high-density output module is designed for large video wall deployments where maximizing output count per chassis is a priority. Because each module slot delivers four outputs, AV designers can scale up display count without adding additional chassis hardware. The C3-540 chassis supports up to 14 I/O modules; with all bays populated using CM-HDMI-SC-4OUT modules, the system can drive up to 56 independent 1080p displays. Each output includes hardware scaling, so sources of any resolution are scaled to match the target display. The module is compatible only with the CORIOmaster C3-540 running firmware m406 or newer — it is not supported on the CORIOmaster mini C3-510 or older firmware versions. Installation is tool-free; the module slides into any available bay and locks in place. This module does not include input functionality; it must be paired with appropriate input modules within the same chassis.
Key Features
- Four HDMI Outputs per Module — Provides four independent 1080p HDMI outputs from a single I/O bay, delivering the highest output density available for CORIOmaster C3-540.
- Up to 56 Outputs per Chassis — A fully populated CORIOmaster C3-540 with these modules can drive up to 56 1080p displays from a single processor.
- Per-Output Hardware Scaling — Each of the four outputs has independent hardware scaling, supporting mixed-resolution display environments.
- Firmware m406 Required — Requires CORIOmaster C3-540 firmware version m406 or newer; ensure chassis firmware is current before deploying.
- Tool-Free Installation — Slides into any CORIOmaster C3-540 I/O bay without tools, simplifying installation and module swaps.
- Chassis-Powered — All power is supplied by the C3-540 chassis; no additional power connections needed.
Typical Applications
- Boardroom — large multi-screen display walls requiring high output density from a single processor
- Auditorium — multi-display video wall systems for live events and presentations
- Broadcast studio — high-output-count video wall feeds for monitoring and production
- House of worship — wide-format video wall systems spanning multiple screens
- Government space — secure multi-display operations and command center walls
- Training room — multi-panel instructional display arrays
Technical Specifications
| Specification | Value |
|---|---|
| SKU | CM-HDMI-SC-4OUT |
| Output Connectors | 4x HDMI |
| Maximum Output Resolution | 1080p per output |
| Output Scaling | Yes — per output |
| Maximum Outputs per C3-540 | 56 x 1080p (chassis fully populated) |
| Compatible Chassis | CORIOmaster C3-540 only |
| Minimum Firmware | m406 or newer |
| Power | Supplied by chassis |
| Installation | Tool-free, slides into I/O bay |
Frequently Asked Questions
Which chassis does the CM-HDMI-SC-4OUT require?
This module is designed exclusively for the CORIOmaster C3-540. It is not compatible with the CORIOmaster mini C3-510 or other CORIOmaster variants. The chassis is sold separately.
What firmware version does the C3-540 need to support this module?
Firmware m406 or newer is required. Before installation, update the C3-540 firmware via the CORIOmaster software interface to ensure compatibility.
How many CM-HDMI-SC-4OUT modules can I install in one C3-540?
The C3-540 has 14 I/O bays. With all bays populated by CM-HDMI-SC-4OUT modules, you can achieve up to 56 HDMI outputs — though in practice, some bays will typically be used for input modules.
Can this module be mixed with other output module types in the same chassis?
Yes. The C3-540 supports mixed module configurations. You can combine CM-HDMI-SC-4OUT with other CORIOmaster-compatible output or input modules across the available bays.
Does each output scale independently?
Yes. Each of the four HDMI outputs has independent hardware scaling, so you can drive displays of different native resolutions from the same module.
Is the CM-HDMI-SC-4OUT HDCP compliant?
Contact Creation Networks at creationnetworks.net for confirmed HDCP compliance details for this module.
What is the warranty on this module?
tvONE products carry a standard tvONE manufacturer warranty. Contact Creation Networks for current warranty terms and support.
