TOA Electronics IP Paging Gateway - IP-A1PG

TOA SKU: IP-A1PG
No reviews
Price:
$1,054.00 $1,304.00

Description

Broadcast audio to multiple rooms with the TOA IP-A1PG, a PoE-powered gateway unit that integrates multiple IP Audio devices by converting the SIP voice or ONVIF Backchannel audio into multicast audio streaming. The unit can also transmit a built-in sound source or input audio as multicast audio streaming. Trigger event broadcasting by control input, scheduler or remote API (HTTP) as well as the command set that sends multiple HTTP commands simultaneously are also available.

  • For Multicast Streaming
  • Integrates Multiple IP Audio Devices
  • Broadcast to Multiple Rooms
  • Power over Ethernet (PoE)
Connectors Audio Input: 1 Channel, Electronically Balanced, 10 Kilohms
LINE/MIC selectable (Rated Input: LINE: 0 dB, MIC: -60 dB
PAD Function (-20 dB, Phantom Power ON/OFF (12 VDC), Volume Adjustable, Removable Terminal Block (6 Pins)

Control Input: 4 Channels, No-Voltage Make Contact Inputs, Open Voltage: 5 VDC, Short-Circuit
Current: 2 mA or Less, Removable Terminal Block (6 Pins)

Monitor Output: 1 Channel, Electronically Balanced, 600 Ohms or Less
Rated output: 0 dB (*2), RCA Jack

Mute Control In: 1 Channel, 24 VDC Cut Signal, Control Current 5 mA or Less, Removable Terminal Block (2 Pins)

Control Output: 1 Channel, Open Collector Output, Withstand Voltage: 30 VDC, Control Current: 10 mA or Less, Removable Terminal Block (6 Pins)
Audio Audio Transmission Method: Multicast Audio Streaming
Audio Codec: PCMU (G.711u), PCMA (G.711a), G.722
Audio Delay Time: Minimum 100 ms
Functions Functions Broadcasting: Audio Transmission
Transmit Internal Messages by Multicast Audio Streaming
Transmit Audio from Audio Input Connected Devices by Multicast Audio Streaming
Audio Conversion
Convert SIP Voice to Multicast Audio Stream and Transmit
Convert ONVIF Audio Backchannel Audio to Multicast Audio Stream and Transmit

Functions Scheduler: Scheduled Broadcasting and Control by WEB-UI (Max Schedule Settings: 2000)
Configurable Actions: Internal Message Broadcast, Audio Input Broadcast, Control Output, Command Set Transmission

Functions Event Execute Event Triggered by Control Input
Configurable Actions: Internal Message Broadcast, Audio Input Broadcast, Command Set Transmission, Broadcast Disable, System Mute
System Requirements PC Requirements Display: Recommended Resolution: 1920 x 1080

OS
Windows 10 Pro (64-Bit Edition)
Windows 10 Home (64-Bit Edition)
Windows 11 Pro
Windows 11 Home

Web Browser: Google Chrome, Microsoft Edge

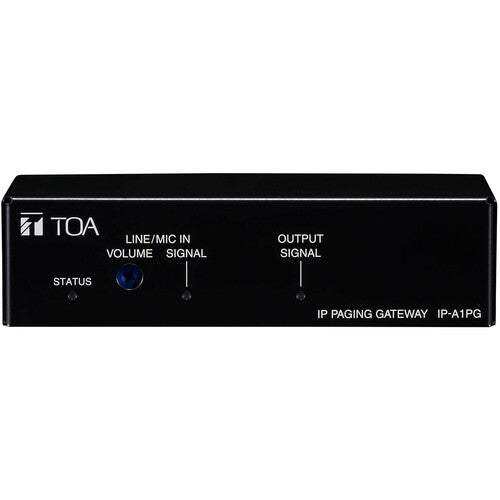

Indicators Status (Green/Blue/Orange/Red)
Line/Mic In (Green/Red)
Output (Green), Link/Act (Green)

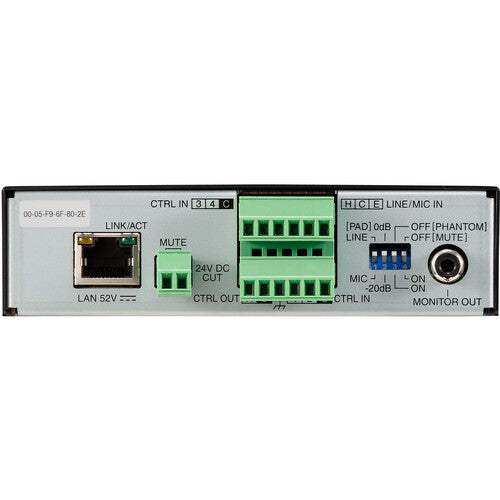

Inputs/Outputs
Audio I/O 1x Block 6-Pin Line/Mic Input
1x RJ45 TS Monitor/Speaker Output
Network 1 x RJ-45 Network Port (PoE)
Control Port 1 x 6-Pin Block Connector (Top Row Control Input: 3 Left Pins, Mic/Line Input 3 Right Pins)
1 x 6-Pin Block Connector (Bottom Row Control Output: 3 Left Pins, Control Input: 3 Right Pins)
Mute: 1 x 2-Pin Block Connector
Power
Power Source PoE
Power Consumption 2.5 W
