TOA Electronics HY-VM7 Speaker Rigging Bracket for HX-7

Product Overview

The TOA HY-VM7 is a rigging bracket designed specifically to mount TOA HX-7 Series Variable Dispersion Array speakers (HX-7W, HX-7B) to walls, ceilings, beams, or overhead structures. It provides a stable, adjustable mounting solution for permanent installations in commercial AV environments where precise speaker placement is required.

Product Description

The HY-VM7 consists of a T-bracket, angle bracket, and mounting base that work together to secure an HX-7 Series speaker in multiple configurations. Used alone, the bracket supports direct ceiling, beam, or suspended eyebolt installation. For wall-mounted applications, it combines with the optional HY-WM7B (black) or HY-WM7W (white) wall mounting bracket. The optional HY-C0801 ceiling mount bracket is also available for flush ceiling configurations.

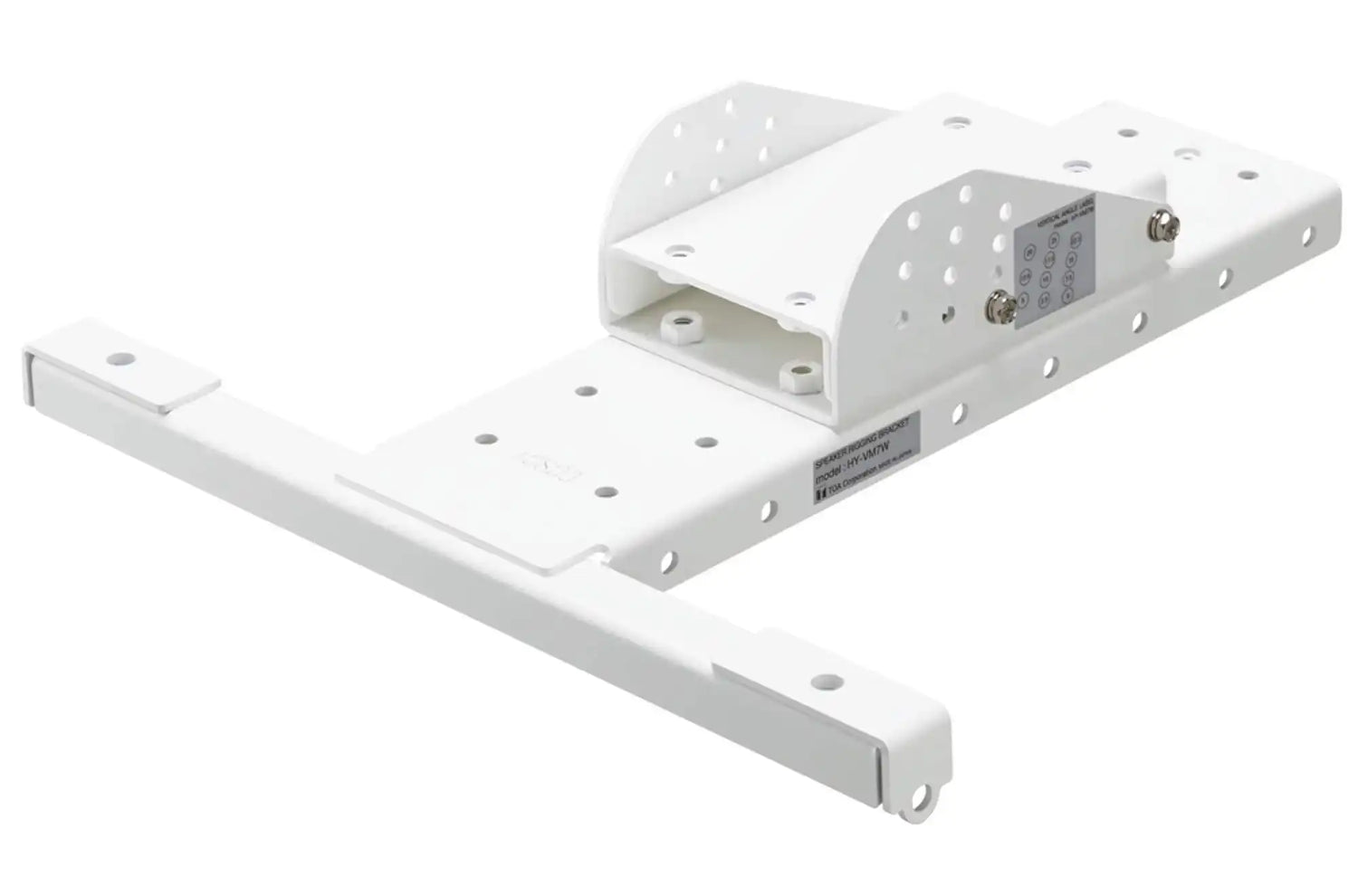

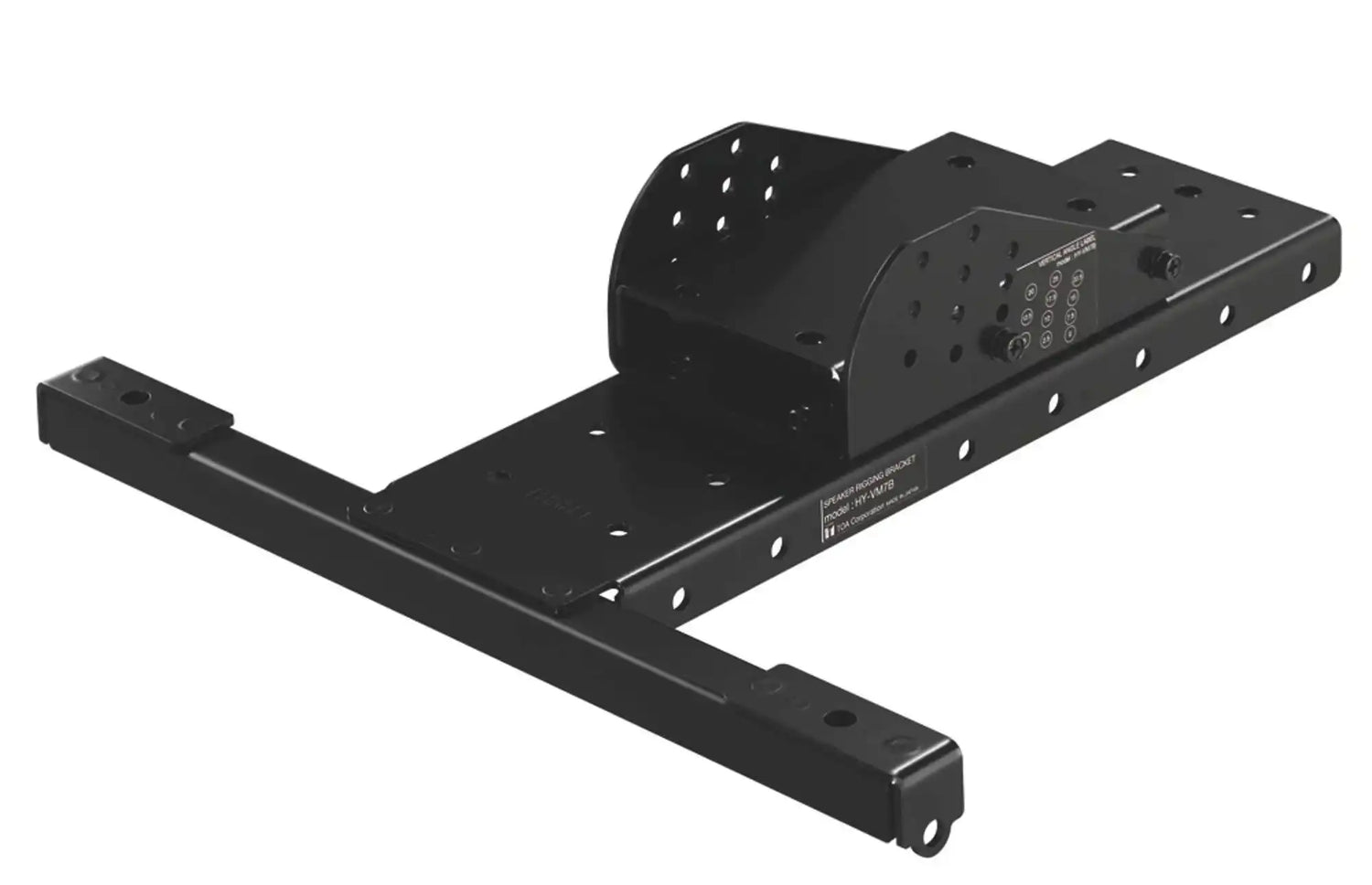

Constructed from surface-treated steel plate with a black semi-gloss paint finish (HY-VM7B) or white finish (HY-VM7W), the bracket offers durability suited to commercial interior installations. Speaker and bracket mounting bolts are included.

Key Features

• HX-7 Series dedicated — Engineered specifically for TOA HX-7W and HX-7B variable dispersion array speakers
• Multiple installation modes — Ceiling/beam direct, suspended via eyebolts, or wall-mount with optional bracket
• Three-component assembly — T-bracket, angle bracket, and mounting base provide stable, adjustable support
• Hardware included — Speaker mounting bolts and bracket mounting bolts in the box
• Optional accessories available — HY-WM7B/W wall bracket and HY-C0801 ceiling mount bracket sold separately

Typical Applications

• Corporate conference rooms and boardrooms requiring precise HX-7 array placement
• Lecture halls, auditoriums, and performance venues with ceiling or beam mounting
• Houses of worship and convention centers using HX-7 systems
• Hotels and transportation hubs requiring suspended or overhead speaker positioning
• Government and institutional facilities with distributed HX-7 array installations

Technical Specifications

Note: Additional dimensional specifications not published by manufacturer. Thin specs — only published data included.

Frequently Asked Questions

• Which speakers is the HY-VM7 compatible with? It is designed exclusively for the TOA HX-7 Series — specifically the HX-7W (white) and HX-7B (black) Variable Dispersion Array speakers.
• Can it be used for both wall and ceiling mounting? Yes. For ceiling or beam mounting, the HY-VM7 is used alone. Wall mounting requires the optional HY-WM7B/W wall mounting bracket in combination.
• Is hardware included? Yes — speaker mounting bolts and bracket mounting bolts are both included.
• What optional accessories are available? The HY-WM7B/W wall bracket and HY-C0801 ceiling mount bracket are available to expand installation configurations.
• Does it work with all TOA speakers? No — it is designed specifically for the HX-7 Series and is not compatible with other TOA speaker models.
• Where can I get installation guidance? Refer to the HX-7 system installation documentation from TOA Electronics or contact Creation Networks for system design support.
