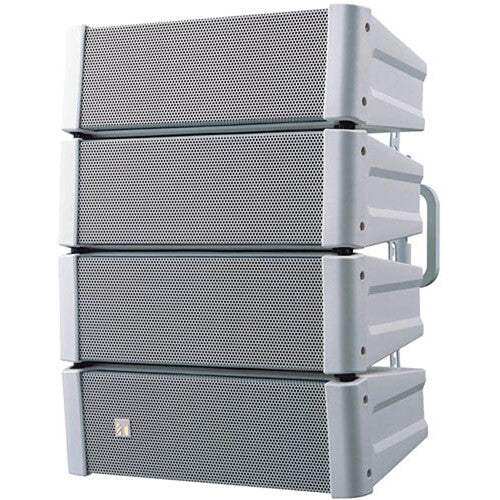

TOA HX-5B-WP 600W Outdoor Variable Dispersion Line Array Speaker
The TOA HX-5B-WP is a 2-way modular variable dispersion line array speaker rated IPX4 splash-proof for outdoor and semi-outdoor fixed installations. Delivering 600W continuous program power at 8Ω, each unit combines four 4.72" (12 cm) cone-type woofers and twelve 1" balanced dome tweeters in a polypropylene enclosure with stainless steel brackets and hardware. Vertical coverage angle is adjustable on-site to 15°, 30°, 45°, or 60° to precisely control directivity in large reverberant spaces, outdoor venues, or high-noise environments. Horizontal coverage is a consistent 100° regardless of vertical setting.
Designed for under-eave, outdoor amphitheater, and stadium applications, the HX-5B-WP operates from -15°C to +50°C and withstands water splashing from any direction (IPX4). Up to four units can be stacked vertically for extended coverage. The optional MT-200 matching transformer adds 70.7V line support with 30, 60, 100, and 200W taps. Input connections include two parallel-wired speakON NL4 sockets plus an M4 screw terminal for pass-through to additional units. Stainless steel wall, ceiling, and rigging accessories are available separately.
| Feature | Benefit |
|---|---|
| IPX4 Splash-Proof Protection | Rated for water splash from any direction — safe for outdoor and under-eave installations |
| Adjustable Vertical Dispersion (15°, 30°, 45°, 60°) | On-site angle adjustment with hex wrench — no additional hardware required |
| 100° Constant Horizontal Coverage | Consistent left-right dispersion independent of vertical angle setting |
| 600W Continuous Program Power | High output for large venues and high-ambient-noise environments |
| Stainless Steel Brackets and Hardware | Corrosion-resistant construction for long-term outdoor durability |
| Up to 4 Units Stackable | Increase vertical coverage or output by arraying multiple units |
| 4× 4.72" Woofers + 12× 1" Dome Tweeters | Full-range two-way coverage with consistent response across the dispersion area |
| MT-200 Transformer Compatibility | Supports 70.7V constant-voltage line with 30, 60, 100, and 200W power taps |
Typical Applications
The TOA HX-5B-WP is suited for outdoor amphitheaters and stadiums, covered plazas and transit terminals, theme parks and sports facilities, houses of worship with outdoor overflow areas, school athletic fields, and any installation requiring weather-resistant, high-directivity sound reinforcement with precise pattern control.
| Specification | Details |
|---|---|
| Enclosure Type | Sealed, modular — polypropylene (black), stainless steel hardware |
| Power Handling | 200W continuous pink noise / 600W continuous program |
| Impedance | 8Ω |
| Sensitivity | 99 dB (15°), 98 dB (30°), 97 dB (45°), 96 dB (60°) |
| Frequency Response | 110 Hz–20 kHz at 15° / 105 Hz–20 kHz at 30° / 100 Hz–20 kHz at 45° / 95 Hz–20 kHz at 60° (all -10 dB) |
| Crossover Frequency | 4 kHz |
| Directivity — Horizontal | 100° (above 2 kHz) |
| Directivity — Vertical | 15°, 30°, 45°, or 60° (adjustable on-site) |
| LF Driver | 4.72" (12 cm) cone-type × 4 |
| HF Driver | 1" (25 mm) balanced dome-type × 12 |
| Input Connectors | 2× speakON NL4 (parallel) + M4 screw terminal |
| Weather Protection | IPX4 (install speaker modules facing downward) |
| Operating Temperature | -15°C to +50°C |
| Dimensions (W × H × D) | 408 × 546 × 342 mm (16.1" × 21.5" × 13.5") |
| Weight | 16 kg (35.3 lb) |
| Included Accessories | Hanging bracket × 2, Hex wrench × 1 |
| Aspect | TOA HX-5B-WP | TOA HX-5B (Indoor) | JBL AM5212/95 Outdoor |
|---|---|---|---|
| Weather Rating | IPX4 splash-proof | Indoor only | IP55 |
| Operating Temperature | -15°C to +50°C | Not rated outdoor | -40°C to +55°C |
| Power Handling | 600W continuous program | 600W continuous program | 600W program |
| Vertical Dispersion | Adjustable 15°–60° | Adjustable 15°–60° | Fixed 20° × 90° (H×V) |
| Hardware | Stainless steel | Standard steel | Stainless steel optional |
| 70V Line Capability | Yes (optional MT-200) | Yes (optional MT-200) | Via external transformer |
| Units Stackable | Up to 4 | Up to 4 | Array-capable |
FAQ
- What does IPX4 mean for this speaker? IPX4 means the speaker is protected against water splashing from any direction. Install all speaker modules facing downward as specified by TOA for proper drainage and protection.
- Can the vertical coverage angle be changed after installation? Yes — the modular design allows on-site adjustment to 15°, 30°, 45°, or 60° using the included hex wrench, without replacing any components.
- Is the HX-5B-WP compatible with 70V/100V distributed PA systems? Yes, with the optional MT-200 matching transformer, which provides 30, 60, 100, and 200W taps for 70.7V line applications.
- How many units can be stacked? Up to four HX-5B-WP units can be stacked vertically using available rigging accessories to increase output and extend vertical coverage.
- What is the difference between HX-5B-WP and HX-5W-WP? Only the color — HX-5B-WP is black and HX-5W-WP is white. Both share identical acoustic and weather-protection specifications.
- What mounting accessories are available? TOA offers ceiling (HY-CW1WP), wall (HY-WM1WP, HY-WM2WP), rigging frame (HY-PF1WP), and extension bracket (HY-CN1B-WP) options, all made from stainless steel for outdoor use.
