TOA Electronics Digital Message Repeater - Digital Message Repeater
Product Overview

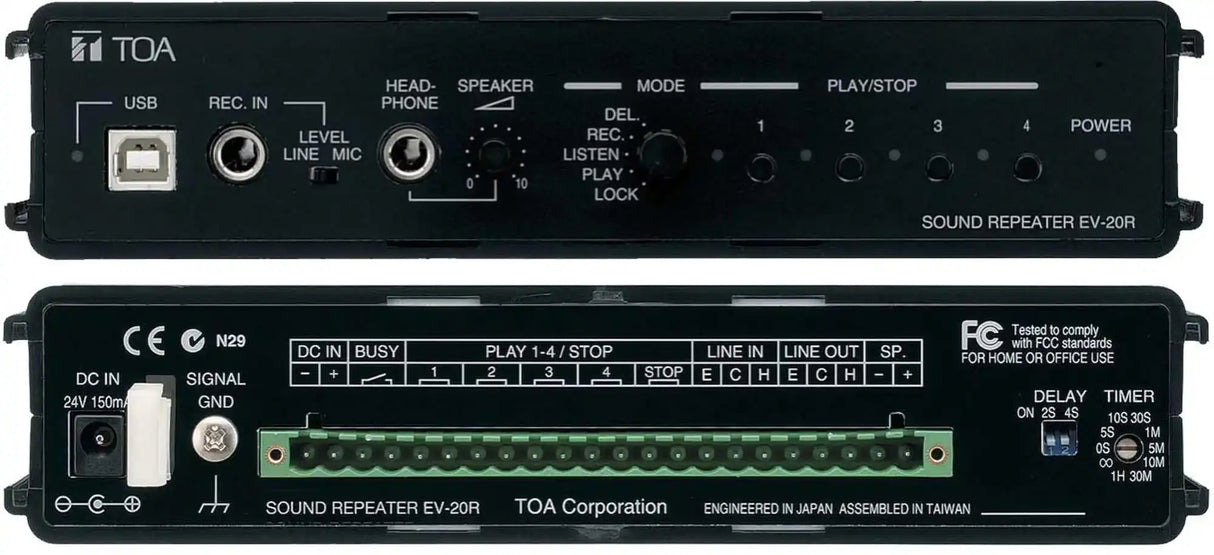

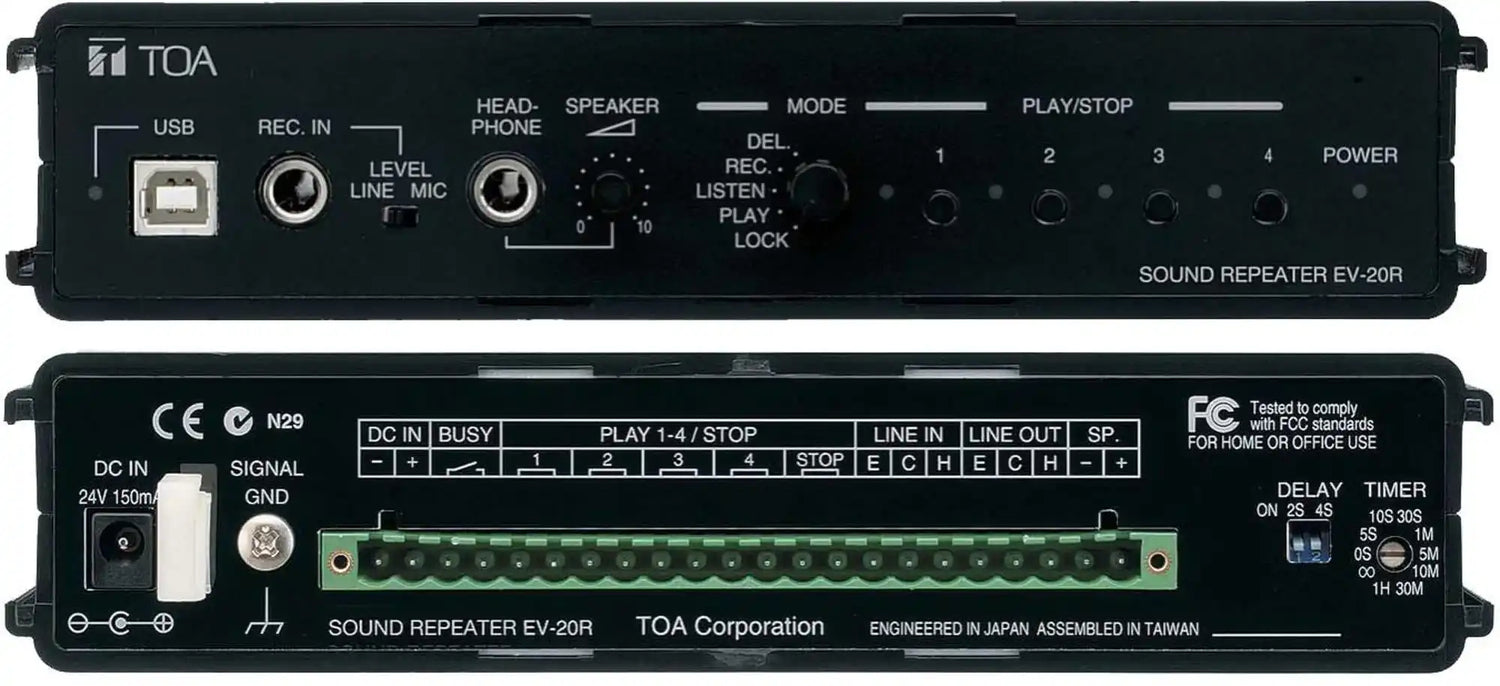

The TOA EV-20RPS is a digital message repeater for sites that broadcast the same announcement or music program repeatedly. It stores up to four messages with a combined six minutes of recording time and plays them back on demand from the front panel. A built-in 3-watt amplifier drives a low-impedance speaker directly for small-scale broadcasts, while a USB port loads audio from a PC. The kit includes an AC adapter for straightforward deployment in a commercial meeting space, multi-purpose room, or house of worship.
Product Description
The EV-20RPS kit is a practical announcement and message-playback unit for paging and background-audio applications. Up to four different messages, totaling six minutes, are held in built-in flash memory and triggered instantly by front-panel switch operation. Recordings can be made directly from the front panel, or customized WAV files can be uploaded from a PC over the USB port using the supplied file-management software; an audio file library is also included on the supplied CD-ROM. Recorded data is stored uncompressed for high-quality sound output. An incorporated 3-watt, 8-ohm power amplifier allows direct connection to a low-impedance speaker for compact installations, and live broadcasts can be made without recording by connecting a microphone or audio player. The unit ships with its AC adapter. For paging microphones, speakers, and amplifiers to complete the system, browse the TOA paging range at Creation Networks.
Key Features
- Up to four stored messages — Holds four messages totaling six minutes in built-in flash memory for repeated playback.
- Uncompressed audio — Stores recordings without compression for high-quality sound output.
- Built-in 3W amplifier — Drives an 8-ohm low-impedance speaker directly for small-scale broadcasts.
- USB file transfer — Loads customized WAV files from a PC using the supplied file-management software.
- Front-panel recording and playback — Records directly and triggers instant playback by switch operation.
- Live broadcast input — Supports live announcements through a connected microphone or audio player without recording.
- AC adapter included — Ships ready to install with the supplied power adapter.
Typical Applications
- Commercial meeting space
- Multi-purpose room
- House of worship
- Training room
Technical Specifications
| Model | TOA EV-20RPS |
| Stored Messages | Up to 4 |
| Total Recording Time | 6 minutes |
| Recording Format | Uncompressed (WAV upload supported) |
| Built-in Amplifier | 3 W, 8 ohm |
| Data Interface | USB (PC file transfer) |
| Live Input | Microphone or audio player |
| Included | AC adapter; file-management software; audio file library CD-ROM |
Frequently Asked Questions
How many messages can the EV-20RPS store? Up to four messages, with a combined maximum recording time of six minutes, held in built-in flash memory.
How do I load audio onto the unit? Record directly from the front panel, or upload customized WAV files from a PC over the USB port using the supplied file-management software.
Can it drive a speaker on its own? Yes. A built-in 3-watt, 8-ohm amplifier connects directly to a low-impedance speaker for small-scale broadcasts.
Can I make a live announcement? Yes. Connect a microphone or audio player to broadcast live without recording.
Does it include a power supply? Yes. The kit ships with an AC adapter.
Is warranty and support available? Yes. TOA products carry the manufacturer's warranty; contact Creation Networks for integration support.
