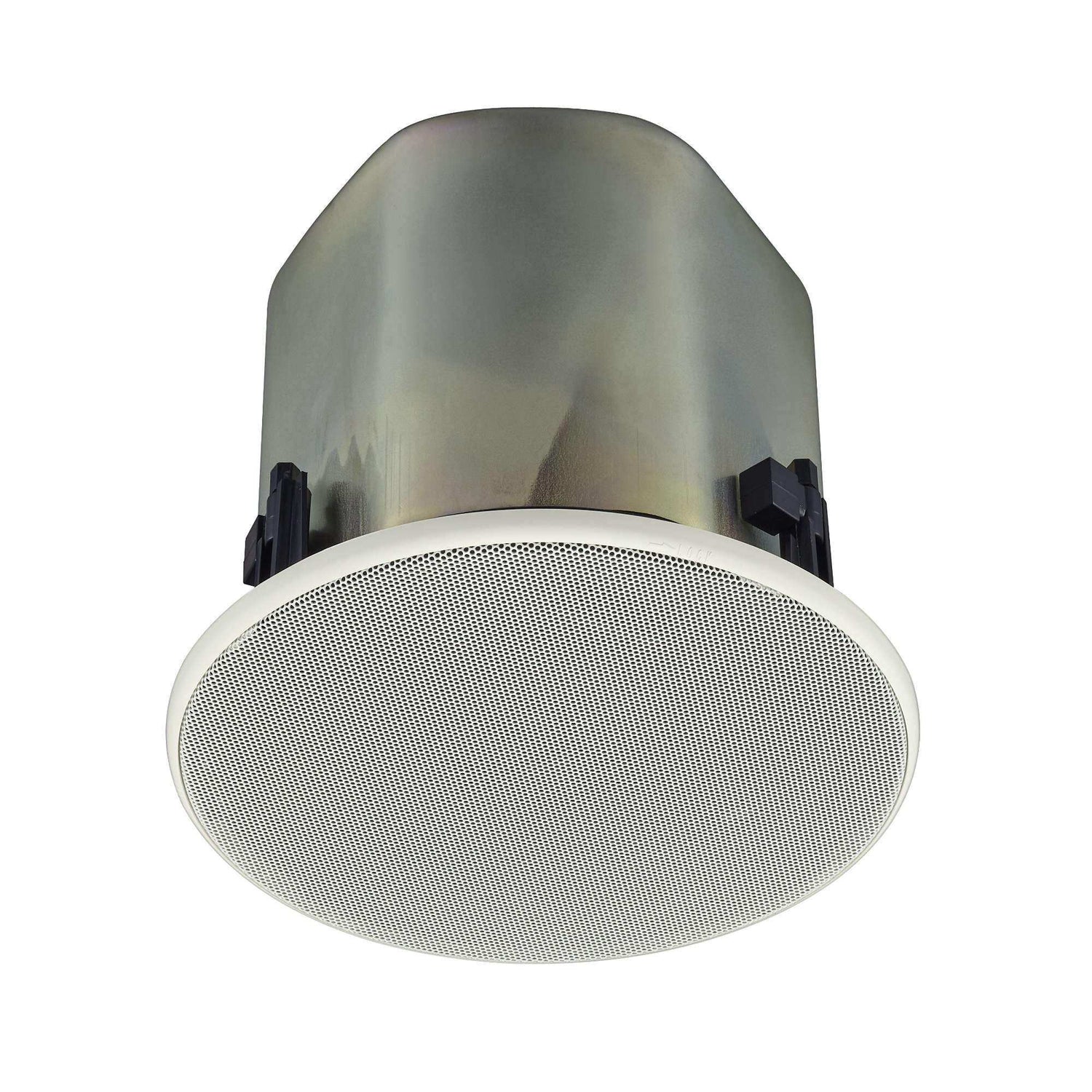

TOA F-2322C – 5" Wide-Dispersion Ceiling Speaker, 70/100V

Product Overview

The TOA F-2322C is a 5" wide-dispersion ceiling speaker for 25V, 70V, and 100V constant-voltage distributed audio systems. Its bass-reflex enclosure and 4.72" full-range cone driver deliver a frequency response of 70 Hz–20 kHz (−10 dB) with 90 dB sensitivity (1W/1m), providing clear speech and musical background audio in corridors, offices, retail floors, healthcare facilities, and hospitality spaces. The F-2322C is UL rated for use in air-handling spaces, making it a compliant choice for plenum installations where many ceiling speakers cannot be used.

The speaker features an outer diameter of 230 mm with a 200 mm cutout, fitting standard commercial ceiling tile grid systems. Maximum ceiling thickness supported is 37 mm, covering most commercial drywall and tile installations. The multi-tap transformer supports 25V, 70V, and 100V systems, providing flexibility for mixed or transitioning distributed audio designs.

Product Description

The F-2322C installs from below the ceiling surface without requiring access above the tile. Dog-leg mounting clips engage the ceiling substrate as the speaker is rotated into position, allowing single-technician installation. The grill and baffle ship in white to match standard commercial ceilings. With an outer diameter of 230 mm and a maximum weight of 3.7 kg with accessories, the F-2322C is compatible with standard 2×2 and 2×4 commercial tile grid systems without additional reinforcement in most applications.

Key Features

• 25V/70V/100V multi-tap transformer — Supports all common constant-voltage distributed audio voltages for broad system compatibility.
• UL rated for air-handling spaces — Compliant for plenum and HVAC return-air ceiling installations where non-plenum speakers are not permitted.
• Wide dispersion (bass-reflex enclosure) — Extended bass response and wide horizontal dispersion improve music and speech intelligibility across the coverage radius.
• 90 dB sensitivity (1W/1m) — Efficient output for reduced amplifier load in high-speaker-count distributed systems.
• 230 mm OD, 200 mm cutout — Standard commercial ceiling tile fit; no custom cutout tooling required.
• Tool-free dog-leg mounting clips — Single-technician installation from below without above-ceiling access.
• Max ceiling thickness 37 mm — Accommodates standard drywall and drop-ceiling tile constructions.

Technical Specifications

Source: TOA Electronics, F-2322C product page (toaelectronics.com).
