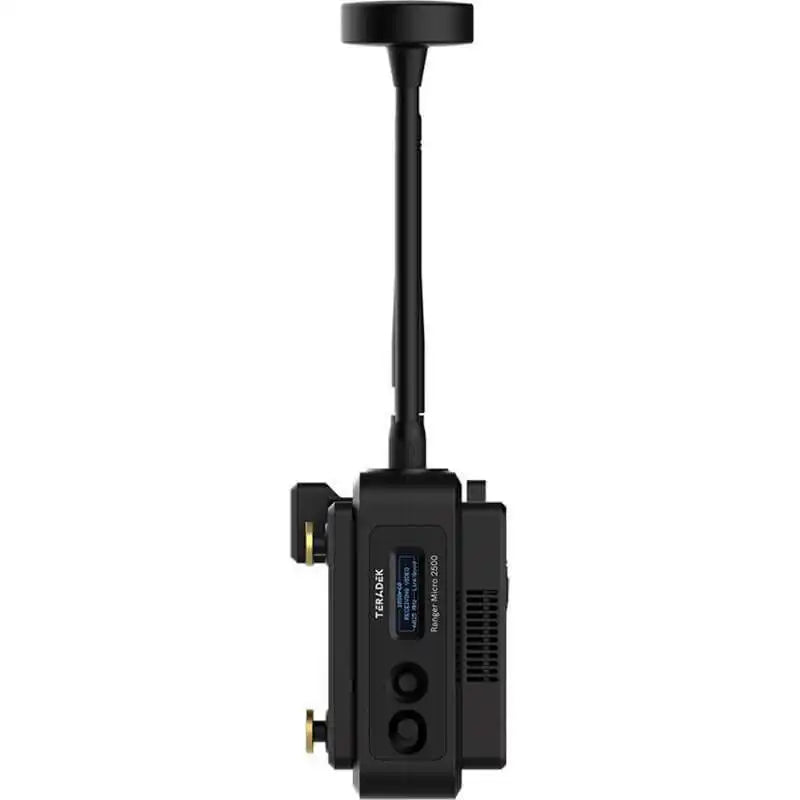

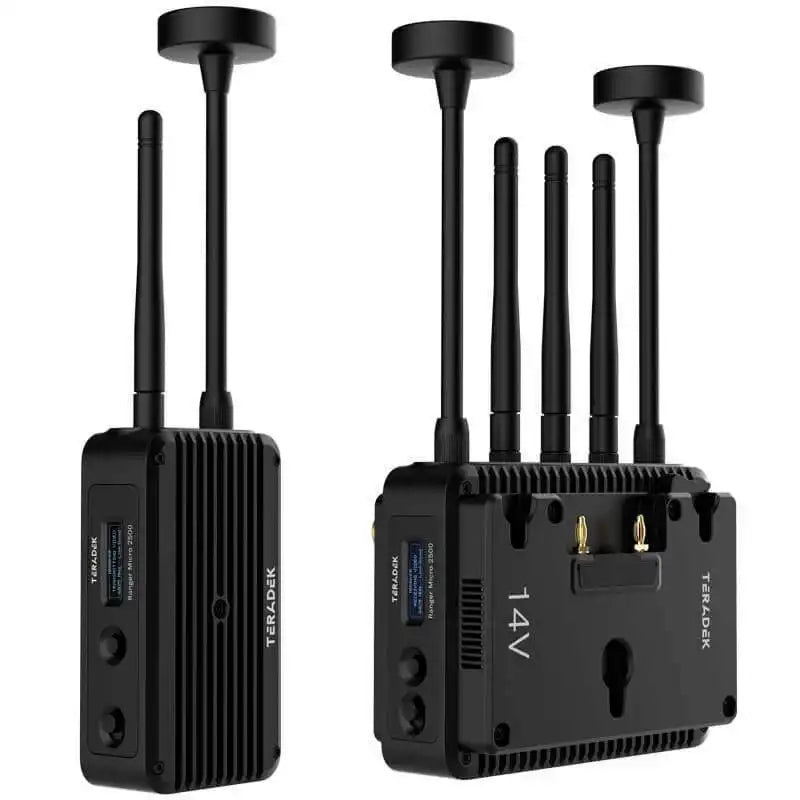

Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount)
Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Transmitter/Receiver Kit (V-Mount) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Transmitter/Receiver...
Product Overview
The Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless TX/RX Kit (V-Mount) is a wireless video transmitter/receiver kit engineered for professional broadcast, film, and live production workflows. With 5,000 ft line-of-sight range and 4.9–6.0 GHz operation, it delivers reliable, high-quality video transmission for commercial AV deployments requiring consistent signal integrity.
Product Description
The Ranger Micro 5000 V-Mount transmits and receives 3G-SDI and HDMI video up to 5,000 feet line of sight with visually lossless compression and less than 1ms latency. Integrated V-Mount battery plates on both units enable untethered battery-powered operation in remote production environments where DC cabling is impractical. AES-256 encryption with RSA-1024 key exchange secures the wireless video link, and the noise rejection system supports multiple sets running simultaneously in the same area. The Bolt Manager app for iOS and Android connects via Bluetooth for spectrum analysis, channel selection, and remote configuration. Compatible with Teradek Core cloud management for centralized fleet monitoring.
Key Features
- 5,000 ft Line-of-Sight Range — Maximum-range Ranger Micro configuration for long-distance broadcast production.

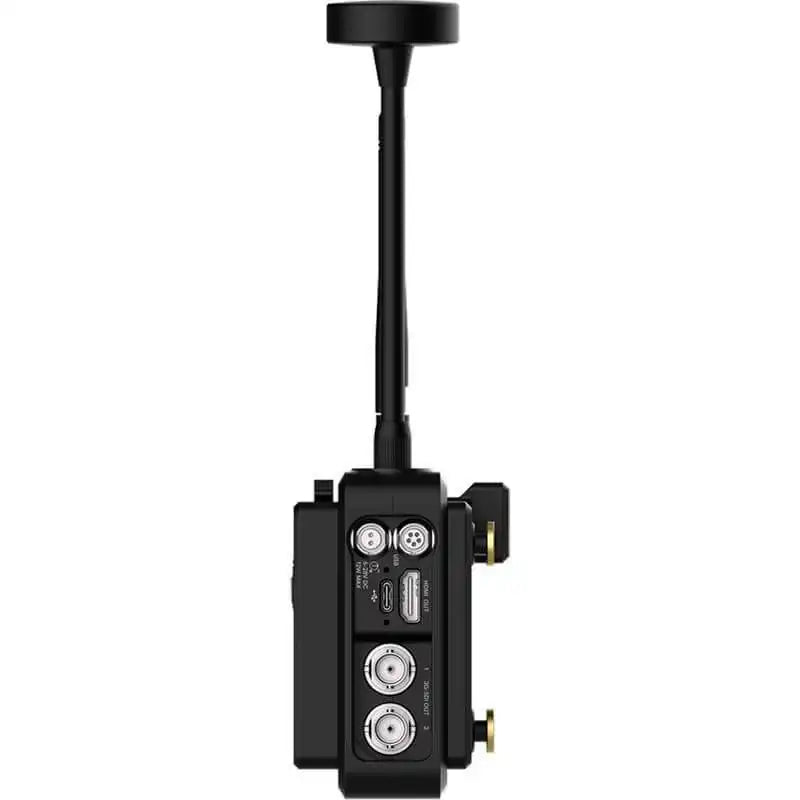

- 3G-SDI and HDMI I/O — Flexible signal compatibility for HD production workflows.

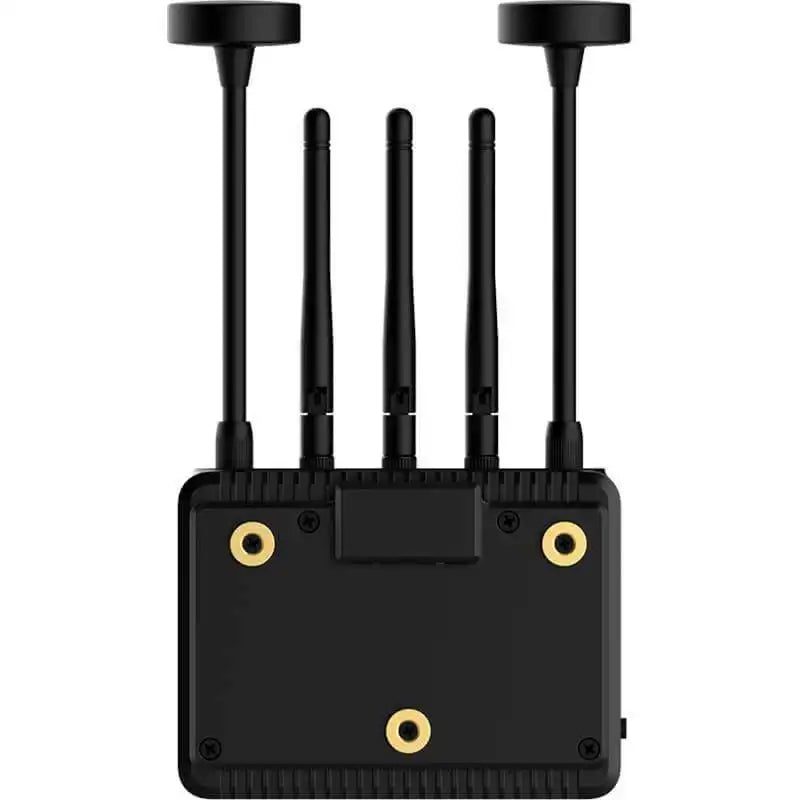

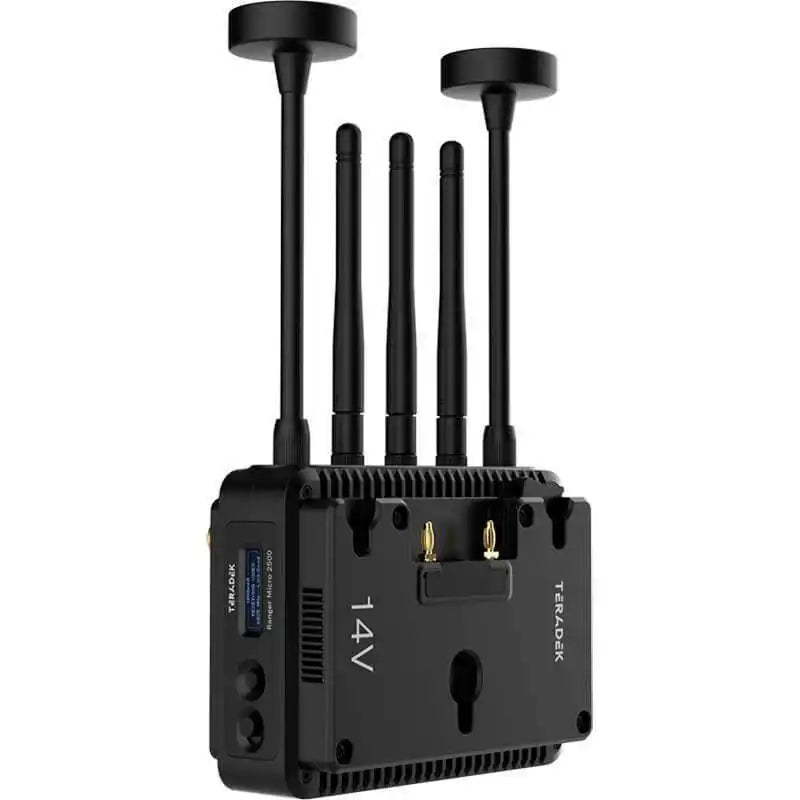

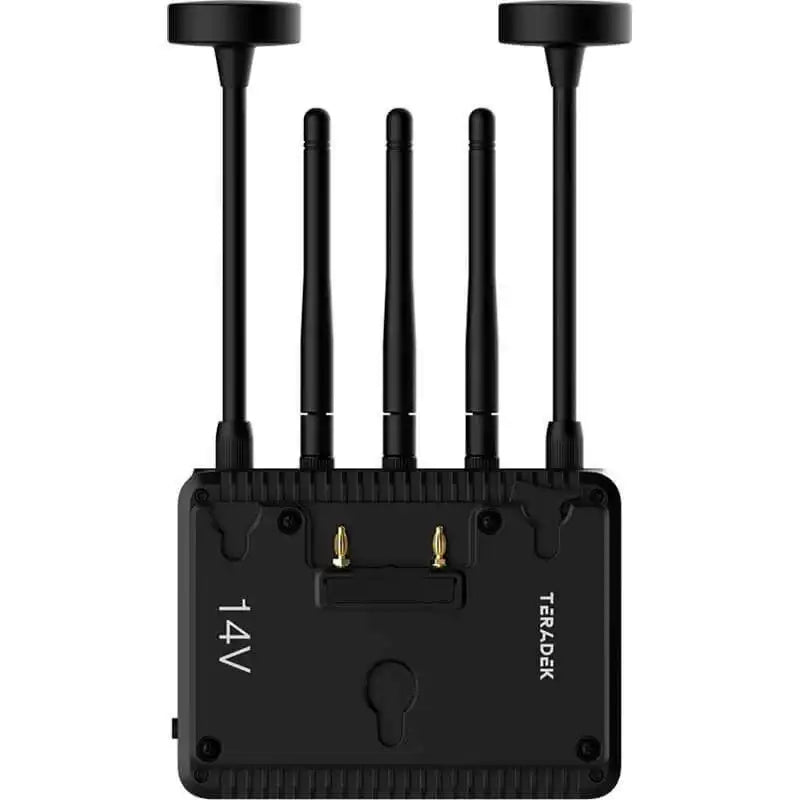

- V-Mount Battery Plates — Both TX and RX units include V-Mount plates for battery-powered deployment.
- 4.9–6.0 GHz Operation — Wide frequency band with auto and manual channel selection.
- AES-256 Encryption — RSA-1024 key pairing for end-to-end wireless security.
- Camera Metadata Pass-Through — Timecode, start/stop flags, and ancillary data over the wireless link.
- Bolt Manager App — Bluetooth-connected spectrum analyzer and remote configuration.
- Teradek Core Compatible — Cloud-based remote management and fleet monitoring.
Typical Applications
- Broadcast studio and large-venue field production
- Feature film and commercial video village
- Live event and multi-camera production
- Auditorium and stadium broadcast
- Government and public safety video operations
- House of worship multi-camera live production
Technical Specifications
| Specification | Value |
|---|---|
| Wireless Range | Up to 5,000 ft line of sight |
| Video Inputs | 3G-SDI, HDMI |
| Video Outputs | 3G-SDI, HDMI |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | V-Mount (both TX and RX) |
| Encryption | AES-256, RSA-1024 key exchange |
| Audio | 48kHz 24-bit PCM embedded |
| Power Input | 2-pin LEMO-type connector |
Frequently Asked Questions
- Is the Ranger Micro 5000 compatible with Bolt 4K hardware?
- Cross-compatibility with Bolt 4K series is available over 5 GHz. Refer to Teradek documentation for specific interoperability details by model.
- What batteries work with the V-Mount plates?
- Standard professional V-mount batteries from Anton/Bauer, IDX, Sony, and other manufacturers are compatible. Batteries are sold separately.
- How many receivers can one transmitter feed?
- The Ranger Micro supports multicast transmission to multiple receivers. Refer to product documentation for the maximum supported receiver count.
- What warranty does this product carry?
- Teradek provides a standard limited warranty. Contact Creation Networks for registration and support options.
- Does the system support HDR?
- Refer to the technical specifications for color sampling and HDR support details on this specific model.
