Teradek Ranger 4K Wireless Receiver RX (Gold Mount)
Product Overview
The Teradek Ranger 4K Wireless Receiver RX (Gold Mount) is the standalone receiver unit from the Ranger 4K series, receiving visually lossless 4K HDR wireless video transmitted up to 3,000 feet with standard antennas and 5,000 feet with the panel antenna array. The integrated Gold Mount battery plate enables professional battery-powered deployment at video village, remote monitors, or broadcast positions. Compatible with any Ranger 4K or Bolt 4K series transmitter.
Product Description
The Ranger 4K RX Gold Mount delivers 4K HDR video in 10-bit 4:2:2 via 12G-SDI and HDMI outputs, receiving wirelessly across 4.9–6.0 GHz with less than 1ms latency. The Gold Mount battery plate enables hours of untethered operation at video village or monitor positions using Anton/Bauer-compatible batteries. AES-256 encryption with RSA-1024 key pairing secures the wireless link. Compatible with all Bolt 4K series transmitters over 5 GHz. The Bolt Manager app connects via Bluetooth for spectrum analysis and configuration.
Key Features
- Up to 5,000 ft Receive Range — 3,000 ft standard; 5,000 ft with panel antenna array.
- 4K HDR 10-bit 4:2:2 — Visually lossless zero-delay reception.
- 12G-SDI and HDMI Outputs — Flexible output for monitors, switchers, and broadcast equipment.

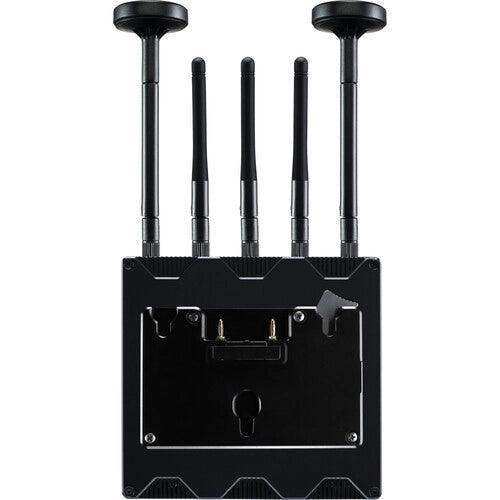

- Gold Mount Battery Plate — Integrated for battery-powered video village deployment.
- 4.9–6.0 GHz Operation — Wide frequency band with auto/manual channel selection.
- AES-256 Encryption — RSA-1024 key pairing for end-to-end wireless security.
Typical Applications
- Video village monitor receiver
- Broadcast and live event production
- Feature film production monitor positions
Technical Specifications
| Specification | Value |
|---|---|
| Receive Range | Up to 3,000 ft (5,000 ft with panel array) |
| Video Latency | <1ms |
| Outputs | 12G-SDI, HDMI |
| Operating Frequency | 4.9–6.0 GHz |
| Battery Mount | Gold Mount |
| Encryption | AES-256, RSA-1024 |
Frequently Asked Questions
- What transmitters are compatible with this receiver?
- Compatible with Ranger 4K transmitters and all Bolt 4K series transmitters over 5 GHz. Browse at creationnetworks.net.
- Is the panel antenna array included?
- Confirm accessory inclusions at time of purchase. The panel array is standard in the full Ranger 4K TX/RX set.
- What warranty applies?
- Teradek standard limited warranty. Contact Creation Networks for support.
